How to render Jira Work Items as List

[Boldizsár Vermes]

I am creating work items with automation to help the release process (trigger: version created) and one of the tasks is to prepare the smoke test of the release. I would like to display a list of issues to check for the given release, so I set up a JQL, inserted it as a link into the task's description.

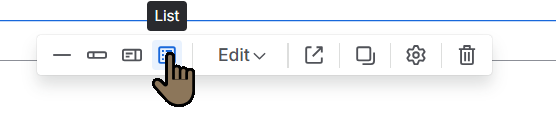

My problem is that I would like to render it as a list. I can do that by hand by clicking on the column icon among the display options.

But I cannot achieve the same with the automation, it can create the card view only.

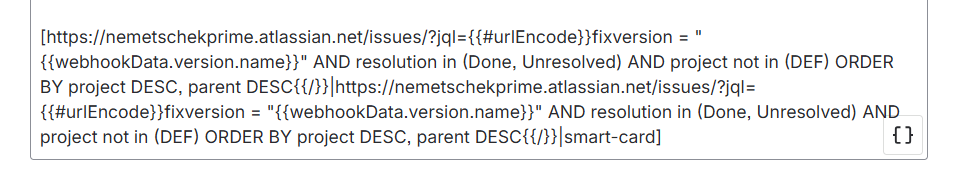

As I can see, the smart-card ending is used in both cases, so I don't know how to get the list view.

How could I create the list view with automation?

[Christos Markoulatos -Relational- · Accepted solution]

Hey @Boldizsár Vermes

Unfortunately, as far as i know automation doesn't have a direct way to force the list view when creating smart-cards with JQL links. The [URL|smart-card] syntax always defaults to card view.

I think u can only achieve this is with the Send web request action instead of the standard Edit issue action.  Using "type": "inlineCard" in the JSON payload.

{
"fields": {
"description": {
"type": "doc",
"version": 1,
"content": [
{
"type": "paragraph",
"content": [
{
"type": "inlineCard",
"attrs": {
"url": "YOUR_JQL_URL_HERE"
}
}
]
}
]
}
}
}

The only other option i can think is the manual approach, let automation create it as is, then manually click the column icon to switch to list view after the fact.

Hope this helps!

[Boldizsár Vermes]

@Christos Markoulatos -Relational- thanks for the quick reply. I tried this method without an automation first but got this error:

{"errorMessages":[],"errors":{"description":"Operation value must be a string"}}

[Christos Markoulatos -Relational-]

Hi @Boldizsár Vermes

I tried it with postman in my test instance and works.

try:

PUT https://nemetschekprime.atlassian.net/rest/api/3/issue/SSIM-100

body:

{
"fields": {
"description": {
"type": "doc",
"version": 1,
"content": [
{
"type": "paragraph",
"content": [
{
"type": "text",
"text": "Issues to check for this release:"
}
]
},
{
"type": "paragraph",
"content": [
{
"type": "inlineCard",
"attrs": {
"url": "https://nemetschekprime.atlassian.net/issues/?jql=project=SSIM"
}
}
]
}
]
}
}
}

[Boldizsár Vermes]

@Christos Markoulatos -Relational- thanks for all your hints!

The v2 API accepts only strings as description but the v3 works with the Atlassian Document Format. Using the (undocumented) blockCard content type, I was able to place a Jira Work Item List in list format with custom JQL and even custom column layout with this body:

{
  "fields": {
    "description": {
      "type": "doc",
      "version": 1,
      "content": [
        {
          "type": "paragraph",
          "content": [
            {
              "type": "text",
              "text": "Issues to check for this release:"
            }
          ]
        },
        {
          "type": "blockCard",
          "attrs": {
            "url": "https://nemetschekprime.atlassian.net/issues/?jql=fixversion%20%3D%20%22The%20Release%22%20AND%20resolution%20in%20%28Done%2C%20Unresolved%29%20ORDER%20BY%20project%20DESC%2C%20parent%20DESC",
            "datasource": {
              "id": "xxxx",
              "parameters": {
                "jql": "fixversion = \"The Release\" AND resolution in (Done, Unresolved) ORDER BY project DESC, parent DESC",
                "cloudId": "xxxx"
              },
              "views": [
                {
                  "type": "table",
                  "properties": {
                    "columns": [
                      {
                        "key": "issuetype"
                      },
                      {
                        "key": "key"
                      },
                      {
                        "key": "summary"
                      },
                      {
                        "key": "priority"
                      },
                      {
                        "key": "status"
                      },
                      {
                        "key": "resolution"
                      }
                    ]
                  }
                }
              ]
            }
          }
        }
      ]
    }
  }
}

The id and cloudId comes from a GET request to the same endpoint.

So, this would work well but requires an API key that I don't have. I tried the Advanced field of the Edit work item action in automations, but it gave me the same error than the v2 API.

I need to stick with the manual method and change the view after creating the tasks automatically.
