Automation Help: Transition Linked issue

[Caressa]

I'm attempting to create an automation that updates a linked issue when the trigger issue is updated to a specific status.

The issue is that this automation does not work. The linked issue is not being transitioned automatically.

Any ideas?

*This rule is not triggered by another rule

[Ste Wright · Accepted solution]

Hi @Caressa

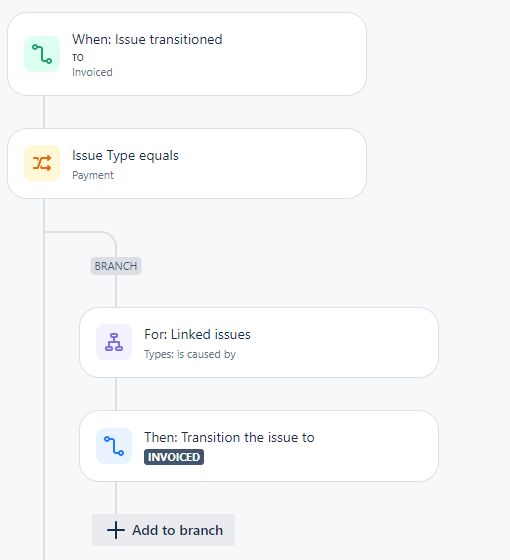

The rule looks correct, assuming the logic is...

• When an issue is transitioned to "Invoiced"
• And the issue Type is Payment
• Then locate all issues linked to the trigger issue in the link type "is caused by"
• And transition those issues to "Invoiced"

So the issue the action is taken against should be linked to the trigger issue using the "causes" link type.

---

Could we also see the audit log, to see what is happening when it attempts to execute?

Ste

[Caressa]

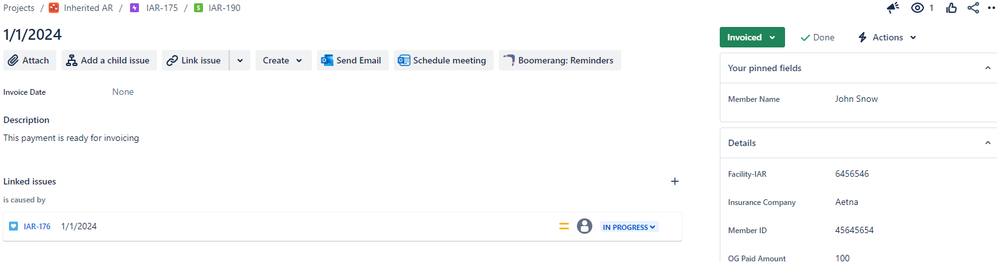

IAR-190 was transitioned to "Invoiced" so according to the automation I've built, IAR-176 should automatically be transitioned to "Invoiced" as well but it won't.

IAR-190 meets the automation condition of Issue Type equals payment

IAR-176 is linked as a "is caused by" link

[Ste Wright]

Hi @Caressa

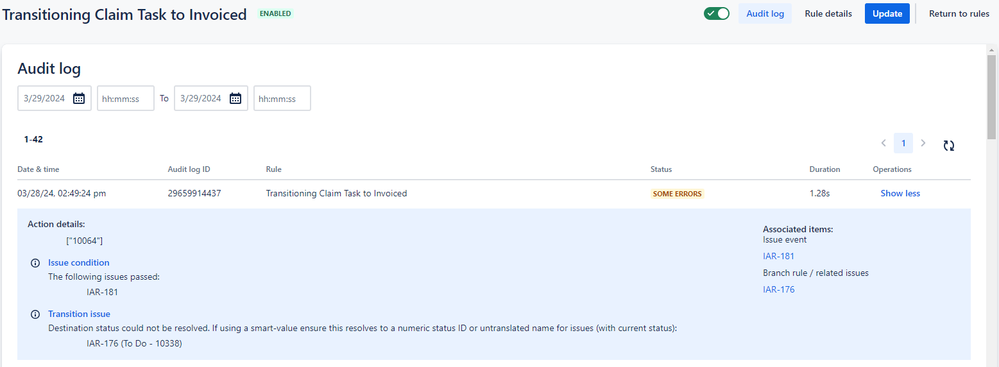

The error in the audit log states IAR-176 cannot move to the destination status, so either...

1. It's not a status on that issue type's workflow
2. There's no direct route to it (i.e a transition from the current status > Invoiced)
3. There's a condition, validator, or other workflow property stopping the transition from occurring via Automation

^ Could you check these 3 issues, and see if this helps clarify the problem?

Ste

[Caressa]

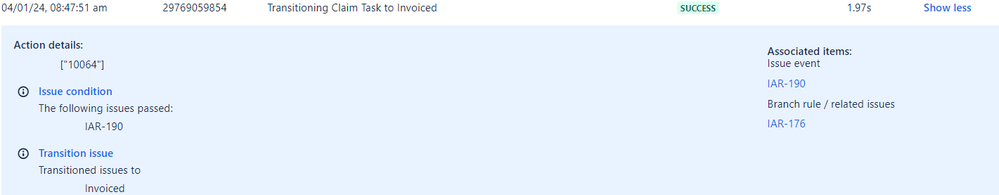

A user restriction in the status workflow was not allowing the automatic transition. I allowed the issues reporter (which is actually another jira automation) the capability to transition the IAR-176 linked status from In Progress to - Invoiced

[Ste Wright]

Awesome, glad it works!

Ste
