Restrict status a ticket can be moved into

[Deb Keene]

 Is it possible to restrict jira workflow status transitions? (for example)

A ticket in "to do" can only be moved to "WIP" or can be moved to "Rejected "

Once ticket is in status "WIP" it can only be moved to status "In QA- Model" or can be moved to "review in Progress" or can be moved to "done"

How do I set that up?

[Mikael Sandberg]

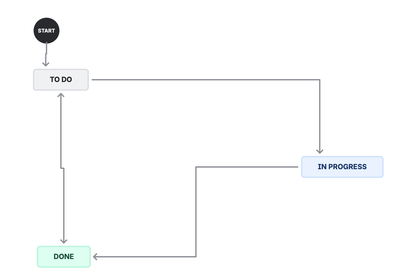

Yes, you can restrict the path a work item can move in the workflow. What you need to do is to set up transitions between the statuses instead of allowing any status to transition to a status (indicated by the All transition). Here is an example of a workflow that restrict the path, inn this example you can only move to In Progress from To Do and then to Done.

[Deb Keene]

thank you- I wish I could include a screenshot but it does not seem to allow me to do that- I tried to use snipping tool and paste and it does not work......

I'll do my best to explain-

It would be like the picture you included but there are 3 steps between to do and in progress.  There are multiple ways to get to in progress:

you can go from to do to step 1 to step 2 to step 3 to in progress

or you can go directly from to do to in progress

or you can go from to do to step 2 to step 3 to in progress

or you can go from to do to step 3 to in progress

etc

[Julia Watson-Clarke]

Hi @Deb Keene ,

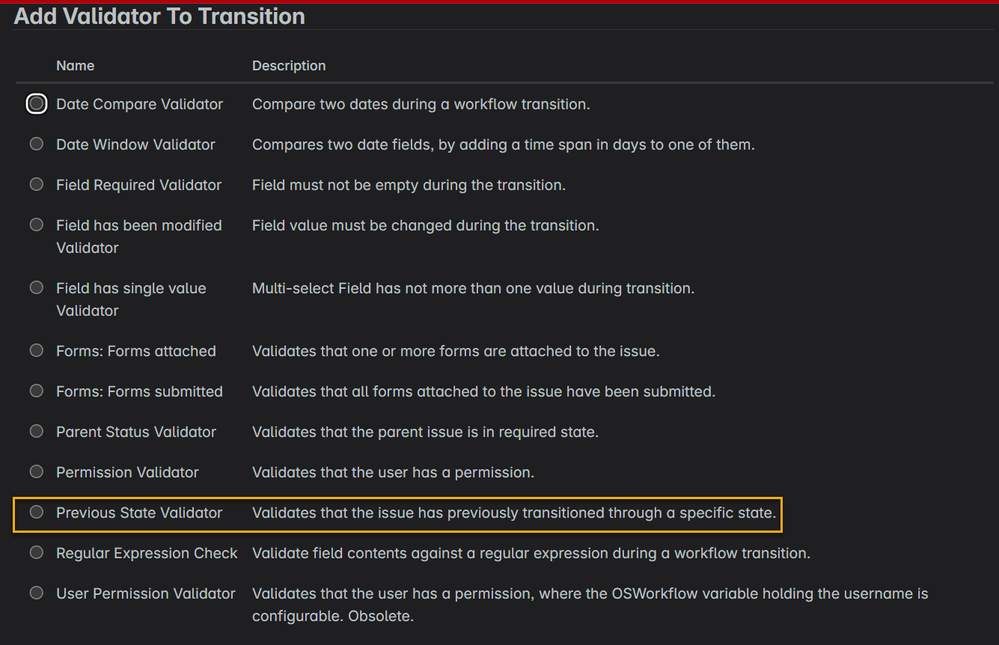

If I've understood what you're trying to achieve correctly, then you should be able to achieve this by adding a Validator to the transition in your workflow:

We use this to prevent tickets from being progressed until, for example, a particular set of fields have been completed.

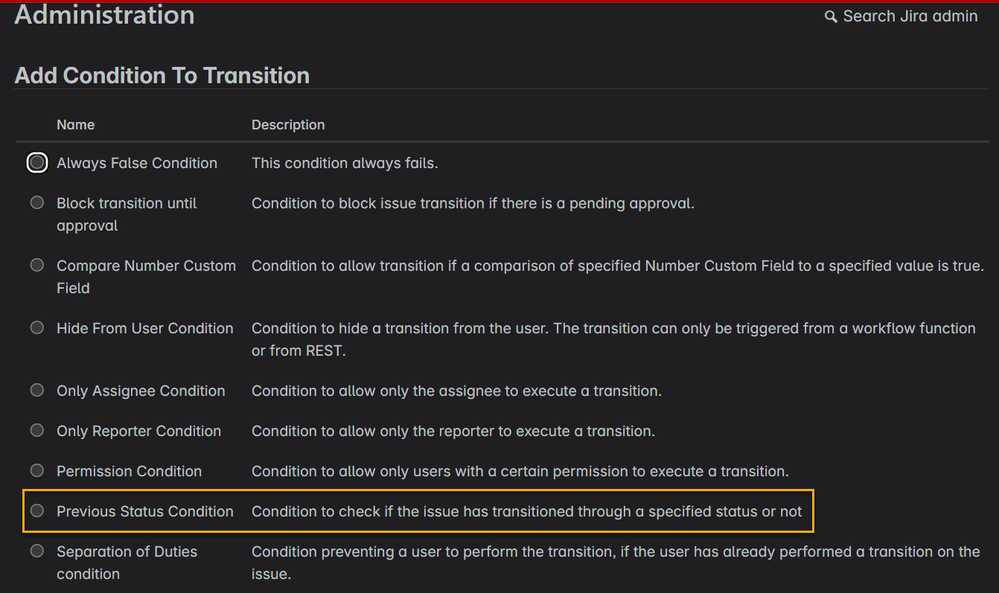

Alternatively, you could add a Condition to your workflow transition that prevents it from being progressed unless it has passed through a previous status:

Depending on your Jira permissions, you can add these options whilst editing a workflow.

Hope this helps,

Julia.

[Deb Keene]

thank you- I wish I could include a screenshot but it does not seem to allow me to do that- I tried to use snipping tool and paste and it does not work......

I'll do my best to explain-

It would be like the picture you included but there are 3 steps between to do and in progress.  There are multiple ways to get to in progress:

you can go from to do to step 1 to step 2 to step 3 to in progress

or you can go directly from to do to in progress

or you can go from to do to step 2 to step 3 to in progress

or you can go from to do to step 3 to in progress

etc
