OAuth on Forge App with Tempo.io

[Christian Seidel]

TLDR:
https://id.atlassian.com/outboundAuth/finish always returns 400 with "RequestValidationError: Schema validation error" body.

Story:

We are migrating from Jira Server to Jira Cloud and need to migrate an application we wrote for Jira Server to Jira Cloud Forge and want to use OAuth mechanism to create worklogs in Tempo from Forge App.

I installed Tempo Core as well as Tempo Timesheets on our instance longer time ago. Today i did update them to latest versions. (Tempo Core (latest (12.2.0)) Tempo Timesheets (latest (10.1.0)).

I created an OAuth2 application in Tempo with Redirect URL: https://id.atlassian.com/outboundAuth/finish

I setup our app (that was working with Bearer Tokens before for test purposes and now rewrote Auth to OAuth) with that (redacted) manifest:

modules:
  jira:globalPage:
    - key: abwesenheiten-global
      resource: main
      resolver:
        function: resolver
      title: Abwesenheiten
      icon: resource:main;icons/x.png
  function:
    - key: resolver
      handler: index.handler
      providers:
        auth:
          - tempo-oauth

resources:
  - key: main
    path: static/<redacted>/build

remotes:
  - key: jira-base
    baseUrl: https://<redacted>.atlassian.net
  - key: tempo-api
    baseUrl: https://api.eu.tempo.io

providers:
  auth:
    - key: tempo-oauth
      name: Tempo
      type: oauth2
      scopes:
        - worklogs:write
      clientId: <redacted>
      remotes:
        - tempo-api
      bearerMethod: authorization-header
      actions:
        authorization:
          remote: tempo-api
          path: /oauth/authorize/redirect
          queryParameters:
            jira_url: https://<redacted>.atlassian.net
        exchange:
          remote: tempo-api
          path: /oauth/token/
        refreshToken:
          remote: tempo-api
          path: /oauth/token/
        revokeToken:
          remote: tempo-api
          path: /oauth/revoke_token/
        retrieveProfile:
          remote: jira-base
          path: /rest/api/3/myself
          method: GET
          resolvers:
            id: accountId
            displayName: displayName

permissions:
  scopes:
    - storage:app
    - read:jira-user
    - read:jira-work
    - read:field:jira
    - read:field-configuration:jira
    - read:issue:jira
    - write:jira-work
    - write:issue:jira
    - delete:issue:jira
  external:
    fetch:
      backend:
        - remote: jira-base
        - remote: tempo-api

app:
  runtime:
    name: nodejs22.x
    memoryMB: 256
    architecture: arm64
  id: ari:cloud:ecosystem::app/<redacted>

I also set provider secret via forge providers configure -e development

There is also some Code to trigger consent screen:

resolver.define("checkTempoConnection", async (_req) => {
  const tempoProvider = api.asUser().withProvider("tempo-oauth", "tempo-api");
  const hasCredentials = await tempoProvider.hasCredentials();
  if (!hasCredentials) {
    await tempoProvider.requestCredentials();
  }
  return { connected: true };
});

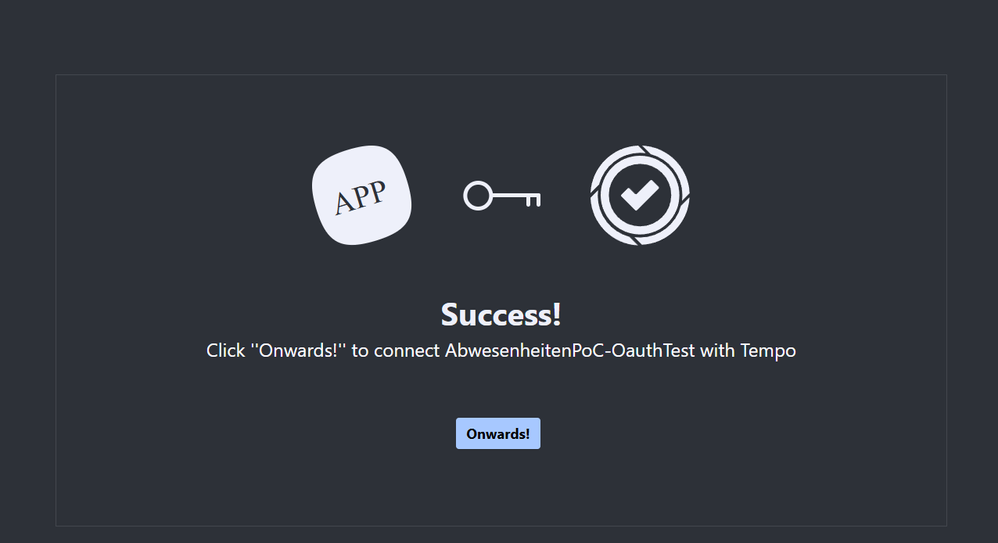

After klicking on Configure Access and doing oAuth dance i finally land on this

But after clicking on "Onwards!" i only get a 400 from https://id.atlassian.com/outboundAuth/finish with Message

RequestValidationError: Schema validation error

and i got no idea what is wrong.

[Jeroen Poismans]

Hi and welcome to the community!

Since this question is related to Forge and app development, have you tried raising this exact post in the Developer Community?

You might have better luck there:

https://community.developer.atlassian.com/
