Network Error | Raspberry Pi | Jira Standalone v.8.1.0

[Deleted user]

Hello everybody,

i have a problem with Jira Standalone v.8.1.0 on a Raspberry Pi.

The Portal is not accessible in the same network under the ip: "192.168.178.59" with the port: "1337" from another Computer.

Hardware:

• Raspberry Pi model 3 B+
• SOC: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC
• CPU: 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU.
• RAM: 1GB LPDDR2 SDRAM
• Ethernet: Gigabit Ethernet over USB 2.0 (max 300 Mbps)
• SWAP: 2GB

Network Settings:

• Network : 192.168.178.*
• Netmask 255.255.255.0
• Jira Server: 192.168.178.59:1337

Config: setenv.sh | add "-Djava.net.preferIPv4Stack=true'"

JVM_REQUIRED_ARGS='-Djava.awt.headless=true -Datlassian.standalone=JIRA -Dorg.apache.jasper.runtime.BodyContentImpl.LIMIT_BUFFER=true -Dmail.mime.decodeparameters=true -Dorg.dom4j.factory=com.atlassian.core.xml.InterningDocumentFactory -Djava.net.preferIPv4Stack=true'

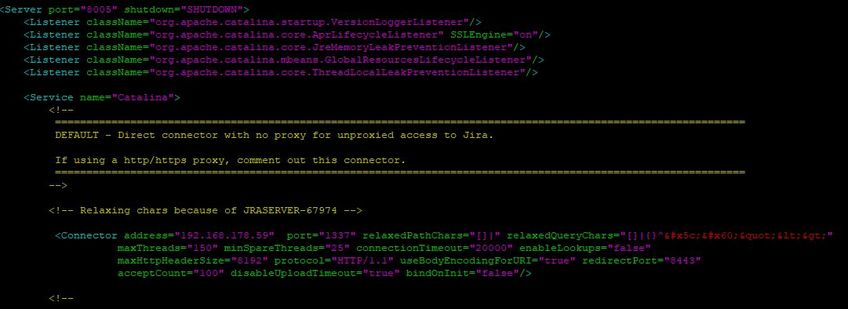

Config: Server.xml

<!--
==============================================================================================================
DEFAULT - Direct connector with no proxy for unproxied access to Jira.

If using a http/https proxy, comment out this connector.
==============================================================================================================
-->

<!-- Relaxing chars because of JRASERVER-67974 -->

<Connector address="192.168.178.59" port="1337" relaxedPathChars="[]|" relaxedQueryChars="[]|{}^&#x5c;&#x60;&quot;&lt;&gt;"
maxThreads="150" minSpareThreads="25" connectionTimeout="20000" enableLookups="false"
maxHttpHeaderSize="8192" protocol="HTTP/1.1" useBodyEncodingForURI="true" redirectPort="8443"
acceptCount="100" disableUploadTimeout="true" bindOnInit="false"/>

Server: Jira start

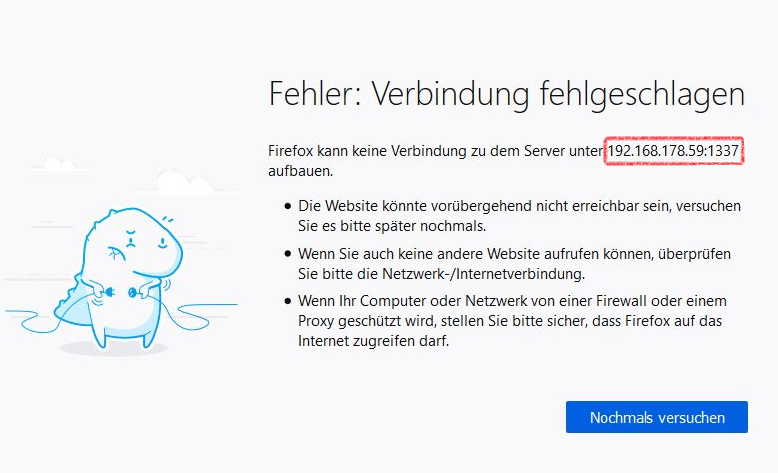

Portal: is not reachable in the same network

Does anyone have an idea or can help me?

Thanks by Nox

[Nic Brough -Adaptavist-]

With the small amount of memory available on a Pi, it's going to struggle to start and take a long time to do it.  I would not expect it to start listening for several minutes - did you give it plenty of time to get started?  What does the bottom of the log file say about whether it is running or not?
