Jira http -> https via Apache ??

[Vincent Bressler]

I have a Windows box running Apache 2.4 http + https

and also Jira running http (port 8080) on the same box.

My understanding is that I should be able to set up something like this:

Jira <-> Apache http <-> Apache https <-> Internet

To that end I have the following in my port 443 <VirtualHost> section:

###########################################################
# START Jira Proxy Configuration: #########################
###########################################################
# This does not seem to break anything, but it also does
# not connect to the Jira server.
# https://missionctrl.info/jira -> gives a 404 error
###########################################################
<Proxy *>
Order deny,allow
Allow from all
</Proxy>

SSLProxyEngine On
ProxyRequests Off
ProxyPreserveHost On
ProxyPass "/jira/" "http://missionctrl.info:8080/"
ProxyPassReverse "/jira/" "http://missionctrl.info:8080/"

RewriteEngine On
RewriteCond %{HTTPS} off
RewriteRule (.*) https://%{HTTP_HOST}%{REQUEST_URI}
###########################################################
# END Jira Proxy Configuration ############################
###########################################################

</VirtualHost>

All the appropriate modules are active. But I'm getting a 404 error when I try to go to http://missionctrl.info/jira

Can anyone help me with this?

Here's my software version:

Atlassian Jira Project Management Software (v7.13.1#713001-sha1:5e06076)

[Alexis Robert]

Hi @Vincent Bressler ,

I'm more familiar with Apache on Linux, but it should not be that different on Windows.

First thing : I don't think you need to go through Apache in HTTP. The usual architecture is :

Jira (listens on 8080) <-> Apache (listens on 443) <-> Internet.

I usually point to this guide by Atlassian to configure Apache : https://confluence.atlassian.com/adminjiraserver/integrating-jira-with-apache-using-ssl-938847754.html#IntegratingJirawithApacheusingSSL-Step2:ConfigureApacheHTTPServer

As your URL is formed like "https://mycompany.com/jira" you should also make sure that your Tomcat connector has the Context Path configured : https://confluence.atlassian.com/kb/proxying-atlassian-server-applications-with-apache-http-server-mod_proxy_http-806032611.html#ProxyingAtlassianserverapplicationswithApacheHTTPServer(mod_proxy_http)-2.Setthecontextpath

Let me know if this helps,

--Alexis

[Vincent Bressler]

Thanks for the help Alexis,

I now have this:

#</IfModule rewrite_module> - HAD to comment this out or Apache fails to start
###########################################################
# START Jira Proxy Configuration ############################
###########################################################
RewriteEngine On
RewriteCond %{HTTPS} off
RewriteRule (.*) https://%{HTTP_HOST}%{REQUEST_URI}
###########################################################
# END Jira Proxy Configuration ############################
###########################################################
#</IfModule>

............................................

# =================================================
# SSL/TLS settings
# =================================================
<IfModule ssl_module>

NameVirtualHost *:443

<VirtualHost *:443>

...............

###########################################################
# START Jira Proxy Configuration: #########################
###########################################################
# This does not seem to break anything, but it also does
# not connect to the Jira server.
# https://missionctrl.info/jira/ sort of works
# ... some weird errors seen in Jira
###########################################################
<Proxy *>
Order deny,allow
Allow from all
</Proxy>

SSLProxyEngine On
ProxyRequests Off
ProxyPreserveHost On
ProxyPass "/jira/" "http://missionctrl.info:8080/jira/"
ProxyPassReverse "/jira/" "http://missionctrl.info:8080/jira/"
###########################################################
# END Jira Proxy Configuration ############################
###########################################################

</VirtualHost>

http://missionctrl.info:8080/jira/ - does work

https://missionctrl.info/jira/ - sort of works but generates some errors - not really usable

[Vincent Bressler]

Hi Alexis,

It's working, except I'm still getting some items which appear like this in the browser when I'm using Jira:

http://www.missionctrl.info/jira/secure/projectavatar?pid=10000&avatarId=10501

should be https://

These show up as broken links, and prevent me from doing much of anything.

Thanks for your help,

Vince

[Vincent Bressler]

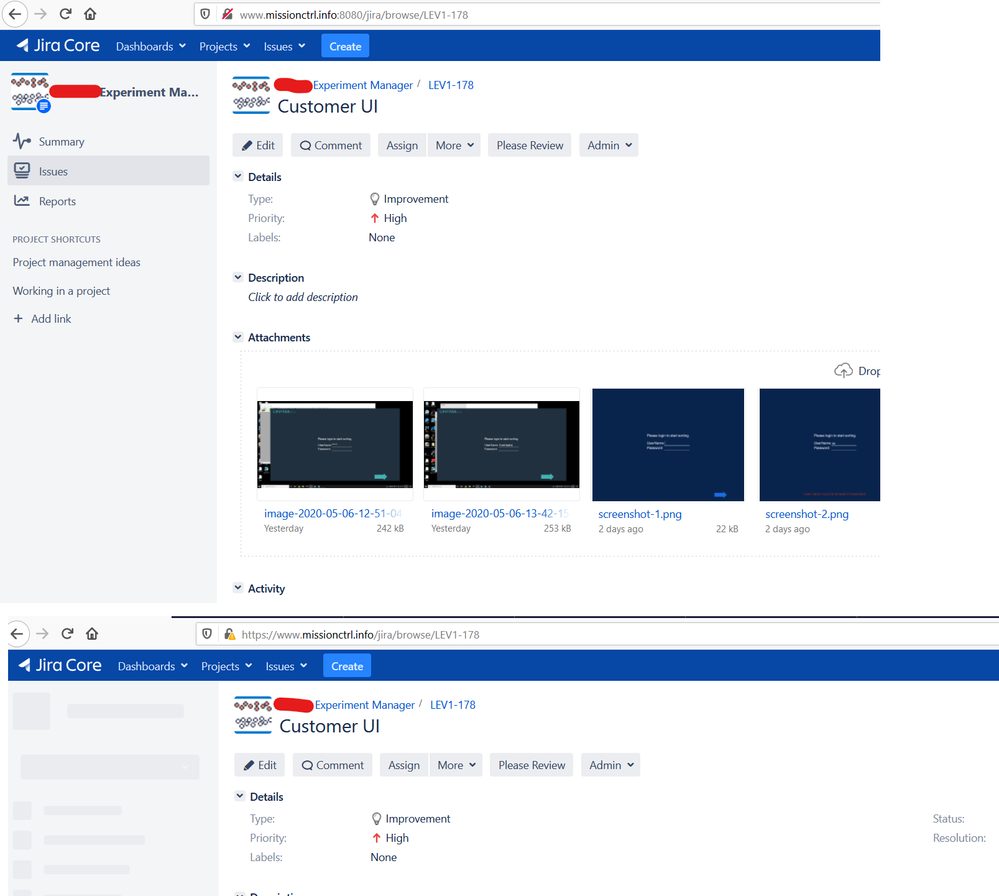

Some elements missing when https:

[Vincent Bressler]

The blank fields in Jira are from items which have URLs which look like this:

http://www.missionctrl.info/jira/secure/projectavatar?pid=10000&avatarId=10501

I tried to fix this in Apache by redirecting as follows:

<VirtualHost *:80>
ProxyRequests Off
ProxyPreserveHost On
ProxyPass "http://www.missionctrl.info/jira/" "http://missionctrl.info:8080/jira/"
ProxyPassReverse "http://www.missionctrl.info/jira/" "http://missionctrl.info:8080/jira/"
</VirtualHost>

But this does not fix the problem.

And neither does this:

<VirtualHost *:80>
ProxyRequests Off
ProxyPreserveHost On
ProxyPass "/jira/" "http://missionctrl.info:8080/jira/"
ProxyPassReverse "/jira/" "http://missionctrl.info:8080/jira/"
</VirtualHost>

[Alexis Robert]

Hi @Vincent Bressler ,

have you changed your BASE_URL setting to  https://missionctrl.info/jira ? Here's how to do it : https://confluence.atlassian.com/adminjiraserver/configuring-the-base-url-938847830.html.

[Vincent Bressler]

[Vincent Bressler]

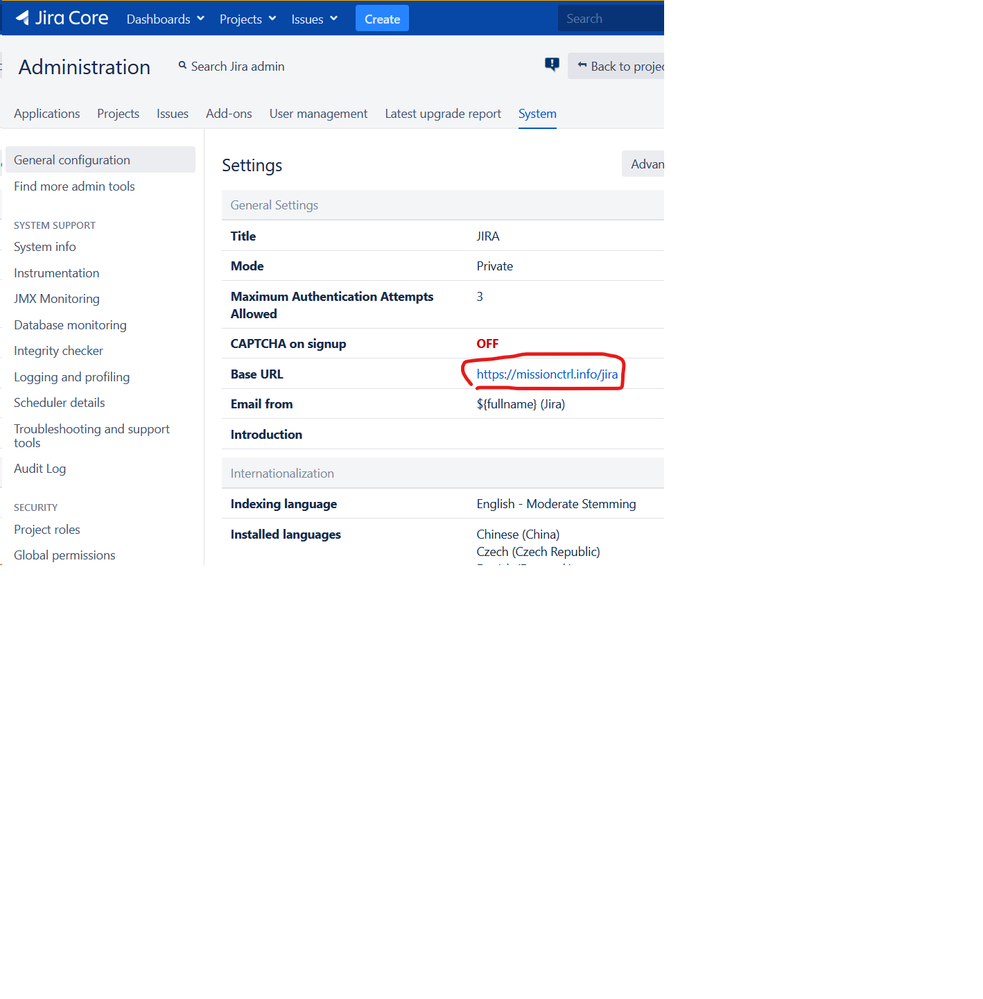

Base URL is as shown. I restarted the Jira service.

Sidebar elements still not showing up. That would be okay, but I also can't add a comment to an issue.

Interestingly... when I start with a URL like this:

http://www.missionctrl.info:8080/jira/

Everything continues to work fine.
