How to add Epic link to Subtask with new Parent field (that replaces epic link on story issue type)?

smitchell December 22, 2023

Atlassian recently (Dec. 2023) replaced the Epic Link field on all issue types with new field named Parent. Considering this change, how do I display the hyperlinked epic name to a story's subtask by default?



** Note: I am in a team-managed project **

2 answers

0 votes
Yavuz Selim Parmaksiz June 26, 2024

Hi all,

"Epic" can be directly selected in the "Parent" field, although Atlassian's documentation/training states it in the way @Fernando Eugênio da Silva quoted below.

You cannot associate an Epic 'Parent' with a Subtask because the hierarchy levels between them do not allow it. You will only be able to associate a Story, Task or any issuetype created in the standard hierarchy as the Parent of a Subtask.


Alternatively a new Epic Parent can be selected by "Change Parent" or "Move" to any subtask.
Thus, you can directly link a Subtask to an Epic. But I don't know if this is a bug or feature.

Kind regards, Yavuz

0 votes
Fernando Eugênio da Silva
Community Champion
December 27, 2023

@smitchell , Welcome to the Atlassian Community!



This change also aims to standardize the Jira hierarchies association model into a single field as a solution. It still does not go beyond the configured hierarchy.

By default, the Jira hierarchy is:

  • Epic
    • Story/Task
      • Subtask

You cannot associate an Epic 'Parent' with a Subtask because the hierarchy levels between them do not allow it. You will only be able to associate a Story, Task or any issuetype created in the standard hierarchy as the Parent of a Subtask.

If you want to view the 'Epic Key' within Subtask you will need to use some automation features and custom fields that will copy values, but this will only give you visibility, it will not assume hierarchies within Jira.



Hope this helps you.

smitchell December 27, 2023

Thank you for clarifying @Fernando Eugênio da Silva. How do I use automation features to display the parent story's epic on the story's subtask?

Fernando Eugênio da Silva
Community Champion
December 27, 2023

@smitchell

First of all: Create a custom field (short text) to consume your epic key.

After created this field, go to your project and create an automation rule like this one:

  • Trigger: Issue Created
  • Condition > Issue type > Equals > Sub-task
  • Action > Create a variable > Give a name for your variable and in smart value box add this: {{issue.parent.key}}

We are recording the parent key of the subtask, currently this is the task/story still. We gonna to use this variable in the next step.

  • Add a new action called: lookupIssues > for JQL space insert this value: key = {{your-variable}}

We are entering inside Story/Task (parent of subtask) to be able to get your parent (epic) details.

  • After this, you just need to use the variable: {{lookupIssues.parent}} to see your Epic key inside some field of your subtask.

This variable is the parent key from the Epic of the Task/Story also parent from your Subtask.

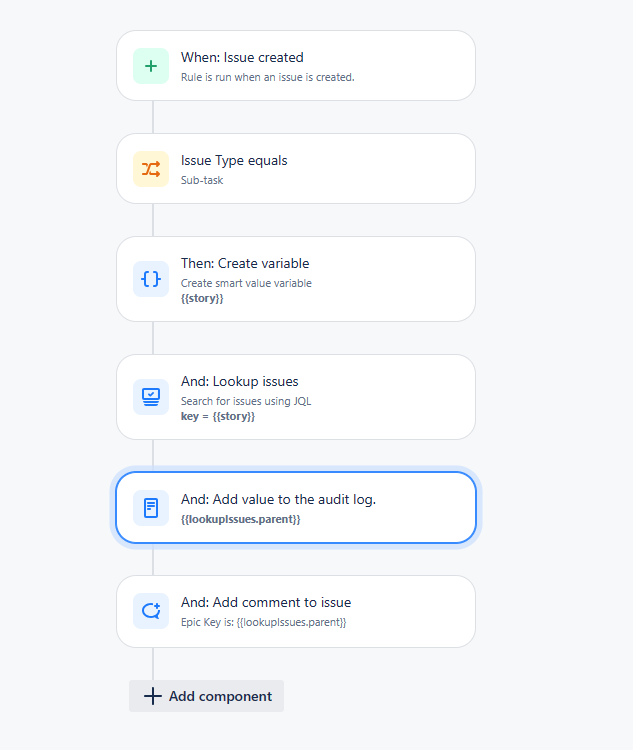

Use this smartvalue to fill some custom field or add a comment in your subtask. Here a print of my automation rule:


Hope this helps you :)

Like # people like this
smitchell December 27, 2023

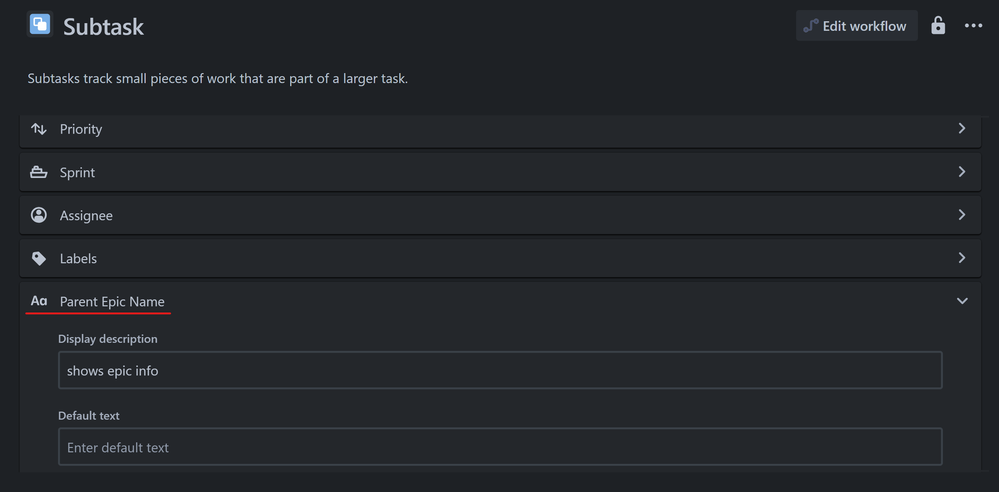

Thank you @Fernando Eugênio da Silva your solution worked in adding the epic key as as comment (super helpful)! Now, how do I add this info to the custom field "Parent Epic Name" I created to display on subtasks (screenshot B), as per your 1st instruction (screenshot A)?

Screenshot A:

create custom field instruction.png

Screenshot B:

Subtask fields screenshot.png

smitchell December 27, 2023

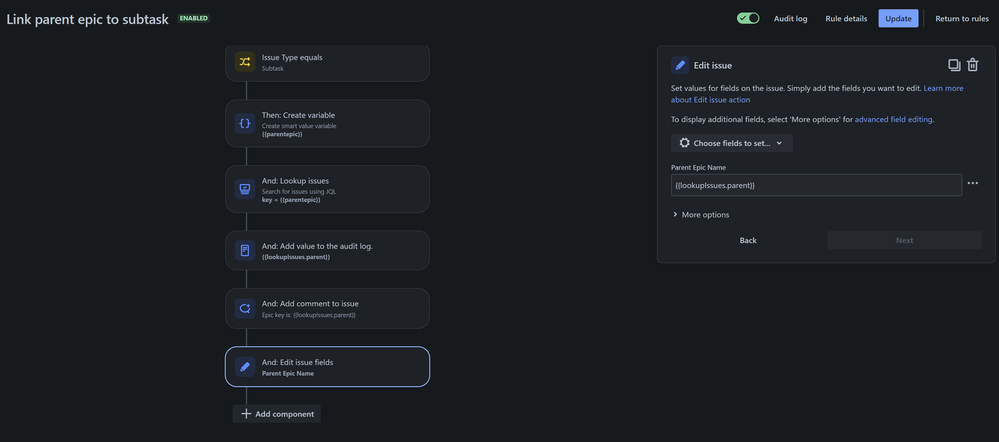

I went ahead and add this extra step to my newly automation rule from above, as seen in screenshot 1:

screenshot of automation rule.png

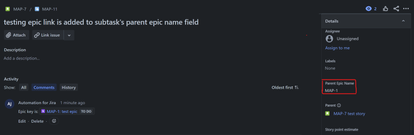

I can now see epic key in the Parent Epic Name field on my subtask but only the key (screenshot 2). Is there a way I can also show the epic name hyperlinked?

screenshot 2:

screenshot of subtask fields.png

Fernando Eugênio da Silva
Community Champion
December 27, 2023

@smitchell

If you want to show the hiperlink instead only the key, you can use this smartvalue: {{lookupIssues.parent.url}}

If you want to show the name of the epic instead only the key, you can use this smartvalue: {{lookupIssues.parent.summary}}

Like ivan.naumov likes this
ivan.naumov
I'm New Here
I'm New Here
Those new to the Atlassian Community have posted less than three times. Give them a warm welcome!
April 21, 2024

@Fernando Eugênio da Silva

Dear Fernando,

thanks for your instructions. I've realized that for sub-tasks, but I have 2 questions:

1. How to do it for Stories as well? I add this issue type for step 2, but when I create the Story, this filed (with link to Parent) is still empty.

2. How to apply it for stories/sub-tasks that already have been created before the automation rule to fill in this empty fields?
