Formula Field: How do I create a formula using custom fields?

[Moritz Lindenau]

I would like to create a custom field of type “Formula” in a team-managed project. The formula is simple:

{issue.customfield_19054} * {issue.customfield_19055}

Both custom fields are of type “Number”. However, when I try to enter the formula, the fields are always highlighted in red and cannot be saved. I’ve tried various variants, including:

• {issue.customfield_19054} * {issue.customfield_19055}
• {{issue.customfield_19054}} * {{issue.customfield_19055}}
• {customfield_19054} * {customfield_19055}
• {Probability} * {Consequence}

How do I reference custom fields correctly in a formula?

[Chris Hampshire]

Hi @Moritz Lindenau

As @Marc -Devoteam- an automation will be needed to get to where you want to be

You will first need to create a new custom field for the calculation to be stored in

Then, create a new JIRA automation that will update the new custom field. When setting the content in that field, try the following formula

{{#=}}{issue.customfield_19054}}*{{issue.customfield_19055}}{{/}}

If this doesnt work, you can also try

{{#=}}{issue.customfield_19054|0}}*{{issue.customfield_19055|0}}{{/}}

[Moritz Lindenau]

Thank you, that would work. But I would like to use the new custom formular field since this would be much faster implemented and more usable (field is already locked for instance).

[Chris Hampshire]

Thank you. Instead of selecting a formula, can you try an automation rule where the THEN Edit Work Item

In choose field to set, find your new custom field
In the box that appears, paste
the formulas I tried above

I believe what this does is input the value as if it were a formula but its not set as a formula field

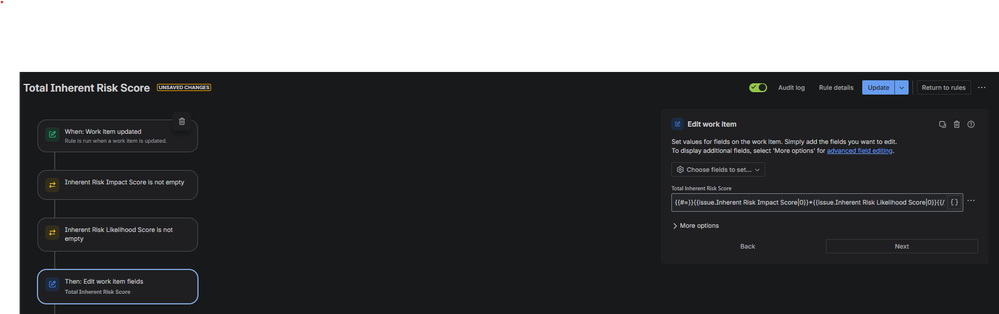

Ive attached a screenshot of a similar automation I have built which may help

[Marc -Devoteam-]

Hi @Moritz Lindenau

You need to create an automation rule to execute this calculation for you.

You also need a new field where the outcome of the calculation from the automation rule can be stored.

Jira automation math functions

[Moritz Lindenau]

Do you have an example for this automation at hand?

And why can't I use the new Formular custom field?

[Marc -Devoteam-]

Hi @Moritz Lindenau

I checked all instances I can use and the only custom formula field is only available in Jira Product discovery.

Based on this article, indeed formula fields should be coming to Jira, but based on the comments on the article it hasn't been rolled out.

https://community.atlassian.com/forums/Jira-articles/New-Feature-Formula-Custom-Fields-in-Jira-Cloud/ba-p/3163834

[Moritz Lindenau]

First of all, thank you for you hint to the automation. That is a valid workaround which works for me.

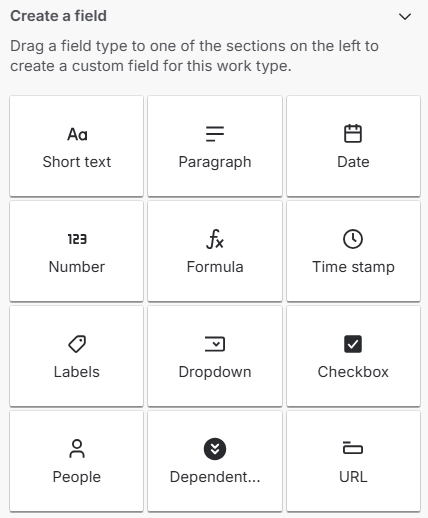

The formular field is already available in our space:

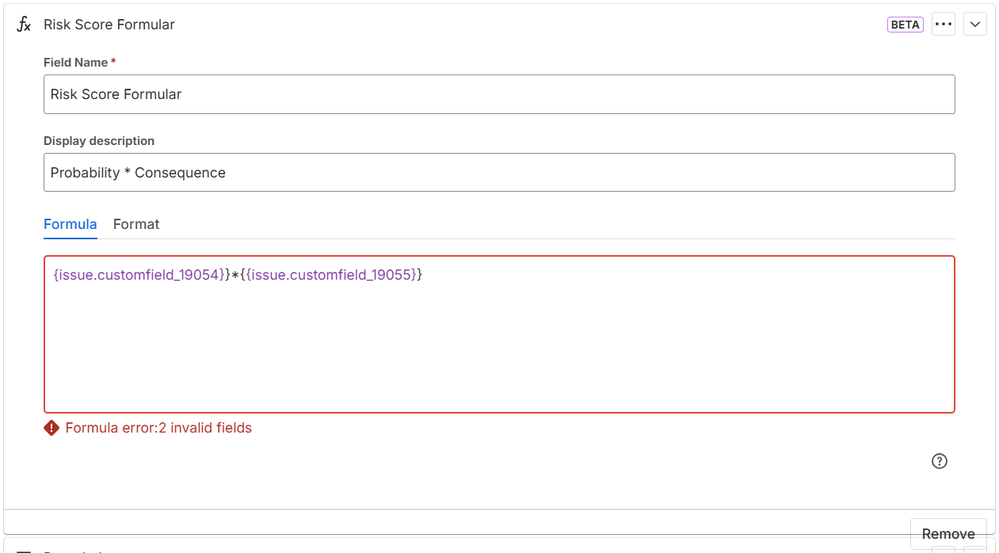

But when I try to use a custom number field for a calculation it does not work:

[Chris Hampshire]

Have you tried this formula?

{{#=}}{issue.customfield_19054}}*{{issue.customfield_19055}}{{/}}

[Moritz Lindenau]

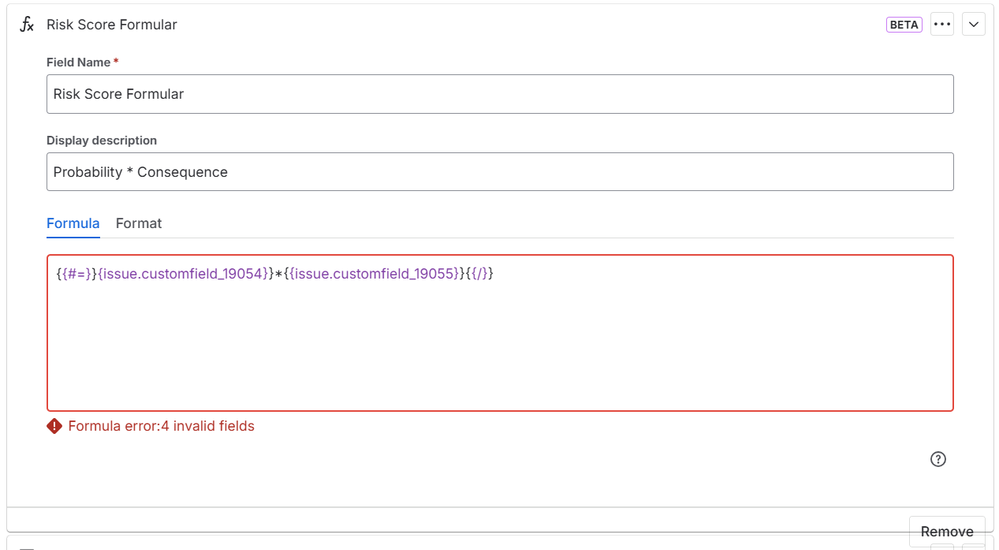

Yes, similar outcome:

[Marc -Devoteam-]

Hi @Moritz Lindenau

This is related to Team managed projects and the feature is still in Beta.

https://support.atlassian.com/jira-cloud-administration/docs/create-a-formula-field/

Also based on the documentation, you van only use fields create in your Team managed project, so you can't use {{issue.customfield_xxx}}

If you have created fields A and B in your Team managed space, use {a} * {b} in the formula field.

[Moritz Lindenau]

I am using it in a team-managed space and I created the fields there. {a} * {b} does not work either.

[Moritz Lindenau]

It works now. I have to type in customfield_19... then the fields are shown. When chossing them from the typeahead, it works.
