Create and test Jira automation rule for closing tasks

[Sierra Lindamood]

I want to make it so that once all 8 linked tasks are closed, then for the primary linked ticket: The assignee is set back to the reported. The status is set to closed. It automatically adds a comment to the original ticket

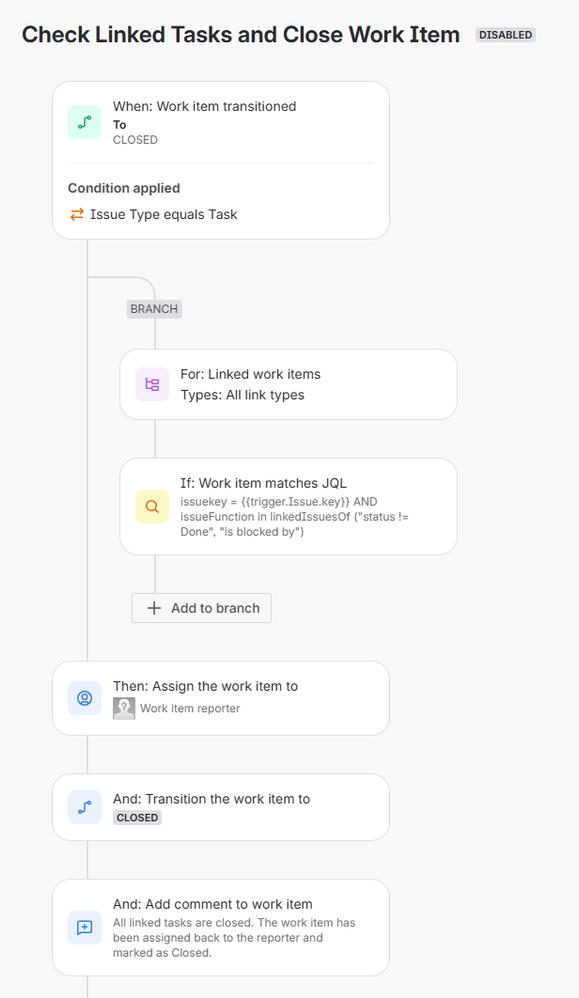

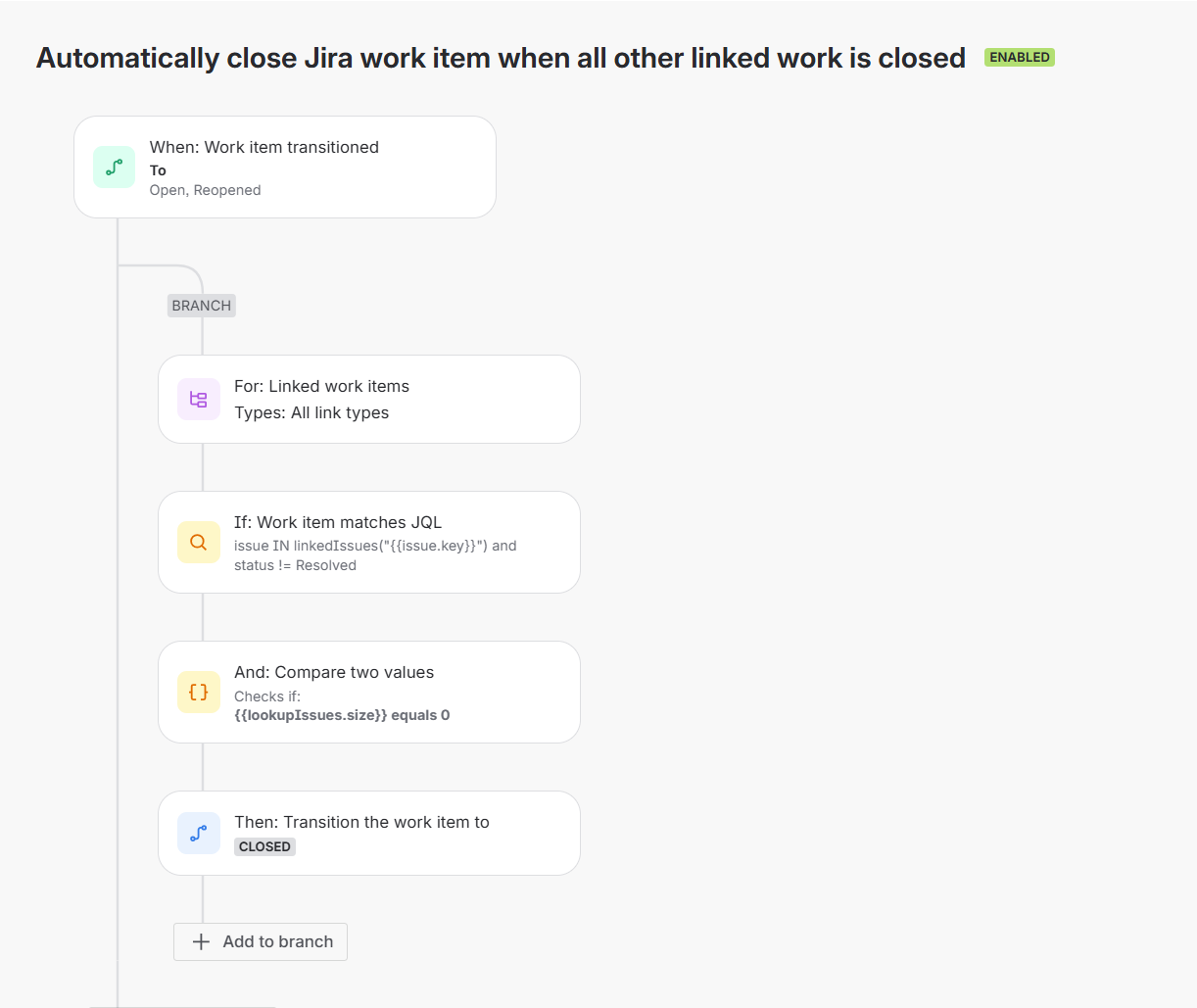

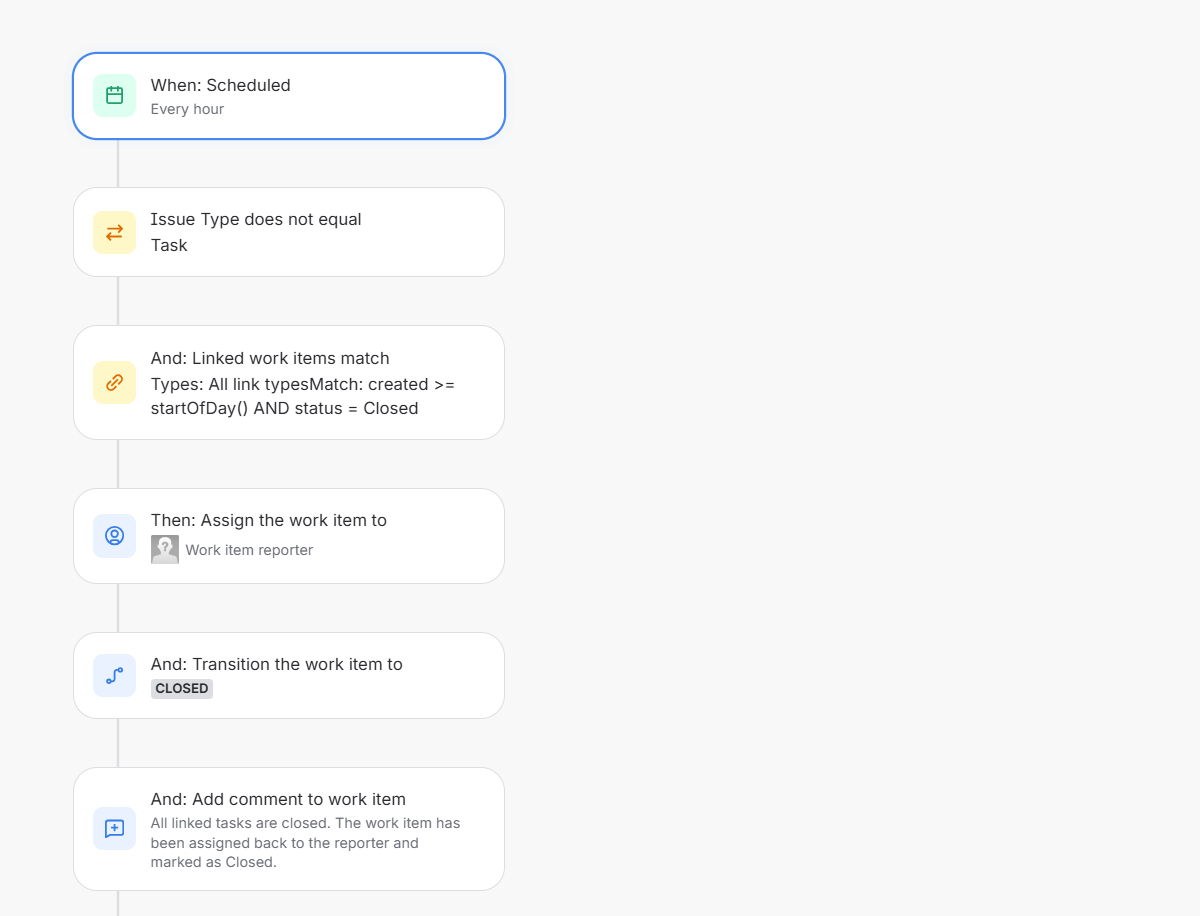

These are automation rules that I tried to accomplish this, I know I'm off track here. Any commentary is appreciated.

(Other issue types are the primary ticket, any linked item is a task issue type)

[Bill Sheboy]

Hi @Sierra Lindamood -- Welcome to the Atlassian Community!

Would you please clarify your scenario?  Is it one of these:

1. GIVEN a work item which has 8 other Tasks linked to it, WHEN all 8 Tasks are closed, THEN...
2. GIVEN a work item with a linked Task, AND that linked Task has other linked Tasks in a chain of 8 work items, WHEN all Tasks in the chain are closed, THEN...
3. something else

The first one can be solved using the Related Issues Condition, although I find that one a bit unpredictable in results / behavior.  Instead, try using the Lookup Work Items action with a JQL expression to find the linked Tasks for better control over the logic.

The second one cannot be easily solved with automation rules due to how branches work, although it is possible when there is a specific known number of linked work items.

Kind regards,
Bill

[Sierra Lindamood]

Hi @Bill Sheboy

It's 1.) GIVEN a work item, which has 8 other Tasks linked to it, and WHEN all 8 Tasks are closed THEN I need that work item to be auto closed, assignee set back to reporter, add my custom comment.

Would my Lookup Work Items action with the JQL expression need to essentially say Any Issue Type that has Task Type Linked Items and ALL Linked Items are closed...THEN....

[Sierra Lindamood]

[Bill Sheboy]

Hi @Sierra Lindamood -- No, you could use the JQL needed to select only your specific ones.  For example:

• action: lookup work items, with JQL of

project = yourProject
 AND issue IN linkedIssues("{{triggerIssue.key}}")
 AND issueType = Task
 AND statusCategory != Done

• smart values condition
  • first value: {{lookupIssues.size|0}}
  • condition: equals
  • second value: 0
• ...continue to update the trigger work item

Please note the JQL inverts the condition to check for any not completed ones, and then tests that the count found is 0.

[Sierra Lindamood]

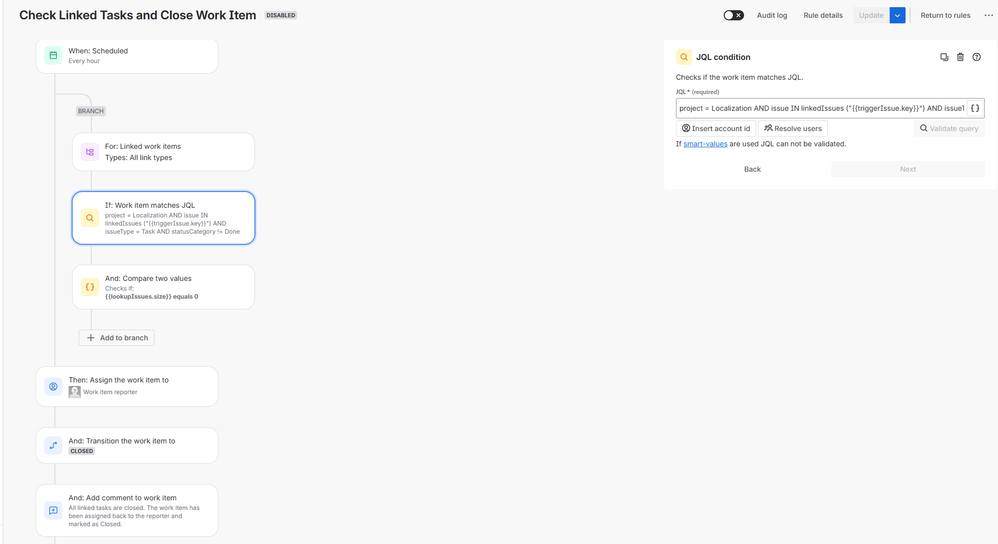

Is it to be expected that the JQL cannot be validated? When I put this jql in a regular search this part below, gives me this message:

JQL error Issue '{{triggerIssue.key}}' could not be found in function 'linkedIssues'.

("{{triggerIssue.key}}")

[Corinne Guibert]

I'm

When do you want the rules to be executed :  when the last subtask is closed ? Or doing a hourly check is enough ?

your first automation runs when there is a transition to Open or Reopen. It should be Done (or whatever closing status your are using)

What is your selection criteria on the scheduled automation ?

[Sierra Lindamood]

What needs to happen is when the last linked item is closed, that then closes the primary ticket that all of the linked items are connected by.

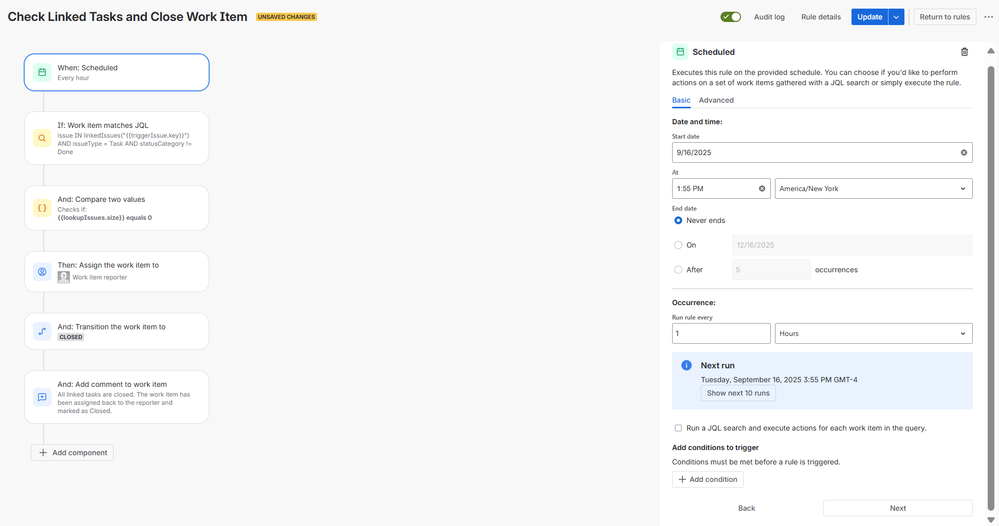

The scheduled aspect was a way I thought I may have to do it, to have the system check that all the linked items are closed to then trigger the rest of what needs accomplished.

[Sierra Lindamood]
