Avoiding Pitfalls: A Guide to Smooth Migration to Enhanced JQL APIs - Blog Post

[#1]

G’day Atlassian community!

On Oct 31, 2024, we announced the deprecation of several widely used REST APIs in JIRA, namely:

• GET /rest/api/2|3|latest/search - Search for issues using JQL (GET)

• POST /rest/api/2|3|latest/search - Search for issues using JQL (POST)

• POST /rest/api/2|3|latest/search/id - Search issue IDs using JQL

• POST /rest/api/2|3|latest/expression/eval - Evaluate Jira expression

You can find additional information about the deprecation here. Click “More details” to see the complete migration guide if necessary. In recent months, we have identified common problems related to migrating to the new enhanced APIs. With this blog post, we’re aiming to share common misconceptions about the new APIs and ways to avoid these challenges.

Read on for more details.

Performance Impacts of Sequential Iteration

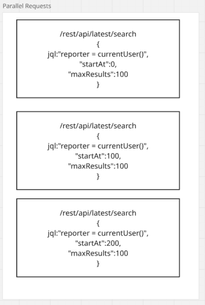

A common challenge that teams face after migrating to the Enhanced JQL API is performance-related. The earlier APIs allowed for random access when searching for issues, which meant that teams could pull multiple issues through parallel requests all at once. However, the Enhanced JQL API changes things up a bit with its pagination mechanism, requiring a more sequential approach. To get results from the next page, you'll need to grab the pagination token from the current page.

The below table illustrates how the new search engine, which supports the Enhanced Search APIs, greatly outperforms the earlier architecture in head to head comparisons. That said, we understand that performance might take a hit if your team was previously using parallel calls.

Search service	P90 Elapsed Time (ms)	P99 Elapsed Time (ms)
OLD	209.363	1502.477
NEW	144.281	357.715

To reach best throughput in data retrieval via Enhanced Search, we recommend splitting the retrieval into two separate parts. This is slightly more complicated solution, however it yields the best performance outcome. The process would look like this:

1. To begin, sequentially gather all relevant issue IDs. Here are a few essential points to consider for ensuring optimal performance:

   1. To boost performance and keep latency low, it's best to skip specifying any fields or expands. By doing this, Jira will just return ids which offers bigger batch sizes.

   2. Utilize maximum offered batch size and ask for 5K issues in each call

2. Once you have gathered all the IDs that match your query, organize them into batches of 100 within your application.

3. Call Bulk Fetch Issues API with multiple requests in parallel for each batch to get all issue details you need.

Other considerations

For certain applications, utilizing the Enhanced Search or Expression Evaluate endpoints may be more appropriate than the bulk fetch API. You can achieve equivalent results by supplying the JQL formatted as issue in (1001, …1100) to these endpoints.

Example pseudo-code that visualizes the pattern:

import concurrent.futures
import json

import requests
from requests.auth import HTTPBasicAuth

enhanced_search_url = "https://JIRA_CLOUD/rest/api/3/search/jql"
bulk_fetch_url = "https://JIRA_CLOUD/rest/api/3/issue/bulkfetch"

auth = HTTPBasicAuth("Email", "Token")
headers = {
    "Accept": "application/json",
    "Content-Type": "application/json"
}

def enhanced_search(next_page_token=None):
    payload = json.dumps({
        "jql": "created >= -2d",
        "maxResults": 5000,
        "nextPageToken": next_page_token
    })
    response = requests.request(
        "POST",
        enhanced_search_url,
        data=payload,
        headers=headers,
        auth=auth
    )
    return response

def bulk_fetch(field, issue_ids):
    payload = json.dumps({
        "fields": [
            field
        ],
        "issueIdsOrKeys": issue_ids,
    })

    response = requests.request(
        "POST",
        bulk_fetch_url,
        data=payload,
        headers=headers,
        auth=auth
    )
    return response

def get_all_matching_issues():
    nextPageToken = None
    issueIds = []
    while True:
        response = enhanced_search(nextPageToken)
        data = json.loads(response.text)
        for issue in data["issues"]:
            issueIds.append(issue["id"])
        if "nextPageToken" in data:
            nextPageToken = data["nextPageToken"]
        else:
            break
    return issueIds

def partition_list(lst, batch_size):
    for i in range(0, len(lst), batch_size):
        yield lst[i:i + batch_size]

def get_issue_details(field, batch):
    response = bulk_fetch(field, batch)
    return json.loads(response.text)

def fetch_issues(field):
    issue_ids = get_all_matching_issues()
    batches = list(partition_list(issue_ids, 100))
    issues = []
    with concurrent.futures.ThreadPoolExecutor(10) as executor:
        futures = [executor.submit(get_issue_details, field, batch) for batch in batches]
        for future in concurrent.futures.as_completed(futures):
            issues.append(future.result())
    return issues

results = fetch_issues("summary")

Showing list of issues with Pagination component

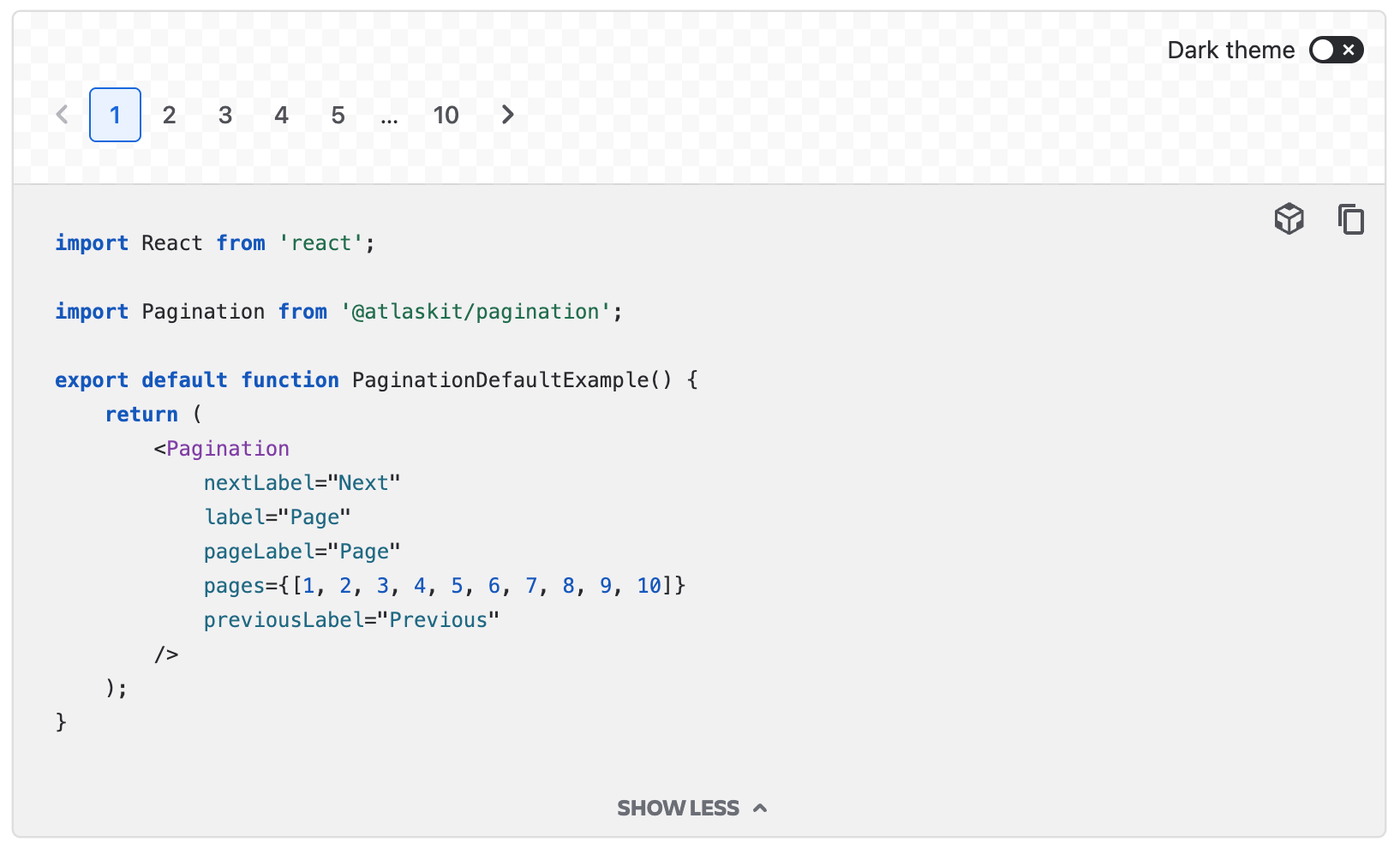

Many teams are showing issues on the UI with AtlasKit Pagination component that includes:

• pages user may navigate to

• total count of matching issues

• and issue details

The Enhanced Search API has limitations, as it does not return all necessary information in a single call and does not support random page access. This makes it challenging to effectively power UI components without making multiple additional request calls.

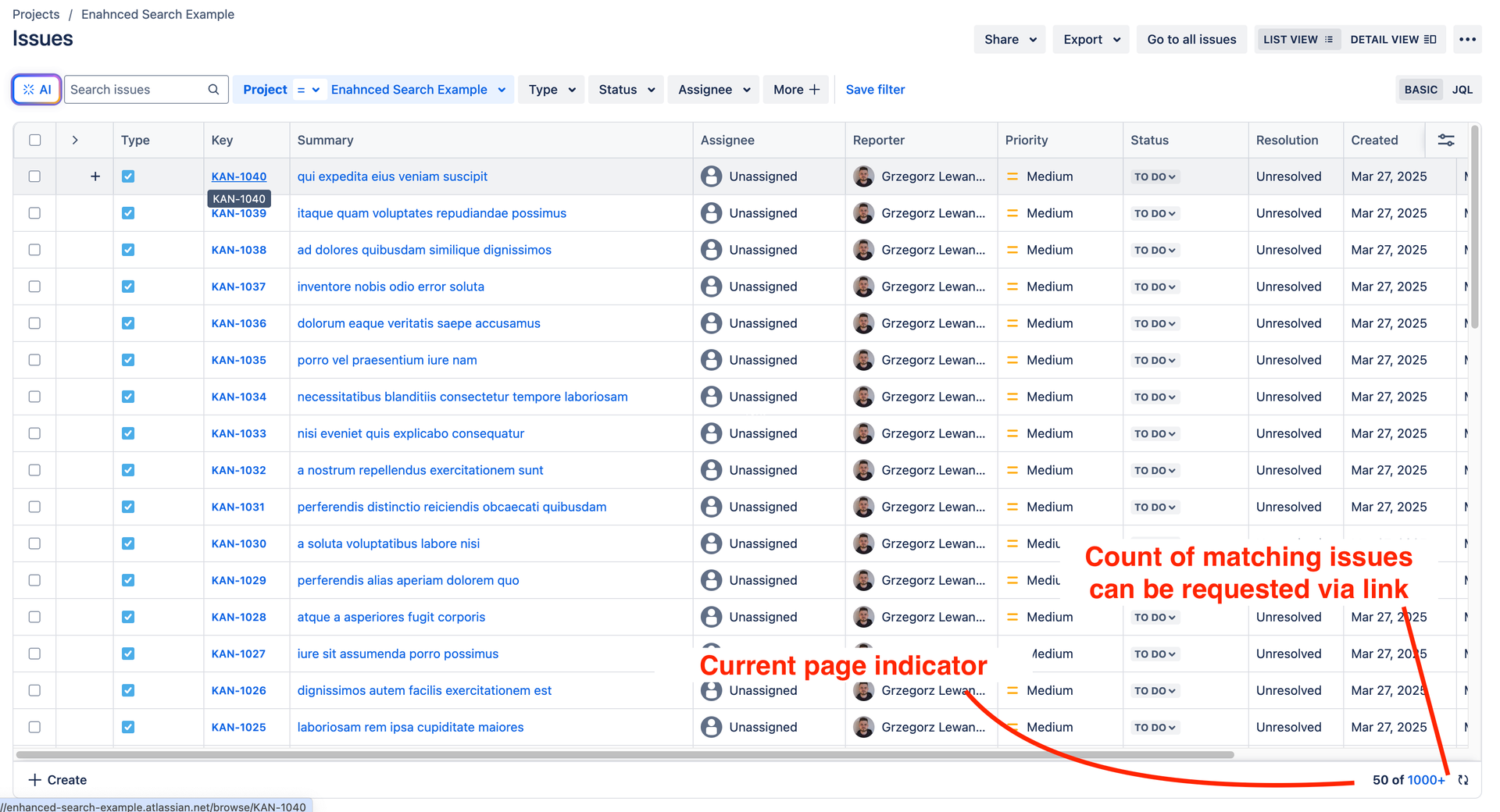

We noticed some common challenges in the Jira user experience and made a few updates to bring it in line with modern cloud technologies. Here’s a quick rundown of the key changes in how Jira displays issues these days:

• We’ve swapped out the old random page pagination for a smooth live scrolling experience.

• The next batch of issues loads automatically as you scroll down.

• While the total number of matching issues might seem a bit unclear, users can easily request the exact count through a handy link.

Mastering JQL: Essential Tips for Efficient Querying

In addition to the two common problems, there are several key considerations to keep in mind for mastering JQL performance:

1. Utilize the most restrictive JQL possible.

2. Utilize project-scoped JQLs! We call it project-scoped when we can confidently say that all issues matching the JQL come from a specific project or a defined set of projects. For example,

   1. project = TEST and issueType = Bug is project scoped

   2. project = TEST or issueType = Bug is not because of OR condition

   3. updated > -30d is not project scoped as it doesn't use required clauses at all

   We recognize project and key clauses to determine if JQL is project scoped.

3. Don’t specify fields that you don’t need.

4. Consider utilizing the bulk fetch API rather than relying on the plain key in (EXAMPLE-1, EXAMPLE-2) to retrieve issues.

5. Search will perform better when issue ids are used. This is common case when JQL are built with issue keys, e.g. key in (EXAMPLE-1, EXAMPLE-2) and statusCategory !=Done. If you have access to issue ids, prefer using them, e.g. key in (10001, 10002) and statusCategory !=Done

Plan Your Migration Now

If you haven't started planning your migration yet, now is the time to act. The deprecation of old endpoints will conclude on April 30, 2025. After this date, these endpoints may cease to function. If you have any questions or suggestions, raise them in CDAC forum, we’re happy to help.

[James Rickards _Spark-Nel_]

Thanks for the useful article.

I can see you've marked the API as deprecated in your API documentation. It would be very useful to link back to this page from the API documentation so others who find the API doco can understand the reason for deprecation.  As it stands it is difficult to know why an API was deprecated or which API to use instead.

Please also include dates on the deprecation notification in the API documentation so it is clear when we will no longer be able to use them.

[Burnette_ Nicholas]

Is there an easy way to get a total count or page count from a jql search?

I'm migrating from the deprecated API and now using:

/rest/api/3/search/jql

jql: 'project = XXXX AND type = Epic'

*EDIT*
I found the answer on my own and is in the documentation:

/rest/api/3/search/approximate-count

Do a POST call with jql: "your-query" as the payload and you get a count returned. It's bonkers that this is not just part of the response since 100% of the time this will be asked for. Documentation needs to point to this endpoint in the GET issues by jql.

*EDIT*

All that is returned is issues and nextPageToken, which means I have to use a while nextPageToken loop. This is a horrible design for many reasons, but for starters, I have no way of knowing the progress of my while loop which means I can't provide feedback to myself in the form of a progress bar or time estimate or programmatically inform a watch dog of exit conditions.

The example you show to get total count would be acceptable if it didn't use a frontend graphql endpoint to get an operation id.

From a UX perspective, this migration is a trainwreck and complete waste of time. You've basically offloaded your work onto us which requires a complete rewrite just to bump version 2 to version 3 of your API.
