Cannot set up Approvals (option does not show in diagram)

[Jason Williams]

I'm currently using the free Cloud service, and want to set up Approvers for my workflows.

I have researched the documentation on the site (in particular, this, this and this)

I cannot get the option to show up in the diagram options when clicking on a status with more than one transition (as shown on the first link).

I have configured Jira as a Scrum set up - not sure if that's having an impact on the above changes.

I am a full administrator (as I set Jira up).

[Carlos Faddul]

Hi @Jason Williams

Do you published the workflow in a active project ?

You can add approvals in two ways

1 - Editing a active workflow then add the approvals then publish they again ( i think it's easier)

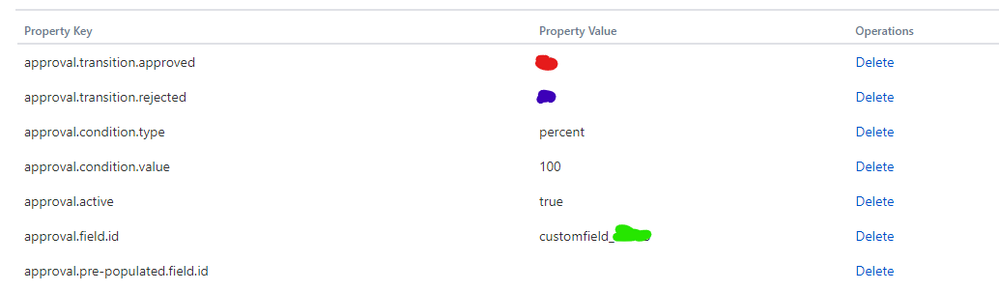

2 - You can add approvals in status using properties in the status, as shown below ( i think it's more dificulty this way)

I hope I helped you.

If this post was helpful, mark it as Accepted solutions, so you can help others who may have the same difficulties.

If your question has not been resolved, please post again with more details.
