Printing Description Table in Automated Email

[Matheus Takeshi Yano Tako]

Hello Everyone,

I'm new to Jira.

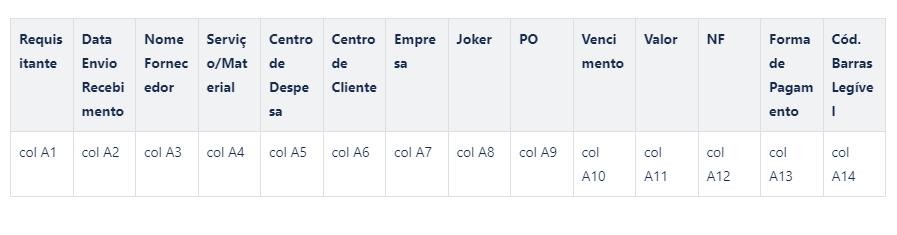

I've created a Jira Automation to send a email to a sprecific group as I change the status of the issue from Pending to In Progress. The email worked but in these issues I got a table as the following image.

I would like this table to be printed in the email the same way I see in the description issue. But all I get is this:

This is what I've tried to do to print the table in the email:

<table>
<tbody>
<tr>
<th>Description</th>
</tr>
{{#issues}}
<tr>
<td>{{description}}</td>
</tr>
{{/}}
</tbody>
</table>

Can anyone help me please need this ASAP.

Thanks in Advance.

[Murat Seven · Accepted solution]

Hi @Matheus Takeshi Yano Tako and Welcome to the Atlassian Community!

Can you adding .html after description in smart value. {{issue.description.html}}

In your case it will look like:

<table>
<tbody>
<tr>
<th>Description</th>
</tr>
{{#issues}}
<tr>
<td>{{description.html}}</td>
</tr>
{{/}}
</tbody>
</table>

Hope this helps. If the issue is resolved, you can vote and accepted for this comment.

Best,

Murat Seven

[Matheus Takeshi Yano Tako]

Hi Murat, how are you doing?

This has helped me. Look at the test I've just tried minutes ago:

It worked but I would like to format it to look more like a table. Is it possible to add a margin to every column and line?

By the way thanks for responding in such short notice.

Best Regars,

Matheus.

[Murat Seven]

thank you and how are you doing?

You're welcome. I'm glad I could help.

Normally, style expressions like "margin" can be used in smart values. However, I think we cannot use this within a table. You can try conveying this with a few examples and testing.

This code will not provide what you're looking for, but you can examine it for the sake of an example;

<table>
<tbody>
<tr>
<th>Description</th>
</tr>
{{#issues}}
<tr>
<td style="margin: 70px; border: 1px solid #4CAF50">{{description.html}}</td>
</tr>
{{/}}
</tbody>
</table>

[Matheus Takeshi Yano Tako]

Murat,

I am great, thanks.

If the values of each column were in custom fields would I be able to create a table with margins or it would look the same (table without margins)?

I'll test it and see if I can manage a way around to create a table with margins. But you already helped with the main issue.

Thank you for all the help.

Best Regards,

Matheus.

[Murat Seven]

Matheus,

If the values of each column were in separate fields, you could accomplish this. However, since this table comes from a single system field (description), I'm not sure.

I hope you find a way and share it here. I would really appreciate receiving positive news from you :)

Best Regards,

Murat Seven

[Matheus Takeshi Yano Tako]

Hi Murat,

Sorry for the delay.

I had to search a lot to get the results I wanted from the start.

So basically, as we talked last week I had to delete the description Table and create a lot of customs fields to be able to send a table with grid and margins in the automated e-mail.

So I've improved a bit of our first code. This is what it looks like now:

<table>
<tbody>
<table border = "1">
<tr>
<th>Nome Requisitante</th>
<th>Data Envio Recebimento</th>
<th>Nome Fornecedor</th>
<th>Serviço/Material</th>
<th>Centro de Despesa</th>
<th>Centro de Cliente</th>
<th>Empresa</th>
<th>Joker</th>
<th>PO</th>
<th>Vencimento</th>
<th>Valor</th>
<th>Nº da Nota Fiscal</th>
<th>Forma de Pagamento</th>
<th>Código de Barras Legível</th>
</tr>
{{#issues}}
<tr>
<td>{{Nome Requisitante}}</td>
<td>{{Data Envio Recebimento}}</td>
<td>{{Nome Fornecedor}}</td>
<td>{{Serviço/Material}}</td>
<td>{{Centro de Despesa}}</td>
<td>{{Centro de Cliente}}</td>
<td>{{Empresa}}</td>
<td>{{Joker}}</td>
<td>{{PO}}</td>
<td>{{Vencimento}}</td>
<td>{{Valor}}</td>
<td>{{Nº da Nota Fiscal}}</td>
<td>{{Forma de Pagamento}}</td>
<td>{{Código de Barras Legível}}</td>
</tr>
{{/}}
</tbody>
</table>

But my results were a bit flawed. I got most of the information in the table. But some of them just doesn't appear. And I don't know why. Can you help me with that?
This is what it looks like in the e-mail:


There are some columns which are filled in the issue but are not filled in the e-mail.

Hope you could help me with this problem.

Best Regards,

Matheus.

[Murat Seven]

Hi @Matheus Takeshi Yano Tako

I hope you are having a great day!

I have the following idea for this issue:

There might be a custom field with the same name, or there could be a syntax error. To prevent this, can you try using the customfield_id, such as customfield_10010?

Best,

Murat Seven

[Matheus Takeshi Yano Tako]

Hi @Murat Seven

I am great, thanks. Hope you're having a great day too!

Your suggestion worked. Using custom fields worked fine.

I think we finally solved 100% this problem.

Thanks for all the help!

It helped me a lot due to our time to implement this new automation.

Best Regards,

Matheus!
