Adding a link to a JQL with a variable

[James K_]

Hello,

I'm attempting to set up an automation that adds a link to a custom field "LINK" when another custom field "CustomOrg" is updated.  The link would only be visible internally to customer support members and provide a link to a JQL query that would search "CustomOrg[Dropdown]" = "VARIABLE", where variable would be the field selected from the dropdown.  The field CustomOrg contains characters such as # and [] so these need escaped if I'm to pass in the link.

Essentially I'm trying to make it easier for agents to be able to quickly see all tickets created by a particular organization, so there may be a more straightforward way to do this that I haven't encountered or thought of.

I've found https://confluence.atlassian.com/jirakb/use-automation-to-edit-link-formatting-on-paragraph-fields-1157182190.html, and attempted to set up something similar, but I'm not seeing my custom field (set up as a Text Field (multi-line), after trying hyperlink).

I don't necessarily want to link all tickets from a customer using the linked ticket option, but rather have the link to the JQL query so an agent can then click on a ticket and then use the forward and back buttons to advance or regress through the JQL results.

Thank you for any assistance.
-James

[Kai Becker · Accepted solution]

Hi @James K_ ,

could you post a screenshot of the automation you've got so far?

As an alternative, I would suggest the following addon: https://marketplace.atlassian.com/apps/1212709/issue-matrix-for-jira?hosting=cloud&tab=overview

It adds an contextual issue view with issues matching a certain JQL query

[James K_]

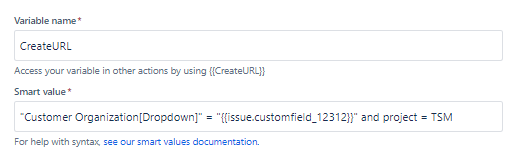

I've managed to automate pulling the field value and building the URL for the JQL query, and storing that into a SmartVariable:

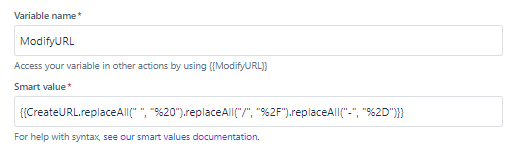

Next I'm running a replace on that SmartVariable to encode " ", "/" and "-", as those are present in my customfield_12312 values:

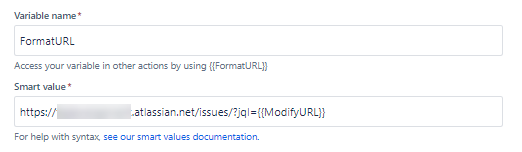

Next I'm formatting the full link with our Jira domain:

Now the only issue I'm having is having the link in my field actually represent the whole link.

Currently, I'm passing in a variable (FormatURL), and I've tried:

• {{FormatURL.replaceAll("(?<=\|)(.*?)(?=(\]|\|))","$1|smart-link")}}
• [{{FormatURL}}|Click here]
• <a href="{{FormatURL}}">Click Here</a>

but to no avail.

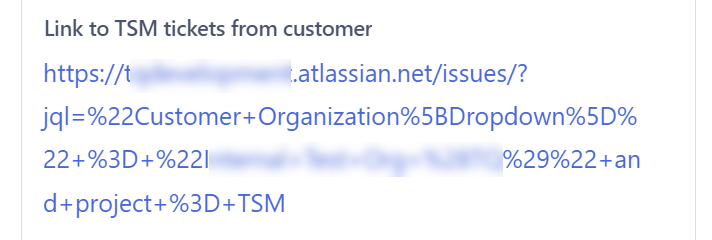

I've configured my custom field I'm passing the variable into to use the 'Wiki Style Renderer', but I'm ending up with only a partial link where "https://vardomain.atlassian.net/issues/?jql=" is formatted as a link, but the actual JQL bit isn't included:

In the above I'm just passing in {{FormatURL}}, and if I copy that into my address bar, I can navigate to the correct query.  I'm not entirely sure why my link is being split.

[James K_]

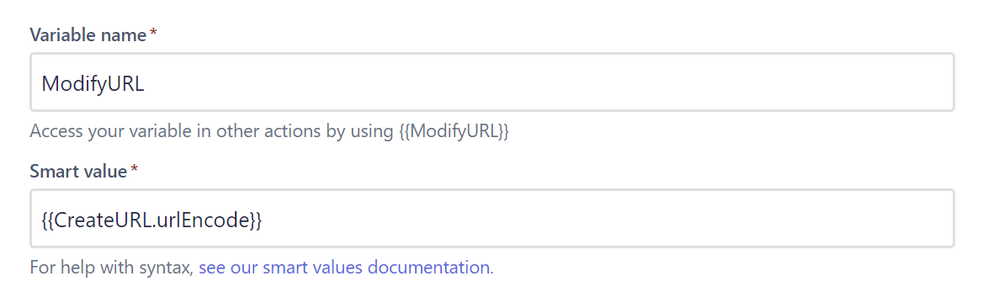

I've done some tinkering and have managed to fix the split URL by using {{CreateURL.encodeURL}} in my second step:

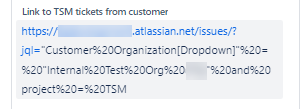

Resulting in a complete link:

However, I'd like to be able present a simpler link and

• {{FormatURL.replaceAll("(?<=\|)(.*?)(?=(\]|\|))","$1|smart-link")}}
• [{{FormatURL}}|Click here]
• <a href="{{FormatURL}}">Click Here</a>

still don't seem to work.

[James K_]

Fixed, [Click here for all tickets from this customer|{{FormatURL}}] works.

[Tomasz Rogawski]

Easiest but not prettiest solution for me was to add a sample URL with JQL query from Jira in the template and then replace values with the variables that will change. See an example:

A user will have to provide these two variables in one place only, resulting in all URLs being updated, and pointing to different Jira items (Story, Tasks, Tests, Bugs).

FYI: The issue I haven't resolved yet is converting URL to Jira table inside Confluence page before/after it is published. Most probably I will have to use a source editor to modify structured macro HTML parameter.
