Atlassian supported Jenkins integration for Bitbucket Server

Imran Khan

(Update 31/Aug/2020 : We added support for using ssh credentials for cloning in version 2.1)

(Update 02/Mar/2020 : We added support for Multibranch pipeline jobs in version 1.1.0)

(Update 28/Oct/2019 : We released version 1.0 of the plugin and it is out of beta)

We’ve been building a plugin to integrate Bitbucket Server and Jenkins CI, and I’m excited to announce that it is now available. It lets you seamlessly configure a Jenkins job to clone/fetch from Bitbucket Server, removing the need for multiple plugins/apps to achieve the same workflow. To try it out you need Bitbucket Server 5.5+ and Jenkins 2.162+

We’re keen to hear your feedback, so comment with questions, feedback, and feature requests and we’ll get back to you. If you’re interested you can also contribute to our plugin. Please raise any bugs at https://issues.jenkins-ci.org with atlassian-bitbucket-server-integration-plugin as the component.

Cheers,

Imran Khan

Product Manager - Bitbucket Server

Bitbucket Server Integration with Jenkins CI - plugin features

supports Jenkins pipeline, Multibranch Pipeline and freestyle job type
provides a simple way for you to connect your Jenkins CI to Bitbucket Server instance
securely manage credentials inside Jenkins for cloning from Bitbucket Server
automatically create a webhook inside a Bitbucket repo when a Jenkins job is saved
select projects and repositories inside a Jenkins job through a dropdown
automatically send build statuses to commits and pull requests in Bitbucket Server
provides an option to clone from Bitbucket Smart Mirrors
supports both - ssh and https protocols for cloning

Check out the short videos on how to setup and use this plugin with Jenkins pipeline and multibranch pipeline and follow the below steps:

Installing the plugin

In Jenkins go to Jenkins > Manage Jenkins > Manage Plugins
Click the Available tab
Search for Bitbucket Server Integration
Select it from the results and Click Install without restart

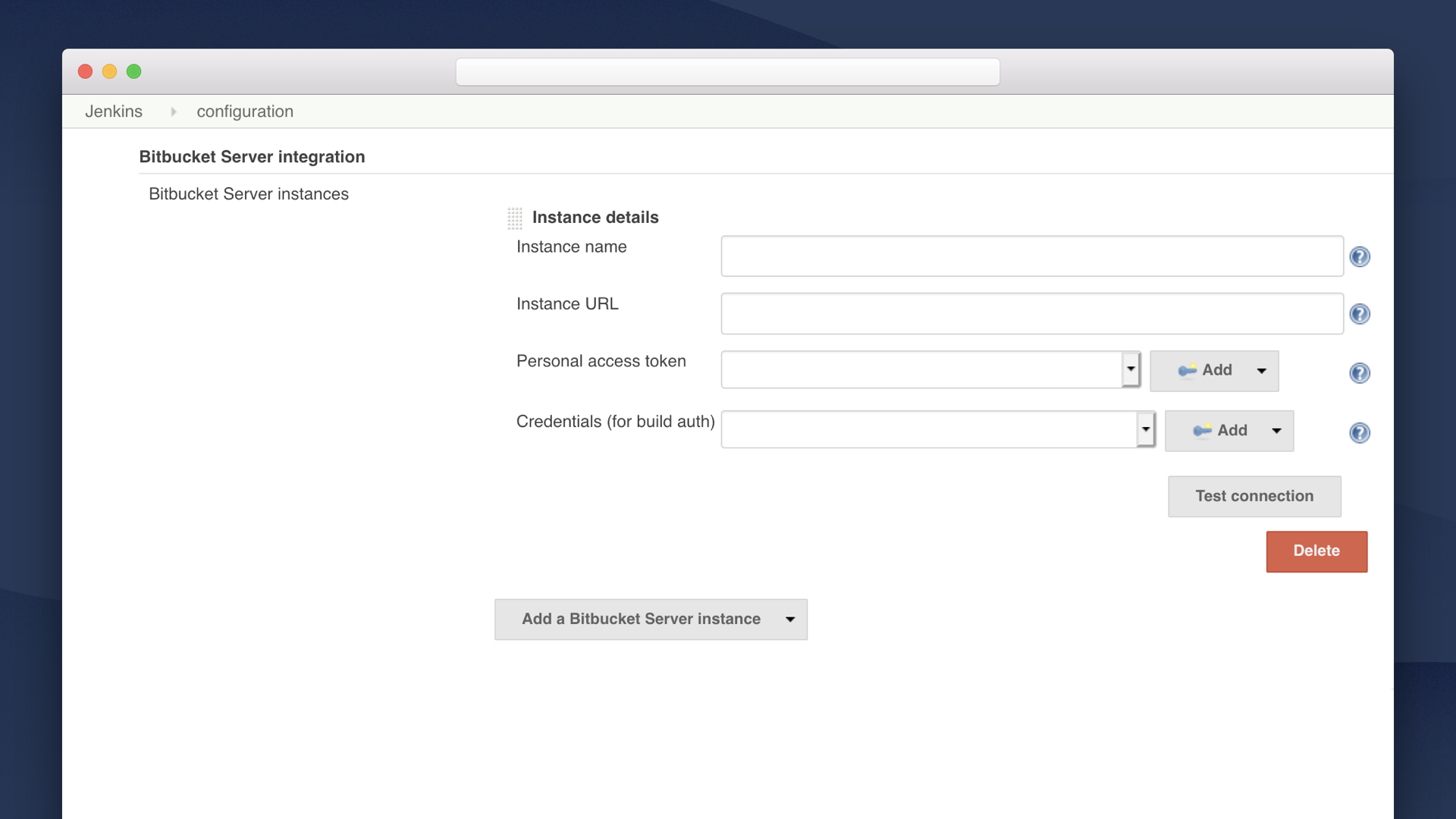

Adding a linked Bitbucket Server instance

After installing the plugin you need to configure at least one Bitbucket Server instance. To do this:

In Jenkins go to Jenkins > Manage Jenkins > Configure System
Under Bitbucket Server plugin click Add a Bitbucket instance
Enter the instance details

Configuring the Jenkins job

Go to the Source Code Management section of the Jenkins freestyle job and select Bitbucket
Select the existing credentials or add new to authenticate with Bitbucket Server. The credential should be of the type Username with password
Select the Bitbucket instance
Enter the project key and repository slug
In the Build Triggers select Bitbucket Server trigger build after push
Configure rest of your build steps and save the job

When a new push happens the build will be triggered. You can then check the build info in Jenkins to see the changeset.

Comments

Lloyd Langley

Does anyone know when this is likely to be available in the Atlassian Cloud?

Regards

Lloyd

Aneita

Hey @Lloyd Langley

Bitbucket Cloud can be configured to work with Jenkins today, using the Bitbucket plugin provided by Jenkins.

I also want to share that Bitbucket Cloud has an inbuilt CI/CD tool with advanced capabilities, letting your team get all the benefits of CI without the overhead of maintaining an additional tool like Jenkins. You also won't need to worry about setting up any webhooks or configuring the two tools to work together. For more information, check out our docs!

Aneita

Lloyd Langley

Hi @aneita,

Thnask for the notice. it's hada 24k downloads but I haven;t found any comments on how good it is.... but don't worry. It looks good and I hope to make use of it.

Best regards

@Lloyd Langley

Kevin Reynolds_i19z6l

This is great news and I am super excited to dump all the other cumbersome plugins that I have yet to get to work. Is there a location I can go to to ask questions and provide feedback on this implementation? I am currently trying to get this working and am not having much success

Imran Khan

Hi @Kevin Reynolds ,

You can post your feedback here or send email to ikhan at atlassian dot com. I'm keen to know what challenges you're facing.

Kevin Reynolds_i19z6l

Happy to post here for any others who my be facing similar.

Environment

BitBucket Server 6.6.2 running on Ubuntu 16.04 LTS

Jenkins 2.176.3 running in a docker container

Latest as of 9/30/2019 beta of the bitbucket addin for jenkins.

I believe I have all the bits and pieces for the server connectivity configured fine as a connection test works fine.

Create a webhook for when a push occurs.

Push code to my repo but nothing happens on the jenkins side.

If I examine the information for the hook it states a successful fire with a http status of 200

However looking at the response I see nothing in the body (not sure if there should be anything.)

A little confused as to where to go to look for potential problems as it looks like the the request was made correctly. This should just work. Please find attached some screen shots of the configuration. sensitive information obfuscated.

One thing in the jenkins log is an error with mirroring but as I understand it thats a datacenter feature not a server feature?

Sep 30, 2019 7:34:30 PM com.atlassian.bitbucket.jenkins.internal.scm.BitbucketMirrorHandler fetchRepositoriesQuietly
SEVERE: Failed to retrieve mirroring information for project DEVOPS-Docker and repo DevOps-Docker-Samples
com.atlassian.bitbucket.jenkins.internal.client.exception.BadRequestException: - response: 409

Kristy

Hi @Kevin Reynolds

It appears that you've selected the wrong trigger. You need to select "Bitbucket Server trigger build after push" to get the webhook created. The one that you've selected is not related to our plugin.

Regards,
Kristy

Gaurav Joshi_x0hbrg

Hi @Kevin Reynolds

Please enable "Bitbucket Server trigger build after push" checkbox. The other setting "Build when changes are pushed to Bitbucket" belongs to a different plugin. This setting is necessary for the webhook callback to trigger the build on this project.

Also, ignore the Mirror handler exception. We will be fixing that in the subsequent release to not throw this exception. Your configuration should work properly. This exception has no effect on your configuration.

Also, from beta 1, you don't have to manually add webhooks to bitbucket server. The plugin does that for you provided the "Bitbucket Server trigger build after push" checkbox is enabled.

Thanks

Kevin Reynolds_i19z6l

Awesome! Yes that was it. thank you it now works flawlessly. Really excited about this and happy that Atlassian dove in head first rather than the normal model of leave it up to the marketplace. This is a core competency that should be out of the box with bitbucket.

Is there anywhere I can see implementation information? For example I would like to integrate the trigger into my jenkinsfile for my projects so that I can extend my config as code CI/CD model here.

I looked through the snippet generator and did not see anything that jumped out at me

Kristy

Hi @Kevin Reynolds

The snippet generator should have a bbs_checkout step in there:

Screen Shot 2019-10-03 at 8.29.28 am.png

You should then be able to fill out all the derails and generate the snippet for your Jenkinsfile

Screen Shot 2019-10-03 at 8.30.33 am.png

Hope that helps,

Kristy

Aliaksei Savanchuk

Hi. What is the real reason of creation of this plugins? There is a very good working one, tested with real instances/workloads.

https://github.com/jenkinsci/bitbucket-branch-source-plugin

Why do we need another one?

And if this plugin doesn't have something you need, why not just contribute to this?

Thank you.

Kevin Reynolds_i19z6l

Yes! I discovered that yesterday, thank you. What I am still having trouble with and maybe I am just over complicating it? I cannot figure out how to set the trigger value for the job in the in jenkins file. Ie I can create a multi project pipeline and get it to fire just fine manually, in addition I can fire a freestyle job with no issue from a push as well. The problem is once a multi project pipeline is created there is no way to change and save the configuration, So I need to be able to set the trigger value in the jenkins file.

^^^ this guy right here. Am I just missing something?

Thank you in advance. You guys rock!

Kevin Reynolds_i19z6l

@Aliaksei Savanchuk Why shouldn't they? I cant think of a better team to build the integration than the team that actually owns the application being integrated. And besides not all teams or environments have or care to divert the resources to "just contribute to this" I for one need a solid working solution for this. And while I explored the tool you mention it was not working in my environment, the problem I was having got a lot of "shrugs" and I dont have time to dig into it. This is basic functionality that should be part of the out of the box solution in the first place. Just my humble 2cp.

Aliaksei Savanchuk

@Kevin Reynolds

I'm asking Atlassian developers here to understand their decision.

It doesn't seem smart, from my perspective, to create the same thing that already exists, making another open source out of the existing open source project, understanding that most of existing BitBucket Servers use bitbucket-branch-source. It's like if Microsoft would decide not to use Google Chromium for their new Edge but creating the other the same thing from zero.

Mikael Sandberg

Can this plugin be configured so that it triggers when a pull request is opened? Or is it only when a developer pushes to Bitbucket?

Gaurav Joshi_x0hbrg

Hello @Mikael Sandberg, Triggering on pull request open is not available right now however we are considering adding it in a future version.

Thanks

Pete Mercer

@Aliaksei SavanchukThis plugin can do quite a bit more than the branch source plugin. We have used several in the marketplace to meet our developers workflows, so far this one seems to work for most teams. Hopeful we can remove all the build/webhook plugins from our instances and reduce the overhead. Also this is being worked on by Atlassian, so as customers we may have more leverage to ask for features.

Imran Khan

Hi everyone,

Thanks for your advocacy and feedback. On 28-Oct-2019, we released v1.0 of the plugin. We have also released a demo on Youtube to quickly guide you through the process of setting up the plugin and creating a Jenkins pipeline.

Comment below with questions, feedback, and feature requests and we’ll get back to you. If you’re interested you can also contribute to our plugin. Please raise any bugs at https://issues.jenkins-ci.org with atlassian-bitbucket-server-integration-plugin as the component.

Cheers,

Imran Khan

Product Manager - Bitbucket Server

Sake_dkm74m

Great plugin! Less overhead in the current setup, a plugin in Bitbucket and Jenkins.

But we get a request if it's possible to ignore commits/pushes done by a specified user? Is this already possible and aren't we looking at the correct places to configure this or is this a feature request?

Imran Khan

Hi @Sake ,

Thanks for the feedback. Can you please expand on why you want to ignore commits or pushes by a certain users - how will this help your team, when would you use it, and for this have you implemented/explored any workaround?

Jochen Bühler

Interesting plugin. Looks really nice to use and the registered webhook shows useful information.

But I am wondering why the checkout command in the Jekinsfile has to be so complicated and repeat all the information and credentials that are already configured in the job? We are currently using bitbucket-branch-source-plugin and the checkout command is just "checkout scm", where scm is injected and filled with the data from the build configuration.

The introduced duplication would keep me from using the new plugin, to be honest.

Sake_dkm74m

@Imran Khan An explanation from some of our Jenkins users;

In Webhook to Jenkins for Bitbucket is it possible to define users from which commits should be ignored (the version we use (the free one), this is bugged).

In our current environment Jenkins gets a push request to preform some actions and starts a job. One of those actions in this job is to trigger the Maven release plugin. Maven creates a new version and afterwards does a commit to Bitbucket where all pom.xml files are edited with the increased (snapshot) version. But because there's a new commit, Bitbucket sends push request to Jenkins and job starts again and gets in a infinite loop.

They have a workaround, but it's a nasty one; abort the Jenkins job if commit is from Jenkins (the commit above). This results in a failed job, sends the information that a job failed and someone needs to check why it failed. Another annoyance are the red bars and more failed jobs which results in polluted reports.

Imran Khan

Hi @Sake

Thanks for explaining. I have created a suggestion here - https://jira.atlassian.com/browse/BSERV-12043. Please vote/watch this issue to follow the updates.

As a workaround, can you try adding 'Excluded Users' from 'Additional Behaviours' without any other changes to your config? Hope this helps.

Cheers,

Imran

Sake_dkm74m

@Imran Khan Thanks for creating the item, it would be a good addition to Bitbucket! The workaround might look like what our users want in the meantime, thank you! Maybe document it?

gafnerpa

Looks like a very good possibility to work with the CI/CD capablities of Jenkins (pipeline as code).

I really like the overall integration between JIRA, Bitbucket Server and Bamboo (creating an issue creates a new branch, pull request requires a successful build etc) but I miss the pipeline in Bamboo compared to Jenkins.

Is there already a possiblity to use the power of JIRA and Bitbucket Server together with Jenkins or are there plans to support it?

Zoe Trakosas

Hi. I’m Zoe and I’m a designer on Bitbucket Server.

Right now, we’re working on a project to streamline Bitbucket’s CI workflow. We’re looking into extending Bitbucket’s capability to integrate with Jenkins, and we’re interested in learning more about the capabilities you’re interested in as well as getting your input and feedback on our vision.

We’d love to speak to you. If you can spare an hour to talk, email me at ztrakosas@atalssian.com

Javi Rodríguez

Hello,

Does anyone know how to get the webhook payload information in Jenkins?

I have configured a pipeline in Jenkins that is correctly triggered by the plugin, but I can't get this information to be processed in the pipeline.

Any help is welcome

Regards

Javi

Imran Khan

Hi Javi,

Can you expand on what payload information from webhook is needed and how will you use it in the pipeline.

Cheers,

Imran

Javi Rodríguez

We have been working with other plugins to implement CI workflow. Generic Webhook Plugin injects payload info in the BuildInfo environmental var in our Jenkins pipeline environment, BitBucket plugin injects this info in the BITBUCKET_PAYLOAD environmental var in our Jenkins environment, but we don't found how BitBucket Server Integration plugin is injecting this info in Jenkins.

According to the webhook event details, It's sending this info as payload:

{
"eventKey": "repo:refs_changed",
"date": "2019-11-27T16:01:32+0100",
"actor": {
"name": "UserID",
"emailAddress": "user@correo.interno",
"id": 3731,
"displayName": "UserName",
"active": true,
"slug": "user",
"type": "NORMAL",
"links": {
"self": [{
"href": "https://bitbucket:8443/users/user"
}]
}
},
"repository": {
"slug": "app_name",
"id": 72,
"name": "app_name",
"scmId": "git",
"state": "AVAILABLE",
"statusMessage": "Available",
"forkable": true,
"project": {
"key": "project_name",
"id": 122,
"name": "project_name",
"public": false,
"type": "NORMAL",
"links": {
"self": [{
"href": "https://bitbucket:8443/projects/project_name"
}]
}
},
"public": false,
"links": {
"clone": [{
"href": "ssh://git@bitbucket:7999/project_name/app_name.git",
"name": "ssh"
}, {
"href": "https://bitbucket:8443/scm/project_name/app_name.git",
"name": "http"
}],
"self": [{
"href": "https://bitbucket:8443/projects/project_name/repos/app_name/browse"
}]
}
},
"changes": [{
"ref": {
"id": "refs/heads/develop",
"displayId": "develop",
"type": "BRANCH"
},
"refId": "refs/heads/develop",
"fromHash": "a35e06ffa0b44173daabb017336569186228eab9",
"toHash": "99f5d2ca498cbab381de06c598026d90e4d40c42",
"type": "UPDATE"
}]
}
We need this info to cover several audit requirements in our CMDB, as well as to generate a change report to pass to QA pipeline with the modified files between fromHash and toHash commits

We are actually using these fields in our process.

"date": "2019-11-27T16:01:32+0100",
"actor": {
"name": "UserId",
"emailAddress": "user@correo.interno",
"displayName": "UserName"
},
"changes": [{
"refId": "refs/heads/develop",
"fromHash": "a35e06ffa0b44173daabb017336569186228eab9",
"toHash": "99f5d2ca498cbab381de06c598026d90e4d40c42",
}]

We are using:

Atlassian Bitbucket v6.7.1
Jenkins ver. 2.190.3
Thanks in advance

Best regards

Imran Khan

Hi Javi,

First of all thanks for providing these details. If I understand correctly,

https://wiki.jenkins.io/display/JENKINS/Bitbucket+Plugin injects webhook payload into BITBUCKET_PAYLOAD environment variable but our plugin -

https://wiki.jenkins.io/display/JENKINS/Bitbucket+Server+integration+plugin+for+Jenkins doesn't do this and you need this info in pipeline for audit and generate a report.

Unfortunately, we don't have this capability right now. We think it will be good to provide this in future but I can't provide any timeline. Can you please create a suggestion at https://issues.jenkins-ci.org with atlassian-bitbucket-server-integration-plugin as the component?

Cheers,

Imran
