Automation - split doesn't work in advanced branching?

Stefan Draber_kwaltd

Hi all,

once again I've got a question about Advanced Branching in Jira Automations. It's such a mighty tool, but I never get it running in the first try

My environment is Jira Service Management Cloud. In my request form, I'm offering the customer to pick one or multiple objects from a custom assets field. In a subsequent automation I want to run a branch for every object that is stored in the field. So far it seems to run fine.

Now, this branch runs for every object in the asset field. These objects are returned as [workspaceId]:[objectId] and I need to split this string to use the workspaceId and the objectId in a subsequent web request.

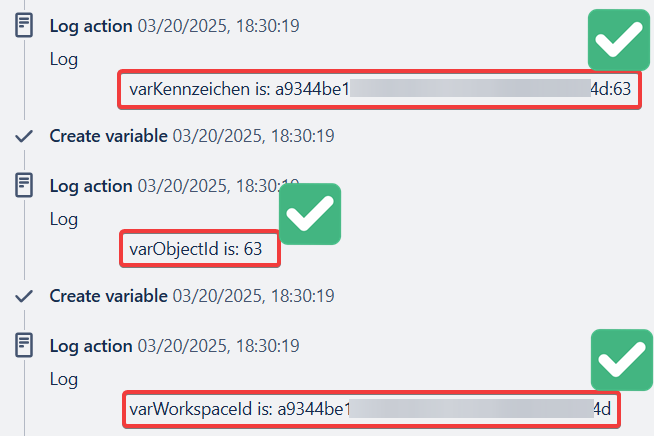

This split-thing works totally fine in a rule _without_ advanced branching, where the customer can only pick one single object:

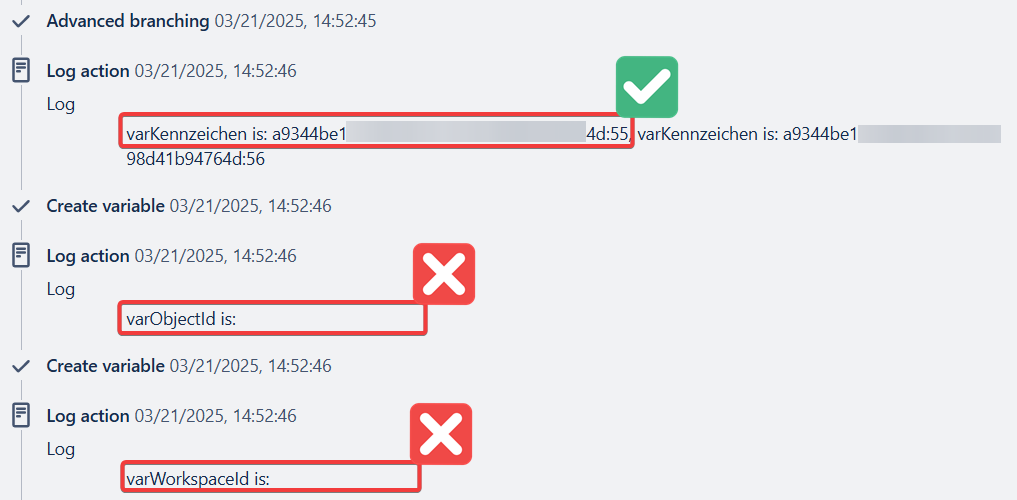

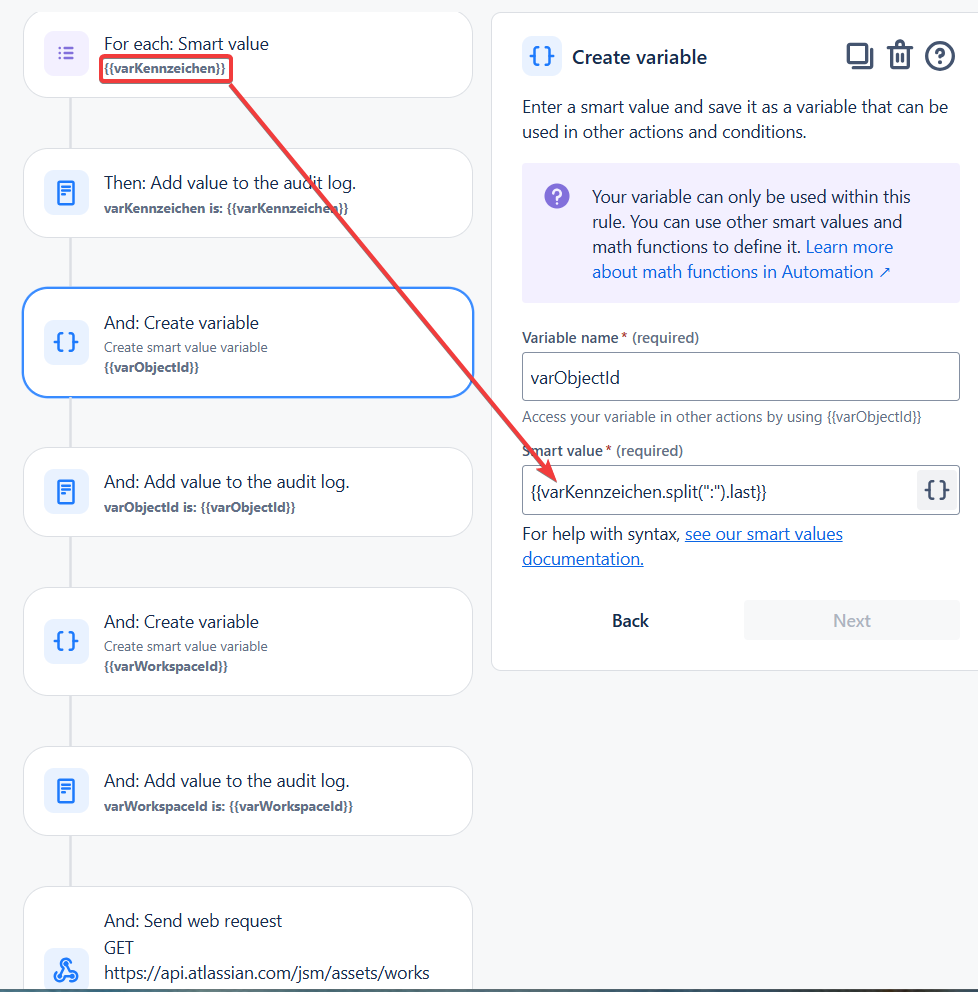

But when I use the very same logic and actions within a branch, it doesn't work anymore. As you can see from the following screenshots, the string to be splitted is written to the variable correctly. However, the split-function does not seem to work here, as the varObjectId remains empty (same for varWorkspaceId):

(For the split-function, I tried both

split(":").get(1)

and

split(":").last

both with the same result)





Does anybody have an idea why my approach doesn't work within a branch? And, even more important, does anybody have an idea how to solve it?

Many thanks in advance and best regards,

Stefan

Bill Sheboy

Hi @Stefan Draber

My hypotheses of the possible causes are timing or typing-related:

• The branch is over asset data, and perhaps there is some latency in the just-in-time data look-up which does not provide the information fast enough for the split() to use
• The data supplied by the branch is not text, preventing the split() from working



The mitigation for both may be using a created variable as an intermediary to both force complete lookup and convert to text:

• advanced branch: over your data, with the variable varKennzeichen
  • action: create variable
    • name: varCurrentValue
    • value: {{varKennzeichen}}
  • ...use {{varCurrentValue}} where you would have used the branch variable



If that does not work, I recommend working with your Jira Site Admin to Atlassian Support to take a look as they can directly examine your site data for context: https://support.atlassian.com/contact/#/

When you hear back from them, please post what you learn to benefit the community.  Thanks!



Kind regards,
Bill
