Copy Select field from Jira Product Discovery to Cascading Field in Jira Software project

Question

Hello all!

I am trying to write automation that copies a field from Jira Product Discovery to a Jira Software Project.  It is not a 1:1 copy however due to the Jira product Discovery field being a 'Select' field and the Jira Software project being a 'Cascading' Field.

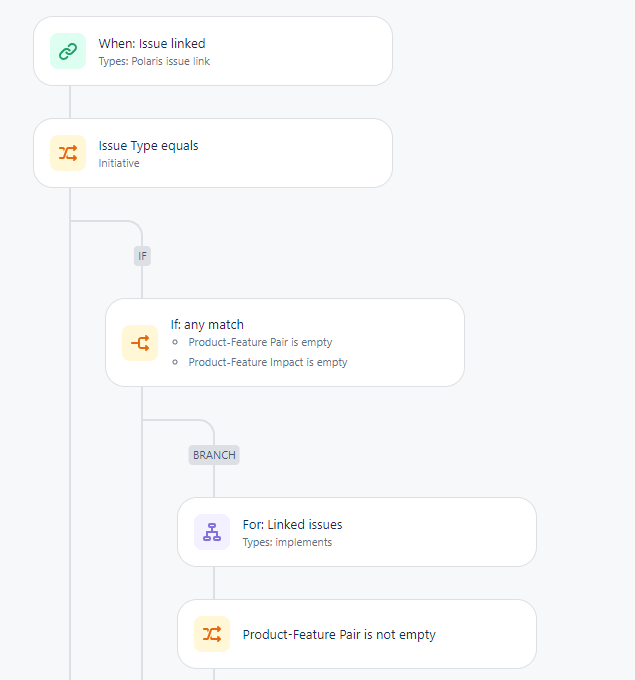

In my specific example, I am trying to copy the value from field "Product-Feature Pair" in Product Discovery to "Product-Feature Pair" in Jira software project.  It is not as simple as copying from the destination issue as it is not a 1:1 translation into the Jira software project field of the same name (See screenshots).

Would anyone know what I may be missing in the "Edit Issue Fields" Section that may allow me to copy the correct value into the Jira software project field?

Thanks!!

Bill Sheboy · Answer

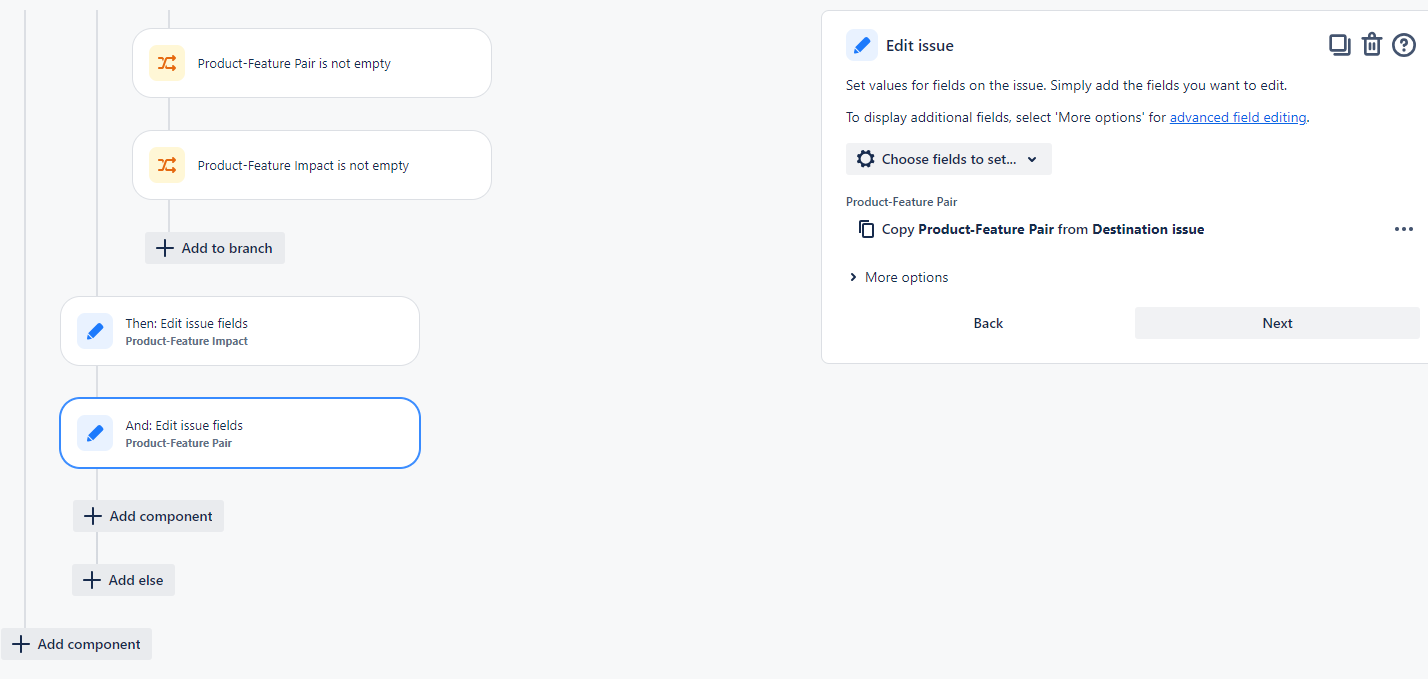

First, I notice the edit issue action has the Product-Feature Pair field selected from the dropdown (clearing it) and trying to update it with the JSON.  I recommend removing it from the selected field list and only using the JSON.

Next, your JSON syntax to set the fields is incorrect.  That link I provided has more information at the top about the entire structure for setting a field.

For example, with a made up custom field id:

{
  "fields": {
    "customfield_12345" : {
      "value": "{{triggerIssue.customfield_12345.value}}",
      "child": {
        "value" : "{{triggerIssue.customfield_12345.child.value}}"
      }
    }
  }
}

To find the correct custom field id for your Product-Feature Pair field, please use this how-to article:

https://support.atlassian.com/cloud-automation/docs/find-the-smart-value-for-a-field/

Finally, I used the {{triggerIssue}} in my example.  Please use the relevant one for your needs.

Jeffrey Crime · Answer

Had to come back to this.  I thought maybe If I mapped the Select List field in Product Discovery is named "Product-Feature Pair", with the values being simple options like Option 1, Option 2, Option 3, that it might work.  Splitting the string might be a little complicated since the text is variable between the 'Parent' and 'Child' values of the cascading field.

This JSON did not seem to work with me trying to manually map each value in the JSON.  Is there a part to the Automation or JSON I may be missing?

Thanks again

Bill Sheboy · Answer

Glad to help, and...if you run into challenges creating the expression, please post what you used so the community can help.
