I want to hide a transition based on a Radio button custom field value

[Sriharsha]

Hello everyone,

I have a radio-button custom field with the options A, B, C, and D.

I would like to hide a workflow transition when the field’s value is either B or D. Could anyone advise me on how to achieve this? Any help would be greatly appreciated.

We are using ScriptRunner on Jira Data Center v10.3.10.

Best regards

[Trudy Claspill]

Hello @Sriharsha

There are a few workflow Conditions you can get from ScriptRunner that you could add to the workflow Transition.

The JQL Query Matches condition might be the easiest to understand.

[Sriharsha]

Hi @Trudy Claspill , thank you for your response!

I can still see that transition after adding the workflow condition suggested by you.

[Trudy Claspill]

Please show us the details of the Condition that you added.

Note that the link I provided is to an example. You would have to come up with the correct code for your JQL condition.

[Sriharsha]

I used this - project = XYZ AND "New Hire Computer Type" != "B"

[Trudy Claspill]

Hello @Sriharsha

With that JQL the transition will be available for

1. issues in the XYZ project that use this workflow, and
2. that are currently set to the starting status(es) for this transition, and
3. where any radio button besides "B" is selected for "New Hire Computer Type"

What is the selected value for the radio button in the issue where you see the transition is available, in the XYZ project? And is the type for that issue associated to this workflow?

Are there any other transitions that go from that issues current status to the same destination status as the transition you are trying to hide? Can you show us the workflow diagram for this workflow and point out the transition you are trying to hide?

[Sriharsha]

@Trudy Claspill - This condition is working fine -

!(cfValues['New Hire Computer Type']?.value in ['Laptop', 'Desktop'])

[Stefan Stadler]

Hi @Sriharsha

actually, Scriptrunner Condition on the transition is the way to go. You will have to check for the value of the field. The condition works that the transition will be shown, if the condition returns True. Therefore, you could use a "Simple Scripted Condition" or a "JQL query matches condition". Both are offered by ScriptRunner and both conditions can be tested in the setup screen. As already mentioned, JQL might be easiest, but if you are familiar with Groovy code, the "Simpled scripted condition" is more powerful.

Let me know, if there is any further assistance needed.

Regards,

Stefan

[Sriharsha]

Hi @Stefan Stadler , I tried using a simple scripted condition, but had no success.

These are the simple scripted conditions I tested:

cfValues['New Hire Computer Type'] != 'B' OR

cfValues['My Select List']?.value == 'My value'

These work correctly for single-select list fields, but they do not work for radio button custom fields.

[Stefan Stadler]

Hi @Sriharsha

I have just tried the second example in a workflow and used the review function to verify it is working as expected.

In my example, there is a radio button field "Test protocol" with values "Ja", "Nein", "Nicht erforderlich". The issue DWHT has the value "Nein" set.

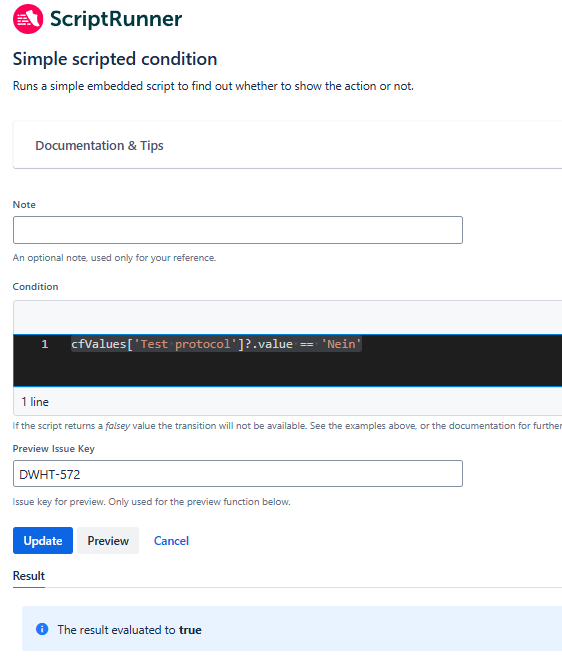

As you can see in the screenshot, the evaluation returns true:

cfValues['Test protocol']?.value == 'Nein'

This implementation means, that the transition is visible only if the value is set to "Nein". Otherwise it will be hidden.

Regards,

Stefan

[Sriharsha]

Hi @Stefan Stadler , I tried before but no luck. Let me check and get back to you! Thank you!

[Sriharsha]

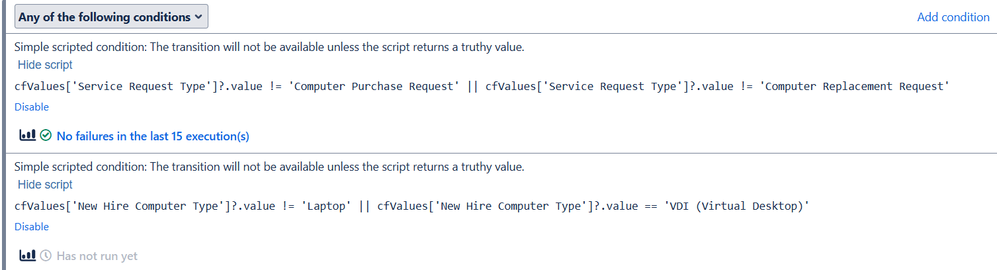

@Stefan Stadler - Please find the attached screenshot. The second one is not getting executed. The ticket that I was testing has the value "Laptop" but it's not hiding the transition.

[Stefan Stadler]

Hi @Sriharsha

can you try to disable the first rule? You selected „any condition“ which means there is no need to execute if one already passed…

hope this helps!

[Sriharsha]

Hi @Stefan Stadler , this is working after using this condition -

!(cfValues['New Hire Computer Type']?.value in ['Laptop', 'Desktop'])
