How to resize SVG graphics without getting it broken?

Tayger
Contributor
January 8, 2019

Hello there

I have difficulties to add SVG files into my Confluence document.

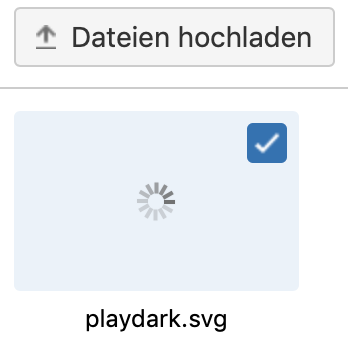

1. When I add a SVG file over "Add image/file" the import keeps showing the import wheel:


2. Nevertheless the "Insert" button gets activated. So I press it.

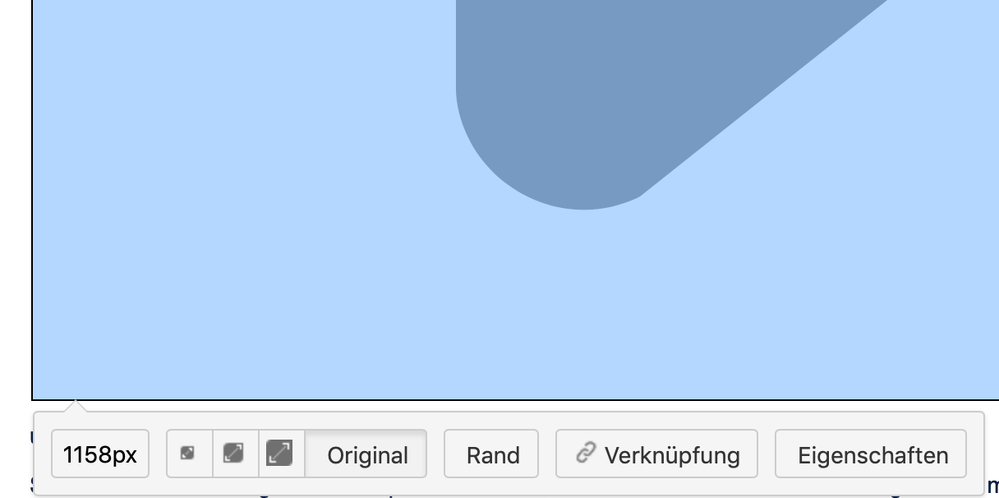

3. The SVG image is now inserted into my document but way too big:

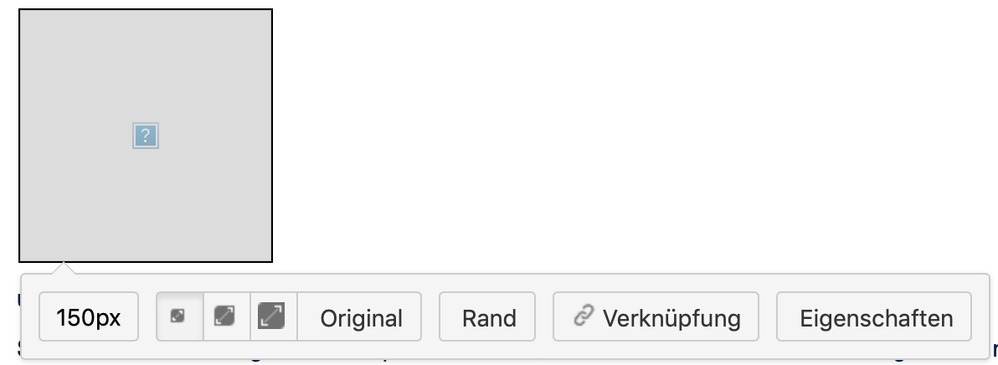

4. When I change the size of the image either by entering a specific size or by one of the three default size buttons, then the SVG file in the document shows a broken link:


5. When I set it back to its original size the SVG appears correct again.



Is this a bug or have I done something wrong?

Regards







1 answer

1 accepted

2 votes
Answer accepted
Diego
Atlassian Team
Atlassian Team members are employees working across the company in a wide variety of roles.
January 9, 2019

Hello there!

You are right, there is a bug report tackling this behaviour. We can check it here:

CONFSERVER-40672 | Confluence File Preview does not allow setting custom size for SVG format

The trick here is that you can resize the image down to 301px. Any lower than that and the image will break.

A good approach would be to vote and watch this report. Voting increases the report visibility and watching will keep you up to date!

Tayger
Contributor
January 9, 2019

Tnx for your answer! 301 pixel is still too big. Will vote for it... Sad you have to vote for fixing bugs. :(

Tayger
Contributor
January 9, 2019

Just wrote a note: The bug is over two years old!

Diego
Atlassian Team
Atlassian Team members are employees working across the company in a wide variety of roles.
January 9, 2019

Thanks for being open and taking part on this!

Michael McGuire
I'm New Here
I'm New Here
Those new to the Atlassian Community have posted less than three times. Give them a warm welcome!
January 31, 2019

I've run into a similar problem, but sizing is reversed. I'm trying to take a 16 x 16 SVG and scale it up. It is broken for anything below 301 px (and the original). Noticed though that if I host the SVG offsite (Jira server or SharePoint) it works just fine at any size. If I try from a file attached to the Confluence page or workspace it breaks.
