Has anybody managed to create a Resolution burndown chart using Custom Charts for Confluence

[Karl Samson]

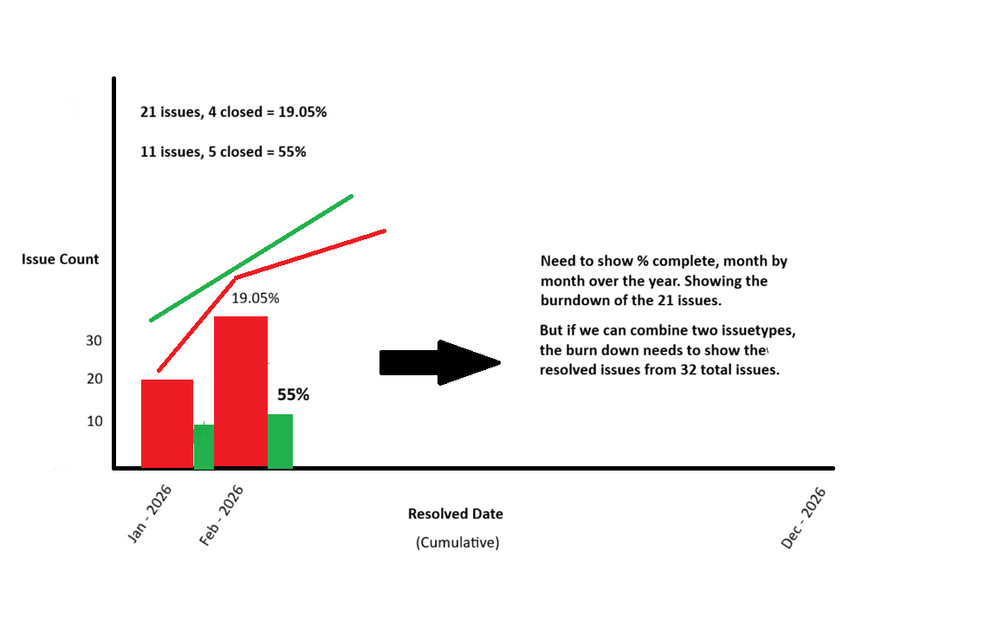

Hi All, I'm trying to show % of resolved issuetypes cumulatively for the year, as either a 2D Line or Bar Chart, using Custom Charts for Confluence. See attached image.

[Stepan Kholodov]

Hello @Karl Samson

You already reached out to us via our support portal; I'll duplicate my response here, as well, just in case somebody else finds this post.

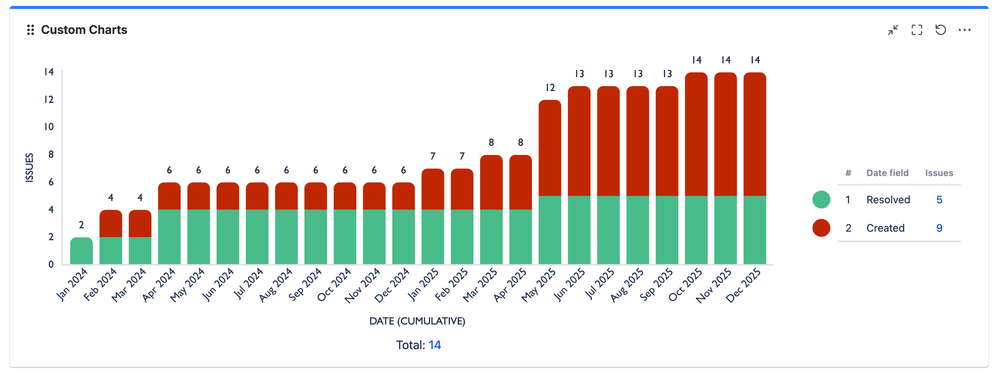

A chart like this can be built using the Created / Resolved chart:

You can create it this way:

1. Add a Custom Charts gadget
2. Select Chart by: Created / Resolved
3. Define the Scope at the top of the chart - the scope of work items that should be considered (e.g. a space where the items are from)
4. In the Chart By tab, select the Range of dates you want to use, and Grouping by Months
5. In the Calculations tab, enable the 'Cumulative total of chart by' option to sum up the values over time.
6. If you hover with the cursor over each bar's segment, you'll see the percentage value.

I hope this helps.

Best regards,
Stepan
Tempo (the Custom Charts app vendor)

[Karl Samson]

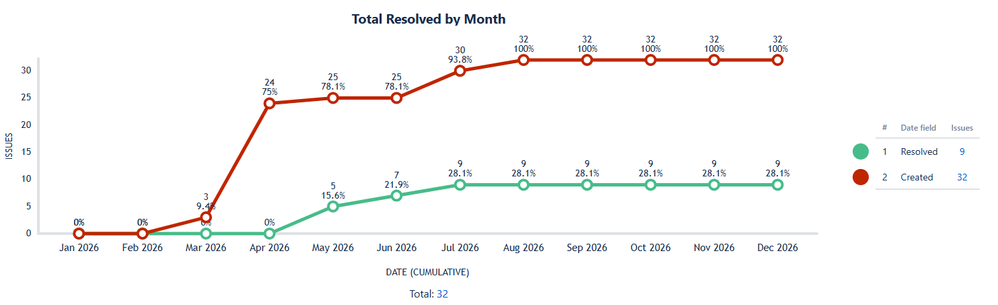

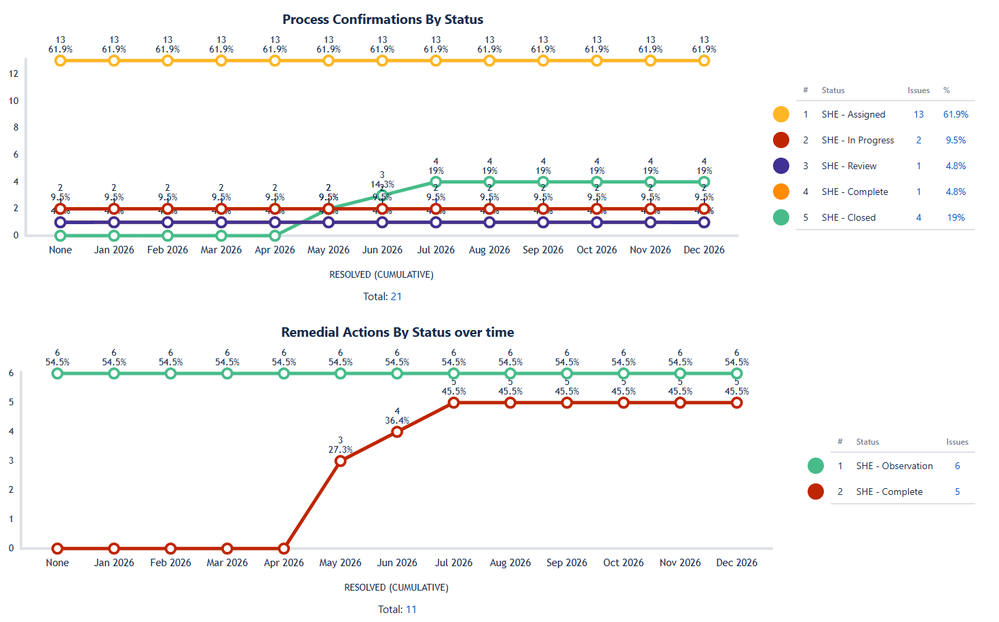

Thanks Stepan. It doesn't separate out the issuetypes, but it sort of works, when used with the broken out charts. See below....

[Karl Samson]

Thanks for your help Stepan, and answering my query so promptly!
