How to setup synchrony within proxy environment?
The real error with Synchrony is the error "Could not initialize class org.xerial.snappy.Snappy", reported as DEBUG within Synchrony logs. See the end of this question.
This happens due to "/tmp" is mounted with the "noexec" option for security purposes. This issue is not related to proxies at all and have to be considered generic.
Solution: Just set a custom "/tmp" directory: https://confluence.atlassian.com/confkb/editor-fails-to-load-in-confluence-6-x-due-to-could-not-initialize-class-org-xerial-snappy-snappy-error-859462192.html
@Atlassian: Why is Hercules not covering this???
----------------------------------------
I just finishing a fresh install (Linux x64 installer) of Confluence 6.7.2. It is an nginx proxy setup.
The server.xml looks like this:
<Server port="7313" shutdown="SHUTDOWN" debug="0">
<Service name="Tomcat-Standalone">
<Connector port="7314" connectionTimeout="20000" redirectPort="8443"
maxThreads="48" minSpareThreads="10"
enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"
protocol="org.apache.coyote.http11.Http11NioProtocol"
proxyName="example.com"
proxyPort="80" />
<Connector port="7315" connectionTimeout="20000" redirectPort="8443"
maxThreads="48" minSpareThreads="10"
enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"
protocol="org.apache.coyote.http11.Http11NioProtocol"
proxyName="example.com"
proxyPort="443"
scheme="https"
secure="true"
sslProtocol="TLS"
SSLEnabled="true"
clientAuth="false"
keyAlias="localhost"
keystoreFile="/opt/atlassian/cacerts"
keystorePass="changeit"
keystoreType="JKS" />
<Engine name="Standalone" defaultHost="localhost" debug="0">
<Host name="127.0.0.1" debug="0" appBase="webapps" unpackWARs="true" autoDeploy="false" startStopThreads="4">
<Context path="/confluence" docBase="../confluence" debug="0" reloadable="false" useHttpOnly="true">
<Manager pathname="" />
<Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60" />
</Context>
<Context path="${confluence.context.path}/synchrony-proxy" docBase="../synchrony-proxy" debug="0" reloadable="false" useHttpOnly="true">
<Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60" />
</Context>
</Host>
</Engine>
</Service>
</Server>
The nginx configuration looks like this:
server {
listen 80 ;
listen [::]:80 ;
listen 443 ssl http2;
listen [::]:443 ssl http2;
if ($scheme = "http") {
return 301 https://example.com$request_uri;
}
location /confluence {
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Server $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_read_timeout 600s;
proxy_pass https://127.0.0.1:7315/confluence;
client_max_body_size 25M;
}
location /synchrony {
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Server $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_read_timeout 600s;
proxy_pass http://127.0.0.1:8091/synchrony;
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "Upgrade";
client_max_body_size 25M;
}
}When I try to access "https://example.com/confluence", I can access Confluence as usual.

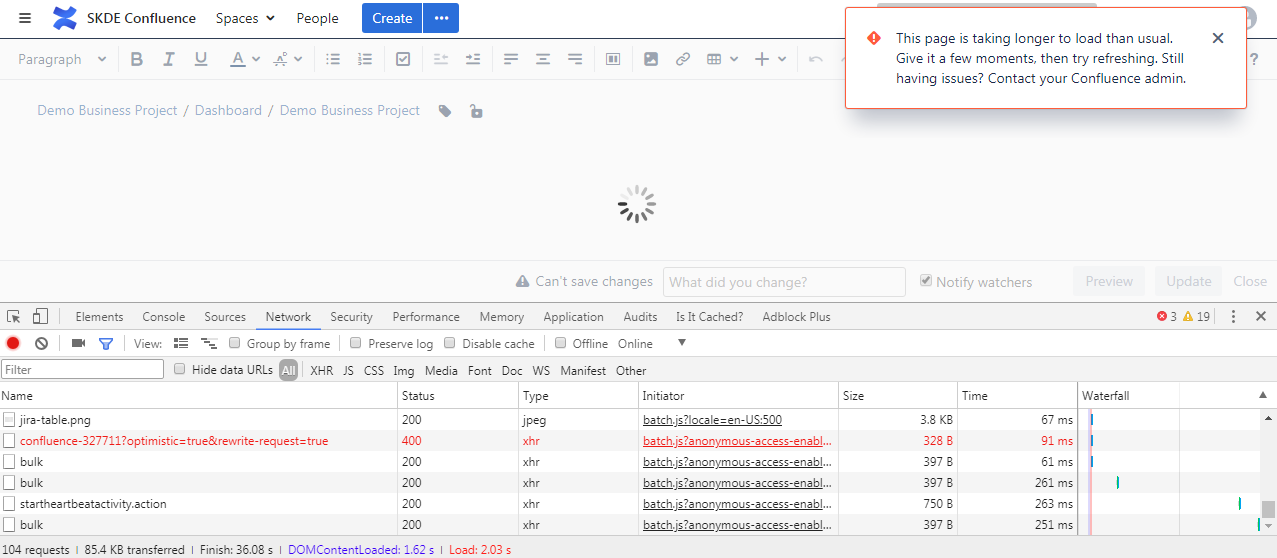

When I try to edit a page, I get the following error:
This page is taking longer to load than usual. Give it a few moments, then try refreshing. Still having issues? Contact your Confluence admin.
As you can see ("confluence-327711"), there is a faulty (Status/Error Code 400) AJAX call to the "/synchrony" location.
When I open that call in a new browser tab, I will receive the following JSON error:
{"type":"missing-token","message":"Missing token"}The error mentioned above is misleading! Here is the correct error... When opened within a new tab, Synchony will always reply with the error message above. The error message below is the correct one captured with Wireshark.
{"type":"server-error","message":"server error","id":"WUeTwdxxQ5UQyVu-tQglYw"}Within the error logs this showed up:
2018-03-07 10:07:04,606 DEBUG [135:StdOutHandler [/srv/atlassian/confluence-6.7.2/jre/bin/java]] {"synchrony":{"message":"synchrony.http.entity-api [warn] Error in put-entity","entity":"/Synchrony-591e1f19-3563-3f2c-8d61-4ecb6bc8cf41/confluence-1015819","id":"WUeTwdxxQ5UQyVu-tQglYw","ns":"synchrony.http.entity-api","throwable":"clojure.lang.ExceptionInfo: Could not initialize class org.xerial.snappy.Snappy {:type :server-error, :source :server}\n\tat clojure.core$ex_info.invokeStatic(core.clj:4725)\n\tat synchrony.sync.messages$ex_info_from_error_message.invokeStatic(messages.cljc:29)\n\tat synchrony.sync.connection$request_BANG_$fn__31266.invoke(connection.cljc:92)\n\tat synchrony.http.entity-api.(take?)(entity_api.clj:493)\n\tat synchrony.http.entity_api$content_reconciliation$fn__48540.invoke(entity_api.clj:472)\n\tat synchrony.http.entity-api.(take?)(entity_api.clj:536)\n\tat synchrony.http.entity_api$put_revision_handler$fn__48739.invoke(entity_api.clj:518)\n\tat clojure.lang.AFn.run(AFn.java:22)\n\tat java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)\n\tat java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)\n\tat java.lang.Thread.run(Thread.java:748)\n","level":"warn"}}Synchony is complaining about "Could not initialize class org.xerial.snappy.Snappy".
How to configure nginx and Confluence in order to get it work completely?
