JUnit failures are not recognized in Bitbucket Pipelines

[Patrick Steiner]

Failures in my JUnit test results are not recognized by Bitbucket Pipelines. The results file is created via fastlane (swiftlint) and looks like this:

<?xml version="1.0" encoding="utf-8"?>
<testsuites><testsuite>
  <testcase classname='Formatting Test' name='SomeSwiftFile.swift'>
    <failure message='Lines should not have trailing whitespace.'>warning: Line:15 </failure>
  </testcase>
</testsuite></testsuites>

I also tried an different example file which looks like this:

<testsuite tests="3">
  <testcase classname="foo1" name="ASuccessfulTest"/>
  <testcase classname="foo2" name="AnotherSuccessfulTest"/>
  <testcase classname="foo3" name="AFailingTest">
    <failure type="NotEnoughFoo"> details about failure </failure>
  </testcase>
</testsuite>

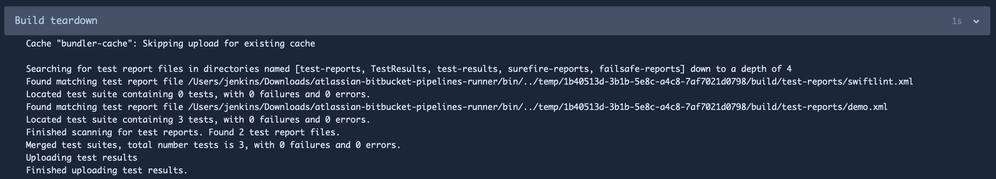

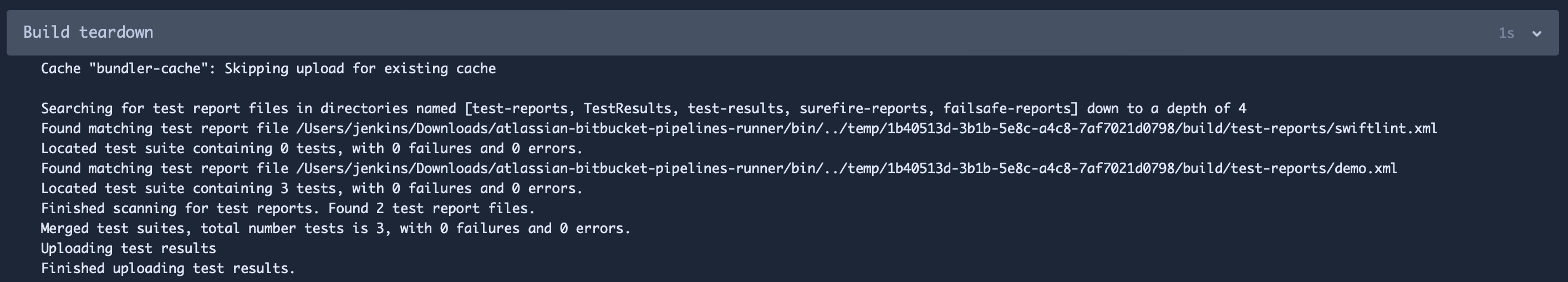

It looks like that both files are recognized as junit result files but the failures are not recognized. Take a look at the Bitbucket Pipelines result:

Any ideas whats wrong here?

[Patrick Steiner]

I think I figured it out, the problem is, that the xml needs the following properties:

<testsuite tests="3" skipped="0" failures="1" errors="0">

With this modification the junit xml is recognized correclty.

<testsuite tests="3" skipped="0" failures="1" errors="0">
  <testcase classname="foo1" name="ASuccessfulTest"/>
  <testcase classname="foo2" name="AnotherSuccessfulTest"/>
  <testcase classname="foo3" name="AFailingTest">
    <failure type="NotEnoughFoo"> details about failure </failure>
  </testcase>
</testsuite>
