Configuring issue hierarchy above epics in Advanced Roadmaps

Felix Klaes

Hi everyone,

I recently started with the trial version for the jira software premium, to explore the advanced roadmaps and figure out if we need the features in our team.

First I wanted to create an issue hierarchy above epic level. I feel like I did all the steps, but it still doesn't work properly.

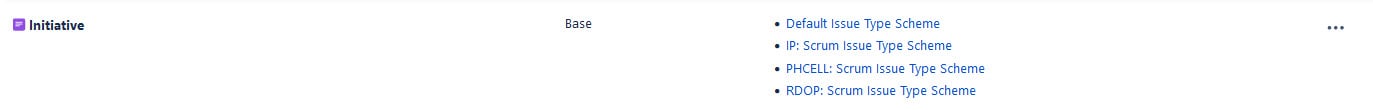

I created a new issue type "initiative"

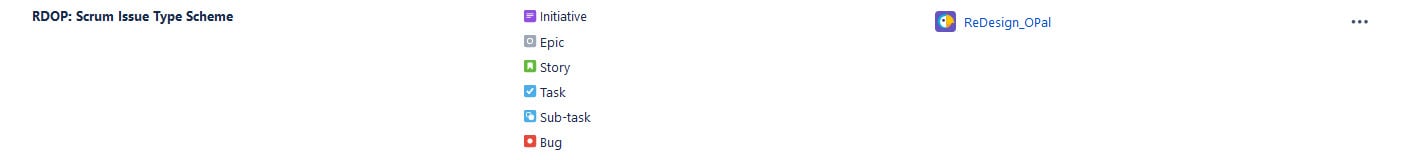

I assigned the issue type to the issue type scheme of the relevant project

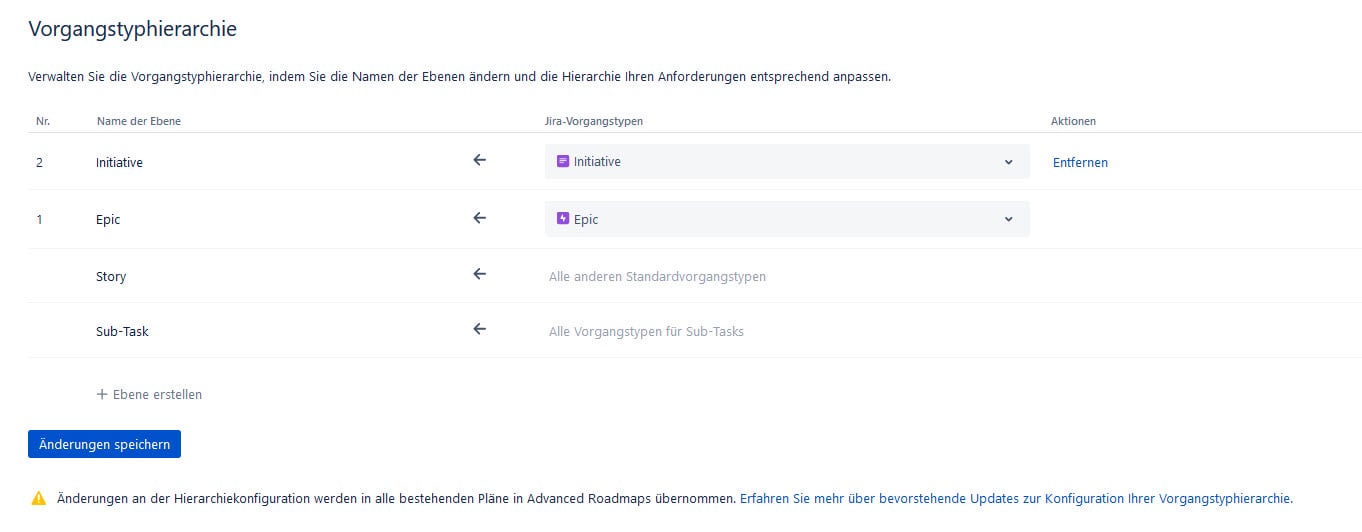

I added a new Issue type hierarchy with the new "initiative" issue type

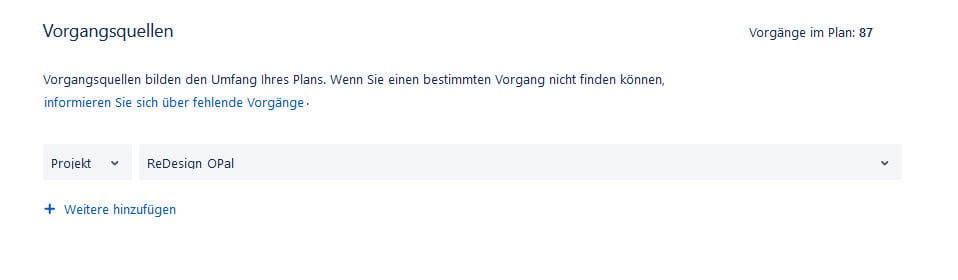

And in the advanced roadmap, this project is linked (it's the only source in this case)

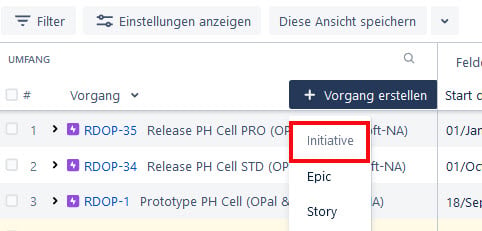

Now, when I click "create issue" in my plan, the new "initiative" issue appears, but is disabled.

Does anyone know, where my error is? What did I miss?

Thank you guys in advance, I'm really out of ideas here.

Comments

Mark Segall

Hi @Felix Klaes - Roadmaps default to Epic at the highest level so you can only create epic and below. All you need to do is click Filter and under hierarchy, change the From issue type to Initiative. That should do the trick.

Felix Klaes

Hi @Mark Segall
thank you very much for the fast help. That fixed my problem. Now everything works as intended.

Team Varolio

Hey Mark, im trying to do the exact same thing Felix tried here, and i cant find the "Filter" button in the roadmap page. How do i add an issue type "Feature" that is above Epic so i can add epics under "Feature" and user stories under "Epics"? It's extreamly difficult to understand and i cant find any solution.

Mark Segall

Hi @Team Varolio and welcome to the community!

You first need to set up your issue type hierarchy. Assuming you're on Jira Cloud Premium, this can be done under Settings >> Issues >> Issue Type Hierarchy or here:

https://YOURINSTANCE.atlassian.net/jira/settings/issues/issue-hierarchy
