Two Jira Rules Executing At Same Time When Only One Option is Selected - Jira Cloud

Question

Hi Community,

I have configured two jira rules in Jira Cloud as below.

Problem: When selecting only one option (Option 1) in Select List (multiple choices) on Parent, two Child issues are created instead of one.

I want that:

- If user selects Option 1 in Select Field, Only one child should be created via Jira Rule 1

- If user selects Option 1 and Option 2 in Select Field, Only one child should be created via Jira Rule 2. (It should ignore Rule 1 in this case)

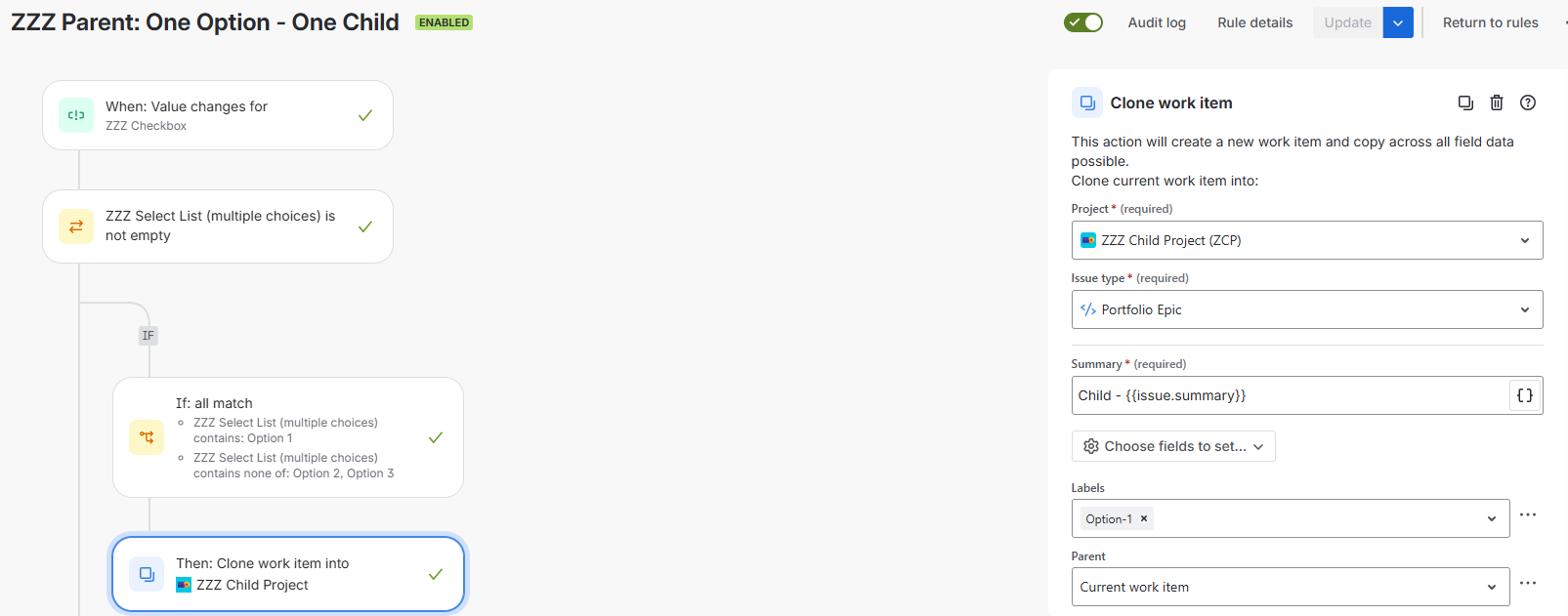

Jira Rule 1:

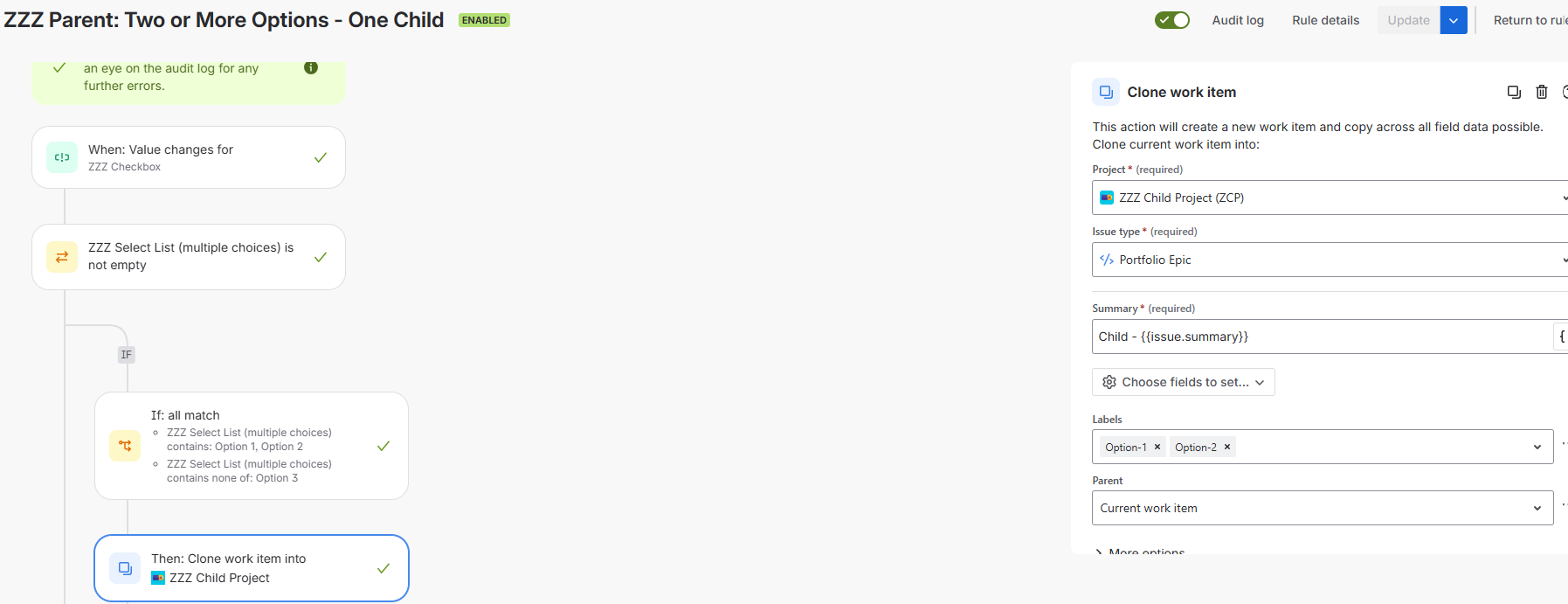

Jira Rule 2:

Please provide necessary steps/ conditions/ screenshots to setup the required Rule config, to achieve the requirement.

Thanks

Bill Sheboy · Answer

Honestly, I am still unclear on what problem you are trying to solve with this rule by checking so many values.  That is, "why do this?"

Until that is known...

Logic which tries to check so many values and span the checks across multiple rules is often a brittle approach.  The reason is multiple rules are separate and the conditions must be mutually exclusive to prevent overlaps.

Additionally for what you describe, there is a high risk the actions to create new work items will happen every time the field updates unless the change log is checked.

Let's assume for the moment your field option values help decide some specific data in a new work item, such as the Summary.  In that case, the rule could greatly simplify:

* limit the field updated trigger to only look for additions
* create a Lookup Table to map the field options to the Summary values
* use the field change smart value to identify the additions to advanced branch for each one* and then create the work item with the relevant Summary from the table

Thus a rule to handle 30 options would only be 4-5 components long, instead of longer than 65 components.

Digvijay Singh Gehlot_fgm3gu · Answer

Hi @Bill Sheboy

I am currently using Jira cloud. DC is just for reference how I built it more than 65 components.

Structure of my Jira Cloud Rule:

Trigger: Field Value Change

Condition: I have added 30 fields and set as not empty and then able to add only 10 paths of if-else which further includes field conditions (contains any of and contains none of)

Upto this point I am getting error message on Validating the rule, "62/65 components are added"

So, I created another rule with 30 fields conditions and remaining 6 paths of if-else

And then I realized that after selecting only 1 option in Select List field, two child issues are creating instead of one.

Is there any possibility to add negative condition in Rule 1 or Rule 2 so that both rules don't trigger together.

And how to use field change smart value in both rules, sharing a screenshot will be helpful.

Thanks

Bill Sheboy · Answer

@Digvijay Singh Gehlot -- You original question is tagged as for Jira Cloud and now you mention Jira Data Center.  Which version are you using?

The different Jira versions have different automation features, and so knowing the specific version will help clarify what may help.  For example, those extra field change smart values I noted do not exist in Data Center.

Next, you note 30 options and the rule limits on 65 components, but you appear to only care about 4 options: A, B, C, D.

Even assuming a worst case scenario of all possible paths, that would be 2^4 or 16 paths.  Adding an if / else block, all the possible ones could be tested in the rule and fit within the rule limits.

Or, are you trying to span all the 30 options, with 2^30 cases?

Backing up a bit: what problem are you trying to solve with this rule?  What is the purpose and expected outcome?  Knowing that may help identify other possible solutions.
