Attach form to multiple tickets using field and branching

Danny Marshall

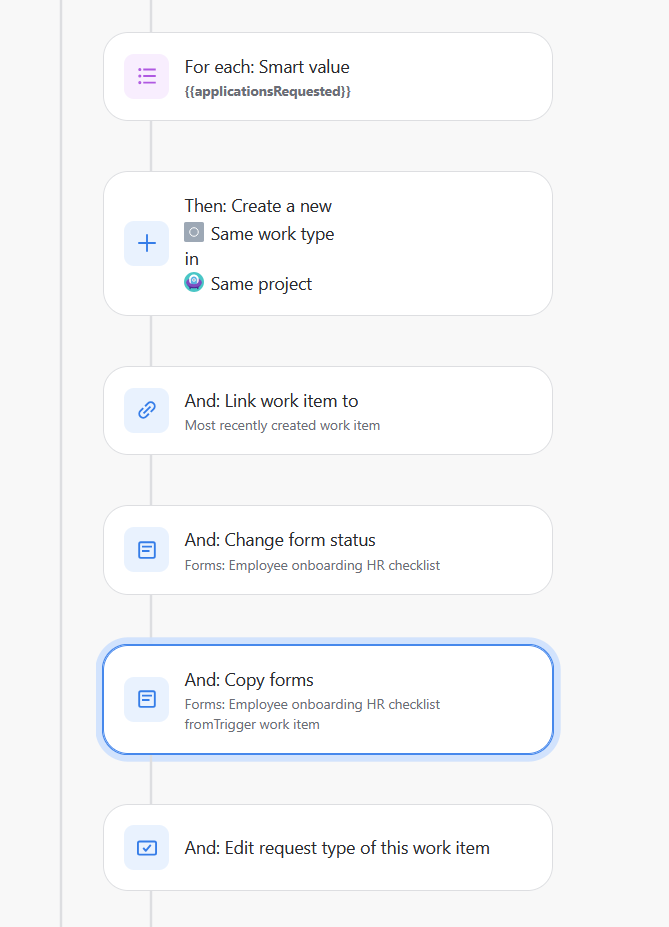

I have a multi select field {{applicationsRequested}} that when each option is ticked it will create a new ticket and assign to a team member. On each newly created ticket I want to copy the form from the original ticket. Below is my automation which doesn't seem to work properly. All the changes seem to be occurring to the original ticket and not the new ticket.

When I create a new ticket before the branch then using "most recently created work item" branch the form copy across, however, there are 15 options in this field and so possibly I want to create 15 new issues and copy the form to each ticket.



I'm not sure how to structure this automation so the changes occur to the newly created tickets.

Bill Sheboy

Hi @Danny Marshall

Short answer: your rule will need to either use a series of if / else condition blocks or use the REST API endpoint to copy the forms from the trigger work item.



It appears your scenario is:

GIVEN a multiple-selection option field for "Applications Requested"
WHEN a new work item is created
THEN for-each selection, create a new work item
AND copy the forms from the trigger work item to each newly created work item

Branches cannot be nested in rules, and because branches on more-than-one-thing execute in parallel and asynchronously, the rule cannot add all of the work items and then copy the forms later.  There are two possible solutions: conditions and the REST API endpoint...



1) With conditions, use a long rule which processes each possible selection, either with if / else conditions.  A simplified version of the rule would be:

• trigger: work item created
• if / else block
  • condition: option A is selected in the field
  • action: create work item
  • branch: to most recently created work item
    • action: copy forms from the trigger one
• if / else block (Note this is a new block and not a continuation of the earlier one.)
  • condition: option B is selected in the field
  • action: create work item
  • branch: to most recently created work item
    • action: copy forms from the trigger one
• ...

UPDATE: Re-reading your question, the if / else condition approach may not work as the rule could be longer than the 65 rule component limit.  Please check the math before trying to create the rule.  Thanks!



2) With the REST API endpoint, fewer changes are required to your rule.  Immediately after the new work item is created, use the Send Web Request action to call the REST API endpoint to copy forms.  If you want to try this approach, here are some references to help:

• https://community.atlassian.com/t5/Jira-articles/Automation-for-Jira-Send-web-request-using-Jira-REST-API/ba-p/1443828
• https://developer.atlassian.com/cloud/forms/rest/api-group-forms-on-issue/#api-issue-sourceissueidorkey-form-copy-targetissueidorkey-post



Kind regards,
Bill
