Automation rule : Make sum of object attribute

Kris Dewachter

Hi all,

I'm struggeling calculating the sum of a number of objects in an automation rule. I can't get the formula to work. Maybe i'm doing something wrong, or maybe it just doesn't work at all.

This is what I want to do in my automation rule.

1. I create a variable "Total" and set it to 0.

2. I use a "Lookup Objects" action to get a number of objects from the asset DB. Each object has an "Integer" attribute called "Amount"

3. I want to make the sum of these "Amount" values, and store this total in the "Total" variable

For some reason, calculating the total doesn't work. Below screesnhots of my automation rule.

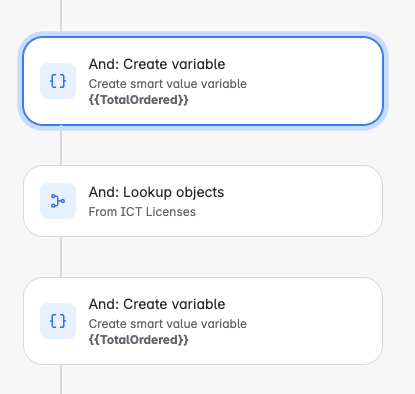

Screenshot 2025-04-15 at 14.04.51.png

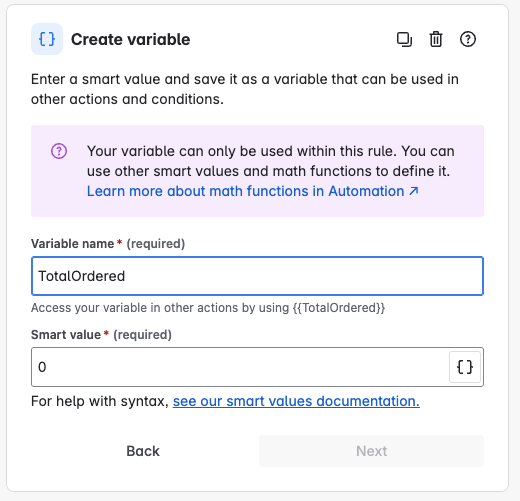

Screenshot 2025-04-15 at 14.05.20.png

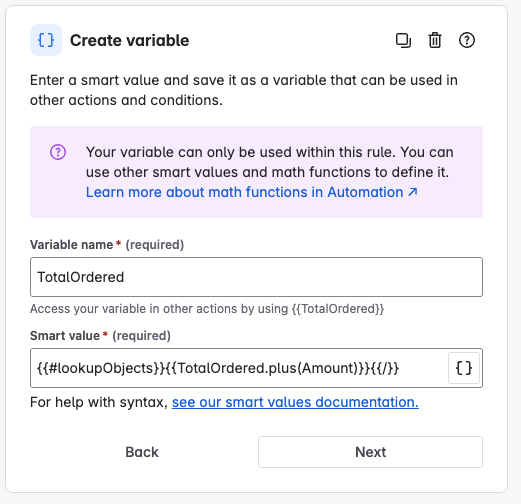

Screenshot 2025-04-15 at 14.06.44.png

Best regards,

Kris

Accepted answers

Marc -Devoteam-

Hi @Kris Dewachter

You will need, after the lookup objects, branch the rule, this to go over the list of found objects

And set a field (number), or variable with smart value e.g. {{lookupObjects.Amount.sum}}

I used this article as guidelin: https://support.atlassian.com/automation/kb/sum-a-custom-field-number-value-from-all-linked-issues/

Or maybe better, see this article: how-to-sum-up-attributes-value-of-multiple-assets-in-an-objects-custom-field-and-update-it-to-another-jira-field-using-automation

Bill Sheboy

Hi @Kris Dewachter

Branches which could be on more than one thing are executed in parallel and asynchronously. And so that variable will not be repeatedly updated as you might expect. Instead, each re-create of the variable is thrown away when that pass through the branch finishes.

Worse still for your scenario: the steps after the branch will start processing before the branch completes, as there is no guarantee of when such branches will complete, up until the last step of the rule.

The answer is similar to what @Marc -Devoteam- suggests, but without using any branching:

Use the Lookup Objects action with your AQL expression, and then sum from the {{lookupObjects}} smart value.

trigger: scheduled
action: lookup objects with your AQL
action: something that uses your sum value...

Kind regards,
Bill

All comments

Marc -Devoteam-

Hi @Kris Dewachter

You will need, after the lookup objects, branch the rule, this to go over the list of found objects

And set a field (number), or variable with smart value e.g. {{lookupObjects.Amount.sum}}

I used this article as guidelin: https://support.atlassian.com/automation/kb/sum-a-custom-field-number-value-from-all-linked-issues/

Or maybe better, see this article: how-to-sum-up-attributes-value-of-multiple-assets-in-an-objects-custom-field-and-update-it-to-another-jira-field-using-automation

Kris Dewachter

Hi @Marc -Devoteam-

Thanks for your feedback. Unfortunately, I am not able to get this to work.

I also tried some alternative setup, which also doesn't seem to return the total.

Screenshot 2025-04-16 at 10.14.22.png

Screenshot 2025-04-16 at 10.14.57.png

Any thoughts on what i might be doing wrong ?

Best regards,

Kris

Bill Sheboy

Hi @Kris Dewachter

The answer is similar to what @Marc -Devoteam- suggests, but without using any branching:

Use the Lookup Objects action with your AQL expression, and then sum from the {{lookupObjects}} smart value.

trigger: scheduled
action: lookup objects with your AQL
action: something that uses your sum value...

Kind regards,
Bill

Kris Dewachter

Hi @Bill Sheboy ,

Thanks for the tip on the branching.

I got the calculation working now after I found out i have to use a different formula to calculate the sum from the {{lookupObjects}}

This calculation works:

{{#=}}{{#lookupObjects}}+{{Amount}}{{/}}{{/}}

Best regards,

Kris

Bill Sheboy

As a precaution, you may want to put a 0 as a default value at the front of that expression:

{{#=}}0{{#lookupObjects}}+{{Amount}}{{/}}{{/}}
