How to set Asset object field in Automation using additional field

Joseph Lam

I am trying to use automation to set the asset object field by using JSON additional field.



I saw a similar question posted:

https://community.atlassian.com/t5/Jira-Service-Management/Can-you-set-multiple-objects-through-Jira-automation-for-an/qaq-p/2494648

 @Tom Brown:

It doesn't work when you try to use JSON and Advanced field editing. For me it worked, when I edited the custom object type field and set value as:

Someone answered it wont work if using additional field.

However, in my use case, I would have same field name for that asset object field, which means I must use JSON additional field.

Is it a bug or technial limitation that we cannot use additional field to set the asset object field?

---

We tried two cases but both failed:

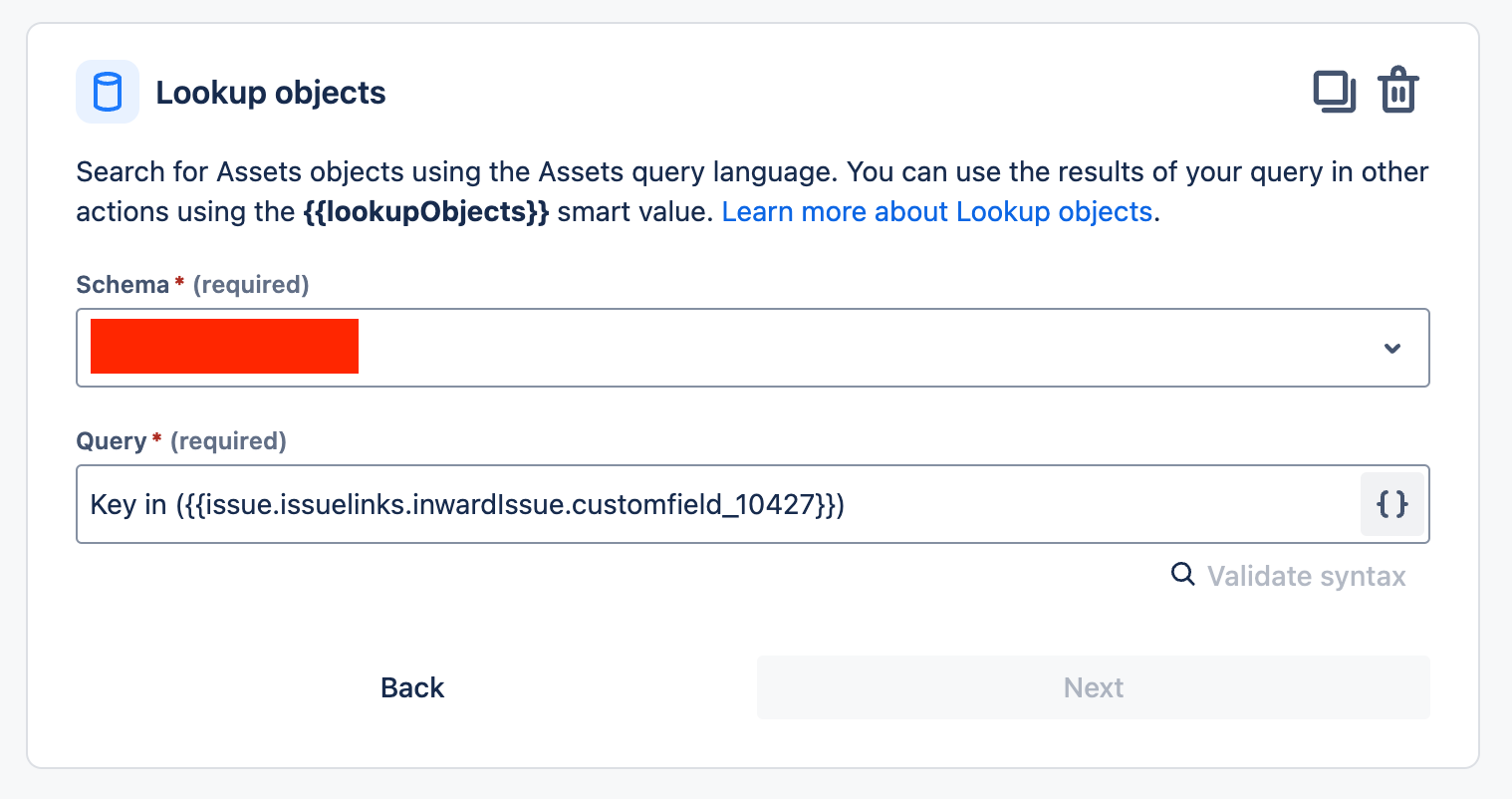

1. Using lookupObjects

Then, we use edit issue in the automation with:

{
    "fields": {
        "customfield_10425": [{{lookupObjects}}]
    }
}

The audit logs shows us the json field is not valid.

Then we tried to transform the data to be a valid json format as:

{"key": "xxxx"}

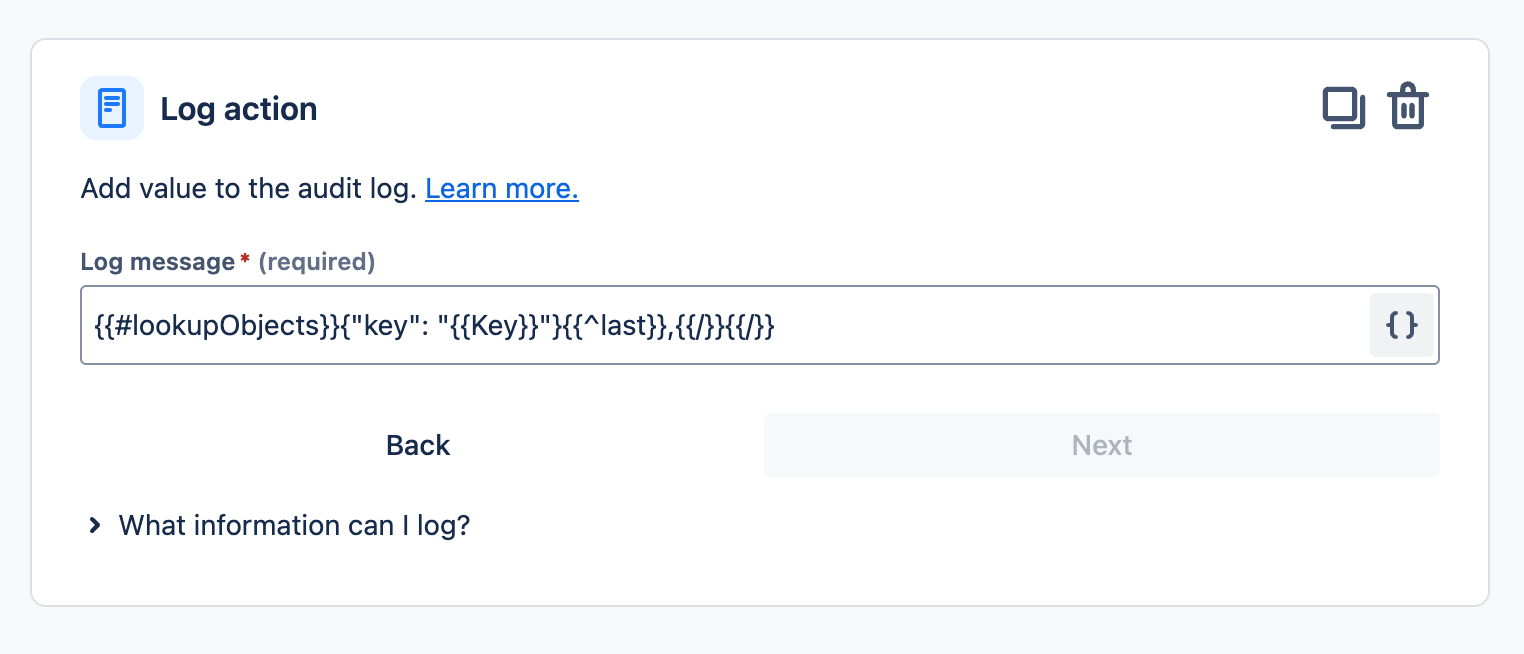

by using {{#lookupObjects}}{"key": "{{Key}}"}{{^last}},{{/}}{{/}}



2. Using tranformed lookupObjects

Then, we use edit issue in the automation with:

{
    "fields": {
        "customfield_10425": [{{#lookupObjects}}{"key": "{{Key}}"}{{^last}},{{/}}{{/}}]
    }
}

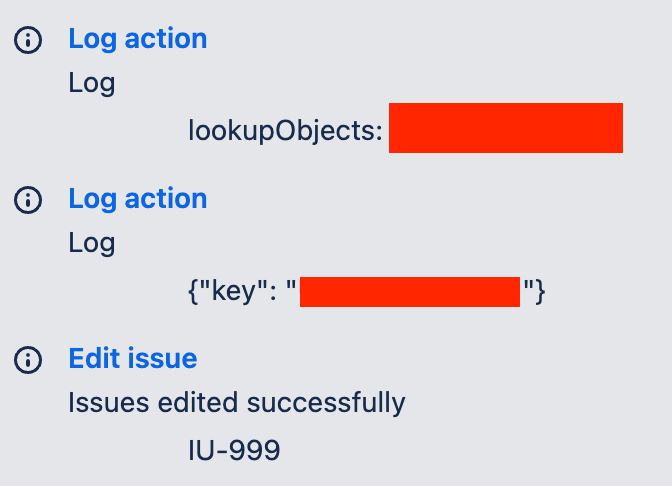

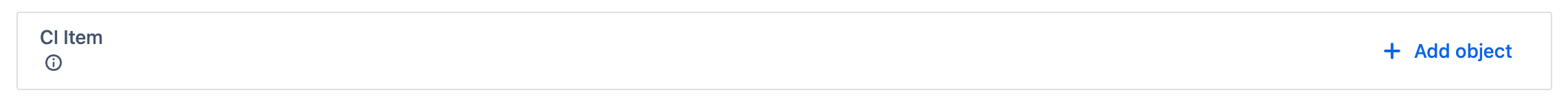

The audit log and the automation run is success; However, the field didnt have a value we have passed.



---

So, is there any successful case that set an Asset Object field using the Additional Field (JSON) from Edit Issue in the Automation?

Joseph Lam

Finally I find out we can use id as the json key with workspace_id:object_id as json value to set the asset field.

{"id": "<<your_workspace_id>>:{{id}}"}

I got the hints from the API call from the field editing:



For my case, it would be:

{
    "fields": {
        "customfield_10425": [{{#lookupObjects}}{"id": "<<your_workspace_id>>:{{id}}"}{{^last}},{{/}}{{/}}]
    }
}



For the workspace id, you can find it from the jira document:

https://developer.atlassian.com/cloud/assets/assets-rest-api-guide/workflow/
