Automation calculating value based on the values entered for 2 separate fields

Rafael Freymueller

Hi everyone,

I am currently stuck trying to solve the following automation issue. The person that created this setup / automation is unfortunately no longer available for inquiries so any help would be highly appreciated!

For one of our projects we are using the custom field "Calculated Priority".

This fields takes the values entered in the custom fields "Effort Estimation" & "Business Value Estimation" and calculates a number based on the values entered for each of the two custom estimation fields.

The values available for the "Effort Estimation" range from XS to XXL (6 total options)

The values for the "Business Estimation" range from Lowest to Highest (5 total options)

Recently, we added the "XXL" value as an option to the "Effort Estimation", before this, the highest value you could select was "XL. I am not 100% certain if the "Calculated Priority" field stopped being automatically populated through the automation at this point.

In the below screenshots you can find the automation in question. It would be great if I could get this working again through your help & input.

Another thing I found in the automation is that in the "Then" component, it says "(deleted fields?) next to the name of the fields. I am not sure as to what would be causing this. The field is still active. You can see this in the third screenshot.

The "Else-if" & "Then" component in the automation basically repeat themselves for each available size for the "Effort Estimation" fields.

As an additional piece of information: the only things I changed were adding the XXL option to the Effort Estimation.

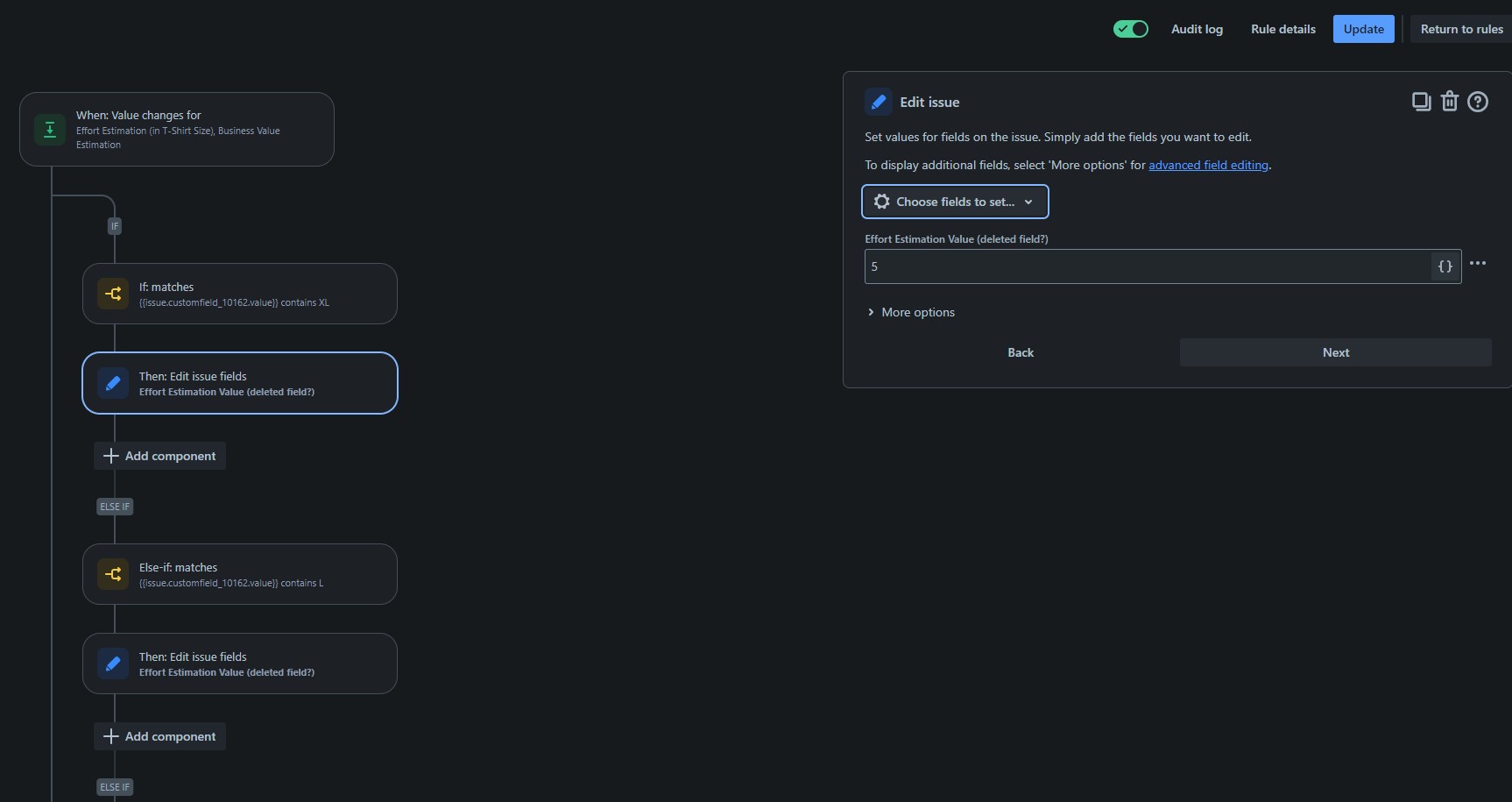

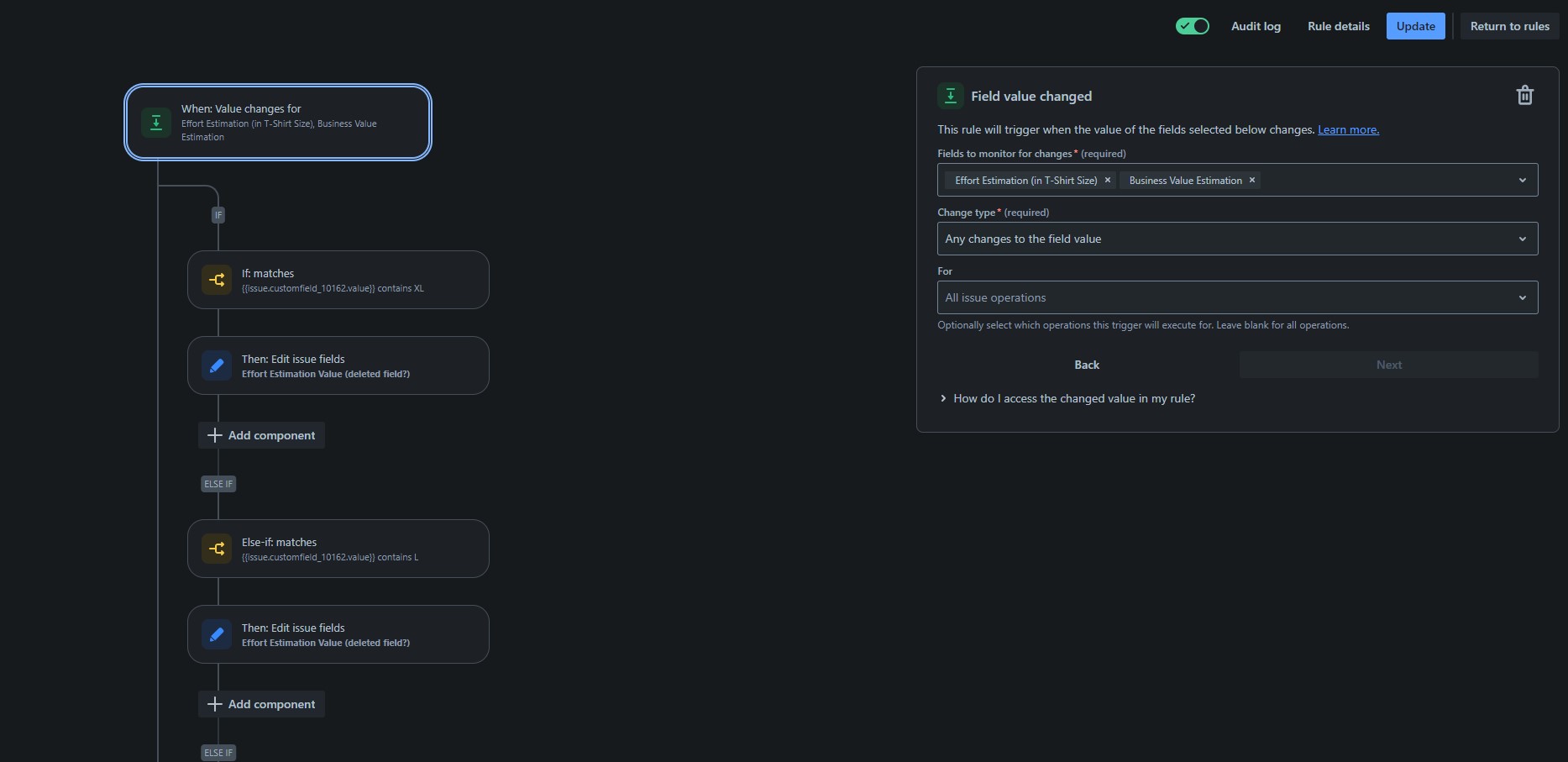

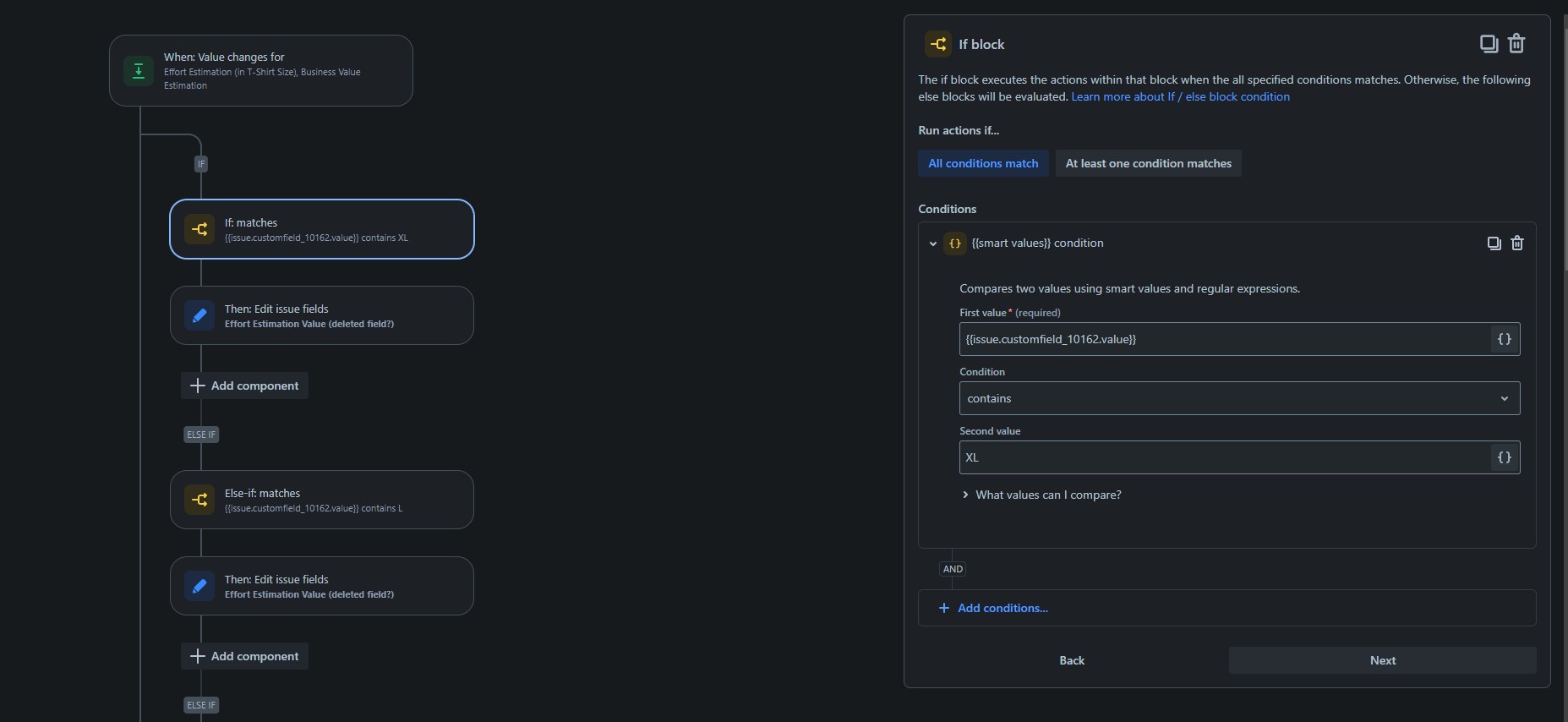

Automation 3.jpg Automation 2.jpg Automation 1.jpg

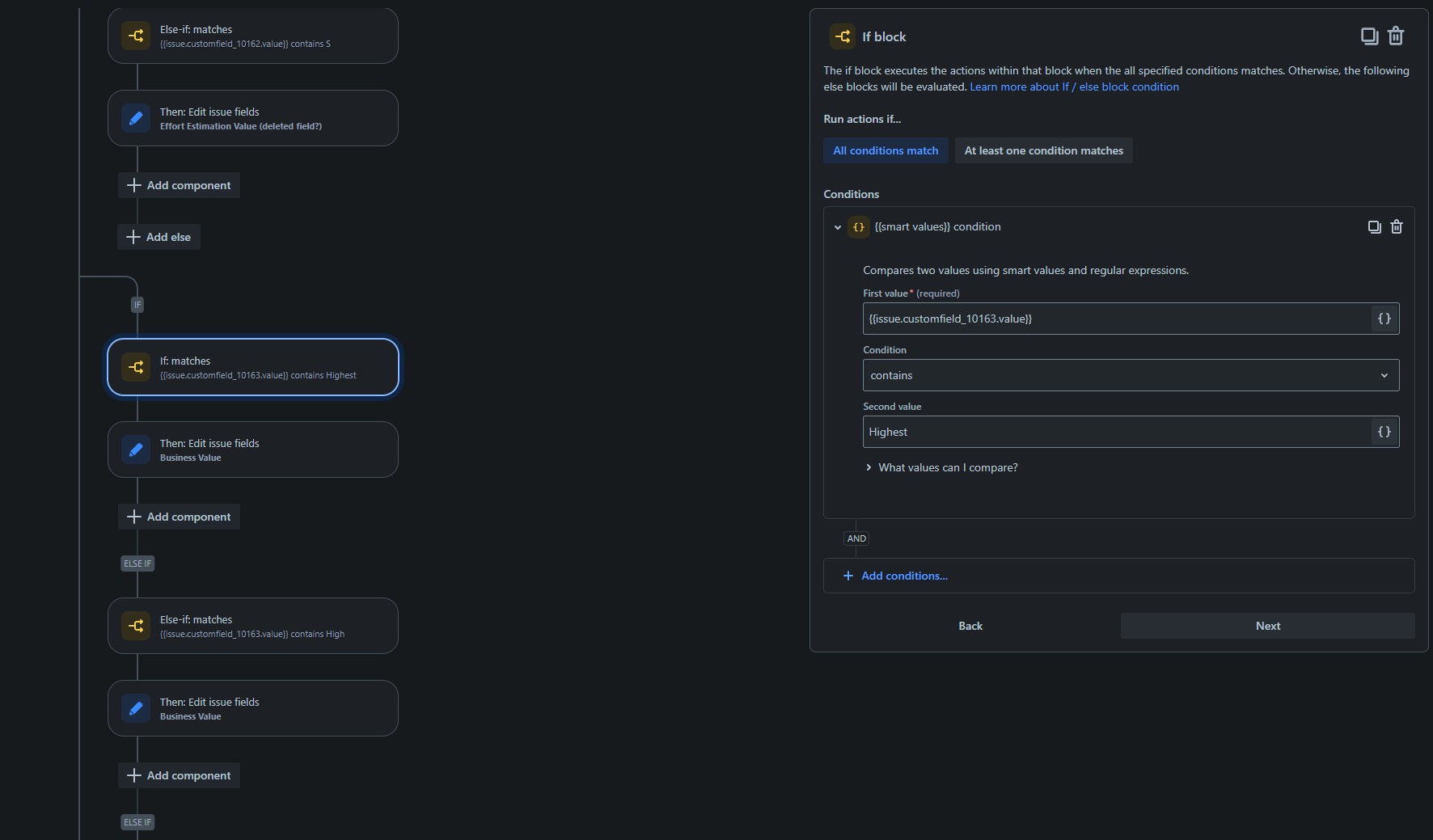

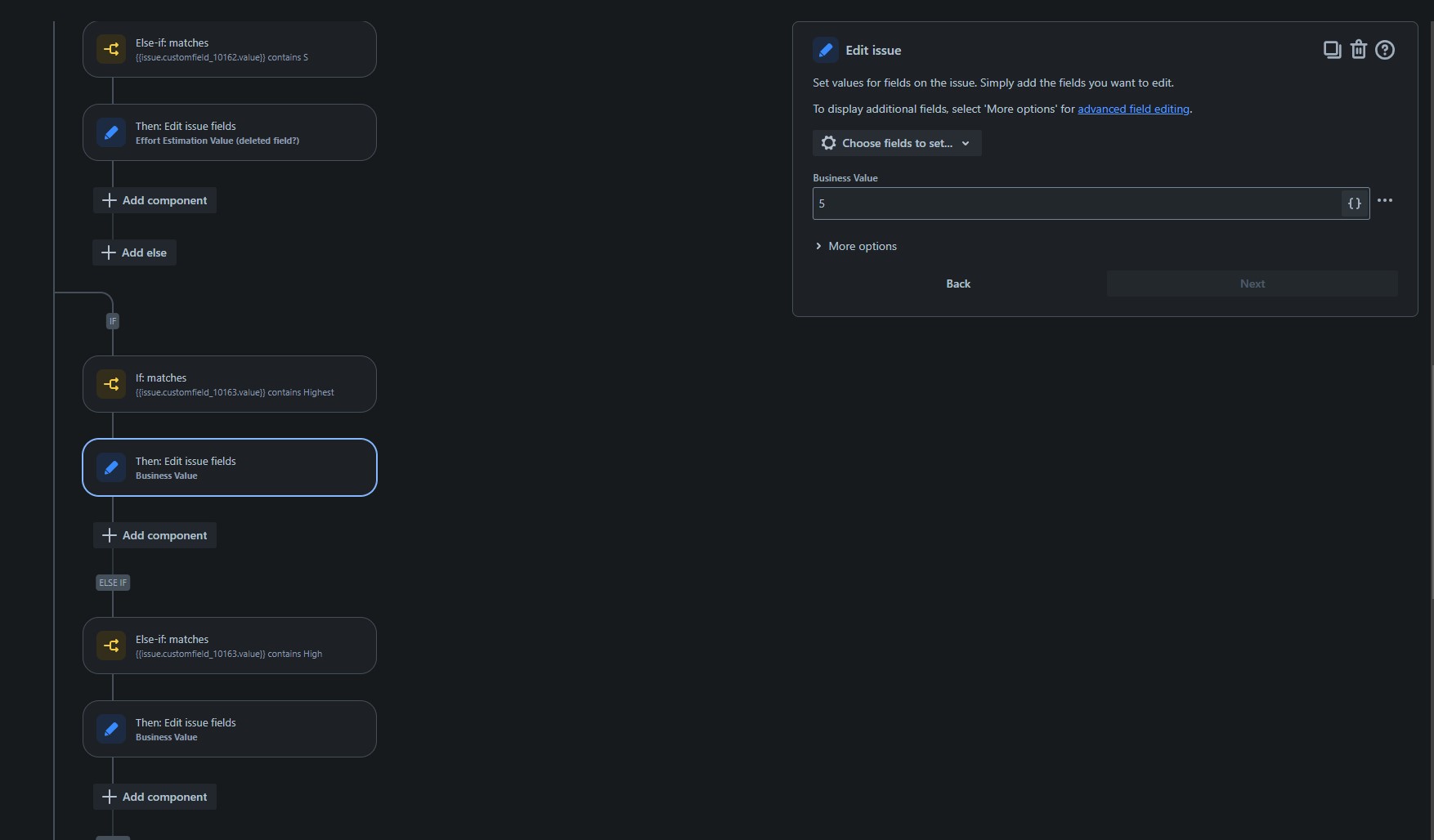

Here is the part of the automation for the Business Value Estimation:

Automation 4.jpg Automation 5.jpg Automation 6.jpg Automation 7.jpg

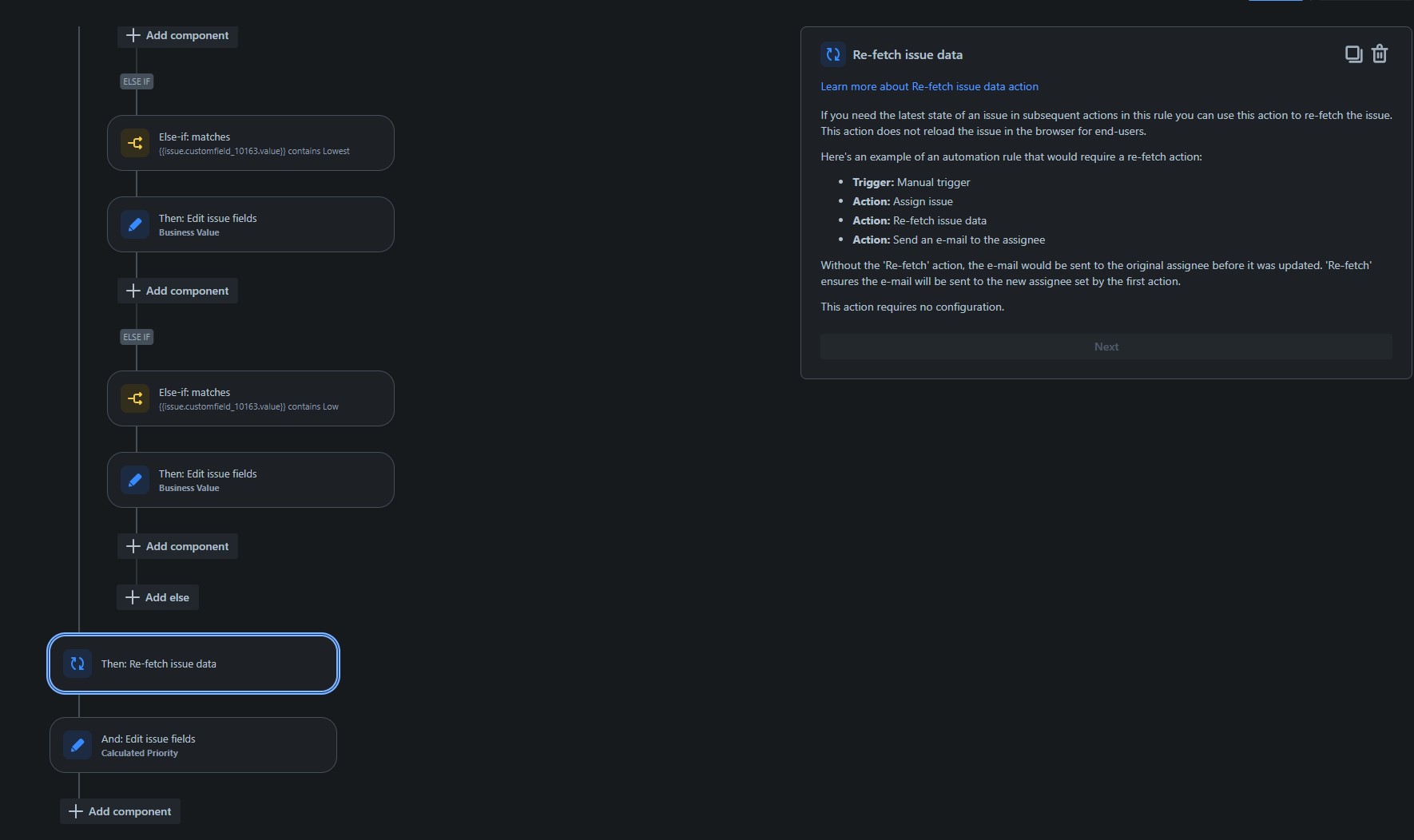

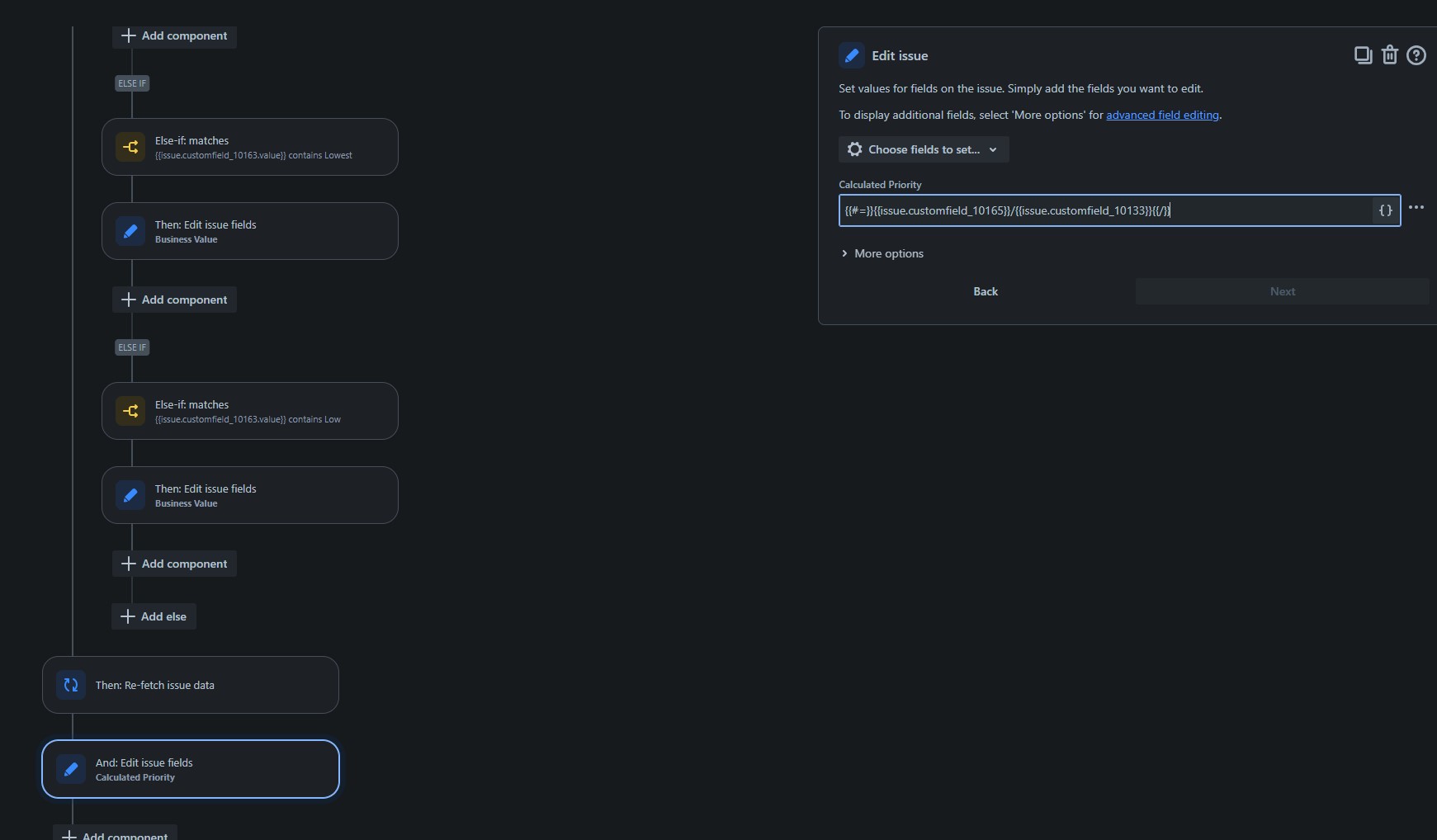

The last 2 screenshots are the final part of the automation.

Again, any help is highly appreciated! Thank you very much

Accepted answers

Marc -Devoteam-

Hi @Rafael Freymueller

The issue with "Effort Estimation" can be 3 things.

The field is deleted
The Context of the field is not set correctly
The Field is hidden in the field configuration

If you fixed this, then

You will need to add a section in the rule that checks is the "customfield_10126" is set to XXL, that the the "Effort Estimation" is set to 6

Rafael Freymueller

I was able to fix this. The issue was that the automation used two separate custom fields instead of the ones where the Estimations are entered in the project.

So if I entered the value XL in the custom field "Effort Estimation 1", the automation edited the value for the custom field "Effort Estimation 2" and changed the value to, depending on the T-Shirt Size to a value between 1-6 (corresponding to S-XXL). This second field "Effort Estimation 2" is not used in the project itself and just for the purpose of this automation.

A similar thing happens to the Business Value. A second hidden custom field is populated through the automation based on the dropdown selection from Lowest to Highest (1-5).

The numeric value in the "Calculated Priority" field is then calculated by dividing the numeric values in both custom fields "Effort Estimation 2" and "Business Value 2"

I hope this makes sense.

Thanks for helping out and making me double check the settings!

All comments

Marc -Devoteam-

Hi @Rafael Freymueller

The issue with "Effort Estimation" can be 3 things.

The field is deleted
The Context of the field is not set correctly
The Field is hidden in the field configuration

If you fixed this, then

You will need to add a section in the rule that checks is the "customfield_10126" is set to XXL, that the the "Effort Estimation" is set to 6

Rafael Freymueller

Hi @Marc -Devoteam- ,

thanks for the quick reply!

I have the checked the points you mentioned from 1-3 and everything seems to be in order.

The automation I included in the screenshots did previously work and as it is right now, it should, for instance, if the Effort Estimation contains the XL value, Edit the field and input the numeric value 5 so the calculated priority field can be calculated based on that number + the number in the Business Value Estimation field.

Rafael Freymueller

I was able to fix this. The issue was that the automation used two separate custom fields instead of the ones where the Estimations are entered in the project.

A similar thing happens to the Business Value. A second hidden custom field is populated through the automation based on the dropdown selection from Lowest to Highest (1-5).

The numeric value in the "Calculated Priority" field is then calculated by dividing the numeric values in both custom fields "Effort Estimation 2" and "Business Value 2"

I hope this makes sense.

Thanks for helping out and making me double check the settings!

Bill Sheboy

Hi @Rafael Freymueller

Well done solving the problem with the rule!

And...please consider updating your rule to use Lookup Tables rather than the if / else blocks with conditions. That will make your rule much easier to maintain and to see such problems in the future. Please look here to learn more: https://community.atlassian.com/t5/Automation-articles/Update-Create-lookup-table-action-improvements/ba-p/2427798
