How do I update status of an issue that depends on other issues status?

Srdjan.Boskovic

Hey Atlassian Community,

I'm new to Atlassian automation and still learning and I hope you can help me with a problem.

I have a project (Project X) which is used as inbox for multiple projects, ie. a request to Project X creates tickets/issues (of different types) in multiple other Projects.

Every ticket/issue is linked to the original Project X request/ticket as "depends on" outward dependency.

i.e. Project X, Issue 1 (X-1) creates:

- Project Y, Task 2 (Y-2)

- Project Z, bug-3 (Z-3)

- ...several other projects and issue types.

- all these are linked as following; X-1 depends on Y-2 and Z-3 (and others).

I want to be able to periodically inspect the status of Y-2 and Z-3 and move X-1 into a specific state based on their corresponding states, eg.

- if Y-2 OR Z-3 are IN PROGRESS then move X-1 to IN PROGRESS

- if Y-2 AND Z-3 are DONE then move X-1 to DONE

I DON'T want to have automation on all affected projects, since these are many and use different types of issues so maintainability will be horrible over time yet I need to do this automation on Project X level.

This is what I have right now:

- Timer Trigger with JQL query that check all issues in Project X that are in backlog. -> so I get X-1 (and other Project X issues in that state).

- Branch off for every issue above and go through their corresponding linked issues and their status values. -> I get Y-2 and Z-3 when I loop through X-1 linked issues.

- if one of these are in progress then DO SOMETHING to make sure trigger issue X-1 status is updated. -> I get the status of Y-2 and Z-3 but need help with DO SOMETHING part.

When in the fork/loop I can see that Y-2 and Z-3 are linked to X-1 (using

issue.issuelinks.inwardIssue.key) but I don't know how to change X-1 status.

I tried to:

- set issue.issuelinks.inwardIssue.key.status value -> but that's not how it works.

- create a smart variable in the main loop, eg. inProgress, and set it to false by default but then change the value in the inner loop to true in case of hit. -> that's not how it works. The smart values are locked to the context they run in.

- find an article or someone trying to do something similar but my google-fu is failing me.

Any ideas/suggestions? Is there any another, simpler, way to do this?

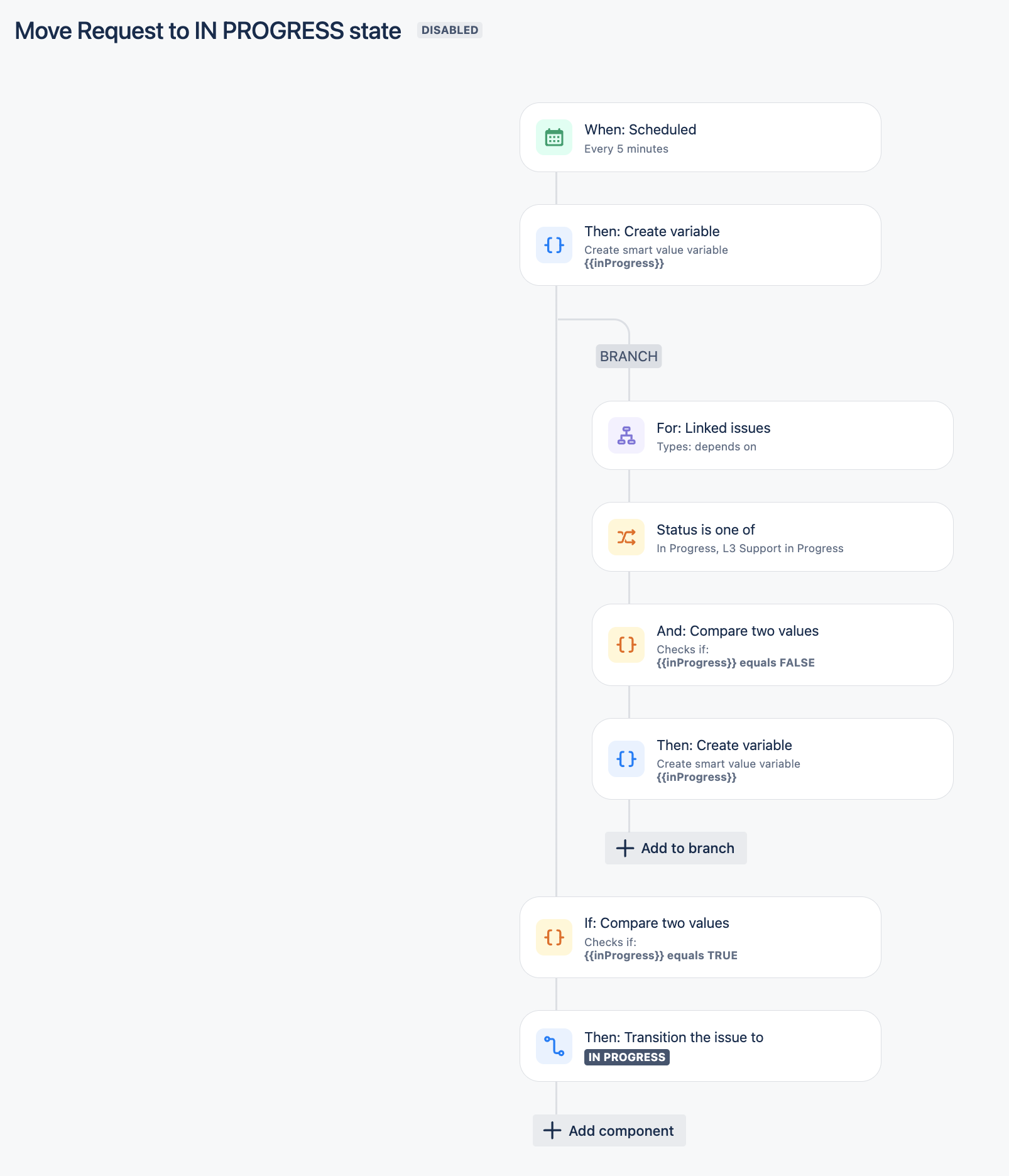

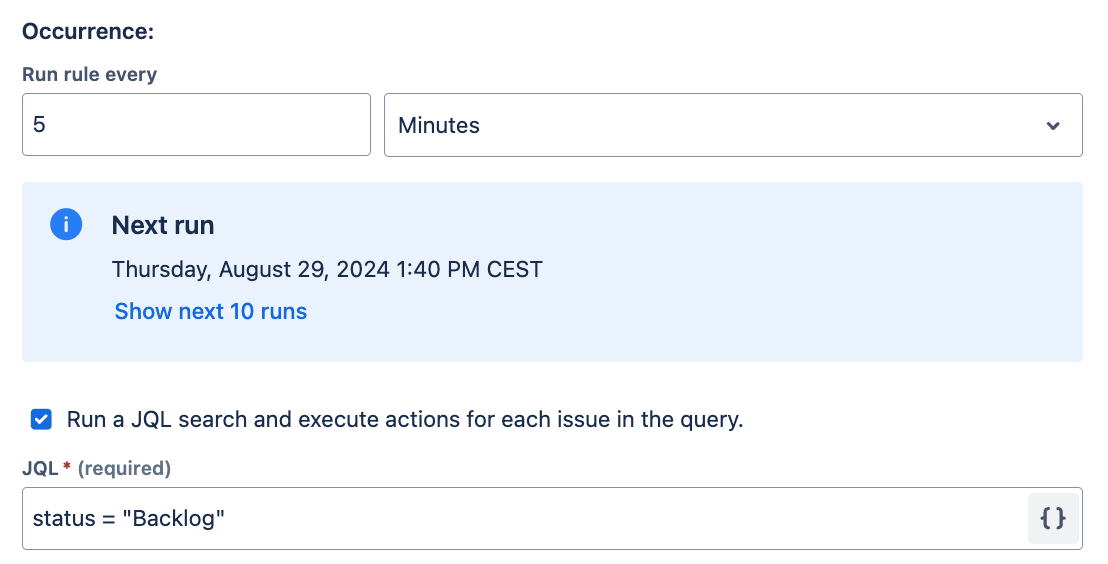

Adding flow directly here as a reference:

Screenshot 2024-08-29 at 13.35.22.png Screenshot 2024-08-29 at 13.36.21.png

(5mins is just for now. When done, this will run on hourly cadence. Also, note that in the inner-loop I set inProgress only once. This is to avoid next issue overriding the value if I already have a hit)

thanks in advance!

Also, another question:

- is there a simple way to debug jira automations? Right now I use email action to notify myself of the different states and values in the automation and yesterday I forgot to switch the automation off 4hrs and spammed myself with ~4000 emails since I set the timer to every 5min meanwhile writing the automation. There must be a better way to do this, or?

Accepted answers

Srdjan.Boskovic

I have solved this now thanks to the suggestion made by Walter Buggenhout (can't tag him and credit him for some reason) here: https://community.atlassian.com/t5/Jira-questions/Change-status-when-resolution-is-done-in-another-issue-project/qaq-p/2253492

But, I have to say I LITERALLY H_8 it. :old_man_yelling_at_clouds:

It feels like I have to change the tires on the car in order to open the passenger window

This is what I did to solve it:

Part 1: Traverse through all linked issues and check their state. If "In Progress" (or similar), create a sub-task on the trigger issue and set some labels on it. This operation will trigger issue update event on the trigger issue. Here's the flow:

Screenshot 2024-08-31 at 08.56.08.png

Part 2: If issus has been updated and is in "Backlog" state and it has sub-task with specific labels (that were set in Part 1) then transition it to In Progress state and delete the sub-tasks that were created in Part 1. Here's the flow:

Screenshot 2024-08-31 at 08.22.34.png

This is how I THINK it should be solved instead:

Alternative 1: Allow Set issue property action to operate on {{triggerIssue}}. This is currently not possible even though the automation doesn't give any errors or warnings when you try to do it. This is my preferred solution since it allows user to operate on ANY issue property for the trigger issue. Ie. powerfull stuff that would enable many other automations. The flow is here:

Screenshot 2024-08-31 at 08.12.37.png

Alternative 2: Allow Transition action to operate on the trigger issue. This would solve my problem but is limiting to only transitions so less preferred than Alternative 1. The flow is here:

Screenshot 2024-08-31 at 08.13.22.png

Can anyone suggest how I contact Atlassian Jira Automation folk to suggest these improvements? I'm still new to this so I don't know what is "the way"?

Again, I'd like to avoid changing tires to get the passenger window down...

All comments

unknown

Hello and welcome.

I am not sure if I understand you correctly, but I'll try to help:

Branch off for every issue above and go through their corresponding status value.

If you branch off and iterate over multiple Issues, everything you do in that branch is done on the current Issue the automation is "looking up".

E.g.: If you branch over all Issues connected via a Link Type and if that (Connected)Issue is in a status, then you want to edit it. You need to do the following:

Branch -> IF Status = "done" -> Edit Issue.

This will edit the Issue that you branched off to, if in the status given and not the Issue you started with!

Maybe that's why "issue.issuelinks.inwardIssue.key.status value" didn't work. "issue." will reference the issue the automation is looking up, not the Issue you started the automation on.

Try to change the reference.

Maybe you could share a screenshot of your automation and maybe a small map off your project/linktype configuration so I (and others) will understand your specific problem in a better way.

Kind regards

unknown

If you want to lookup multiple Status-Values, one you could try is to iterate over all Issues with a branch -> Create a smartvalue, if they are in a status -> then (outside the loop) edit the Issue you started on, given the smartvalues.

I don't know if this will work if a smartvalue is missing though.

unknown

To make my point clearer:

Screenshot 2024-08-29 133654.PNG.jpg

This rule will transition every Issue found under the query "status = "submitted" and NOT the Issue this rule would have been manually triggered on. I just tested it to validate that.

Srdjan.Boskovic

Thanks Simon,

Some comments back:

" Branch off for every issue above and go through their corresponding status value.

If you branch off and iterate over multiple Issues, everything you do in that branch is done on the current Issue the automation is "looking up".

E.g.: If you branch over all Issues connected via a Link Type and if that (Connected)Issue is in a status, then you want to edit it. You need to do the following:

Branch -> IF Status = "done" -> Edit Issue.

This will edit the Issue that you branched off to, if in the status given and not the Issue you started with!"

Yes, I understand that. That's what I tried to explain in my original text (but failed, it seems. Sorry).

"Maybe that's why "issue.issuelinks.inwardIssue.key.status value" didn't work. "issue." will reference the issue the automation is looking up, not the Issue you started the automation on."

So, issue.issuelinks.inwardIssue.key works! I get X-1 value which is correct. But setting the status of X-1 doesn't work by using issue.issuelinks.inwardIssue.key.status.

I still don't know enough about Jira custom fields but I suspect it is because the issue property structure is flat. ie. I need to set issue.status and can not set issue.key.status because it's not how the structure is defined.

"Try to change the reference."

How do I do that?

"Maybe you could share a screenshot of your automation and maybe a small map off your project/linktype configuration so I (and others) will understand your specific problem in a better way."

See attached screenshots below for reference. This was an attempt to use smart variables but then I realized (through my email logs ) that they are context/thread specific, ie. these are just two variables with the same name, one in the main loop and the other one in the nested one.

"If you want to lookup multiple Status-Values, one you could try is to iterate over all Issues with a branch -> Create a smartvalue, if they are in a status -> then (outside the loop) edit the Issue you started on, given the smartvalues.

I don't know if this will work if a smartvalue is missing though."

Not sure if I understand clearly what you mean but I THINK that's what I tried above. Or?

Srdjan.Boskovic

Any automation ninjas out there that can help out with this? Any other way I can solve this (and without adding automations on multiple projects)?

Srdjan.Boskovic

But, I have to say I LITERALLY H_8 it. :old_man_yelling_at_clouds:

It feels like I have to change the tires on the car in order to open the passenger window

This is what I did to solve it:

Screenshot 2024-08-31 at 08.56.08.png

Screenshot 2024-08-31 at 08.22.34.png

This is how I THINK it should be solved instead:

Screenshot 2024-08-31 at 08.12.37.png

Alternative 2: Allow Transition action to operate on the trigger issue. This would solve my problem but is limiting to only transitions so less preferred than Alternative 1. The flow is here:

Screenshot 2024-08-31 at 08.13.22.png

Can anyone suggest how I contact Atlassian Jira Automation folk to suggest these improvements? I'm still new to this so I don't know what is "the way"?

Again, I'd like to avoid changing tires to get the passenger window down...

unknown

Hi sorry I was away for a while. Good thing you solved it. And yes, that is very non-intuitive.

Suggestions can be reported here: Automation Suggestions Atlassian Support.

Just have a look at already given suggestions.

Regards
