How to increment a date variable inside a 'For Each' branching ?

TP_t3860o

My objective is to setup sequential stories within different Epics. I am looping through the epics and would like to have a staggered start date so that each epic starts at a different date.

I have created a startDate variable before the branching.

Within the branch, I'm trying to increment it so that in the next loop, the date to be used is the incremented one.

I understand the branches in fact run in parallel so this solution does not work.

What is the recommended way to achieve what I want ?

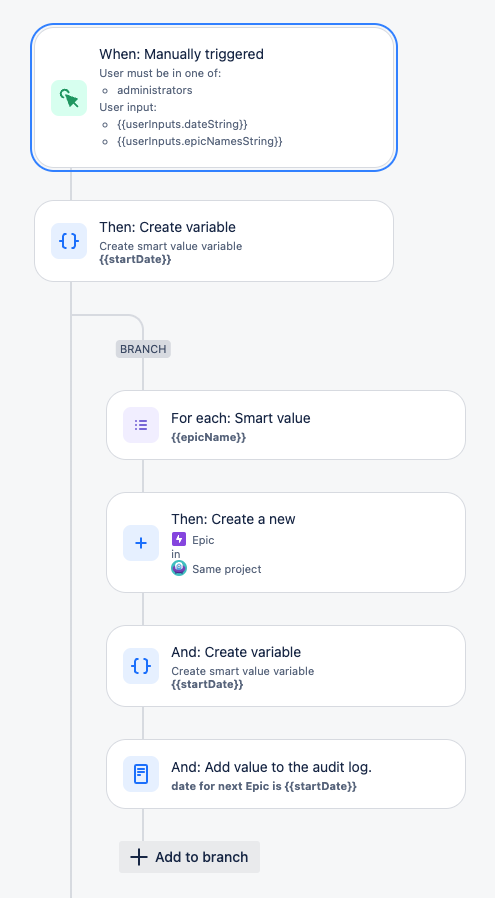

Stylized version of my automation below

Screenshot 2024-06-04 at 11.58.44 AM.png

Accepted answers

Trudy P Claspill

Hello @TP

It is not currently possible to increment a variable in a branch. That change request is included in this change request, to which you can add your vote:

https://jira.atlassian.com/browse/AUTO-26

Bill Sheboy

Hi @TP

As Trudy described, that variable cannot be re-declared to update it, or to update it sequentially.

For this type of scenario, there is a workaround for the parallel processing of branches using variables, and it requires some assumptions:

you have fewer than 100 items in that branch
you are willing to rename that variable {{startDate}} to something like {{varStartDate}} to avoid the risks of name collisions
you want to increment each date by the same amount; for example, X days
you are entering the "epic names" for the new issues in the desired, date order
you are entering the "epic names" with some delimiter, such as a comma
you pair with your teammates to explain this rule, ensuring it can be understood and maintained :^)

Now, the how-to part:

List elements have an index, or counter for each item. They are numbered 0 for the first item, 1 for the second, and so forth. Please look here for documentation on index: https://support.atlassian.com/cloud-automation/docs/jira-smart-values-lists/#Combined-function-examples

And so {{index}} would be a great thing to use for your list of epic names as a way to multiply a number of days to increment the date. The problem is {{index}} appears to be unavailable for anything other than displaying the number: it cannot be used in a function, such as {{someDate.plusDays(index)}}

But what if we could capture the index for use later to increment the date variable? We can!

First convert your manual trigger, input variable of epic names into a list stored in a variable, using the split() function and {{.}} for item value:

action: create variable
- name: varEpicNameAndIndex
- smart value:

{{#userInputs.epicNamesString.split(",")}}{{.}},{{index}}{{^last}};{{/}}{{/}}

This will produce a variable value like this, where we have name / index pairs:

make plan,0;buy materials,1;build shelf,2;store books,3

For the branch over the values, we split that back apart into pairs:

advanced branch
- name: varOneEpicAndIndex
- smart value:

{{varEpicNameAndIndex.split(";")}}

Inside of the branch, we may how access and use the two parts like this:

epic name: {{varOneEpicAndIndex.split(",").get(0)}}

new date: {{varStartDate.toDate.plusDays(varOneEpicAndIndex.split(",").get(1).asNumber)}}

Please adjust the date increment and delimiters, as needed.

Interestingly, I have seen several questions in the last few weeks that can be solved using this same technique of build-your-own-list, sometimes including dynamic searching. Perhaps its time to write an article to generalize this a bit for reuse.

Kind regards,
Bill

All comments

Trudy P Claspill

Hello @TP

It is not currently possible to increment a variable in a branch. That change request is included in this change request, to which you can add your vote:

https://jira.atlassian.com/browse/AUTO-26

TP_t3860o

Thanks for your quick reply - have added my vote indeed.

Bill Sheboy

Hi @TP

As Trudy described, that variable cannot be re-declared to update it, or to update it sequentially.

For this type of scenario, there is a workaround for the parallel processing of branches using variables, and it requires some assumptions:

you have fewer than 100 items in that branch
you are willing to rename that variable {{startDate}} to something like {{varStartDate}} to avoid the risks of name collisions
you want to increment each date by the same amount; for example, X days
you are entering the "epic names" for the new issues in the desired, date order
you are entering the "epic names" with some delimiter, such as a comma
you pair with your teammates to explain this rule, ensuring it can be understood and maintained :^)

Now, the how-to part:

But what if we could capture the index for use later to increment the date variable? We can!

First convert your manual trigger, input variable of epic names into a list stored in a variable, using the split() function and {{.}} for item value:

action: create variable
- name: varEpicNameAndIndex
- smart value:

{{#userInputs.epicNamesString.split(",")}}{{.}},{{index}}{{^last}};{{/}}{{/}}

This will produce a variable value like this, where we have name / index pairs:

make plan,0;buy materials,1;build shelf,2;store books,3

For the branch over the values, we split that back apart into pairs:

advanced branch
- name: varOneEpicAndIndex
- smart value:

{{varEpicNameAndIndex.split(";")}}

Inside of the branch, we may how access and use the two parts like this:

epic name: {{varOneEpicAndIndex.split(",").get(0)}}

new date: {{varStartDate.toDate.plusDays(varOneEpicAndIndex.split(",").get(1).asNumber)}}

Please adjust the date increment and delimiters, as needed.

Kind regards,
Bill

TP_t3860o

Very nice if just a little bit hacky

In truth, Atlassian should productionize this so we don't have to go through the hack.

Bill Sheboy

I'd suggest this type of workaround is more than a little bit hacky, although likely to continue working after future automation improvements ;^)

There is an open suggestion to add an option for parallel versus sequential execution of rules (such as for branches). You may vote for / watch it to see any progress: https://jira.atlassian.com/browse/AUTO-32

Given the potential for service limit violations when a hypothetical, sequential rule runs too long I hypothesize this suggestion may not be implemented without another limit change by Atlassian.
