Jira Automation - Use Advanced Branching to loop through Organizations on a ticket

G_knhdj8

Hello, I am trying to create an automation rule that iterates on each organization added to a JSM ticket and add a certain weight on its basis. My rule should allow me to calculate some metrics based on how many clients asked for a certain request and the weight of each client.

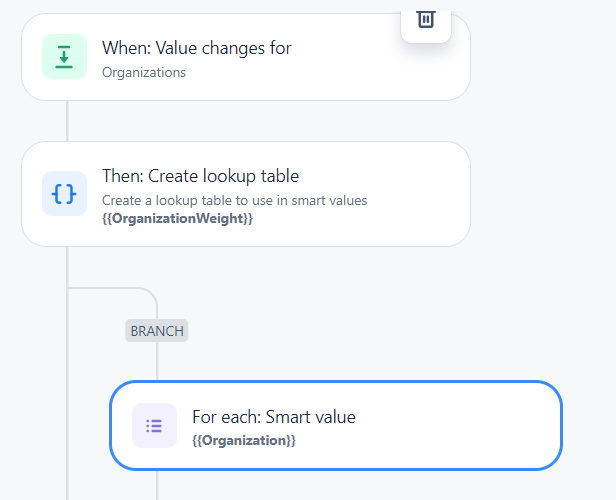

So, I created a lookup table within the automation rule. The table has all organizations that we deal with. I assigned some value to each organization to represent its weight.

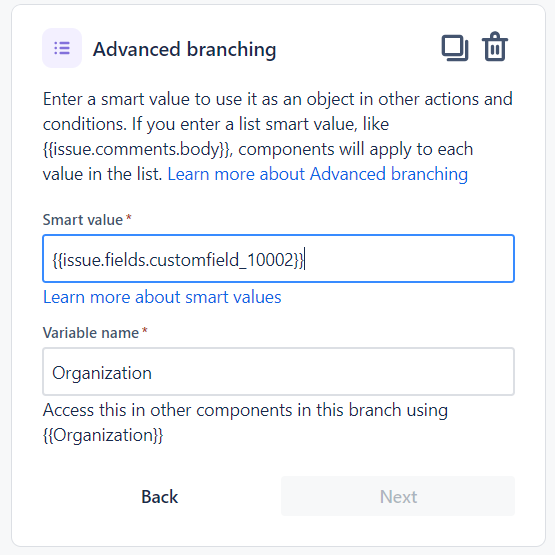

Then I created a "for each" branch where I should iterate on each organization within the field and add its corresponding weight within a custom field.

For some reason the "for each" loop is unable to return any value from the lookup table.

Noting that the field "customfield_10002" is the Organizations field on JSM

Example Use Case:
A ticket is created by org1.
we added org2 and org3 to the ticket
the lookup table has some weighting values for each organization: org1 = 1, org2 = 5, org3 = 6
end result: a custom field should have the sum of each weight (1+5+6) to represent the overall value of the request.

If you have any idea what could be the issue that would be much appreciated.

Bill Sheboy

Hi @G

You do not show the table lookup for your advanced branch variable, and I suspect it looks like this:

{{OrganizationWeight.get(Organization)}}

That will try to use the id value from the custom field, and not the value.  To use the value, try changing your advanced branch smart value to use this:

{{issue.customfield_10002.value}}



And also...if you are trying to later use that sum of weights to edit an issue, using the branch may prevent that from working in a predictable manner.  The reason is branches which could be on more-than-one-thing are run in parallel and asynchronously.  There is no guarantee of when they will complete, up until the last step of the rule.

This should be easy to solve, however iterators cannot "see" data outside of their scope.  And so if you iterated over your custom field selections, it cannot access the lookup table.



And so there are a couple possible work-arounds: do this with the table pre-checking the values or do this inline, with one large conditional statement.

The first way eliminates the branch and changes your lookup table to conditionally contain the weight values.  For example, the table could contain:

• key: none with value: 0
• key: org1 with value: {{#if(issue.customfield_10002.value.join(",").indexOf("org1").gte(0))}}1{{/}}
• key: org2 with value: {{#if(issue.customfield_10002.value.join(",").indexOf("org2").gte(0))}}5{{/}}
• key: org3 with value: {{#if(issue.customfield_10002.value.join(",").indexOf("org3").gte(0))}}6{{/}}

Then the sum of weights would be this:

{{OrganizationWeight.entries.value.asNumber.sum}}

How this works:

1. The first row of the table is a dummy value to ensure at least 0 is returned
2. Each other row looks for the organization in the values returning their weight
3. Then we use the new table function to gather all the entries, and sum them

This whole thing could be done inline, by just concatenating all of those conditions.  The table may be better-ish if you have lots of organizations to manage.



A simpler variation of that is to just use text functions and math expressions:

{{#}}0{{issue.customfield_10002.value.join(" + ").replace("org1","1").replace("org2","5").replace("org3","6")}}{{/}}



Kind regards,
Bill
