Automation to update start and end dates of linked issues

TomT_8bt7oi

I have issues that are blocked by other issues and linked them trough the timeline board.

If there is a delay for some reason on the first issue I will drag the due date, let's say 5 days, in the future. But the linked/blocked stories do not move along.
I want the linked/blocked issues to move with the same amount of days as the first issue.

This way we can track what the changes mean for the completion date of all linked issues.

I know this is not a function out of the box so I am trying to solve it using automation.

But I already get stuck quite quickly, even after looking at the examples here at the site.

Can someone help me forward?

Accepted answers

All comments

John Funk

Hi Tom - Welcome to the Atlassian Community!

Can you share the details of the Edit Issue for the Start date field?

Also, what is not working with it?

Marco Brundel

Hi @TomT ,

What have you set up behind the Start Date field? Did you use a smart-value there to copy Due date?

Regards, Marco

TomT_8bt7oi

Just to test I currently have a fixed date there.

I would want to place a smart value there meaning, the difference in days to the other issues end date has moved, is added to the start date.

But if I run this now for some reason my end date moves....

TomT_8bt7oi

Please see my reaction to Marco above.

John Funk

So you run the rule and the Start and End dates move? Or Just the End date?

Marco Brundel

Hi @TomT ,

What does the audit log indicate in the automation rule, has the issue changed as you expect? And if you look in the history of the changed issue, can you find out why the end date was changed?

groeten, Marco

TomT_8bt7oi

Only the end date moves.

TomT_8bt7oi

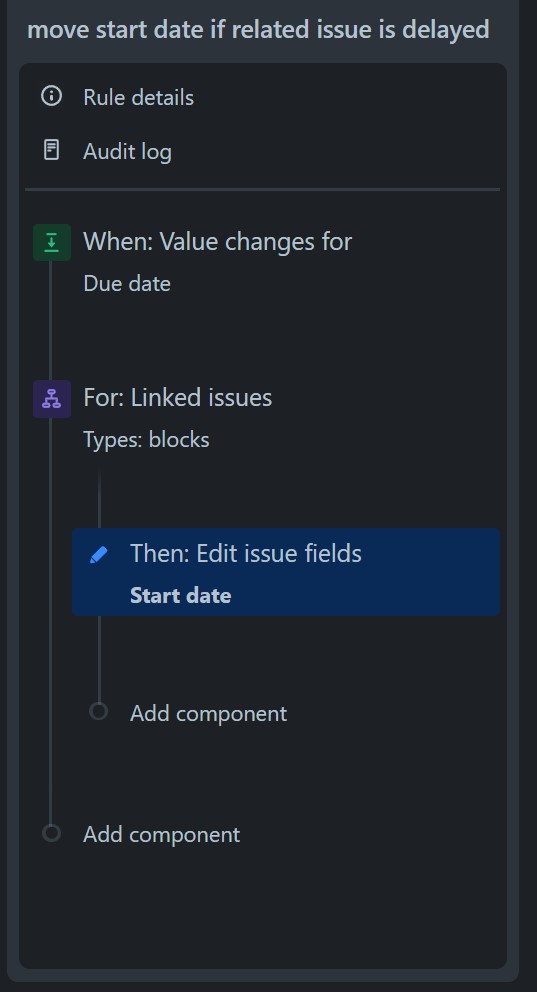

Audit log is below. No it the result is not as expected.
The end date moves instead of the start date.

Ste Wright

Hi @TomT

I couldn't get this to work using smart values for the standard Start Date field - it clears it before setting it again, regardless of how I do it. I could do it using End Date though (as you mentioned above)

So I created a workaround using additional fields...

---

Setup

Create a new custom date picker field - eg. Current Start Date
Create additional custom date picker fields per field needed - eg. Current End Date
Either leave these off your screens, or add them to a view-only screen (via screen scheme issue operations)

---

Rule

Trigger: Field Value Changed
- Field = Due Date
Action: Create Variable
- Name = DaysAdded
- Smart Value = {{fieldChange.from.toDate.diff(fieldChange.to.toDate).days}}
Branch: Related Issues
- Type = Linked Issues
- Link Type = blocks
  - Branch-Action: Edit Issue
    - Field = Current Start Date
      - Action = COPY (via 3-dots icon)
        Issue to Copy From = Current Issue

        Field to Copy from = Start Date
    - Field = Current End Date
      - Action = COPY (via 3-dots icon)
        Issue to Copy From = Current Issue

        Field to Copy from = End Date
  - Branch-Action: Re-fetch issue data
  - Branch-Action: Edit Issue
    - Field = Start Date
      - Value = {{issue.Current Start Date.plusDays(DaysAdded.asNumber)}}
    - Field = End Date
      - Value = {{issue.Current End Date.plusDays(DaysAdded.asNumber)}}
  - Branch-Action: Re-fetch issue data
  - Branch-Action: Edit Issue
    - Field = Current Start Date
      - Value = NULL (empty)
    - Field = Current End Date
      - Value = NULL (empty)

---

Notes:

You could use a combination of the End Date as a smart value, and Start Date with the field if preferred
The "Re-fetch issue data" help to ensure the rule runs in sequence
I've cleared the "Current" date fields once the copy is complete, so these aren't populated unnecessarily

---

Let us know if this workaround works for you!

I'd also encourage reporting the Start Date issue to Atlassian, it might be a bug with that custom field (which is Atlassian-created).

Ste

Patrick FG

@Ste Wright thanks for the insight as I have been trying to do something similar.

Essentially on the advanced roadmaps I would like to make an automation so that when one issue is linked, the next issue cannot start until this one is finished. I then want all the linked issues are pushed out automatically by the same amount of delay. This automation would mimic a default Gantt Chart behavior.

I tried to follow your solution but maybe my Jira interface is different because I can't replicate your solution.

Ste Wright

Hi @Patrick FG

Are you on Cloud or Server/DC?

Ste

Patrick FG

Cloud

V-Guard R&D Elec.

Hi @Ste Wright ,

Thank you for this rule; it works for me.

The only issue I'm facing now is that it doesn't work for cascading issues.

For example, let's consider the scenario where A blocks B, and B blocks C. With this rule, only issue B is updated when the due date of A changes. However, this rule does not work for issue C.
Could you please let me know if there is any option to overcome this scenario?
Best Regards,
Alias Paul

Neda Khavari

Hi All,

I have the automation works for updating start & due date of blocked tasks, but the automation doesn't work on cascading issue.

Any idea on how to resolve this issue?
