Add API authentication into an automation send web request

Ward Schwillens_ Schwillie

I want to use automation to send a REST API - in automation language a Send web request action - but I need to be able to authenticate using an API Key from the receiving platform.

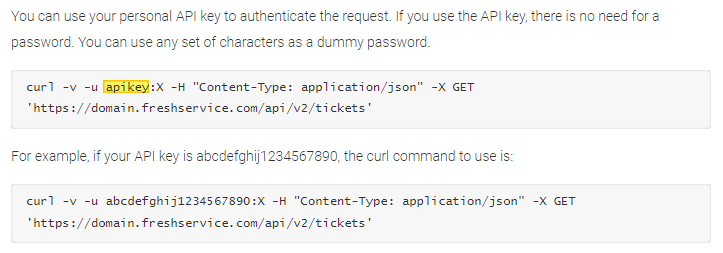

Here's the authentication documentation from the receiving platform:

How can I insert this API key in the automations Send web request?

Accepted answers

Stephen Wrathall_69gv73

Hi @Ward Schwillens_ Schwillie,

"-u" is curl's way of specifying Basic Authorization. There is an article explaining how to achieve this in detail here:

https://community.atlassian.com/t5/Jira-articles/Automation-for-Jira-Send-web-request-using-Jira-REST-API/ba-p/1443828

To summarise for your case, you'll want to Base64 encode your "<username>:<password>" by running:

echo -n "abcdefghij1234567890:X" | base64

(or an equivalent base64 encoding tool)

and then adding a header to your Web Request with:

Key: Authorization

Value: Basic <your_base64_encoded_output_from_above>

I hope this helps!

Tony Langlet

Hello @Ward Schwillens_ Schwillie

As @Stephen Wrathall mention you need a base64 auth token generated based on the username and password, I'm not the biggest fan of curl but can provide a Powershell script that will provide the authtoken.

$atlassianUsername = <Username>
$atlassianPassword = <Password>
$atlassianAuthToken = [System.Convert]::ToBase64String([System.Text.Encoding]::ASCII.GetBytes("$($atlassianUsername):$($atlassianPassword)"))

Once you've got that you're able to use the authtoken in a Jira Automation Send Webrequest.

You have to change the web request URL to match what your looking for and the HTTP method to match the endpoint.

2023-04-24 10_41_03-Automation - Jira.png

Once you get a response you'll have to handle it some how, this is how the above web request is being managed to create a variable for the user. I placed the response in a variable to be able to reuse it throughout the automation.

2023-04-24 10_23_20-Automation - Jira.png

I hope I managed to give you some insight in how you possible could work with the web request.

All comments

Stephen Wrathall_69gv73

Hi @Ward Schwillens_ Schwillie,

"-u" is curl's way of specifying Basic Authorization. There is an article explaining how to achieve this in detail here:

https://community.atlassian.com/t5/Jira-articles/Automation-for-Jira-Send-web-request-using-Jira-REST-API/ba-p/1443828

To summarise for your case, you'll want to Base64 encode your "<username>:<password>" by running:

echo -n "abcdefghij1234567890:X" | base64

(or an equivalent base64 encoding tool)

and then adding a header to your Web Request with:

Key: Authorization

Value: Basic <your_base64_encoded_output_from_above>

I hope this helps!

Tony Langlet

Hello @Ward Schwillens_ Schwillie

$atlassianUsername = <Username>
$atlassianPassword = <Password>
$atlassianAuthToken = [System.Convert]::ToBase64String([System.Text.Encoding]::ASCII.GetBytes("$($atlassianUsername):$($atlassianPassword)"))

Once you've got that you're able to use the authtoken in a Jira Automation Send Webrequest.

You have to change the web request URL to match what your looking for and the HTTP method to match the endpoint.

2023-04-24 10_41_03-Automation - Jira.png

2023-04-24 10_23_20-Automation - Jira.png

I hope I managed to give you some insight in how you possible could work with the web request.

Stephen Wrathall_69gv73

Thanks @Tony Langlet. Minor note that:

applicaiton/json

needs to change to:

application/json

for the "Accept" header in your screenshot.

Tony Langlet

Thanks, I've updated the screenshot, I copied data from a production automation to a test automation and thought my accuracy was good enough to write one word

Ward Schwillens_ Schwillie

Thanks Tony,

I found another way to generate the base64 encoded auth token based on the username and password. The basic authentication with the API key and the "X" worked fine.

I'm now updating freshservice tickets with this API call when specific updates occur in the Jira issue.

Best regards, Ward

Ward Schwillens_ Schwillie

Thank you for explaining Stephen. I found a base 64 encoding tool to do this for me.

Best regards, Ward.

unknown

@Tony Langlet , Do you know if the "Scheduled" trigger + "Send web request" + "Create variable" actions can be used together to automate imports from Jamf Cloud into Jira Assets? Or is there a better way?

Any insight would be greatly appreciated.
