Jira Automation To Create New Issue Based On Field Value - Suggestions?

Gail_8p6l1l

Hi Community!

I have 4 custom fields that are multi-select list. I need to be able to automate creation of a task (name of new task is based on custom field value selected), linking the newly create task to its "parent" and assigning the task.

My rule currently works only when a SINGLE VALUE is selected in one of my 4 custom fields. The rule also has over 65 components so I have to split it into multiple rules.. I want to make sure I am doing it the most optimal way.

USE CASE

We have a JWM project with a form for customers to submit an issue. That form has 4 custom fields that are multi-select list. There are a total of 27 values that can be selected from these 4 fields.

Based on the value(s) selected in the form for these 4 custom fields I need to:

Create a new task (one task for each form value selected) with a specific name
Link that new task to the original form issue
Assign the new task to a person

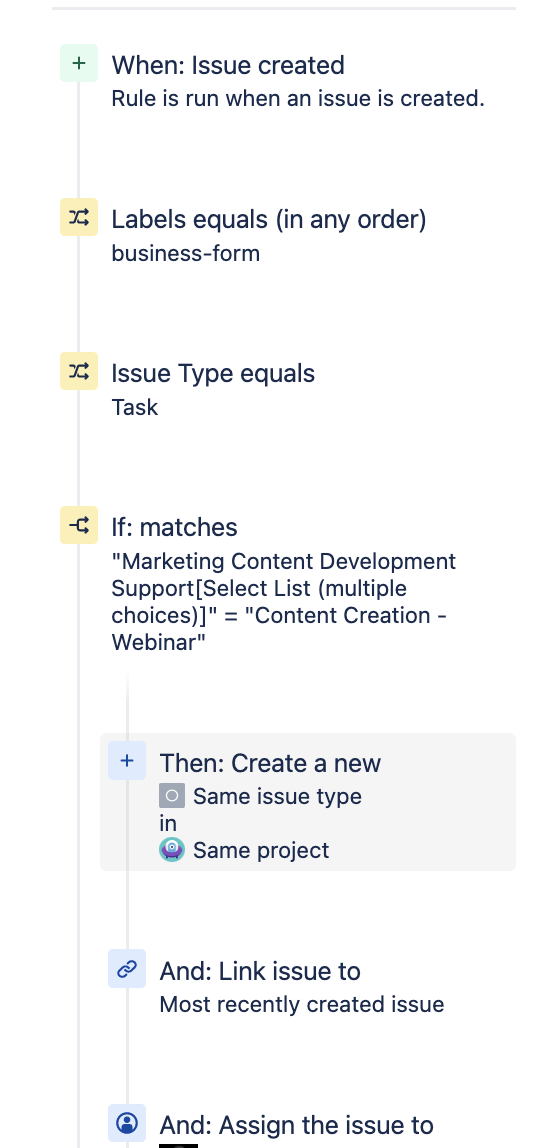

RULE NOW

TRIGGER = when new issue is created
CONDITIONS
- labels = business-form (JWM creates this when a form is used to create an issue)

IF BLOCK

CONDITION = JQL Condition (Example: "Marketing Content Development Support[Select List (multiple choices)]" = "Content Creation - Webinar")
ACTION = Create issue named "ABCD"
ACTION = Link newly created issue to original form issue
ACTION = Assign newly created issue.

This is just the very first section as too long for print screen!

How do I write a rule that works when one or many values are selected in one of my 4 custom fields?

Thanks in advance!

Accepted answers

Mark Segall

Hi @Gail - So, it would help to have an understanding of the full context of the rule. This one can go down a rabbit hole really quick.

What is the rule doing besides spawning new rules that requires 60+ components or is that what it's come to as you've tried to capture every possible permutation?
What are each of the 4 fields intended to do?
1. Are all 4 fields contributing to the summary of the target issue (e.g. Summary is "Field1 Field2 Field3 Field4")?
  or
2. Are each of the fields a source for separate issues (Issue 1 summary = Field1, Issue 2 summary = Field2, etc.)?

This will help in understanding how to proceed.

All comments

Mark Segall

Hi @Gail - So, it would help to have an understanding of the full context of the rule. This one can go down a rabbit hole really quick.

What is the rule doing besides spawning new rules that requires 60+ components or is that what it's come to as you've tried to capture every possible permutation?
What are each of the 4 fields intended to do?
1. Are all 4 fields contributing to the summary of the target issue (e.g. Summary is "Field1 Field2 Field3 Field4")?
  or
2. Are each of the fields a source for separate issues (Issue 1 summary = Field1, Issue 2 summary = Field2, etc.)?

This will help in understanding how to proceed.

Gail_8p6l1l

Thanks Mark.

The 4 custom fields are created to capture the type of work that a customer can request from this team. They wanted 4 vs 1 because they have 4 business areas. The fields are all multi-select list. We had thought about using components for this too, but that field can't be used on the JWM form.

To answer your #1 - These custom field values are "mapped" to a specific dev task name that goes into summary. EX: field value Design Activation - Social needs a new dev task created named Design: Social asset.

The fields are not specific to any issue to answer your #2.

Their ultimate goal was to have the customer complete the JWM form requesting work and have that form create an epic; however, this is not possible with JWM per Atlassian Support. They are OK with having the form create just a task.

That form created task represents their "project" so they need to create one development task and link that new dev task to the original form-created task.

The difficulty is that each potential custom field value a custom can select needs to have a set "linked dev task" name. We also have to put that set task name in the description as it is a required field.

I don't know if using variables is the route to take or what is best. As a callout - we don't have any Marketplace add-ons, and unfortunately we cannot install any so any scripting won't work.

Thanks in advance!

Mark Segall

Thanks, can you please confirm my understanding?

Each field can have its own series of tasks
For every new form submitted, you will have anywhere from
- 4 different tasks (user selected one value from each field)
  to
- 27 different tasks (user selected every possible value)

If this is correct, you could do something like this:

TRIGGER: Issue created
BRANCH (Advanced) varField1
- ```
{{issue.field1.value}}
```
- ACTION: Create Issue
  - Summary = {{varField1}}
  - Linked Issues YOURLINKTYPE - Trigger Issue
BRANCH (Advanced) varField2
- ```
{{issue.field2.value}}
```
- ACTION: Create Issue
  - Summary = {{varField2}}
  - Linked Issues YOURLINKTYPE - Trigger Issue
BRANCH (Advanced) varField3
- ```
{{issue.field3.value}}
```
- ACTION: Create Issue
  - Summary = {{varField3}}
  - Linked Issues YOURLINKTYPE - Trigger Issue
BRANCH (Advanced) varField4
- ```
{{issue.field4.value}}
```
- ACTION: Create Issue
  - Summary = {{varField4}}
  - Linked Issues YOURLINKTYPE - Trigger Issue

This branches on each of the four fields. For each field, you're iterating through the selected value, creating a new issue, setting the summary to the current iteration and linking the newly created issue to the trigger issue.

Gail_8p6l1l

sorry for the confusion -- this one is ugly.

On the form the user can select 1 or many values from one custom field OR all custom fields.

4 custom fields + their values: (( See below for screenshot of fields on our form ))

CUSTOM FIELD	Values	Task Names
Marketing Content Development Support[Select List (multiple choices)]	Content Creation - Blog/Press release	Content: Blog/Press release
	Content Creation - Webinar	Content: Webinar
	Content Creation - Content download	Content: Content download
	Content Creation - Video	Content: Video
	Enablement - External/internal resource	Content: Enablement resource
Marketing Design Support[Select List (multiple choices)]	Design Activation - Short doc	Design: Short doc
	Design Activation - Long doc	Design: Long doc
	Design Activation - Illustration	Design: Illustration
	Design Activation - Infographic	Design: Infographic
	Design Activation - Ads/Paid media	Design: Ads/paid media
	Design Activation - Social	Design: Social asset
	Design Activation - Video	Design: Video asset
	Design Activation - Website	Design: Website asset
	Design Activation - Events	Design: Events asset
	Design Activation - Printed materials	Design: Printed materials
	Design Activation - Swag	Design: Swag
	Design Planning - Creative concept/wrapper	Design: Creative concept/wrapper
	Design Support - Canva	Design: Canva support
Marketing Ops Support[Select List (multiple choices)]	Mops Activation - Ads/Digital	Mops: Ads/Digital
	Mops Activation - Content download	Mops: Content download
	Mops Activation - Direct mail	Mops: Direct mail
	Mops Activation - Email(s)	Mops: Email asset
	Mops Activation - Webpage	Mops: Webpage
	Mops Activation - Webinar/Virtual event	Mops: Webinar
	Mops Activation - List import	Mops: List import
	Reporting - Analysis/QA	Mops: Reporting/QA
Marketing Social Support[Select List (multiple choices)]	Social Activation	Social: Activation

_____________________________________________________________________

Screen Shot 2022-10-25 at 9.39.45 AM.png
