Automation very bad performance on first execution

Rachid El Mansouri_rzgfar

Hello experts,

I am facing a performance issue when executing automation rule.

"The call to the Jira server did not complete within the timeout period. We are unsure of the result of this operation."

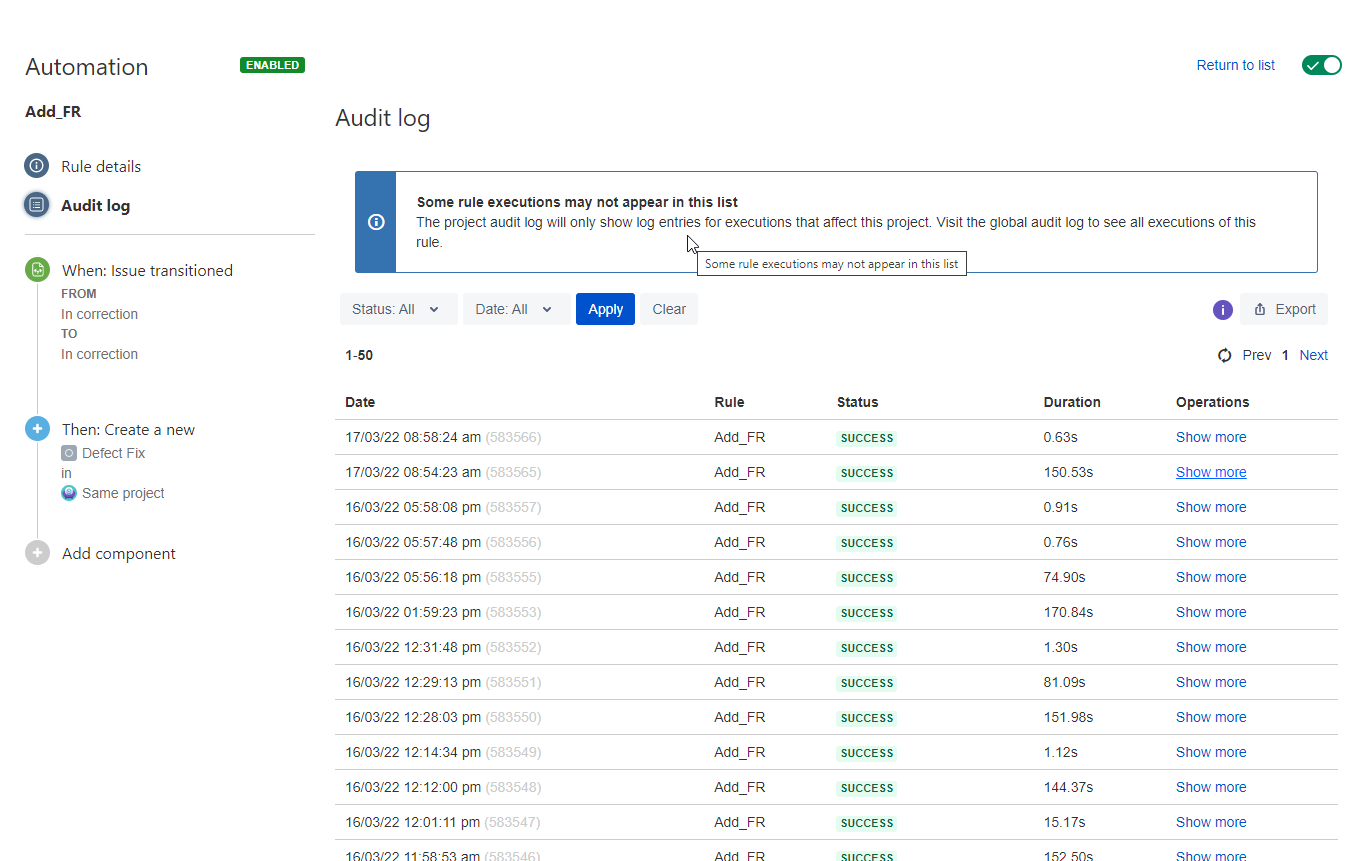

The execution is very long = 150s at the first execution and following execution takink only 0.7s.

I don't understand why it is taking so long and how to fix it.

Following actions didn't fix the problem :

Reindex project
Full Background reindex
Restart Jira service
Upgrade plugin Automation from 7.2.1 to 7.4.1
remove of
- <JIRA_HOME>/plugins/.osgi-plugins/
- <JIRA_HOME>/plugins/.bundled-plugins

Thank you for your support

Accepted answers

All comments

Jimmy Petersson

Hi Rash,

This question is tricky to answer w/o knowing further details about your context.

But there are a few clues in your automation snippet.

1. You are running this as a global rule - this means that any issues being transitioned will be evaluated again the rule. This could be a performance issue if you have lots of projects with lots of issues using these transition states. Advise: Try using a project rule, i e limited to one project, and see if this improves performance

2. Your trigger is transition from In Correction to In Correction - by definition transition should be between different states. I was expecting transition from two separate states, e g New to In Correction. Advise: review to ensure that you are using the correct states, and that these states are not use in other more frequently invoked work-flows

3. Review if you have other project automations or background jobs cannibalising your processing capacity. Project automation is AFAIK executed in a single thread with low(est) priority

Good luck!

//Jimmy

Rachid El Mansouri_rzgfar

Hi Jimmy,

Thank you for your answer.

I applied your suggestions and performance is slightly improved but not fixed.

We still have too long execution times around 60s on first execution.

Do you have another idea ?

Jimmy Petersson

Hi Rash,

Usually when a rule has long execution time you end up with it being throttled. This is visible in the project automation audit log. Look for the yellow throttled status and check the entry. It will include the message "This rule execution exceeded allowed service limits for Automation for Jira. View performance insights."

If you select the link for Performance Insights it will show stats of the executed rules, including long avg duration. This could be helpful to understand if you have many rules with long avg duration that potentially is hogging all your resources.

Here is a link to the official documentation on how to optimise rule performance: Link to official documentation. Maybe there are some nuggets there that can lead you further.

If these capacity issues prevails, the next step would be to troubleshoot the server itself and tune it. Luckily, Atlassian has your back here with a really good guide: Link to official documentation.

Good Luck!

//Jimmy

Rachid El Mansouri_rzgfar

Hi @Jimmy Petersson

Thanks for your reply.

Actually, in the audit log the rule status is success and no error message is logged.

On atlassian-jira.log during rule execution i have hundreds lines with follwoing information :

2022-03-30 11:49:27,324+0300 http-nio-8080-exec-9 DEBUG JOEDOE 709x30032x3 zqdss1 X.X.X.X,Y.Y.Y.Y /secure/CommentAssignIssue.jspa [o.objectweb.jotm.jta] Current.getStatus()
2022-03-30 11:49:27,329+0300 http-nio-8080-exec-9 DEBUG JOEDOE 709x30032x3 zqdss1 X.X.X.X,Y.Y.Y.Y /secure/CommentAssignIssue.jspa [o.objectweb.jotm.jta] Current.getStatus()
2022-03-30 11:49:27,334+0300 http-nio-8080-exec-9 DEBUG JOEDOE 709x30032x3 zqdss1 X.X.X.X,Y.Y.Y.Y /secure/CommentAssignIssue.jspa [o.objectweb.jotm.jta] Current.getStatus()
2022-03-30 11:49:27,338+0300 http-nio-8080-exec-9 DEBUG JOEDOE 709x30032x3 zqdss1 X.X.X.X,Y.Y.Y.Y /secure/CommentAssignIssue.jspa [o.objectweb.jotm.jta] Current.getStatus()
2022-03-30 11:49:27,343+0300 http-nio-8080-exec-9 DEBUG JOEDOE 709x30032x3 zqdss1 X.X.X.X,Y.Y.Y.Y /secure/CommentAssignIssue.jspa [o.objectweb.jotm.jta] Current.getStatus()
2022-03-30 11:49:27,347+0300 http-nio-8080-exec-9 DEBUG JOEDOE 709x30032x3 zqdss1 X.X.X.X,Y.Y.Y.Y /secure/CommentAssignIssue.jspa [o.objectweb.jotm.jta] Current.getStatus()

....

Is it normal behavior ?

I remind you that long execution is observed only on after long inactivity on Jira.

Thank you for your support

Rachid El Mansouri_rzgfar

Hi @Jimmy Petersson and everybody,

Thanks for your support.

Unfortunately, the problem is still there :

The first execution after Jira restart OR after 30-60 min takes almost 60s and the following executions take 2s.

Following actions already done :

Check the workflow for the transition to 'Add FR' and we don't have other third-party apps post-function configured there.
Check the Create issue transition after the issue is created from the automation rules. The third-party apps from the validator are disabled and do not have other third-party apps post-functions.
We can reproduce the problem with some fields removed from the automation.
The problem is only reproducible once and then the automation rules run fast. We suspect is due to the cache issue that causes the slow on the first try.
We increased automation.processing.thread.pool.size.per.node to 8 threads
We enabled Plugin Safe mode (except ScriptRunner and Automation Rules)

If you have any suggestion i would appreciate it.

Mykenna Cepek

Could you share a screenshot of the configuration of your trigger?

Rachid El Mansouri_rzgfar

Hello @Mykenna Cepek,

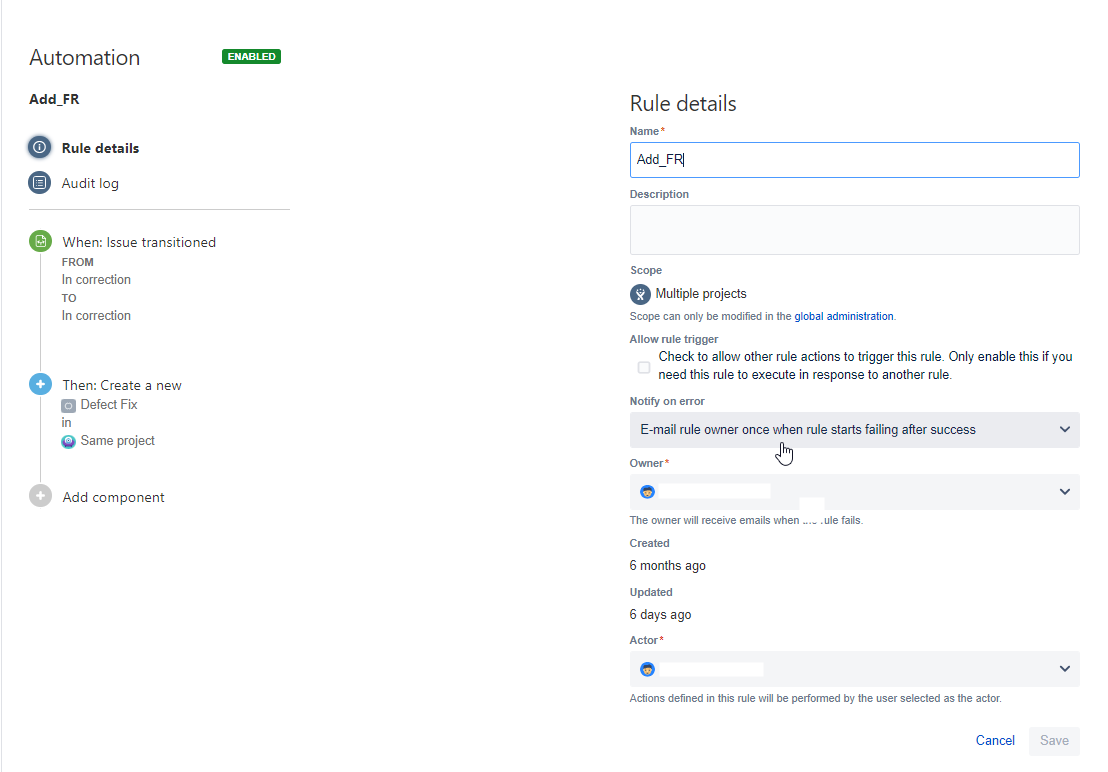

Please find attached the configuration of the trigger

Mykenna Cepek

Have you tried disabling the "Trigger > More options > Execute this rule immediately..." setting? It's pretty clear about performance impact.

Rachid El Mansouri_rzgfar

@Mykenna Cepek Yes we have tried disabling with no more success.

Gonchik Tsymzhitov

Hi @Rachid El Mansouri ,

Could you provide more information please?

i.e. CPU, RAM , latency. and in the logs Lucene index problems

Do you really need an immediate execution?

Cheers,

Gonchik Tsymzhitov

Rachid El Mansouri_rzgfar

Hi @Gonchik Tsymzhitov

On Defect Report issue we need to create immediately a Defect Fix using Automation rule.

This is taking more than 60s on first execution and following execution take 2s.

This morning i worked on this problem and after making some incremental tests i noticed that the root cause is related to some cascading fields that are present on the Defect Fix creation screen.

After removing these field from the screen the execution time is acceptable (less than 5s).

These cascading fields contain hundreds of options.
I don't know why this is taking too long to load on first execution ? Atlassian Developers should know.

Now that we have probably identified the root cause, do you have any workaround
except removing these cascading fields from creation screen ?

Best regards,

Rachid
