Jira Automation - Transition an issue using a Smart Value containing the status name

David Stokes

Maybe this is a bit of an unusual use-case, but here I go anyway:

I have a task with a number of subtasks underneath it. The subtasks Summary field is the name of one of the statuses of the Parent, eg: Subtask Summary = "In Progress"

Through an automation on the subtask, I would like it to transition the parent to the status corresponding to the name of the subtask.

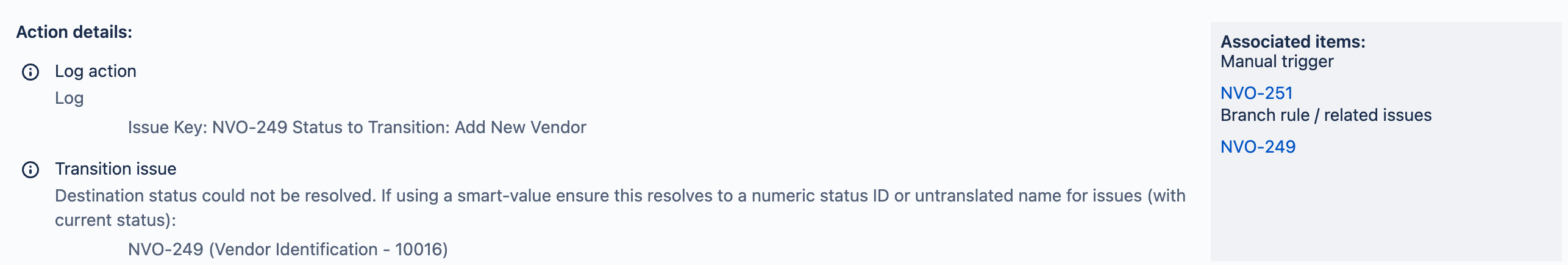

But when I do this, I get an error: "Destination status could not be resolved. If using a smart-value ensure this resolves to a numeric status ID or untranslated name for issues (with current status)"

I've looked at the documentation, online and in the community but haven't found the answer.

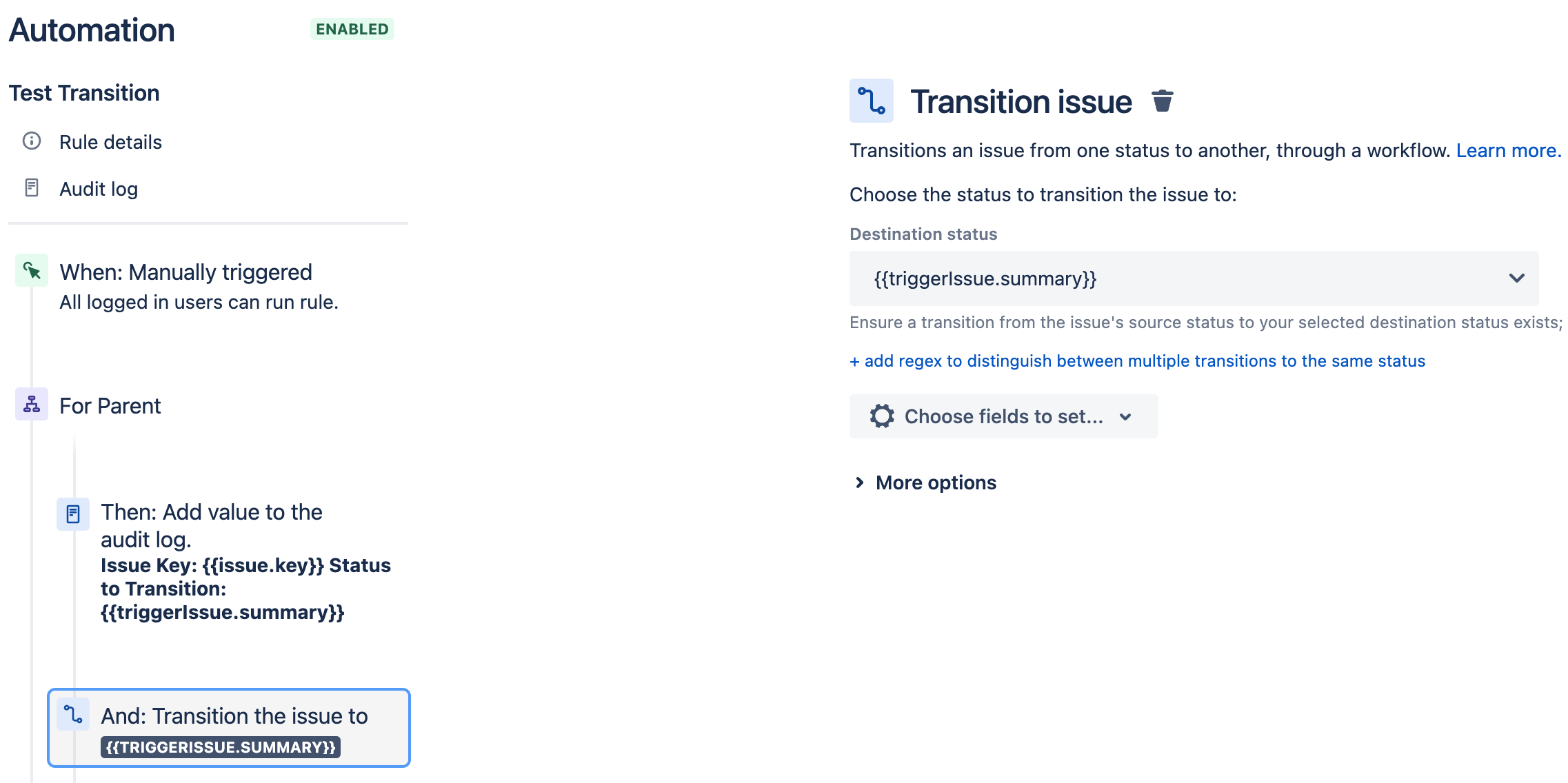

Here's the JIra records, automation and error.

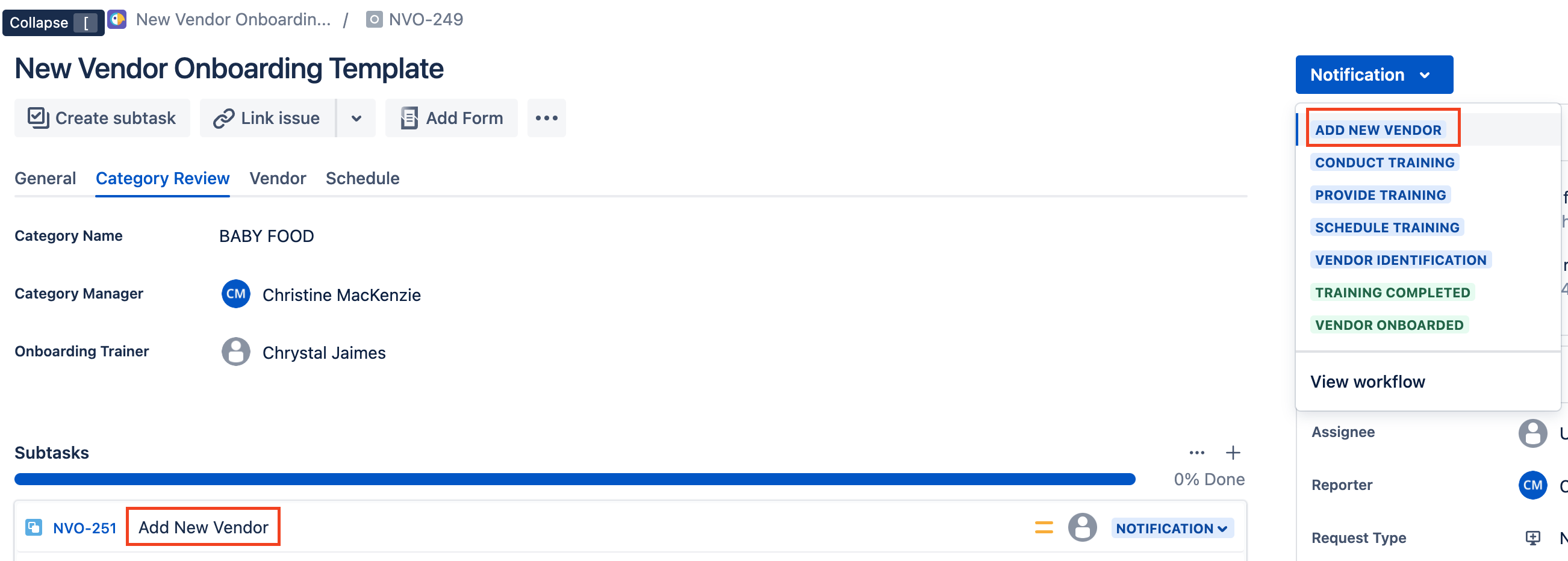

Screen Shot 2022-01-05 at 10.38.10 AM.png

Thanks Heaps
David

Accepted answers

Bill Sheboy

Hi @David Stokes

Other than as an experiment, I am unclear what problem you are trying to solve by doing this. Would you please explain? Thanks!

Regardless of the "why", I suspect you need to use the Status Id value when performing a transition with a smart value. Two possible options are:

When you set that string value in the subtask summary, also save the Status Id value in the same summary. Then parse it out and use that for the transition.
If the first option is not possible, you could call the REST API to get all of the possible status values for the project, parse out the one you want to get the Status Id, and then use that in the transition. That could take a few seconds per call.

Kind regards,
Bill

All comments

Claudio Gonzalez_lvutyp

Hi @David Stokes ,

Is not possible put the summary parent into a sub-task directly, you need put a summary name into sub-task first, and after change the name with the summary parent value.

Screen Shot 2022-01-04 at 18.51.46.png

Screen Shot 2022-01-04 at 18.54.13.png

Bill Sheboy

Hi @David Stokes

Other than as an experiment, I am unclear what problem you are trying to solve by doing this. Would you please explain? Thanks!

Regardless of the "why", I suspect you need to use the Status Id value when performing a transition with a smart value. Two possible options are:

When you set that string value in the subtask summary, also save the Status Id value in the same summary. Then parse it out and use that for the transition.
If the first option is not possible, you could call the REST API to get all of the possible status values for the project, parse out the one you want to get the Status Id, and then use that in the transition. That could take a few seconds per call.

Kind regards,
Bill

David Stokes

Hi @Bill Sheboy as well as @Claudio Gonzalez

Thanks for your quick replies.

In terms of the "why", I am using Jira Automation for Business Process Automation.

Imagine I have a business process with a number of steps and those steps can occur at different times and sequences, eg: 1 week after Task A is done, then Task B can start. And each step is a status in the workflow of the parent.

I have an automation that is checking the subtasks to work out when a step in the process needs to happen. And when it picks up that Task B needs to start, then it updates the status on the parent to the status that is the Summary of the subtask. And when that status changes, it then kicks off another automation to do whatever is required for that step.

You are probably wondering why I would want to change the status based on the subtasks and it's adding a lot of unnecessary complexity. What it means is you can change the dates on the subtasks, meaning you don't have to hardcode dates and time periods in the automation - it just looks at the dates on the subtasks. You can even show it visually as a timeline.

One way I have got this to work is to set the status I want on the subtask itself, and then just copy the status from the subtask to the parent. I would prefer that the status of the subtask represents whether it is To Do, In Progress or Done.

So I suspect that I can't use a string to refer to a status. I did try the Status ID value, but I got the same error. If it would be great if I can get it to work with a string as it would make the most sense, not haven't to mess around with ID's.

Here's another thought, can I programmatically determine what the ID is for a given status?

Thanks so much!
David

Bill Sheboy

Hi, David.

FYI that I tried your use case with the status Id and it worked for me. To make it work I did the following:

Formatted the summary of the subtask to contain both the name and id for the status. For example:
- Validate: 12345
In my automation rule's action to transition the parent, I parsed out and converted the id value. For example:
- {{triggerIssue.summary.substringAfterLast(":").asNumber}}

The key is where do you get the status Id for the subtask? You could:

Enter them manually, which seems cumbersome and error prone
Use the REST API technique I noted: using a web request, call the REST API to get all status values for the project, parse out the one matching the name using smart value list filtering and text functions, and then use the id for the transition. This would match the programmatic approach you note.

Kind regards,
Bill

David Stokes

Hi @Bill Sheboy

Thanks again for your suggestions and have got it working using the ID - the key was making sure it is converted to a number.

I'm now wrestling with the REST API technique - thanks for the links. I'm a bit of a novice with REST API's but am learning quickly (although not as quickly as I would hope).

What's blocking me at the moment is

I have confirmed that https://XXXXXX.atlassian.net/rest/api/3/status does provide JSON with the status - I can show them in a browser using that URL. But in the automation, it doesn't want to step through each of the statuses.

Here's my test automation and the web request

Screen Shot 2022-01-06 at 12.53.08 PM.png

And the branch: Screen Shot 2022-01-06 at 12.53.23 PM.png

In the audio log, I just displayed some simple text. But it's not showing any log entries after running the automation. This is telling me that it's not branching.

Any suggestions?

Thanks Heaps

David
