Basic Roadmap - Issues not showing on timeline

Phil McTimoney_upk6ev

I am attempting to create my first basic roadmap.

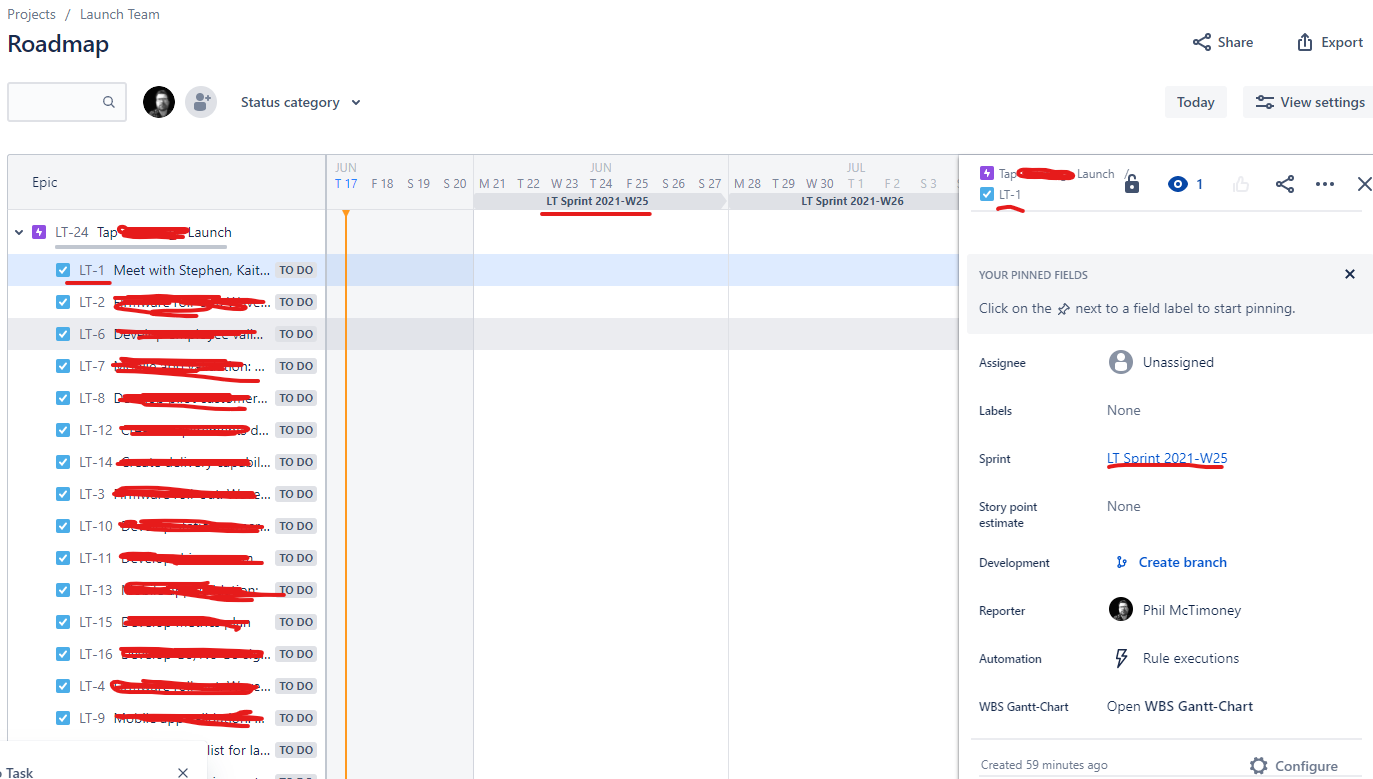

I created a bunch of tasks and assigned them to sprints. (Example from picture: task LT-1 is in sprint "LT Sprint 2021-W25" which is June 21-27)

I created an epic and assigned all the tasks to the epic. (Example: epic LT-24 has task LT-1)

When I look at the roadmap, I see the epic and the tasks, but nothing is displaying on the roadmap. I expect to see a colored bar under the sprint to which it is assigned.

What step did I miss?

Thanks!

UPDATE: I manually edited the start and end dates for the epic and a purple bar was displayed on the roadmap. But still no bar for the other issue types and I don't see a convenient way to edit their start/end dates (nor do I want to - I believe they should be automatically derived from the sprint they are assigned to.)

Screenshot 2021-06-17 173335.png

Accepted answers

Phil McTimoney_upk6ev

After more research...I guess my expectations for the basic roadmap were too high.

Maybe something will be done to add this functionality. Here is the tracking issue: https://jira.atlassian.com/browse/JSWCLOUD-18668

Here is a related question/answer that give me the answer: https://community.atlassian.com/t5/Team-managed-projects-questions/Viewing-Issues-and-Task-timelines-on-the-Roadmap/qaq-p/1355008

All comments

Phil McTimoney_upk6ev

After more research...I guess my expectations for the basic roadmap were too high.

Maybe something will be done to add this functionality. Here is the tracking issue: https://jira.atlassian.com/browse/JSWCLOUD-18668

Here is a related question/answer that give me the answer: https://community.atlassian.com/t5/Team-managed-projects-questions/Viewing-Issues-and-Task-timelines-on-the-Roadmap/qaq-p/1355008

Walter Moll

Hi @Phil McTimoney ,

This is really very frustrating... I am having the same issue now.

Did you find any workaround?

Thank you.

Phil McTimoney_upk6ev

Not really. It is supported in their upgraded product I believe.

Michael Habib_7uakb4

Thanks for the info, I wish they'd just come out & say "we want you to pay for it" rather than wasting everyone's time trying to debug this issue !
Are you aware if there are any similar issues with Advanced Roadmaps ? Without this roadmap feature, Jira would be no more useful to me than Trello !

Nazrin Veerankutty

Instead of Roadmap, we can create a plan for the board under the plans menu and use the roadmap views

m_fahmi_rizal

In my case, only one project can do this. But not for the others project.

James Foley_91k055

I noticed that there was an option on the Roadmap's Board Settings called "Child level issue scheduling" which was off (perhaps by default). Once I turned this on, the timeline appeared for the task as well as the epic.

28-07-2022 9-00-24 PM.jpg

Dennis_9myqk1

Thanks for this! Solved it for me.

kjrandez

This does it !

How idiotic to have this off by default !?

alternetic

Hello,

Small update on this issue, instead of "Child level issue scheduling" there are more options now, the first one was checked, I had to check the second one to get the expected behaviour. I'm using cloud version

Ashley Baxter_stp55w

YES! how is this not the start point! lesson to always scroll to the end on the help topic! thanks so much!

Pratibha Sunil Datir

Update start date and end date of epic,
