Automation Rule - Long Execution time - any way to optimize?

Krzysztof Kiser

Hi,

I have setup up Jira Automation to perform some changes on issues when I schedule them to be assigned on a certain date.
I've created the below rules for (create and edit issue).
The rule performs all the tasks correctly, but it takes anywhere from 45s to 1m to complete.

It is a little long and I was wondering if you guys had any ideas on how I could optimize this rule?

I tried merging the JQL with the Stats condition into one JQL, but that didn't help at all. I really don't know what else I could change to make this rule execution time faster.

I would appreciate any suggestions

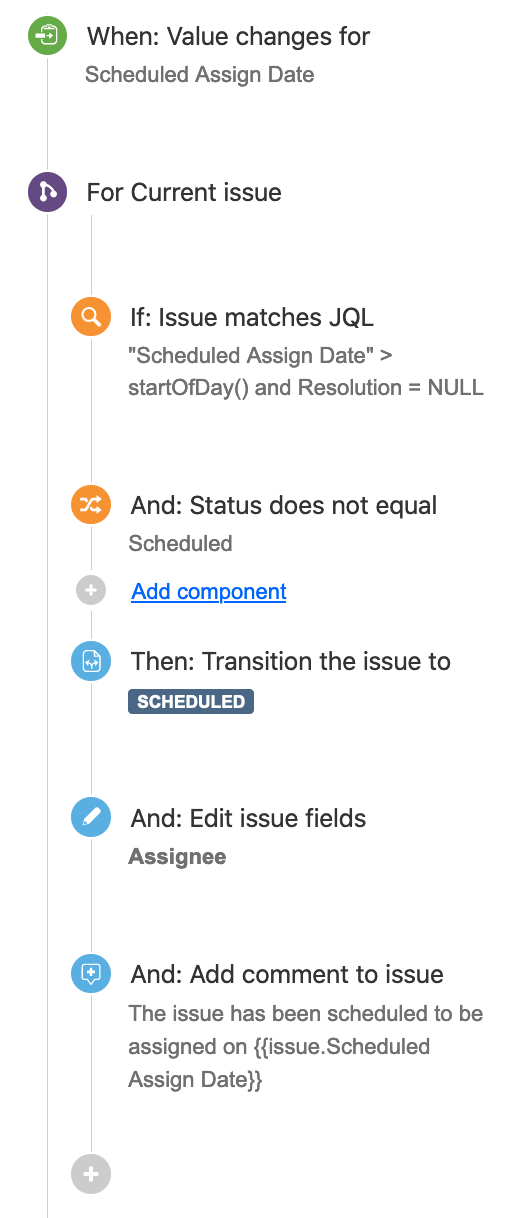

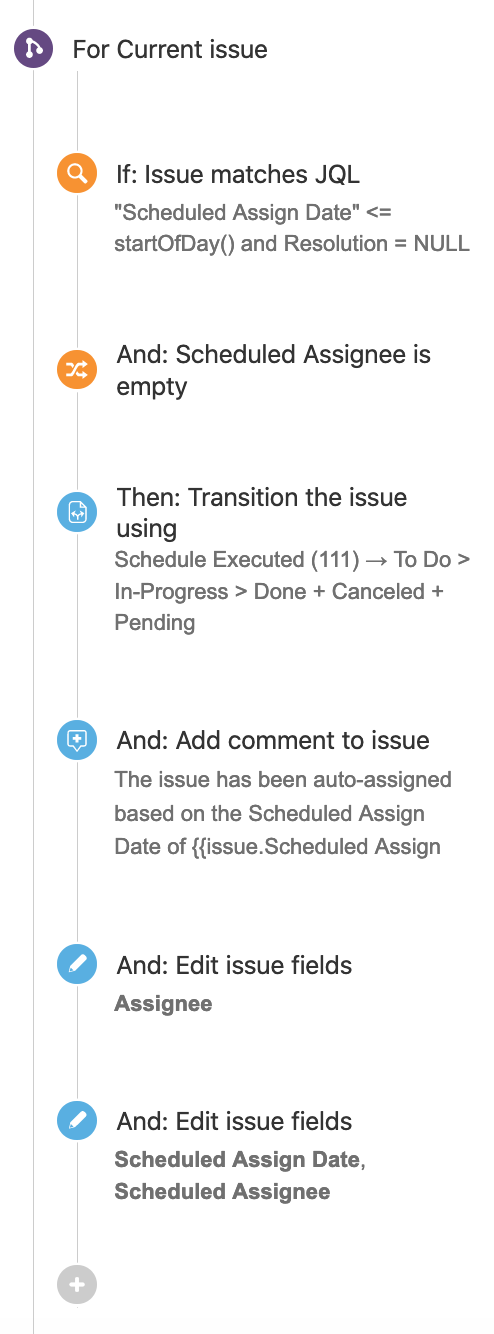

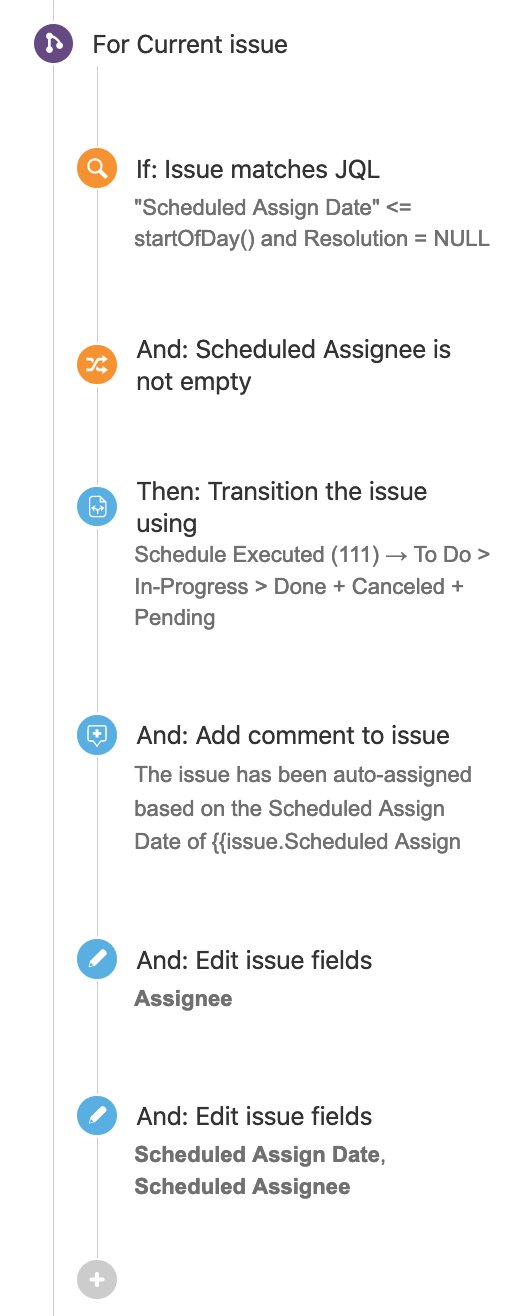

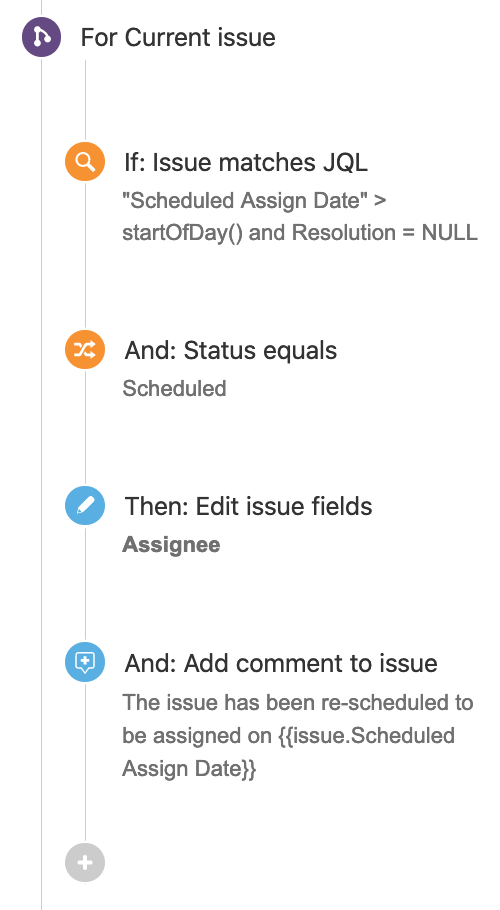

Screen Shot 2021-01-27 at 9.12.58 PM.png Screen Shot 2021-01-27 at 9.13.20 PM.png

Accepted answers

Jack Brickey

i'm not sure this will improve 'total time to complete' but at a quick glance I would consider breaking this down into smaller rules if possible as it helps w/ rule performance.

Bill Sheboy

Hi @Krzysztof Kiser

I am wondering if the outer JQL branches and repeated duplicate JQL conditions are the largest time sinks.

You could try substituting with a single, common condition test earlier and then use If/Else Condition for the variation parts, inverting the branches to simulate nested if/else last. That would defer what appear to be the most expensive operations: branching. Here is the information from Code Barrel (now part of Atlassian) on that idea: How to Optimize Your Automation Rules...

Trigger: value changes for Scheduled Assign Date
Condition: if resolution is Null
Condition (if/else): if Scheduled Assign Date > startofday()
- Branch: JQL status not in Scheduled
  - Action: transition to scheduled
  - Action: edit assignee
  - Action: add comment
- Branch: JQL status... and so forth
  - ...
Condition: else if Scheduled Assign Date <= startofday()
- and so on

With asychronous rule processing, logging time at certain points may not tell you much. So you may need to clone your rules to test versions. (Unfortunately, there is no version control of rules to revert to an earlier version.)

Maybe also check the rules performance insights (under the ... in the rules list) to see if any throttling is happening.

Best regards,

Bill

All comments

Jack Brickey

i'm not sure this will improve 'total time to complete' but at a quick glance I would consider breaking this down into smaller rules if possible as it helps w/ rule performance.

Krzysztof Kiser

@Jack Brickey, thanks for the suggestion. I did split the rule into 4 separate ones to test performance, but it didn't really help. It took 40s to execute the below one. I think it's the transition and I will need to look into that to see if I can make any changes in the workflow.
I have some more extensive rules in my Jira and they are completing within a few seconds, so it must the transition.

Screen Shot 2021-01-27 at 9.45.53 PM.png

Jack Brickey

i wonder about using the "Add value to audit log" action to help see where time is being spent. I use this for my debugging. Unsure but would home a timestamp could be leveraged.

Krzysztof Kiser

@Jack Brickey I tested the workflow and it looks like that is not the problem. I am using JMWE "Return to previous status" on one of the transitions and I thought this was taking so much time, but I just tested this transition manually and it's pretty much instant.

Bill Sheboy

Hi @Krzysztof Kiser

I am wondering if the outer JQL branches and repeated duplicate JQL conditions are the largest time sinks.

Trigger: value changes for Scheduled Assign Date
Condition: if resolution is Null
Condition (if/else): if Scheduled Assign Date > startofday()
- Branch: JQL status not in Scheduled
  - Action: transition to scheduled
  - Action: edit assignee
  - Action: add comment
- Branch: JQL status... and so forth
  - ...
Condition: else if Scheduled Assign Date <= startofday()
- and so on

Maybe also check the rules performance insights (under the ... in the rules list) to see if any throttling is happening.

Best regards,

Bill

Krzysztof Kiser

@Bill Sheboyand @Jack Brickey - thanks for all your suggestions.

I just restarted Jira and surprisingly long execution times are no longer an issue.

Hopefully it will stay that way. If not I will try to follow @Bill Sheboy advice.

Thank you again!

Salim Hammar

Hi @Krzysztof Kiser

I have the same problems , i have a rule , but it takes from between 40s and 70s to complet and i noticed when i cancelled this rule after launch the rule the execution takes place anyway

Have you fin a solution for your issue ? Have you idea ?

Thanks in advance

Bill Sheboy

Hi @Salim Hammar

As your automation rule is different for your case, I suggest you:

create a new question,
include images of your rule and the audit log details,
describe your Jira instance and project type,
describe what you are observing, and
link to this thread to request ideas from the community.

Creating a new question is a better way to get the most people to see it rather than adding to an older thread...where only the original contributors/watchers will notice it. Thanks!

Kind regards,
Bill

Salim Hammar

Hi @Bill Sheboy

Always the same problem, i'm try the creat a new rule in the new project ,create a rule simple but always nothing

Thanks in advance

Jack Brickey

@Salim Hammar ,

please post a new question with the necessary details.
