Confluence behind nginx reverse proxy with HTTPS

[Thomas Bella]

Hello.

I'm trying to provide confluence behind a reverse proxy with https. I confugured within the file server.xml the following content within the connector parameter:

proxyName="wiki.example.com" proxyPort="443" scheme="https"

I'm using the following nginx configuration:

server {
    listen 443 ssl http2;
    listen [::]:443 ssl http2;
    server_name wiki.example.com;

    ssl_certificate         /etc/letsencrypt/live/wiki.example.com/fullchain.pem;
    ssl_certificate_key     /etc/letsencrypt/live/wiki.example.com/privkey.pem;
    ssl_trusted_certificate /etc/letsencrypt/live/wiki.example.com/chain.pem;

    location /synchrony {
        proxy_set_header X-Forwarded-Host $host;
        proxy_set_header X-Forwarded-Server $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_pass http://localhost:8091/synchrony;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "Upgrade";
    }

    location / {
        client_max_body_size 128m;
        proxy_set_header X-Forwarded-Host $host;
        proxy_set_header X-Forwarded-Server $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_pass http://localhost:8090;
    }
}

If I want to edit a page, the page requests to https://wiki.example.com/heartbeat which does not exist.

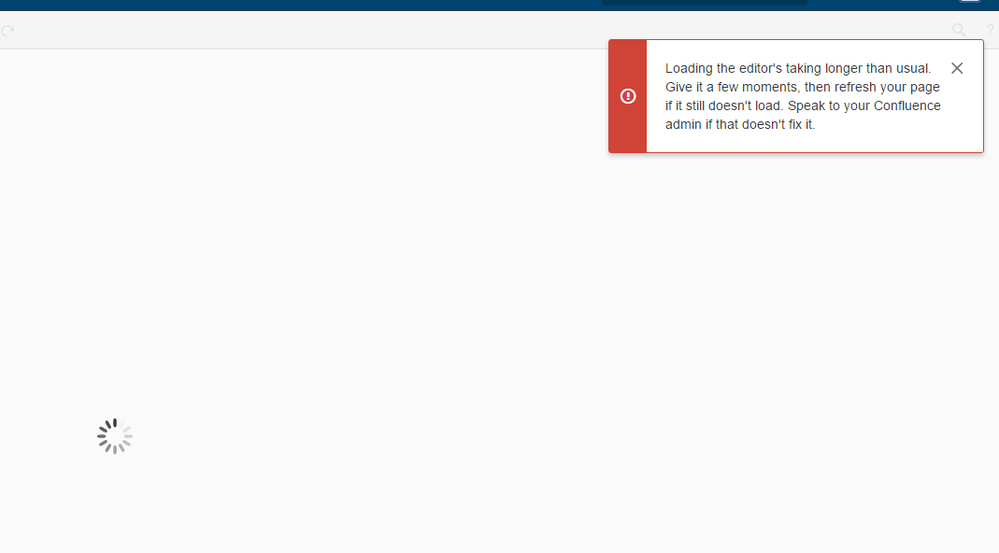

This results into endless loading of the page.

I added synchrony.proxy.enabled to confluence.cfg.xml but nothing changed.

<property name="synchrony.proxy.enabled">true</property>

Server Base URL is set to https://wiki.example.com

I'm using Confluence 6.2.2 on Ubuntu 16.04 with Java 1.8.0_131 and MySQL backend.

What can I do to resolve the problem?

[Steven Behnke]

The heartbeat URL has nothing to do with this issue. That's misleading you.

Post the full browser content of errors and include the errors in your proxy log and the catalina.out log.

[Thomas Bella]

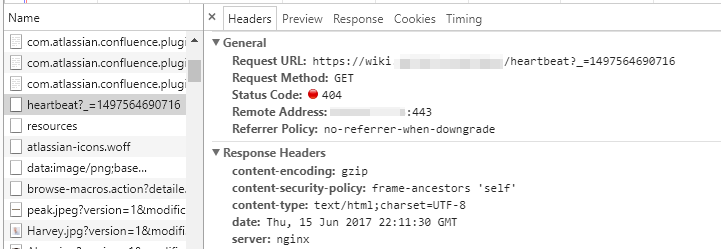

Browser output (Dev console):
https://pastebin.com/taBGq1nG

As Image:
https://ururl.tk/20170616-11a8d3u0srzo.png
https://ururl.tk/20170616-11i3p5ld0pn2.png
https://ururl.tk/20170616-118wu6xlfulf.png

nginx does not throw any error within error.log. Within access.log, the following requests haven't 200 status code:

1XX.1XX.1XX.180 - - [16/Jun/2017:11:41:21 +0200] "GET /heartbeat?_=1497606081605 HTTP/2.0" 404 8381 "https://wiki.example.com/pages/editpage.action?useDraft=true&spaceKey=TEST&draftId=15302657&pageId=14843905&&" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/59.0.3071.86 Safari/537.36"

catalina.out contains the following content:
https://pastebin.com/sxZtRe35

[obr5 NA]

Restart Synchrony helps for me!

https://confluence.atlassian.com/confkb/unable-to-edit-any-pages-in-confluence-6-x-due-to-collaborative-editing-867362716.html
