Why Your Team Struggles with CAD Files in Confluence (and How to Fix It)

[Move Work Forward]

If you’ve ever tried managing CAD files in Confluence, you know the pain. Engineering and design teams run into the same roadblocks again and again:

• Confluence won’t open CAD files. DWG? DXF? STEP? You’re stuck converting them to PDFs or screenshots, losing interactivity and wasting time.

• 3D models are impossible to explore. Want to zoom, rotate, or pan a 3D file inside a Confluence page? Nope—you’ll need external software and a few extra steps.

• No clear version control. Design evolves fast. Without built-in revision tracking, it’s hard to tell which model is the latest, or what changed.

These limitations slow teams down, introduce errors, and make collaboration harder than it should be.

That’s why we built the CAD 2D and 3D Model Viewer for Confluence. It’s a powerful yet simple solution that solves these frustrations:

✅ View over 70+ CAD formats natively in Confluence (DWG, DXF, STEP, STL and more)

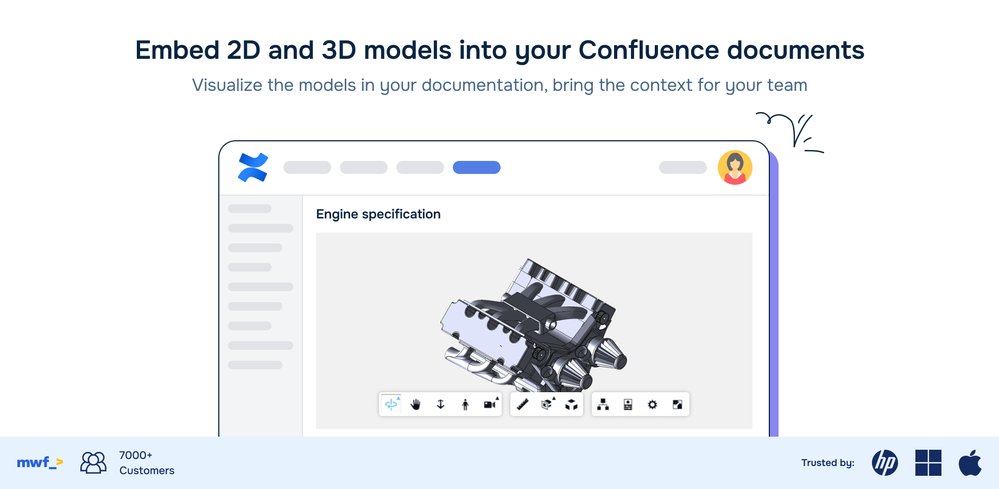

✅ Interact with 2D and 3D models—zoom, pan, rotate—all inside your Confluence page
✅ Track revisions with confidence, compare model versions, and never lose the latest design

If Confluence is your team’s hub for documentation, this integration turns it into a proper home for your CAD work too.

Stop the workarounds. Start collaborating.

>>> Try the CAD 2D and 3D Model Viewer for Confluence today.
