"Where is Work Waiting?" A 6-Step Guide to Building a Jira Dashboard That Finds Bottlenecks

[#1]

Hey, Community!

We've all been there. You're in a meeting, looking at a burndown chart that seems fine, but you know your team is feeling the pressure. Work feels slow, deadlines are tight, and you can't pinpoint why. The problem is that your standard Jira dashboard shows you that work is happening, but it doesn't show you where work is waiting.

This guide will walk you through building a single, powerful dashboard that ends the guesswork. By the time you're done, you'll have a visual tool that not only shows you exactly where your bottlenecks are but also gives you the accurate data you need to fix them.

Why Native Jira Reports Can Be Misleading?

Before we build, it's crucial to understand why a specialized approach is necessary. Jira is incredible, but its native reporting has limitations that can hide the truth about your workflow.

A classic example is the "Days in Column" view on a Kanban board. It calculates time 24/7, meaning an issue that sits over a weekend appears to have a much longer resolution time than it actually did. This creates misleading data and can lead to poor decisions.

To get real answers, you need to focus on the metrics that truly measure efficiency:

Lead Time: The total time from an issue's creation until its final resolution. This is what your customer or stakeholder experiences.

Cycle Time: The time an issue spends in an active, "in-progress" state. This is your team's actual hands-on work time.

6-Step Guide to the Ultimate Bottleneck Dashboard

Let's build a dashboard that gives you a 360-degree view of your workflow. We'll use a purpose-built app like Timepiece - Time in Status for Jira to ensure our data is accurate and our insights are actionable.

Step 1: Add Timepiece Gadget to Your Dashboard

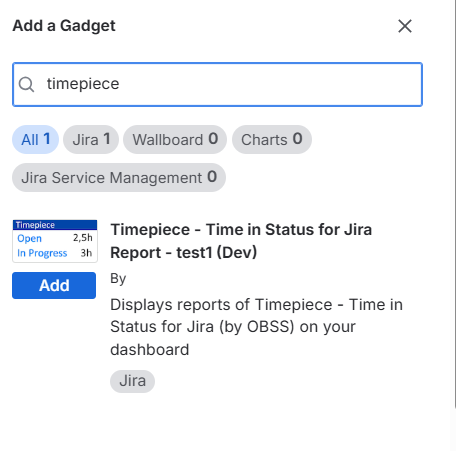

Navigate to "Dashboards" in Jira and click "Edit". Now, click "Add a gadget" and search for the "Timepiece" gadget to add it to your dashboard. This will be our canvas. If you don't have a dashboard, create one and then add Timepiece.



Step 2: Filter for Focus with JQL

Your dashboard should answer specific questions. Use JQL to narrow the scope of your report.

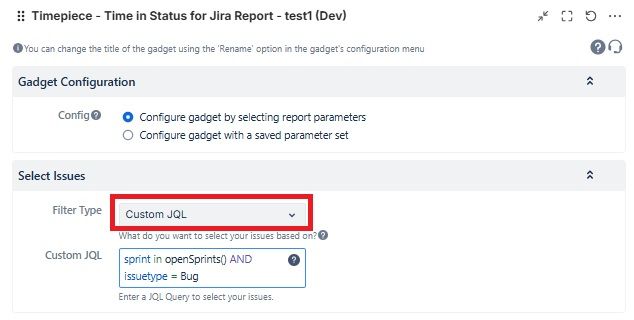

How to do it: In the JQL field, filter for the issues that matter right now. For example:

“project = "Phoenix Project" AND status not in (Done, Closed)” will show you only open issues in a specific project.

“sprint in openSprints() AND issuetype = Bug” will focus on active bugs in the current sprint.

Step 3: Select Report Type

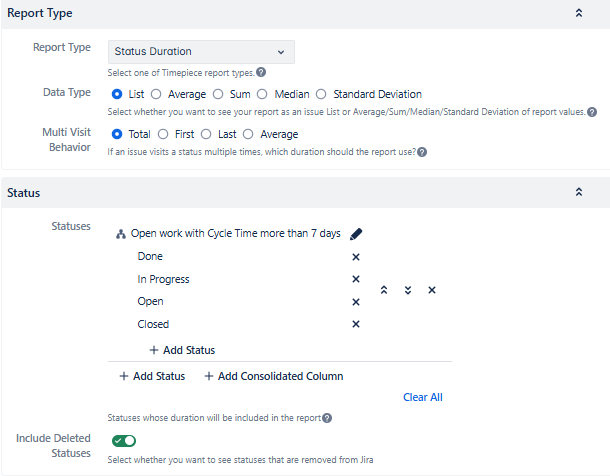

First, select the report type. To get a Cycle Time or Lead Time report, you can pick the Status Duration report.

Step 4: Get Accurate Data with a Custom Calendar

This is the most important step for data integrity. To avoid Jira's 24/7 time calculation, you must define your team's actual working hours.

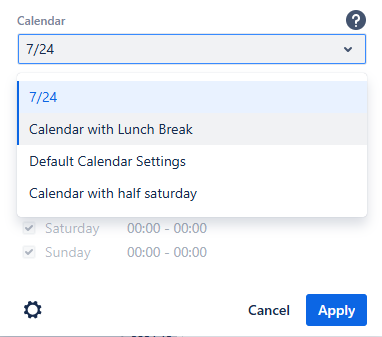

How to do it: In the Timepiece app settings, configure a custom calendar that specifies your team's workdays, hours, and holidays. In the gadget configuration, select this calendar. Now, every time calculation will be based on actual business hours, giving you a true representation of your team's efficiency.

Step 5: Define Your Metrics with Consolidated Columns

To measure Cycle Time accurately, you need to group all your "active" statuses together.

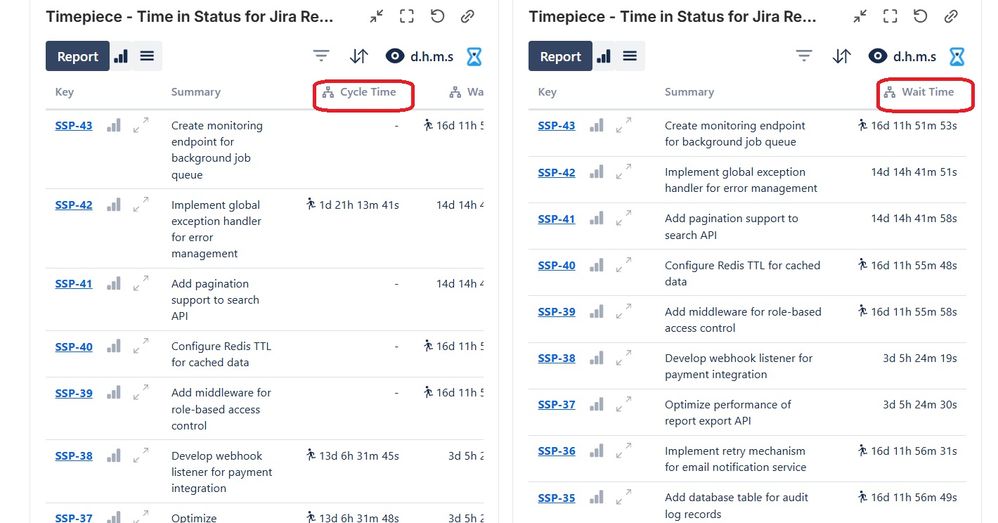

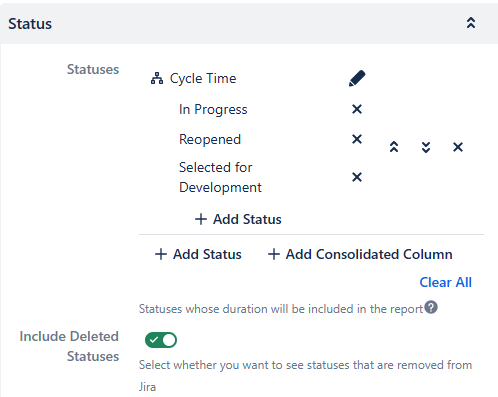

How to do it: In the gadget's configuration, use the Consolidated Columns feature. Create a new column named "Cycle Time" and select all your active work statuses (like 'In Progress,' 'In Review,' 'In QA') into it. You can create another for "Wait Time" with statuses like 'Ready for Dev' or 'Waiting for Approval.'

This transforms a dozen separate statuses into two powerful, easy-to-understand metrics.

Step 6: Visualize the Story with the Right Chart

A list of numbers requires interpretation; a chart tells a story at a glance.

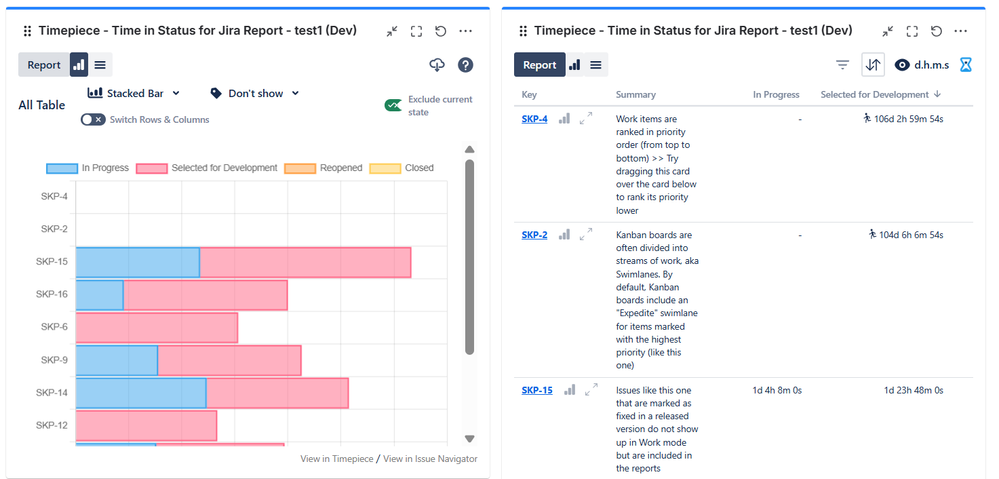

How to do it: In the gadget settings, select your Chart Type. For comparing how much total time is spent in each status or consolidated column, a Bar Chart is often the most effective choice.

It makes it immediately obvious which stage is consuming the most time.

How to Analyze Trends with Timepiece Dashboard Gadgets

Moving beyond individual list reports, which detail the Cycle Time or Lead Time for every record, strategic trend analysis requires measuring aggregated performance over time. Timepiece allows you to create separate aggregate reports that calculate the average, median, or standard deviation of these metrics.

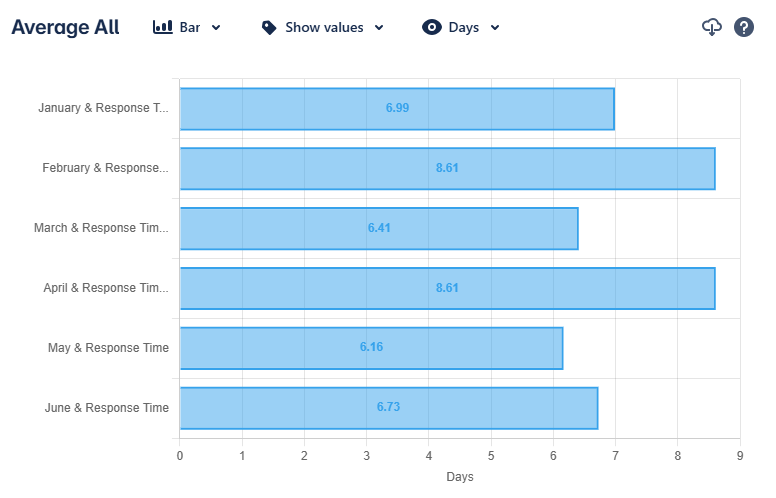

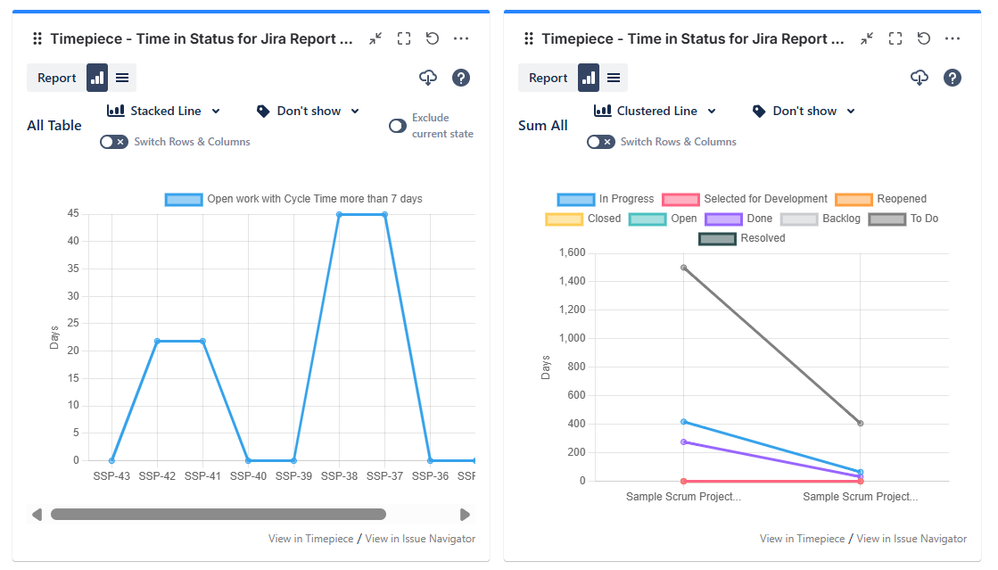

By grouping these reports by a specific time interval, such as weekly or monthly, you can build dedicated trend gadgets (like the Cycle Time Trend Chart) that visualize how your team's average delivery speed and process predictability are evolving, allowing for the identification of sustained improvement or emerging bottlenecks.

From Insight to Action: Reading Your New Dashboard

Your dashboard is now live. It's not just a report; it's a diagnostic tool. When you see a signal, you can investigate the root cause.

Signal: The "Selected for Development" bar is consistently the tallest in your chart.

Insight: A buildup in “Selected for Development” indicates delays in task initiation or workflow handoff.

Action: Use this data to discuss ways to speed up task initiation, such as improving handoff processes or clarifying ownership.

And if you see an average that looks too high? Drill down.

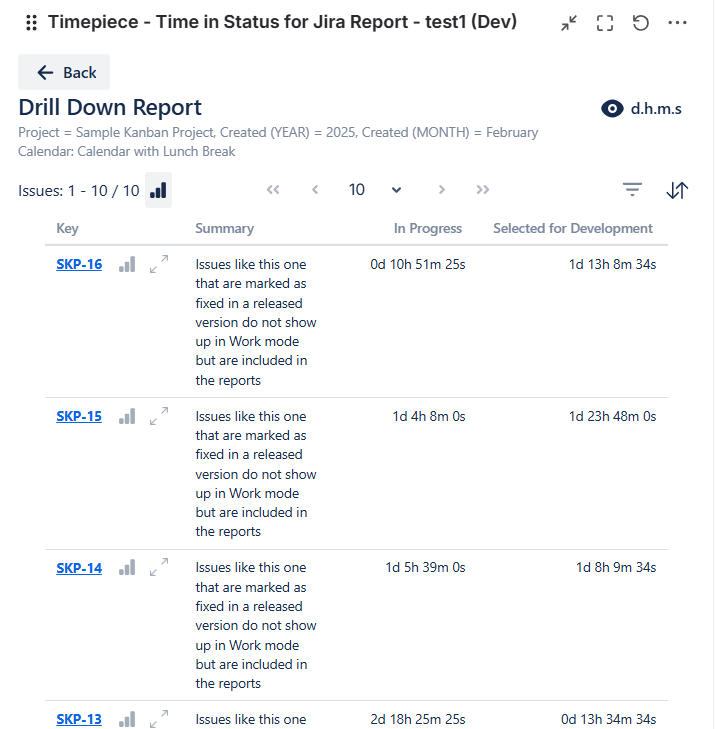

Every number in the report is interactive. Click on any bar, and the gadget will instantly show you the list of the exact Jira issues used in that calculation. This allows you to spot an outlier, perhaps one complex issue was blocked for weeks, and understand the "why" behind the data.

You've now moved from guessing to knowing. You have a single source of truth that bridges the gap between abstract project status and concrete, actionable insights.

Ready to build a dashboard that tells the whole story? Find Timepiece - Time in Status for Jira on the Atlassian Marketplace.
