Scatter Plot Gadget for Agile Teams

[#1]

Ever feel like you're drowning in a sea of Jira data, unsure how to turn those numbers into insights? You're not alone. Agile teams and project managers often track cycle time, lead time, and other status transition metrics, but raw spreadsheets can make your eyes glaze over. That's where the Scatter Plot Report comes to the rescue.
We will use Time Metrics Tracker | Time Between Statuses Scatter Plot Gadget as an example.



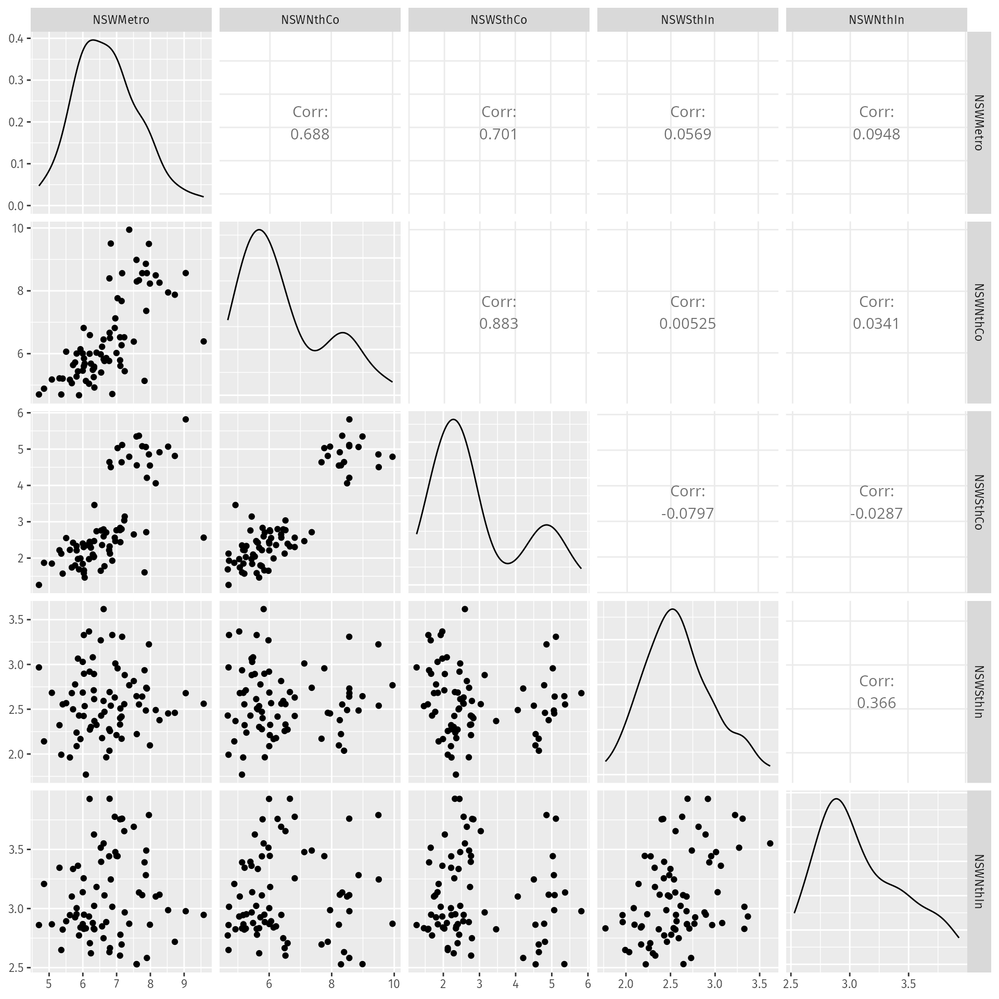

What is the Scatter Plot?

A Scatter Plot is a type of data visualization that displays individual data points on a two-dimensional graph, helping to identify patterns, trends, and outliers. In project management and analytics, scatter plots are commonly used to analyze the relationship between two variables, such as task duration over time.

By plotting each issue’s time metric (e.g., Cycle Time, Lead Time, Resolution Time) on a scatter plot, teams can identify bottlenecks, track performance trends, and improve workflow efficiency.



What is the Scatter Plot Gadget in Jira?

The Scatter Plot Gadget is a data visualization tool in Jira that displays individual issue data points on a two-dimensional graph, helping teams analyze trends, patterns, and outliers in their workflows. It is commonly used to track issue duration, identify workflow bottlenecks, and evaluate team performance over time.

How Scatter Plot Gadget in Jira Works

• Each dot represents a Jira issue.
• The X-axis displays the timeline (e.g., issue completion dates).
• The Y-axis shows the duration (e.g., how long an issue was in progress).
• Users can zoom into specific areas of the plot to examine detailed time trends.

By plotting key time metrics such as Cycle Time, Lead Time, or Resolution Time, teams can gain insights into their efficiency, identify bottlenecks, and improve decision-making. This gadget is particularly useful for agile teams looking to optimize their work processes based on real-time data.

What is the Scatter Plot Gadget in Jira?

Imagine a chart where each completed task is a dot, with its position showing how long it took and when it was completed. That's exactly what the Scatter Plot Gadget does on your Jira dashboard. This gadget plots each issue’s transition time on a graph, giving you a clear picture of your workflow performance. In Lean project management, such scatterplot charts are revered because they provide a detailed view of key time metrics like cycle time​. In simple terms, it turns piles of timing data into a constellation of dots – each dot tells the story of one issue’s journey through your process.

Why Visualizing Time Metrics Matters

Numbers on a spreadsheet are one thing; seeing those numbers play out visually is a game-changer. Visualizing time metrics matters because humans are wired to detect patterns and anomalies in images far better than in raw data. In fact, a scatter plot chart "excels at displaying a large number of issues individually, making it effortless to spot outliers"​ and to identify anomalies or correlation patterns in your process​. Instead of wading through tables, you get an immediate sense of the distribution and range of your cycle times or lead times.

For Agile teams, key metrics such as cycle time and lead time are the lifeblood of continuous improvement​. Tracking these visually means you can literally see how your workflow is performing. Are most of your user stories flowing through the process quickly, or do you have a scatter of dots flying off the chart (indicating potential problems)? A well-crafted scatter plot helps answer this at a glance, making your project more transparent and your data more approachable for everyone on the team. After all, a chart on a dashboard is a lot more engaging than a list of numbers in a report!

Scatter Plot Analysis Patterns in Time Metrics Tracker

When analyzing a Scatter Plot, different patterns can reveal insights into your workflow efficiency, performance trends, and potential bottlenecks. Here are key patterns to look for when interpreting your Time Metrics Tracker's Scatter Plot:

1. Clustered Data (Tight Grouping of Points)

Meaning: A well-structured and predictable workflow.

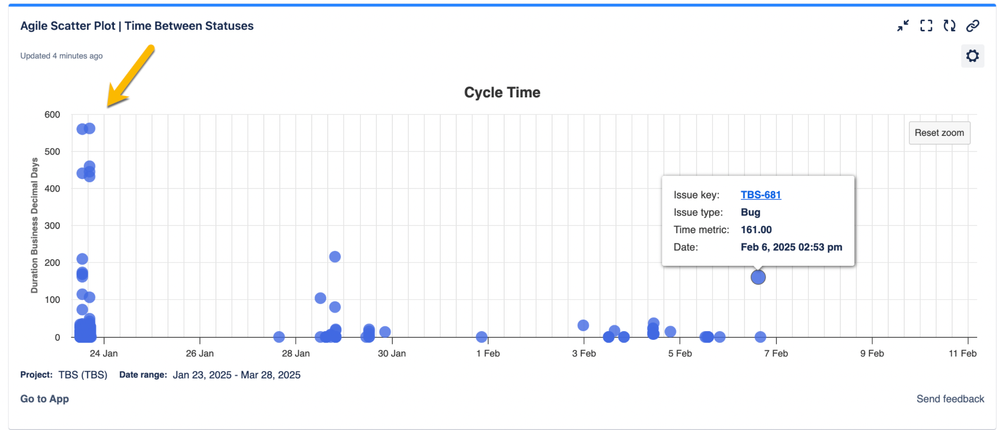

✔ If points are clustered around a certain duration, it suggests that most tasks are completed within a consistent time range.
⚠ If the cluster is too tight, it might indicate that your team is working on similar types of issues with little variation, which could be good or bad depending on the project.

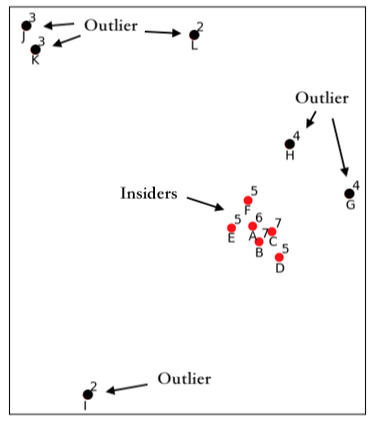

2. Outliers (Isolated Points Far from the Cluster)

Meaning: Exceptional cases or anomalies.
✔ A few outliers can be normal, representing special cases like high-priority tasks that were completed faster.
⚠ Frequent or extreme outliers may indicate delays, blockers, or inefficient processes that need further investigation.



3. Upward Trend (Increasing Duration Over Time)

Meaning: Slower execution over time.
✔ A moderate increase might indicate a growing workload or more complex tasks.
⚠ A steep increase could signal accumulating technical debt, inefficiencies, or a lack of automation. This trend is a red flag for project delays.

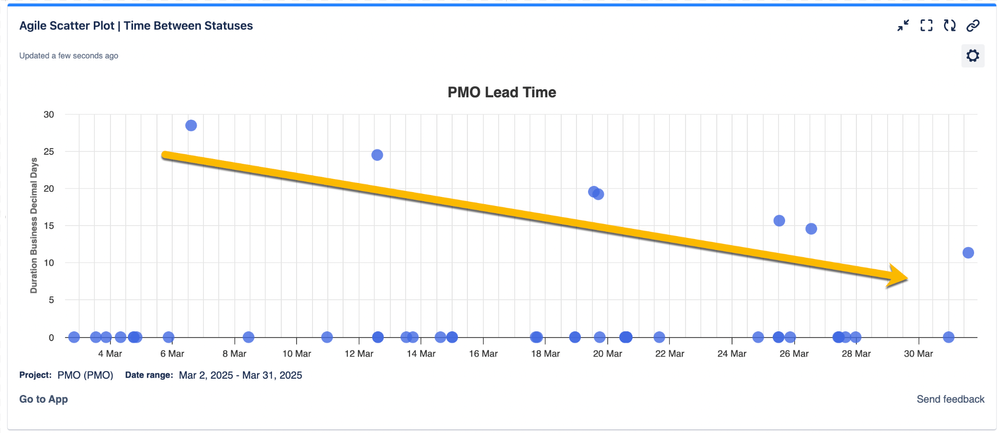

4. Downward Trend (Decreasing Duration Over Time)

Meaning: Improved efficiency.
✔ A downward trend suggests that the team is getting faster at resolving issues, possibly due to better processes or experience.
⚠ A sudden drop may indicate shortcuts, rushed work, or missing quality checks.

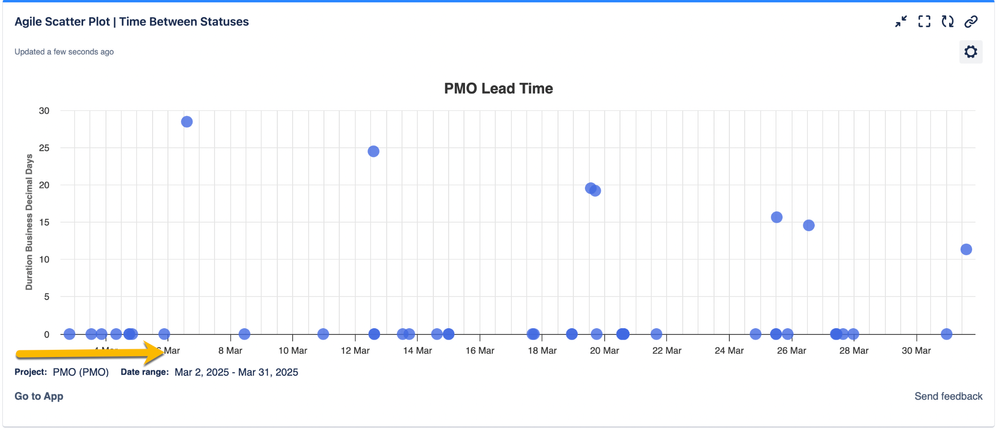

5. Horizontal Spread (Wide Distribution of Points Along the X-Axis)

Meaning: Variability in task duration.
✔ A balanced spread indicates a diverse workflow with different types of tasks requiring varying levels of effort.
⚠ An extremely wide spread with no clear pattern may indicate inconsistencies in prioritization or unpredictable dependencies.

6. Vertical Spread (Wide Distribution Along the Y-Axis for a Given Time Period)

Meaning: Large variation in time spent on tasks.
✔ If some issues take significantly longer than others within the same period, this could suggest that the scope of tasks is inconsistent.
⚠ If the variation is too extreme, it may mean that the estimation process is inaccurate, or some tasks are being blocked for long periods.

7. Periodic Cycles or Waves

Meaning: Recurring workflow patterns.
✔ Regular peaks and dips suggest seasonal trends or sprints in agile development.
⚠ If cycles appear without an obvious cause, review your process to understand external factors influencing work speed.

8. Gaps or Missing Data

Meaning: Interruptions or irregular reporting.
✔ Gaps in the scatter plot might indicate off-periods (e.g., holidays, maintenance, or sprint transitions).
⚠ If gaps are unexpected, check if data tracking is properly set up and whether certain teams are consistently logging work.



How Scatter Plots Improve Workflow Analysis

Scatter plots aren't just pretty pictures; they are workhorses for workflow analysis. Here are a few ways the Scatter Plot Gadget can elevate your team's understanding of your process:



• Spotting Bottlenecks: When certain issues appear as high-flying dots way above the rest, it’s a red flag that something took longer than expected​. Perhaps a task got stuck waiting for code review or approval. By highlighting these outliers, the scatter plot lets you zero in on bottlenecks. If you notice a cluster of slow-moving tasks all related to a specific stage (say, testing), that’s a cue to investigate and alleviate the snag. As Atlassian’s guidance suggests, if you see a spike in cycle time, you shouldn't ignore it – drill down to find the cause​.

• Analyzing Efficiency: The overall pattern of dots tells a story about your team's efficiency. Are the dots mostly low on the chart (meaning tasks finish quickly) or climbing upwards over time? If you see cycle times getting shorter sprint over sprint, give your team a high-five – the scatter plot is showing improvement. If things are trending the opposite way, it's a sign to adjust. Remember, cycle time is a key efficiency indicator – it shows if your team is working efficiently or if some adjustments are needed​. In a stable process, most dots will cluster within a predictable band. A wide scatter might mean inconsistent processes or varying task sizes – useful insight for retrospectives.

• Monitoring SLA Compliance: If your project or service has SLAs (Service Level Agreements) or specific time goals (e.g. "issues should be resolved within 5 days"), a scatter plot is your compliance cop. Simply put, any dot above your SLA threshold line is an issue that breached the limit. With the Scatter Plot Gadget, you can see those breaches immediately. For example, if most tasks sit under the 5-day line but a few dots float up around 8 or 10 days, you know exactly which incidents to investigate. It's a visual early-warning system for missed deadlines. You could even set an average or specific target as a reference on the chart – points over that mark clearly stand out as needing attention​.

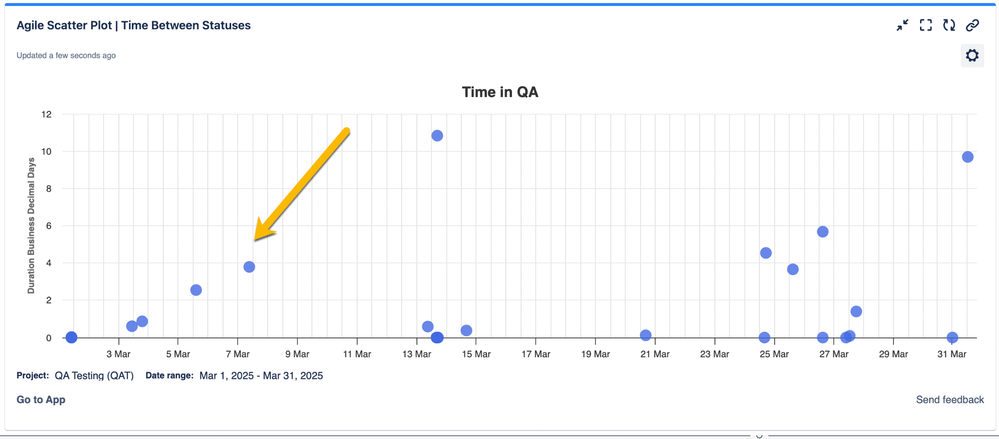

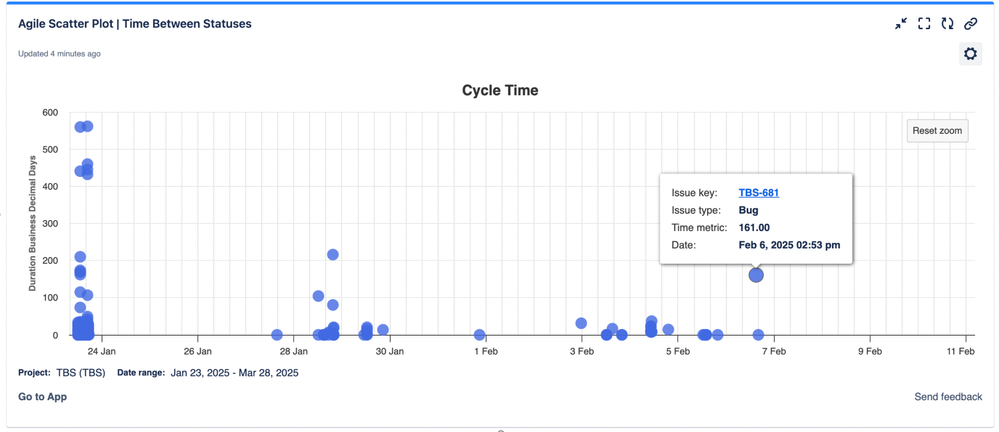

A sample cycle time scatter plot illustrating each issue as a dot. Notice how a few dots (tasks) are much higher than the rest – these outliers took significantly longer to complete. Such visualization makes it easy to pinpoint bottlenecks or unusual delays in your workflow.

Key Insights You Can Gain

A well-used scatter plot is like a detective’s magnifying glass for your workflow. By observing the scatter of points, Agile teams and PMs can uncover several key insights:



• Trend Lines and Throughput: Scatter plots often reveal trends over time. If you draw a line through the middle of your dots (some tools show a rolling average or percentile lines), you can see if your team is getting faster or slower. A downward trend in cycle time dots means your process improvements might be paying off, whereas an upward drift could signal rising complexity or issues in the pipeline. Many scatter charts include a trendline or percentile markers; for instance, a rolling average line can indicate the overall direction your cycle times are moving​
  .
• Patterns by Work Type: Perhaps you suspect that certain types of work (e.g. bugs versus new features) take longer than others. The scatter plot can validate this. If your gadget allows, you might color-code or filter dots by issue type, priority, or team. Then patterns emerge: maybe all the orange dots (say, critical bugs) sit higher on the chart than the blue dots (small enhancements). One Lean management tip is to compare how different work types perform by distinguishing their dots​. Spotting these patterns helps in resource allocation and setting realistic expectations.


• Process Consistency (or Lack Thereof): Are all your dots tightly grouped, or are they all over the place? A tight cluster means your process is consistent – most tasks take about the same time. This predictability is great for planning. However, if the dots look wildly scattered, your delivery times are inconsistent. Maybe some tasks are quick wins while others drag on unpredictably. Identifying that variability is the first step to addressing it (perhaps by refining requirements, splitting user stories, or adjusting WIP limits). Consistency, or its absence, is immediately visible on the graph.


• Anomalies and One-off Events: Every now and then, you'll see a dot way off in the distance – an anomaly. Instead of ignoring it, use it as a learning moment. Perhaps that was the week a server outage stalled all work, or an urgent change request derailed a sprint. The Scatter Plot Gadget surfaces these stories. Such anomalies often spark great retrospective discussions and preventive measures. Seeing a sharp increase in cycle time for a particular item or time period should prompt reflection on what went wrong and how to avoid it going forward​
  .

These insights empower teams to continuously improve their Kanban or Scrum workflows. Instead of guessing where to improve, you have data-driven evidence. Maybe you discover that tasks tended to stall during code review – next sprint, you decide to pair up for reviews to speed things along. Or you realize that although most items finish in a week, a particular type of request always takes three weeks – prompting you to adjust client expectations or break those items into smaller pieces.

Best Practices for Interpretation

Having the data is one thing; knowing how to read it is another. Here are some best practices to get the most out of your Scatter Plot Gadget:



• Look for the Forest, then the Trees: Start with the big picture. Notice the overall shape of the scatter. Is there a clear horizontal band where most points lie? That's your typical cycle time range. Next, spot the lone wolves (outliers). Don't obsess over every single dot – focus on patterns first, then drill down into specifics that catch your eye.


• Use Averages and Medians Wisely: Many scatter plot tools will highlight average or median lines. These can be super helpful to gauge where the center of your data is. If most of your dots hover around, say, 4 days, and you have a couple way up at 20 days, the median line will stay low, but those high dots are still important. Use these lines as reference, but always investigate what’s above (or below) them. As one Jira gadget example shows, anything over the average or a set threshold might be a candidate for deeper analysis​
  .
• Correlate with Context: A scatter plot doesn't exist in a vacuum. Always interpret the chart in context. Did a big holiday or team vacation coincide with a cluster of slow dots? That might explain a temporary slowdown. Or if you deployed a new workflow improvement in June and see dots dropping in July, that context is key to attributing cause and effect. Jot down notable events (product launches, team changes) and see if they align with shifts in the scatter plot.


• Regularly Review and Act: Make the scatter plot a living part of your Agile ceremonies. For Kanban teams, it can be a staple of your weekly or monthly service delivery review. Scrum teams might glance at it in retrospectives to discuss any oddities in the sprint. The goal is not just to admire the pretty chart, but to act on it. If the scatter plot shows that issues are trending longer, brainstorm with the team on why. If it shows improvement, celebrate it and discuss how to reinforce that trend. The scatter plot is a conversation starter for continuous improvement.


• Combine with Other Metrics: While scatter plots are fantastic, they work even better alongside other visuals. For example, a Cumulative Flow Diagram can show you if work-in-progress is piling up, which might explain rising cycle times. Likewise, a histogram of cycle times can complement the scatter plot by showing the distribution of those times more clearly. The Time Metrics Tracker app actually provides a histogram chart too as a companion​. Use the scatter plot to identify when and which items took how long, and use other charts to see how many followed certain patterns. Together, these give a fuller picture of your performance.



Wrapping Up

The Scatter Plot Gadget in Time Metrics Tracker takes the concept of "show, don't tell" to heart. Instead of telling your team "our average cycle time is 5 days" in a meeting, you can show them a colorful chart of dots that reveals much more – the highs, the lows, and everything in between. It's engaging, it’s insightful, and yes, it can even be fun to use. By translating time metrics into a visual form, the gadget helps Agile teams and project managers literally see the story of their workflow, making it easier to celebrate wins and spot areas for improvement.

Give it a try on your next Jira dashboard – you might be surprised by what you discover in those dots!

Until next time, happy tracking!
