Jira Timeline in 2026: How it works and what changed

[#1]

Managing projects can feel like juggling multiple tasks at once. To stay on top of everything, you need a clear and organized view of all your project components, deadlines, and milestones. The Jira Timeline is your best friend here. It turns a messy list of tickets into a horizontal line of actual progress.

But here’s the thing: many teams and project managers run into too many questions when using timelines. So here's how to actually run your project management with this thing in 2026, some common troubleshooting, and major 2026 updates.

What is the timeline view?

The timeline view in Jira is a graphical representation of your project details, tasks, deadlines, and dependencies over time. It provides a visual overview of your project schedule, helping you track progress and plan for the future. You can see start and end dates, key milestones, and how different pieces of work relate to one another in a single glance.

It's available on free and standard plans.

How to enable timeline in Jira?

If you don’t see any bars, it’s not broken. Your tickets are just missing dates.

• If you’re on company managed projects, the start and due date fields aren’t always on the screen by default. You have to go to project settings → Screens and drag them in. Otherwise, your schedule bar stays empty.

• If you’re on team managed projects, it’s usually baked in, but double-check your field configuration anyway.

Do this first. Otherwise, the rest of this guide is useless.

To enable the timeline view in Jira, you’ll need to open the Timeline tab. And voilà! You now have a visual timeline of your project to work with.

How to use Jira timeline view?

Using the Jira timeline view is incredibly intuitive. Here are the main actions you’ll be performing:

• Create tasks: add your tasks and milestones to the timeline and set deadlines.

• Adjust dates: easily drag and drop tasks to update deadlines as needed.

• Track dependencies: link related tasks to show how one task depends on another.

• Monitor progress: track the status of each task using color-coded labels and visual indicators.

• Edit fields inline: As of 2026, you can now update key details directly from the timeline view without opening each individual ticket.

Jira Timeline uses visual indicators to help teams understand project progress at a glance. Schedule bar colors represent the current project status, making it easier to identify completed work, ongoing tasks, and items that may need attention.

What does Jira timeline show?

Initially, the Jira Timeline was strictly limited to displaying only Epics. It calculated an Epic's start and end dates based on its child issues (a roll-up), but it didn't actually show those individual Stories, Tasks, or Subtasks on the chart.

Since July 2026, the updated Jira Timeline experience supports a more detailed view of work hierarchy. It now goes beyond just Epics, allowing teams to visualize different levels of work, including Stories, Tasks, and even Subtasks, depending on your project configuration.

Additionally, the timeline now displays all work items, including those that are not assigned to an Epic. This means orphaned tasks or standalone Stories are no longer hidden.

What are epics?

In Jira, Epics are large bodies of work that can be broken down into smaller tasks (called issues). Epics usually represent major deliverables or milestones in your project. The timeline represents the epic’s start date and end dates based on its child issues (the actual tasks). This is called a roll-up.

What are child issues?

Child issues are the individual pieces of work that belong to an Epic. Depending on your Jira setup, these may include Stories, Tasks, Bugs, and other standard issue types.

While Timeline uses these issues to calculate the Epic's duration, it doesn't display them individually. If you need to visualize every task on a timeline, you'll need a more advanced planning app such as Planyway.

What are dependencies?

Dependencies show the relationship between tasks, highlighting when one task cannot start until another is completed. When dependencies are configured, Timeline can visualize them as arrows connecting related work, making it easier to identify scheduling conflicts and understand the project's critical path. Dependency mapping is especially useful for longer projects where one delayed task can affect several upcoming activities.

The biggest misconception: Jira Timeline is not a full Gantt chart

One of the most common misconceptions is that Jira's Timeline works like Microsoft Project or a full-featured Gantt chart.

It doesn't.

Jira Timeline is a Jira-specific timeline view that uses a Gantt-style visualization but offers a more limited set of capabilities. It is intentionally designed as a lightweight planning view for individual projects.

However, 2026 updates have significantly narrowed the gap. While it still doesn't offer the complexity of dedicated project management tools, the native timeline is no longer limited to just Epics. The addition of Stories, Tasks, Subtasks, and unassigned items provides a much more granular view of your project execution than previous versions allowed.

Out of the box, it:

• now displays Stories, Tasks, and Subtasks (in addition to Epics);

• now allows inline editing of key fields (Assignee, Status, Summary);

• provides basic scheduling and dependency visualization;

• doesn't include workload or capacity planning;

• doesn't show whether people or teams are overallocated.

As projects grow, these limitations often lead teams to adopt Advanced Roadmaps (available in Jira Premium) or marketplace apps that provide cross-project planning, resource management, and more detailed timeline views.

Customize Jira timeline with Planyway

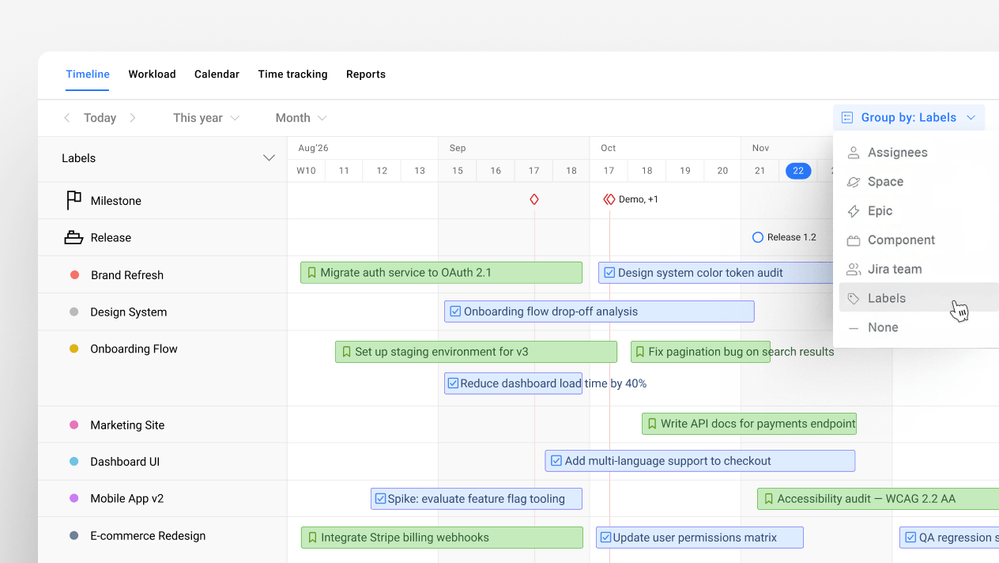

While the native timeline view forces a single, fixed hierarchy, Planyway lets you group your timeline by Assignee, Sprint, Epic, Component, Team, or Labels, giving you the power to reorganize the same data in seconds to answer different questions (e.g., "What is each person working on?" or "What's the status per component?"). You can also filter, save custom views, and share them with teammates or stakeholders for better alignment.

Plan work across projects and teams

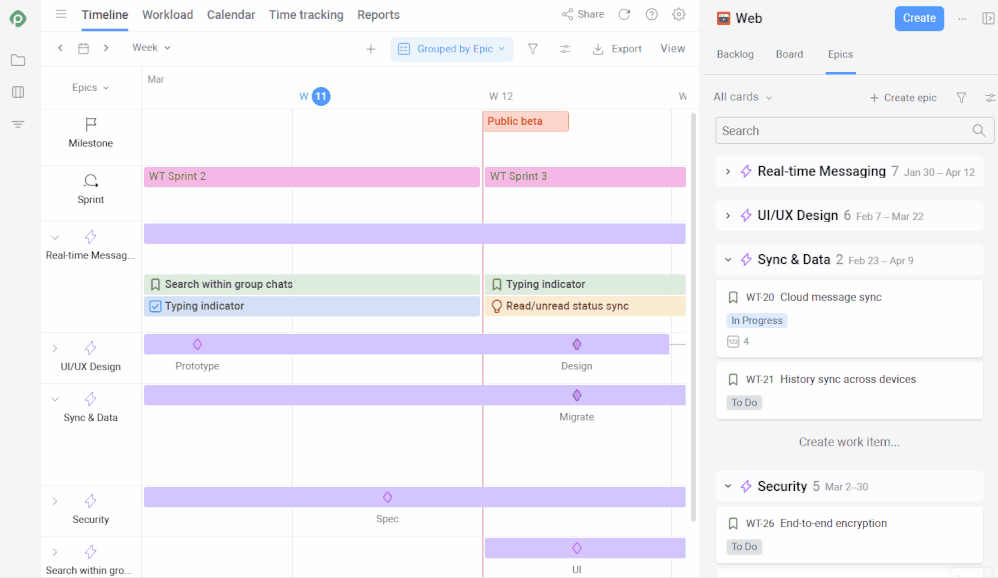

Unlike Jira Timeline, Planyway lets you build roadmaps across multiple Jira projects. Use drag-and-drop scheduling, milestones, dependencies, and flexible grouping to assign tasks and coordinate work across teams from a single timeline.

Balance workload and team capacity

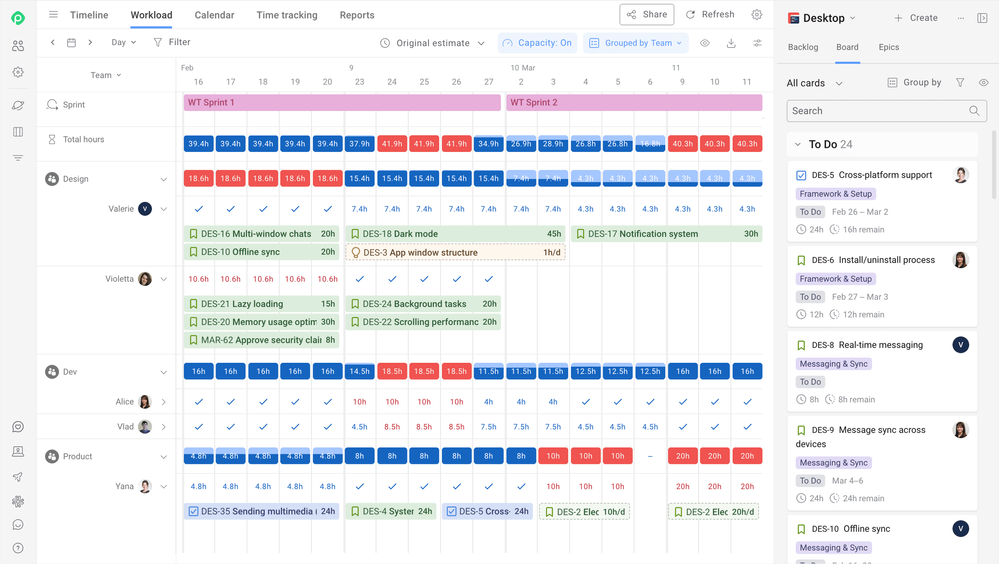

Once your roadmap is planned, switch to Workload to see whether it's actually realistic.

Instead of only showing dates, Planyway's Workload visualizes each team member's capacity alongside their assigned work. Planned hours, vacations, holidays, and working schedules are all taken into account, making it easy to identify overloaded teammates and rebalance work before deadlines slip.

Compare plans with reality

Planning doesn't stop once work begins.

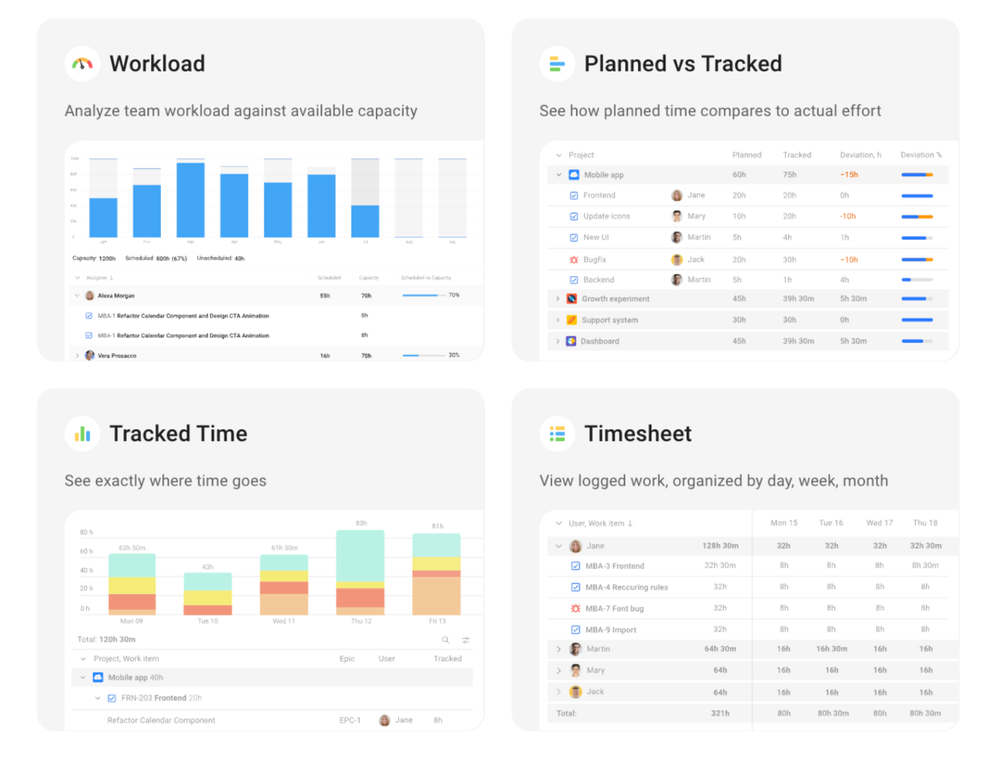

Planyway includes built-in reports for Planned vs Tracked, Time Tracking, and Workload, helping teams compare estimates with actual effort, monitor utilization, and improve future planning.

Besides Timeline and Workload, Planyway also includes:

• Calendar for schedule-based planning;

• Table View for spreadsheet-style issue management across projects;

• exports and shareable roadmap views for stakeholders.

Addressing the most popular questions about Jira timeline

What is the difference between roadmap and timeline in Jira?

While both roadmaps and project timelines are used to track project progress, they have different purposes:

• Roadmaps provide a high-level view of the project, outlining major milestones, initiatives, and strategic goals.

• Timelines provide a more detailed, time-based view of tasks, dependencies, and progress over a specific period.

Roadmaps are useful for setting the overall direction, while timelines focus on execution.

Can I use Jira Timeline across multiple projects?

Not in the native Timeline view. For cross-project planning (and centralized visual representation), you'll need Advanced Roadmaps (aka Jira Plans, Jira Premium) or a marketplace app like Planyway.

What's the difference between Timeline and Advanced Roadmaps?

Timeline is designed for lightweight planning within a single project. Advanced Roadmaps adds cross-project planning, team capacity, and portfolio management for Jira Premium users.

Can I track dependencies in Jira Timeline?

Yes. Timeline can display dependencies between Epics when issue links are configured, helping you identify scheduling conflicts.

Can I plan work without using Epics?

Not in the native Timeline. Since Timeline is Epic-based, projects without Epics won't get much value from it.

Can I assign one issue to multiple people?

Not in Jira itself. Each issue has a single assignee. If work is shared across several people, teams typically use subtasks or apps that support workload planning and task splitting.

Should I use Timeline, Advanced Roadmaps, or a Marketplace app?

It depends on your planning needs.

• Timeline — for planning Epics within a single project.

• Advanced Roadmaps — for portfolio planning, cross-project roadmaps, and basic capacity management in Jira Premium.

• Marketplace apps — for day-to-day delivery planning with advanced timelines, workload management, time tracking, reporting, and more flexible project views.

Final thoughts

The Jira Timeline is a great starting point for visual project planning, helping teams track schedules, dependencies, and delivery progress. With Planyway, teams can extend native Jira (free or paid) with workload management, cross-project planning, and more flexible timeline views — turning a simple schedule into a complete delivery planning workspace.
