How to Highlight Issues by Priority, Status, and More

[#1]

If your Jira calendar looks the same across all tasks, it becomes harder to spot what really matters. When every issue appears identical, managers waste time double-checking priorities, scanning statuses, and manually filtering views. Over time, this slows decision-making and increases the risk of missed deadlines.

Using color coding in Jira changes that completely. By visually distinguishing issues based on Priority, Status, or other important fields, you create a clearer planning environment. With the right setup, your timeline turns into a visual control panel where urgent, overdue, and completed tasks are instantly recognizable.

With ActivityTimeline, you can automatically apply colors to Jira issues on your planning calendar using key fields like Priority, Status, Issue Type, and more.

Why Visual Structure Matters in Project Management

Clear visual organization is essential for effective resource planning. Jira’s default grey-heavy interface doesn’t always provide strong visual signals. While it works functionally, it lacks the instant clarity many managers need when reviewing workload across multiple projects.

Without meaningful visual differentiation:

• Bottlenecks are harder to detect. You can’t immediately see which tasks are critical or overdue. Ideally, overdue items should stand out (for example, red), tasks nearing deadlines should be noticeable (orange), and stable items should feel safe (green).
• Manual filtering increases cognitive load. Constantly adjusting filters or scanning lists slows you down.
• Urgency is not always obvious. Team members may overlook high-priority epics if they don’t visually stand apart.

Color coding reduces mental effort and improves response time. Instead of reading everything, you simply see what needs attention.

What Jira Offers Natively

Before exploring advanced options, it’s important to understand Jira’s built-in color logic.

By default, Jira assigns colors to statuses based on category:

• To Do – Grey
• In Progress – Blue
• Done – Green

These colors appear as subtle indicators on issue cards. While helpful, they may not be strong enough for complex planning scenarios.

If you use JQL-based card coloring, Jira applies rules in sequence — meaning the first matching condition determines the card’s color.

For Epics, Jira includes an Epic Color field with 14 predefined options. This allows visual differentiation between epics. However, searching by Epic Color name isn’t supported — you must use the corresponding internal value.

For many teams, this level of customization isn’t flexible enough.

A More Flexible Approach with ActivityTimeline

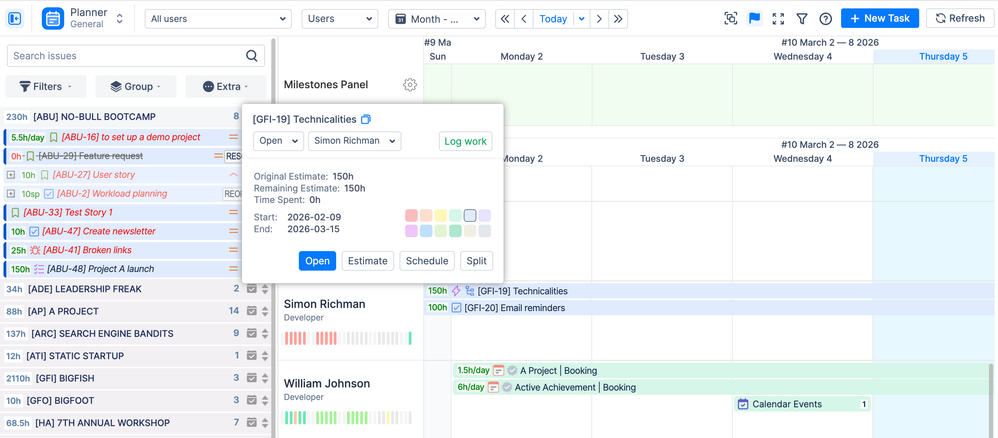

ActivityTimeline extends Jira’s visual capabilities through its Custom Styles feature. Think of it as conditional formatting for your Jira calendar.

Instead of complicated markup or formulas, you create straightforward rules that automatically adjust how issue cards appear.

You can modify:

• Background color
• Text color
• Font style

And apply those changes based on:

• Status (e.g., green for “Done,” yellow for “In Progress”)
• Priority (e.g., red for “Highest,” blue for “Low”)
• Issue Type (e.g., distinct colors for Bugs, Stories, Epics)
• Project
• Assignee

This allows your planner to reflect your team’s logic instead of being limited to Jira’s defaults.

How to Set Up Color Coding in ActivityTimeline

To configure color rules, an administrator should:

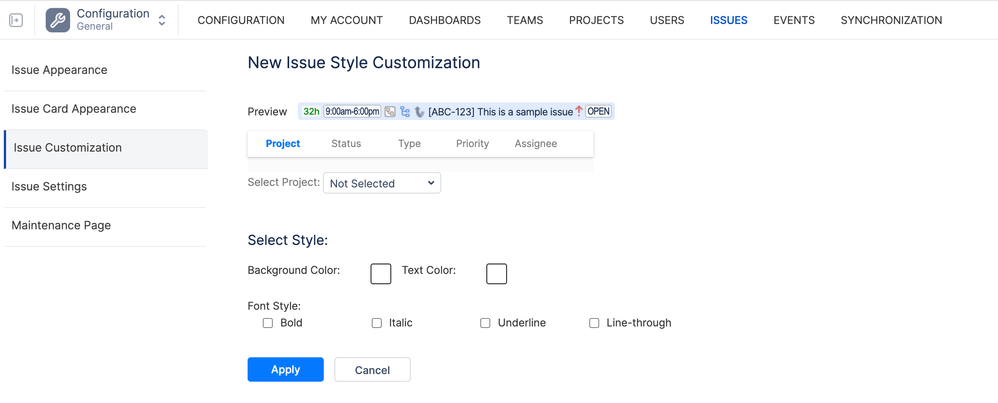

1. Open ActivityTimeline Configuration.
   Go to the top panel, select the Issues tab, and choose Issue Customization.
2. Create a New Custom Style.
   Click Add New Custom Style and select the field you want to use (for example, Priority or Status).
3. Define the Rule.
   Choose the specific value (such as “Highest”) and assign your preferred color. Maintain consistency across projects to avoid confusion.
4. Use Custom CSS (Optional).
   For more advanced logic, you can define additional CSS rules to adjust issue appearance based on combined conditions.
5. Save and Refresh.
   After updating settings, return to the Planner and refresh to ensure recent changes are reflected.

Conclusion

Jira’s default styling works for basic workflows, but growing teams often need stronger visual cues. By implementing structured color coding with ActivityTimeline, you make your planning calendar clearer, faster to scan, and easier to manage.

When overdue issues stand out and epics are clearly differentiated, your team gains visibility — and better visibility leads to better decisions.
