Show component inline with backlog

Abe_jji0wa

Hi all,

I cant figure out how to get the "component" to show inline in my backlog.

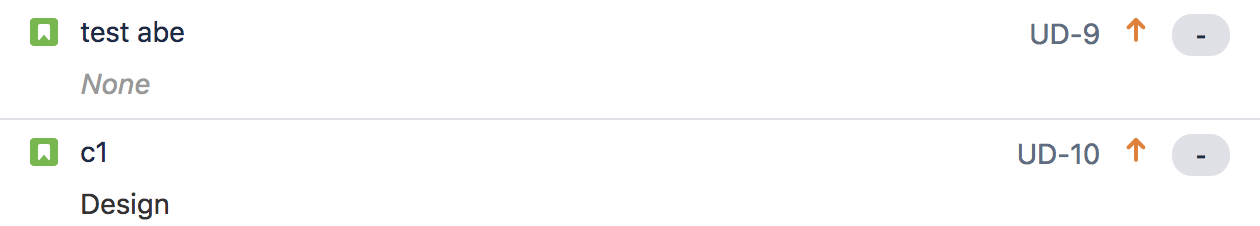

The component is created, I went to edit the board layout. I can get the "component" to show if I do a "card layout", but it puts the component on the second line. i don't want that.

I want it to show up like a label so visually its easier to sort items by "component" as I drag and drop items in the backlog. Like the last image where the "epic" is highlighted

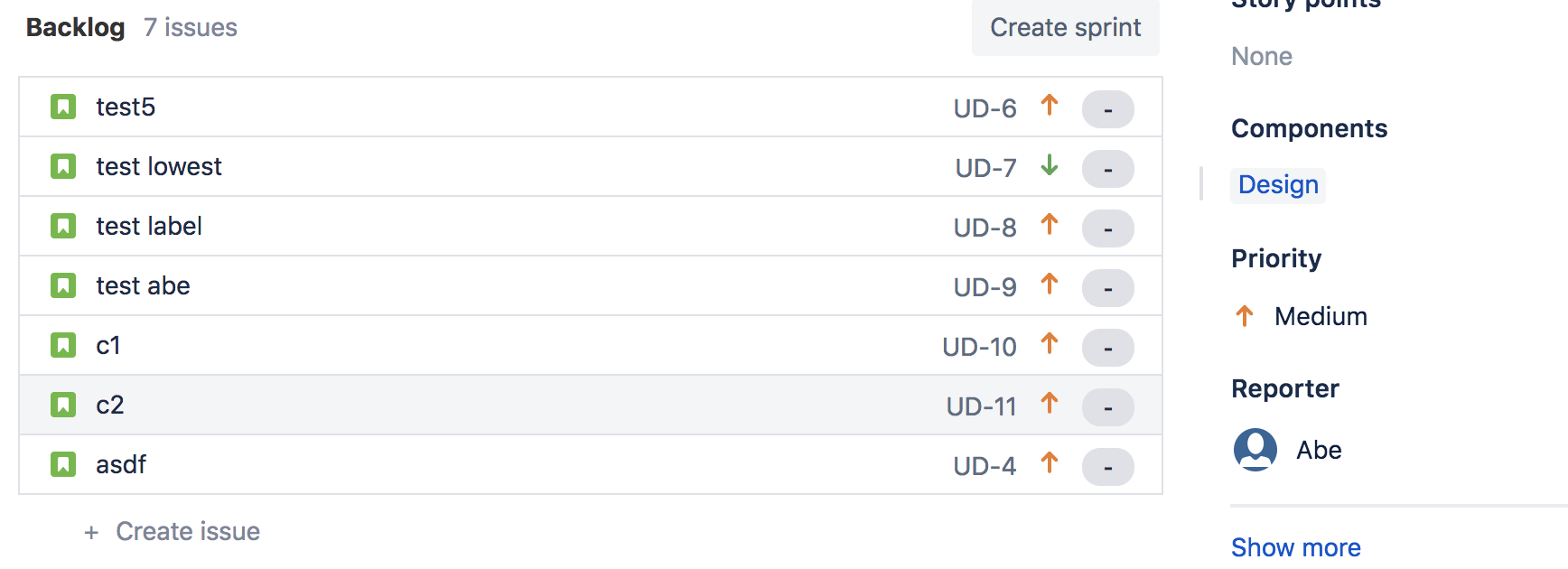

Screen Shot 2018-06-06 at 12.40.55 PM.png

Accepted answers

All comments

unknown

Hi @Abe,

Go to the the Board Settings > Card layout > Under the Backlog Section add the Components field. Go back to your board and you should see Components on your issues in the Backlog view.

Hope this helps

Abe_jji0wa

Hi Danny,

I had already done that as the picture showed above but as stated it drops it onto a second line, whereas I am trying to get it to look like a label like the Epic called "Login"

Tarun Sapra

Hello @Abe

I was looking into implementing this behaviour this morning, but it seems it's not possible and due to low votes Atlassian has turned down this request

https://jira.atlassian.com/browse/JSWSERVER-14722

Dan Dumont

This works for me, ymmv:

.ghx-issue-compact .ghx-end.ghx-estimate {
display: flex !important;
flex-direction: row !important;
align-items: center !important;
flex-wrap: nowrap !important;
}
.ghx-issue-compact .ghx-end.ghx-estimate > .ghx-avatar-img {
line-height: initial;
margin-top: 0 !important;
font-size: initial;
}
.ghx-agile .aui-label.ghx-label {
display: flex;
flex-wrap: nowrap;
align-items: center;
margin: 0 5px;
}
.ghx-issue-compact .ghx-row:first-child {
margin: 0 !important;
display: flex !important;
align-items: center !important;
flex-grow: 1 !important;
}
.ghx-issue-compact .ghx-row-version-epic-subtasks {
padding: 0 !important;
position: static !important;
order: 3 !important;
display: flex !important;
align-items: center !important;
}
.ghx-issue-content {
display: flex;
padding: 3px 5px !important;
align-items: center;
}
.ghx-issue-compact .ghx-type img {
display: static !important;
vertical-align: initial !important;
}
.ghx-issue-compact .ghx-plan-extra-fields {
margin: 0 !important;
}

(I use https://chrome.google.com/webstore/detail/user-javascript-and-css/nbhcbdghjpllgmfilhnhkllmkecfmpld)

Dan Dumont

You guys at Atlassian give up a bit too easy sometimes. Low votes doesn't mean you can't spend an hour on some CSS improvements. :-/

Eric Wyman

@Dan Dumont Did you get this working? Only on the browser side not for all users?

Dan Dumont

Browser only, using a chrome extension that lets me inject custom css.

Nick Fifield

terrible support

Amesh

Would also like to see this inline... 4 years later.

Stephen Bulsara

For anyone arriving at this question in 2023, the below works for me with a CSS browser extension:

.ghx-issue-content {
display: flex !important;
justify-content: space-between;
}

.ghx-row.ghx-end.ghx-items-container {
display: flex !important;
position: initial !important;
order: 3;
height: auto;
}

.ghx-extra-field {
background-color: var(--ds-background-accent-green-bolder,#00875a);
border: 1px solid var(--ds-border, #00875a);
color: var(--ds-text-inverse,#fff);
border-radius: 3px;
border-top-left-radius: 3px;
border-top-right-radius: 3px;
border-bottom-right-radius: 3px;
border-bottom-left-radius: 3px;
display: inline-block;
margin: 0;
padding: 2px 5px;
text-align: center;
text-decoration: none;
Font-size: 14px;
line-height: 14px;
Font-weight: Normal;
text-transform: none;
}

.ghx-fa {
background: var(--ds-background-selected, #ccc);
border: 1px solid var(--ds-border, #ccc);
color: var(--ds-text, #333);
}

.ghx-row.ghx-plan-main-fields {
flex-grow: 2;
}

This turns the components into a similar design as Epics. Without some custom JS there is no way to colour code them so have made them a single colour for now

Karl Wijk_z9ky7q

Works perfectly!

James Traxler_5dt1px

I did something similar (using Stylebot browser plugin) and was quite happy.

However, an updated Jira backlog view was introduced at some point in 2023 and then you were forced to switch to it in the latter part of 2023.

I've managed to still move up an extra field (in my case the fix versions) into the main line, but I can't get rid of the empty space that I moved the line up from, so I'm left with large spacing between each row.

Here's what I did to move up the extra field:

div[aria-label="Fix versions"] {
  position: absolute;
  top: 8px;
  background-color: lightgrey;
  color: black;
  font-weight: 500;
  font-size: 0.9em;
  height: 20%;
  padding: 0 3px 3px 3px;
  margin: 3px;
  border-radius: 3px;
}

div[data-testid="software-backlog.card-list.card.card-contents.card-container"] div:has(div[aria-label="Fix versions"]) {
  justify-content: flex-end;
  width: 63.1%;
}

Anyone have any ideas? I've tried loads of things (setting line-height and stuff).
