eMail items that are Done based on the status of the item and the status of a specific subtask

Maarten Verreck

I want to notify our release team that items are ready for them to process.
The criteria are:

• The story or Bug must have the status Done.
• One specific subtask that contains release info needs to have the status Done to.
  This subtask has the summary Gereed maken voor KIR-team.

The mail I send contains a table with the following info.

• Issue Key, Issue Name
• Release package number (customfield_10066)
• The description field of the Gereed maken voor KIR-team subtask
• The links to the attachements in the Gereed maken voor KIR-team subtask

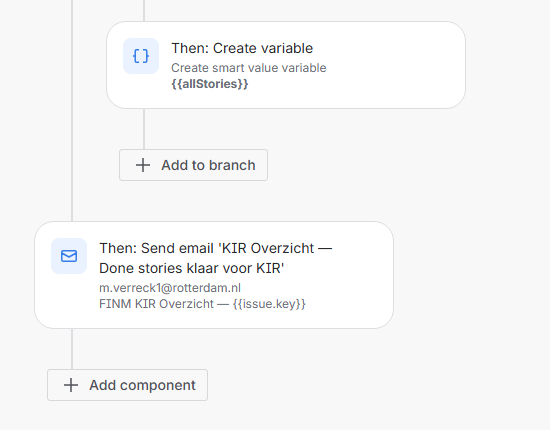

I have got two variations working. One sends a mail when a story or bug is done. The other one runs a query once a week and sends a mail per story or bug that has transitioned to Done in the past 7 days.

Now my problem. I only want to trigger the mail when both criteria are correct. But my automation only looks at the criterium that the story is Done.
When the Gereed maken voor KIR-team item is Canceled the mail is still send.

What am I doing wrong?

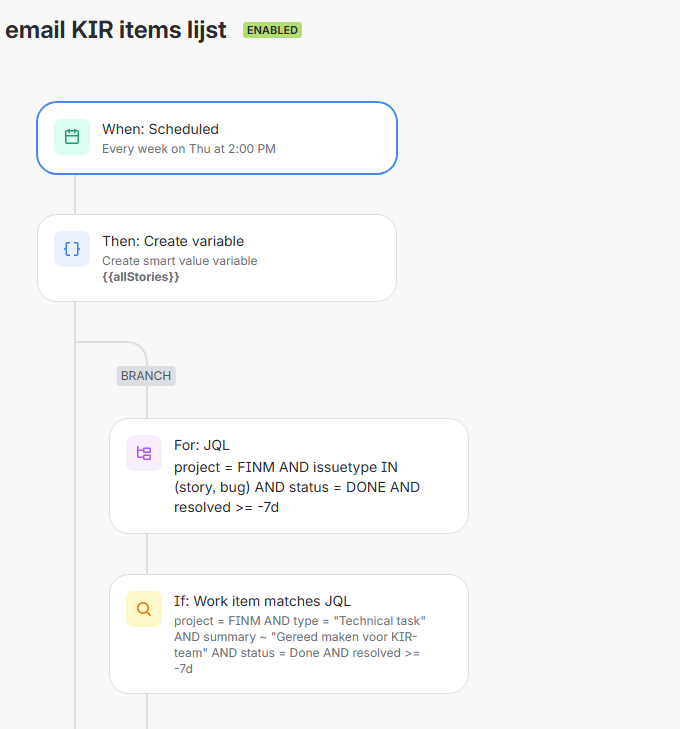

JQL search When Scheduled

project = FINM AND issuetype IN (story, bug) AND status = DONE AND resolved >= -7d

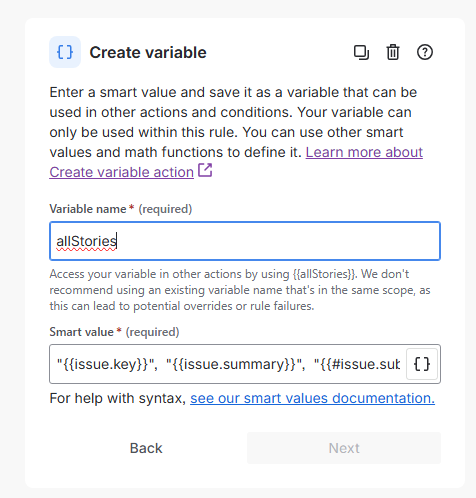

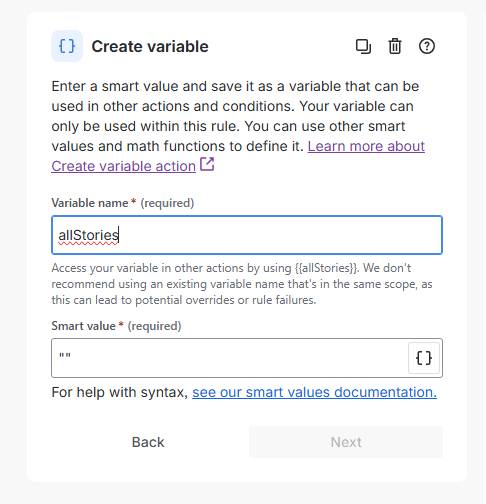

Query variable 2:
"{{issue.key}}", "{{issue.summary}}", "{{#issue.subtasks}}{{#if(equals(summary,\"Gereed maken voor KIR-team\"))}}{{customfield_10066}}{{/}}{{/issue.subtasks}}", "{{#issue.subtasks}}{{#if(equals(summary,\"Gereed maken voor KIR-team\"))}}{{#regexFindAll}}{{description}}(?m)^(\\|.*\\|)$ {{/regexFindAll}}{{/}}{{/issue.subtasks}}", "{{#issue.subtasks}}{{#if(equals(summary,\"Gereed maken voor KIR-team\"))}}{{#if(attachments.size)}}{{#attachments}}{{content}};{{/attachments}}{{else}}NVT{{/}}{{/}}{{/issue.subtasks}}", "{{#issue.subtasks}}{{#if(equals(summary,\"Gereed maken voor KIR-team\"))}}{{url}}{{/}}{{/issue.subtasks}}"

Marc -Devoteam-

Hi @Maarten Verreck

I assume the JQL you provided is in the scheduled trigger then use a branch action for sub-task, then you can check sub-taks related to the trigger issues.

Also if you want to email based on the sub-taks, it needs to be in the branch.

An email action outside th branch is based on the main flow of the automation.

A note: a branch action runs parallel from the main flow of the automation, so what happens in a branch can only be used in the branch.
