Jira Automation rule is not functioning

HQRAZAHS

Hello Folks.

I am working on a company-managed project. I have created one custom fields 'percentage completion' for Epics which will show the progress of epics (depends on the task status to Done). The tasks are the child of epics in my project.

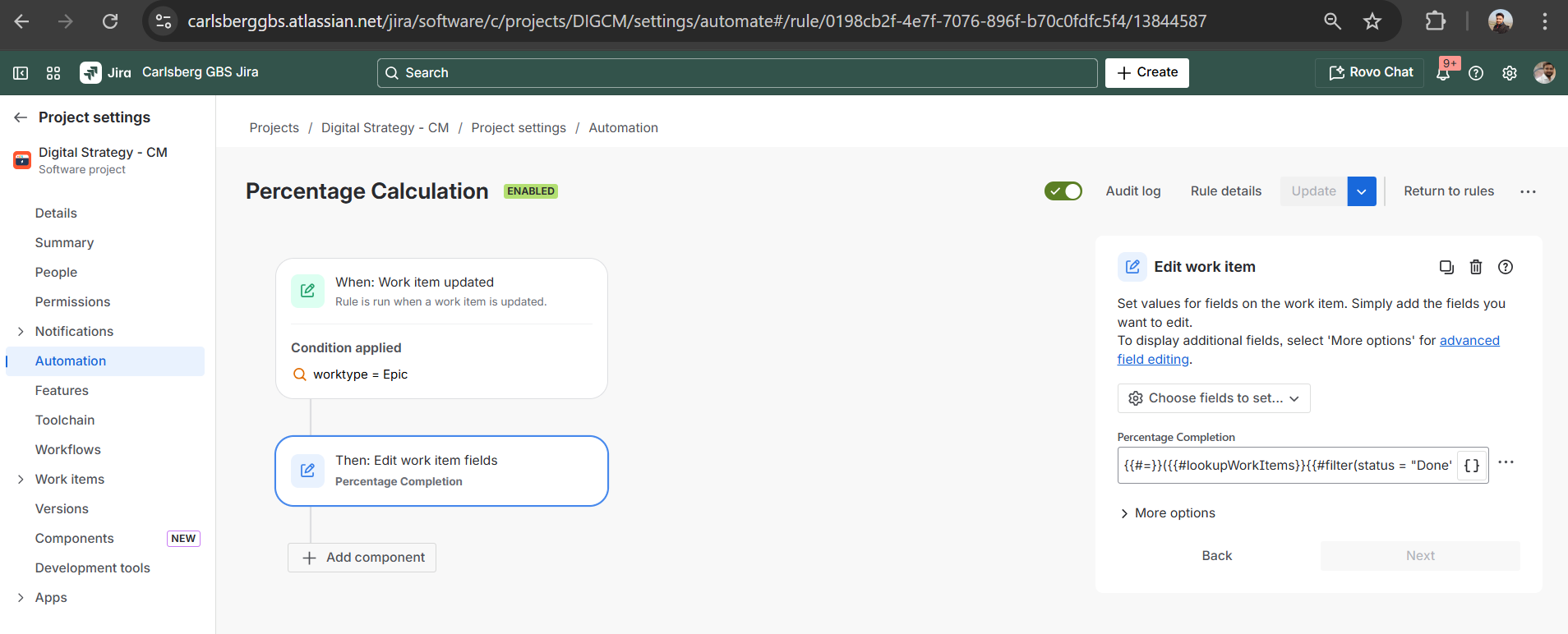

To manage this setup, I am using Jira automation rule. I create the rule and using the template {{#=}}{{#lookupWorkItems}}{{#filter(status = "Done")}}{{/}}{{size}}{{/}} / {{lookupWorkItems.size}} * 100{{/}}. The screenshot below shows my rule setup.
Rule setup.png

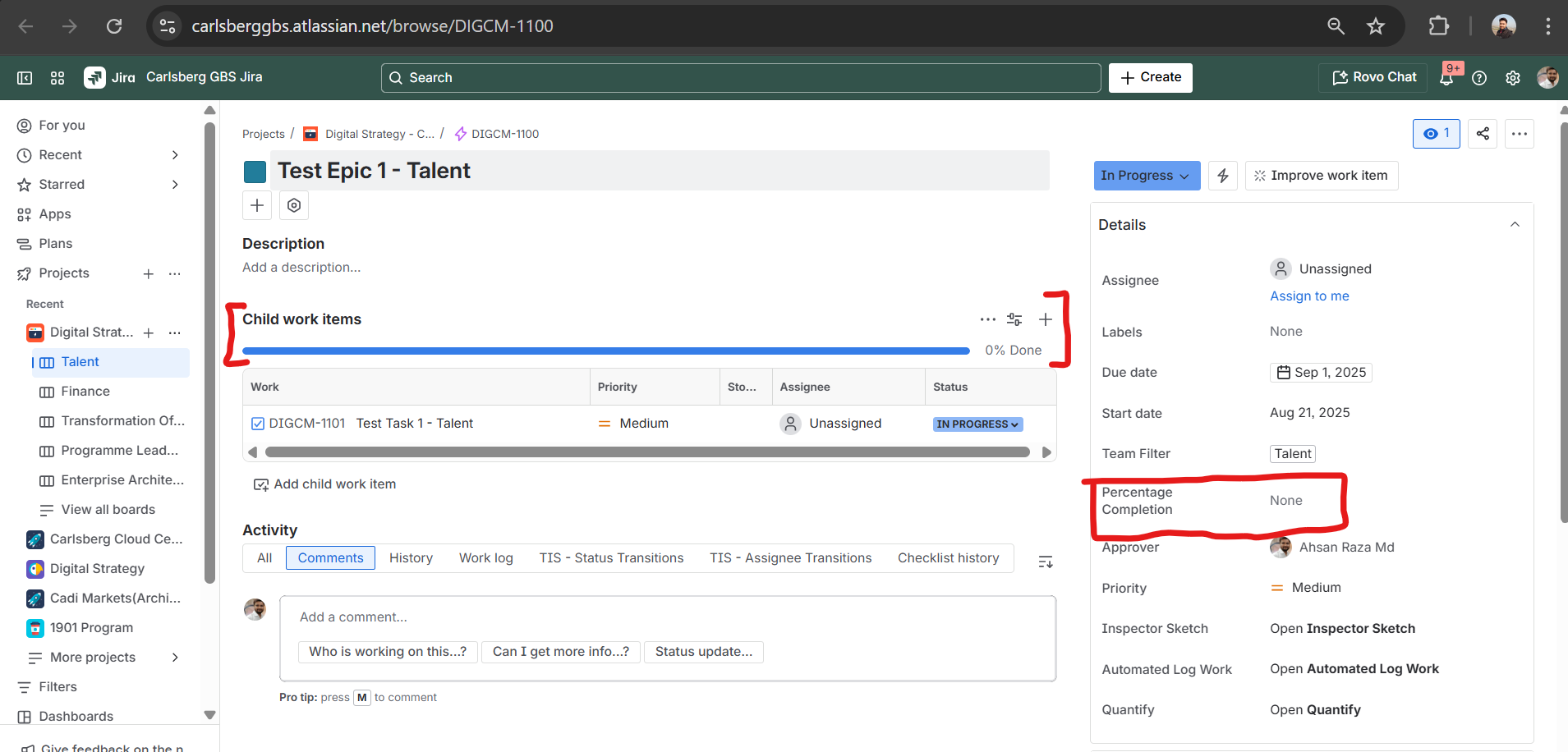

After I enable/activate the above rule, I see the epic percentage is getting calculated in the main page. But the problem is, I don't see the same value populated in the custom field 'percentage completion' at the side panel. See the screenshot below.

Jira view.png

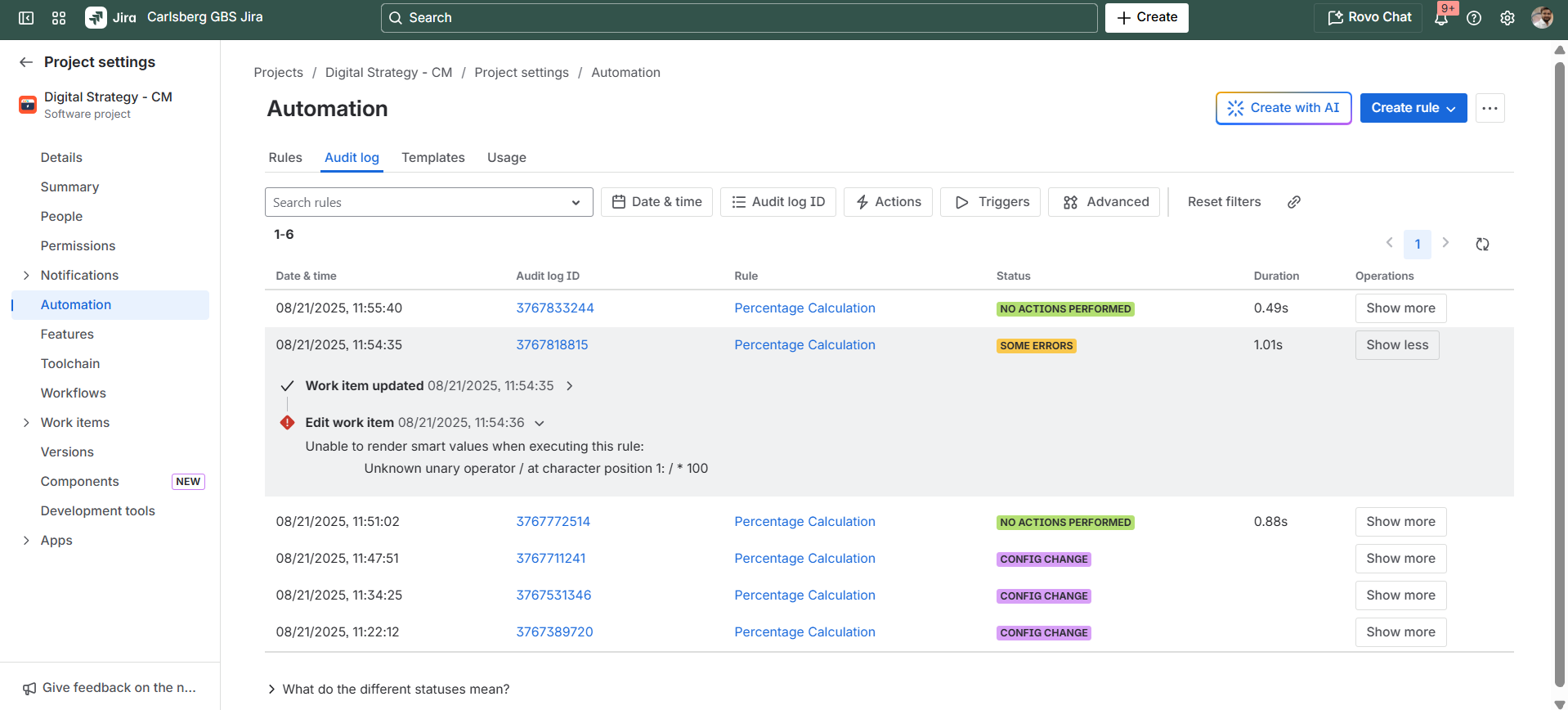

I checked for logs and I get this.
image (10).png

After this error log, I used the below template. Added parenthesis (***).
{{#=}}({{#lookupWorkItems}}{{#filter(status = "Done")}}{{/}}{{size}}{{/}} / {{lookupWorkItems.size}}) * 100{{/}}

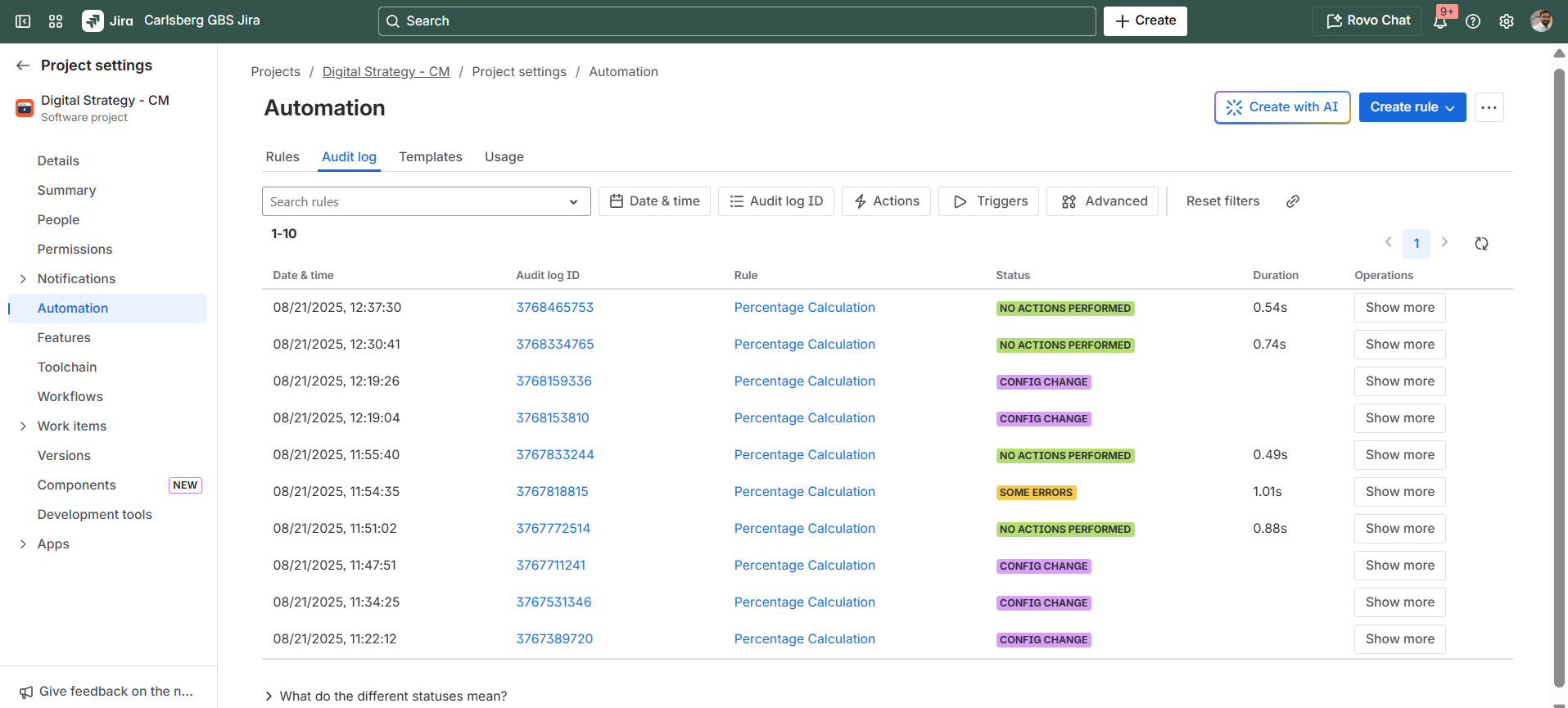

Still the %age competition was not displayed in the side panel. In addition to this I am not getting the error logs anymore which is a hint that the rule is not even getting triggered. Here is the latest screenshot of the error log page.

Audit Logs updated.png

I hope I gave all the required information, but still i anything else is required please let me know and I will share. All I want is - the %age completion should also show in the custom field of side panel.

IMPORTANT NOTE - If I manually enter the %age calculation while creating an epic, I see the value on the side panel.

Accepted answers

Bill Sheboy

Hi @HQRAZAHS

First thing: what source are you using for the smart value expression you tried for the percentage value?

I ask, as there are many unsupported and incorrect things in that expression. I recommend not using that source, and instead refer to the documentation from Atlassian for smart values: https://support.atlassian.com/cloud-automation/docs/jira-cloud-automation/

Next, to use the {{lookupIssues}} smart value the rule must first use the Lookup Work Items action. Otherwise, there is no data in the smart value.

And so an example rule to update an Epic custom field Percentage Complete when a child work item transitions status would be this:

trigger: work item transitioned
condition: issue type is one of Story, Task, Bug (or whatever your child types are)
condition: parent field is not empty
action: lookup work items, with JQL of
- parent = {{issue.parent.key}}
branch: to parent
- action: edit work item, setting the Percentage Complete to this smart value expression

{{#=}}ROUND( ( 0{{#lookupIssues}}{{#if(equals(status.statusCategory.name,"Done"))}}+1{{/}}{{/}} ) / {{lookupIssues.size|0}} * 100, 0){{/}}

How that works is:

iterate over the child work items
filtering them for ones in a "Done" status category
and adding +1 to the result
with a 0 at the front as a default value
wrapping that in parentheses to create the sum count
dividing that by the total number found (i.e., the size of the list)
multiplying that by 100
rounding to 0 decimal places
finally wrapping all of that in a math expression

That will calculate the percentage by count of items. When instead one wants the percentage by the Story Point values, this would work:

{{#=}}ROUND( ( 0{{#lookupIssues}}{{#if(equals(status.statusCategory.name,"Done"))}}+{{Story points|0}}{{/}}{{/}} ) / {{lookupIssues.Story points.sum|0}} * 100, 0){{/}}

Finally, other cases...

Several things could impact the accuracy of the percentage complete. And thus either one needs to create multiply rules to calculate the value, or use a single rule with a Scheduled Trigger to periodically calculate the value. Those cases include at least these:

When the child work item of an Epic transitions status, update the Epic's percentage
When a child's Story Points change, ...
When a new child is created and added to an Epic, ...
When an existing child is added to an Epic, ...
When an existing child is removed from an Epic, update the previous parent Epic's field
When a child changes to a new parent, update both Epics
When a child work item is deleted, update the previous parent
When a child work item's type changes, update the Epic(s) when necessary
When someone manually tampers with the percentage in the Epic, recalculate it
When there is an Atlassian outage preventing rules from running, they may not all trigger later. As a precaution, create a Scheduled Trigger rule which will update all relevant Epics.
etc.

Some of these cases may be combined to reduce the number of rules.

Kind regards,
Bill

All comments

Jeroen Poismans

Hi!

I might be overlooking something, but before I'm testing further, could it be that your rule is missing a step? You are referencing lookupWorkItems, but I dont' t see the lookup step?

Screenshot 2025-08-21 104647.png

Can you start by confirming this?

Jeroen Poismans

Anyway,

Here is what the lookup should look like:

Screenshot 2025-08-21 105504.png

Also, use the lookupIssues smartvalue when referencing the search result, lookupWorkItems did not work in my example.

Let me know how this goes.

Duc Thang TRAN

Hello @HQRAZAHS

If your goal is to see the % completion of child issues in a custom field of an Epic, you need to use smart values in the Lookup Issues action in order to retrieve that.

First, use Lookup Issues to get all child issues that are done

parentEpic = {{triggerissue}} and statusCategory = done

then create a variable a = {{lookupIssues.size}}

Second, use Lookup Issues to get all child issues

parentEpic = {{triggerissue}}

then create a variable b = {{lookupIssues.size}}

For the Edit Issue action, if your field percentage completion is a numeric field, here is a smart value: {{#=}} ({{a}} / {{b}}) * 100 {{/}}

If it is a text field: {{#=}} ({{a}} / {{b}}) * 100 {{/}}%

2025-08-21 11_31_28-Audit log - Automation - Admin Jira - Test - Jira — Mozilla Firefox.png

Stephen.Lugton

Hi @HQRAZAHS

As well as looking at the comment from @Jeroen Poismans , you could also consider using .multiply(100) rather than '* 100', and similarly for divide use .divide(lookupIssues.size):

See https://support.atlassian.com/cloud-automation/docs/jira-smart-values-math-expressions/ for other maths functions

HQRAZAHS

@Duc Thang TRAN Is this correct? I still do not see the expected result unfortunately.

Part 1.png

Part 2.png

Part 3.png

HQRAZAHS

I am gettin this error log @Duc Thang TRAN

Error Log.png

HQRAZAHS

@Jeroen Poismans I pasted my new setup in my previous response to Duc. Could you please review and advise. I am using lookupIssues this time.

Duc Thang TRAN

@HQRAZAHS

I think your smart value {{triggerworkitem.key}} don't work

try with {{triggerissue}}

Bill Sheboy

Hi @HQRAZAHS

First thing: what source are you using for the smart value expression you tried for the percentage value?

Next, to use the {{lookupIssues}} smart value the rule must first use the Lookup Work Items action. Otherwise, there is no data in the smart value.

And so an example rule to update an Epic custom field Percentage Complete when a child work item transitions status would be this:

trigger: work item transitioned
condition: issue type is one of Story, Task, Bug (or whatever your child types are)
condition: parent field is not empty
action: lookup work items, with JQL of
- parent = {{issue.parent.key}}
branch: to parent
- action: edit work item, setting the Percentage Complete to this smart value expression

{{#=}}ROUND( ( 0{{#lookupIssues}}{{#if(equals(status.statusCategory.name,"Done"))}}+1{{/}}{{/}} ) / {{lookupIssues.size|0}} * 100, 0){{/}}

How that works is:

iterate over the child work items
filtering them for ones in a "Done" status category
and adding +1 to the result
with a 0 at the front as a default value
wrapping that in parentheses to create the sum count
dividing that by the total number found (i.e., the size of the list)
multiplying that by 100
rounding to 0 decimal places
finally wrapping all of that in a math expression

That will calculate the percentage by count of items. When instead one wants the percentage by the Story Point values, this would work:

{{#=}}ROUND( ( 0{{#lookupIssues}}{{#if(equals(status.statusCategory.name,"Done"))}}+{{Story points|0}}{{/}}{{/}} ) / {{lookupIssues.Story points.sum|0}} * 100, 0){{/}}

Finally, other cases...

When the child work item of an Epic transitions status, update the Epic's percentage
When a child's Story Points change, ...
When a new child is created and added to an Epic, ...
When an existing child is added to an Epic, ...
When an existing child is removed from an Epic, update the previous parent Epic's field
When a child changes to a new parent, update both Epics
When a child work item is deleted, update the previous parent
When a child work item's type changes, update the Epic(s) when necessary
When someone manually tampers with the percentage in the Epic, recalculate it
When there is an Atlassian outage preventing rules from running, they may not all trigger later. As a precaution, create a Scheduled Trigger rule which will update all relevant Epics.
etc.

Some of these cases may be combined to reduce the number of rules.

Kind regards,
Bill

HQRAZAHS

@Bill Sheboy Finally I have something in the Percentage Completion custom field in the side panel. I cant thank you enough for this support.. I see the audit logs also and it shows success. See below screenshots.

Audit Logs - Success.png

Jira view success.png

But I do have a question. I notice the expected outcome only for newly created epics. What about the ones which are existing from before? Do I need to do some extra stuff for them?

Bill Sheboy

Earlier I described creating a Scheduled Trigger rule to help when Atlassian has an outage. That rule may also be used to "catch up" existing Epics:

in the trigger, set the JQL to find Epics where that field is empty
structure the rule based on the trigger work item being an Epic, finding its child work items with the lookup
enable the rule, and let it run until caught up
then disable it again...saving it in case of an Atlassian automation outage

HQRAZAHS

@Bill Sheboy can you please give me the rules on some of the other conditions you mentioned in your first comments. For ex. When a new child is created and added to an Epic, When an existing child is removed from an Epic, update the previous parent Epic's field.

Is there any documentation for this?
