Figma smart links not working in Confluence

Michael F_nak8vz

Does anyone have a work around for embedded figma smart links in confluence?

Trying to link a specific figma frame in Confluence displays the top level frame or top page/level frame from the design file not the specific file link that was copy/pasted.

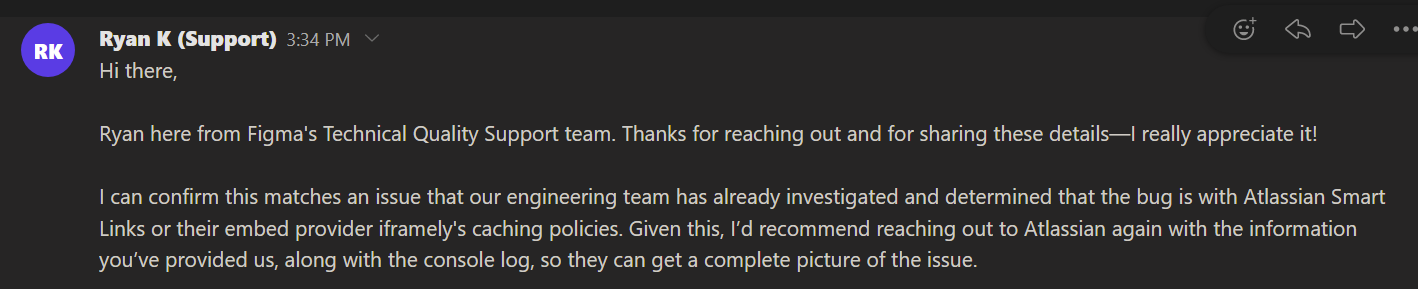

Figma is saying it is a known issue with Atlassian Smart Links.

Kristian Klima_gtcuat

Hi Michael and welcome to the Community.

1. In Figma, click the Share button.
2. Click Get embed code.
3. Copy the embed code.
4. Extract the actual HTML address from the embed code - the blue portion on the screenshot.
5. Drop that HTML into the iframe macro (settings are Width 100%, Height 800 px, Allow full screen).

The screenshot is from a Confluence page in the View mode and I can zoom in/out and enter full screen.

(of course, permissions must be in order)

Hope this helps.
