Automation not showing on Board and Calendar

André Siopa

Hi all,

I didn´t find any solution so maybe you can help.

I´m trying to make an automation rule, on xx day of each month I receive an email and want that rule to show on Board + Calendar.

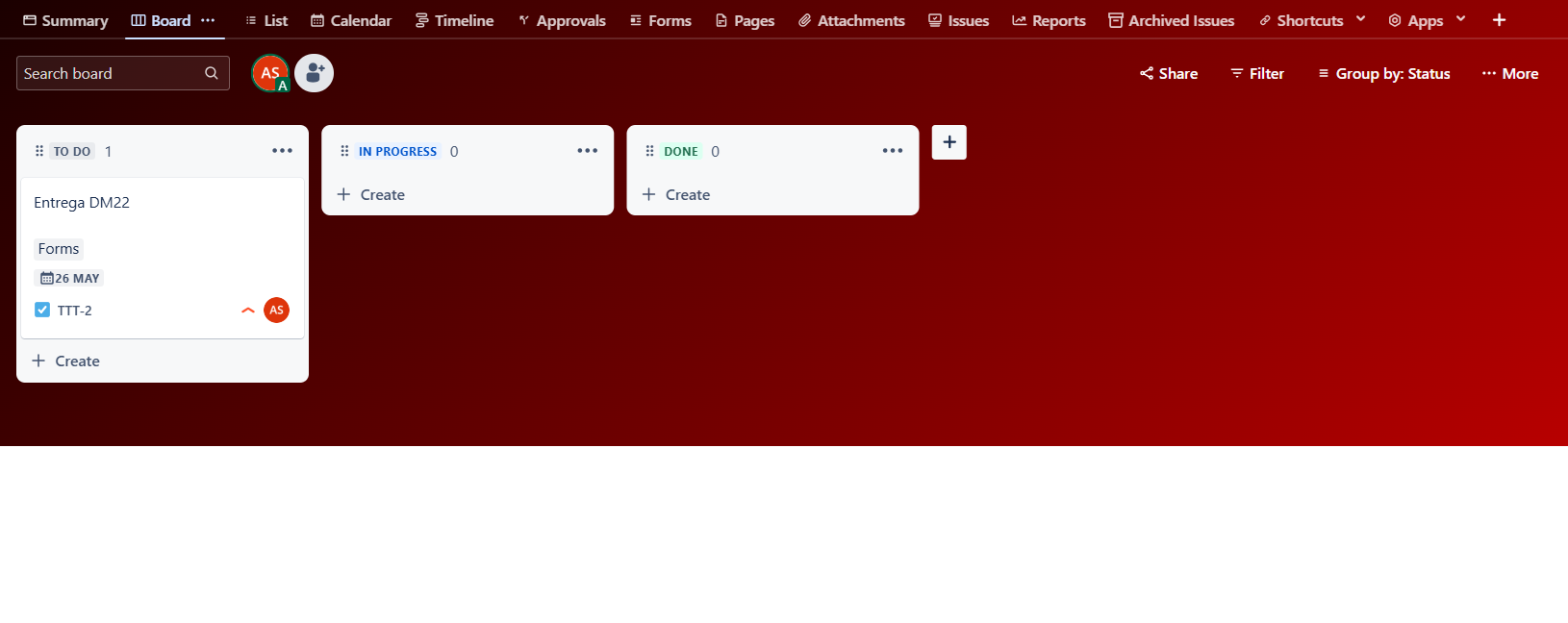

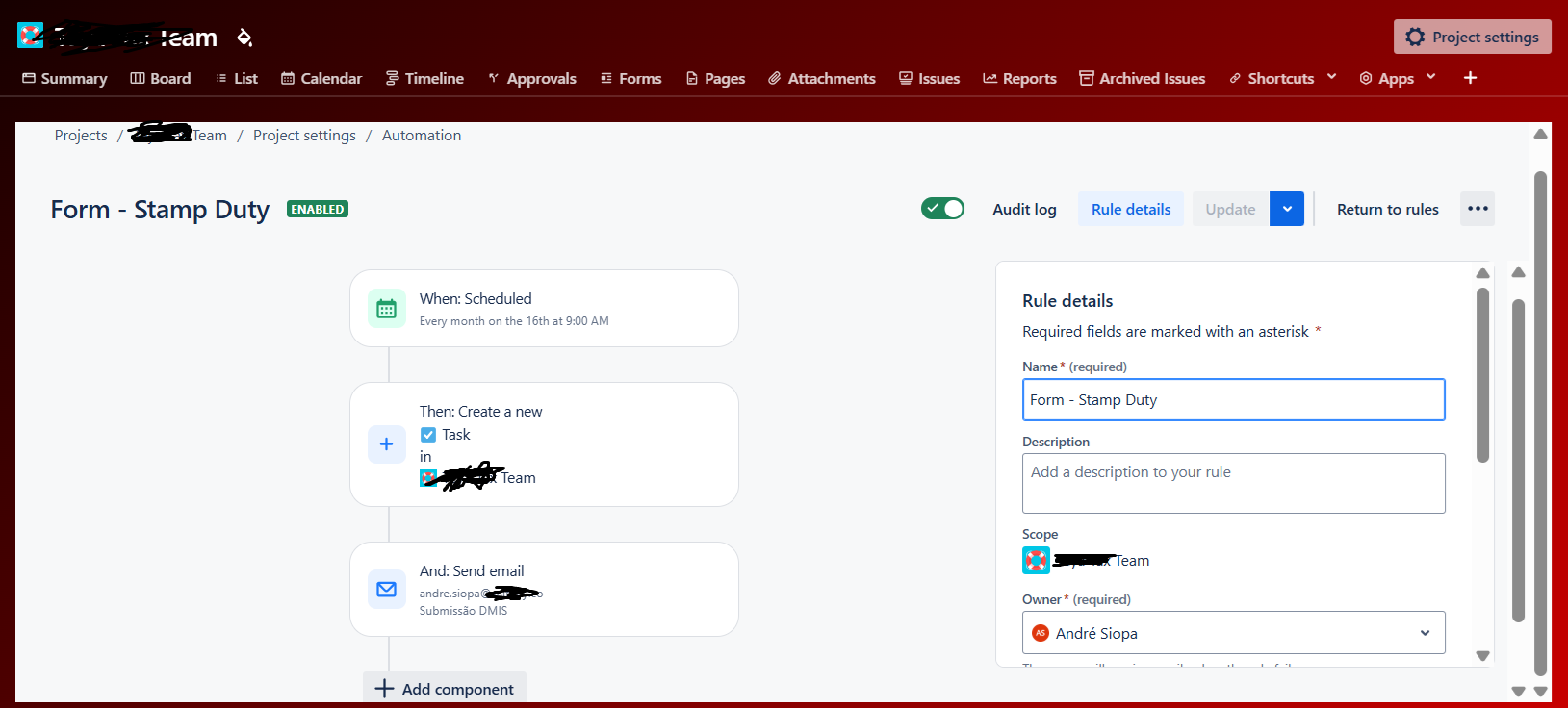

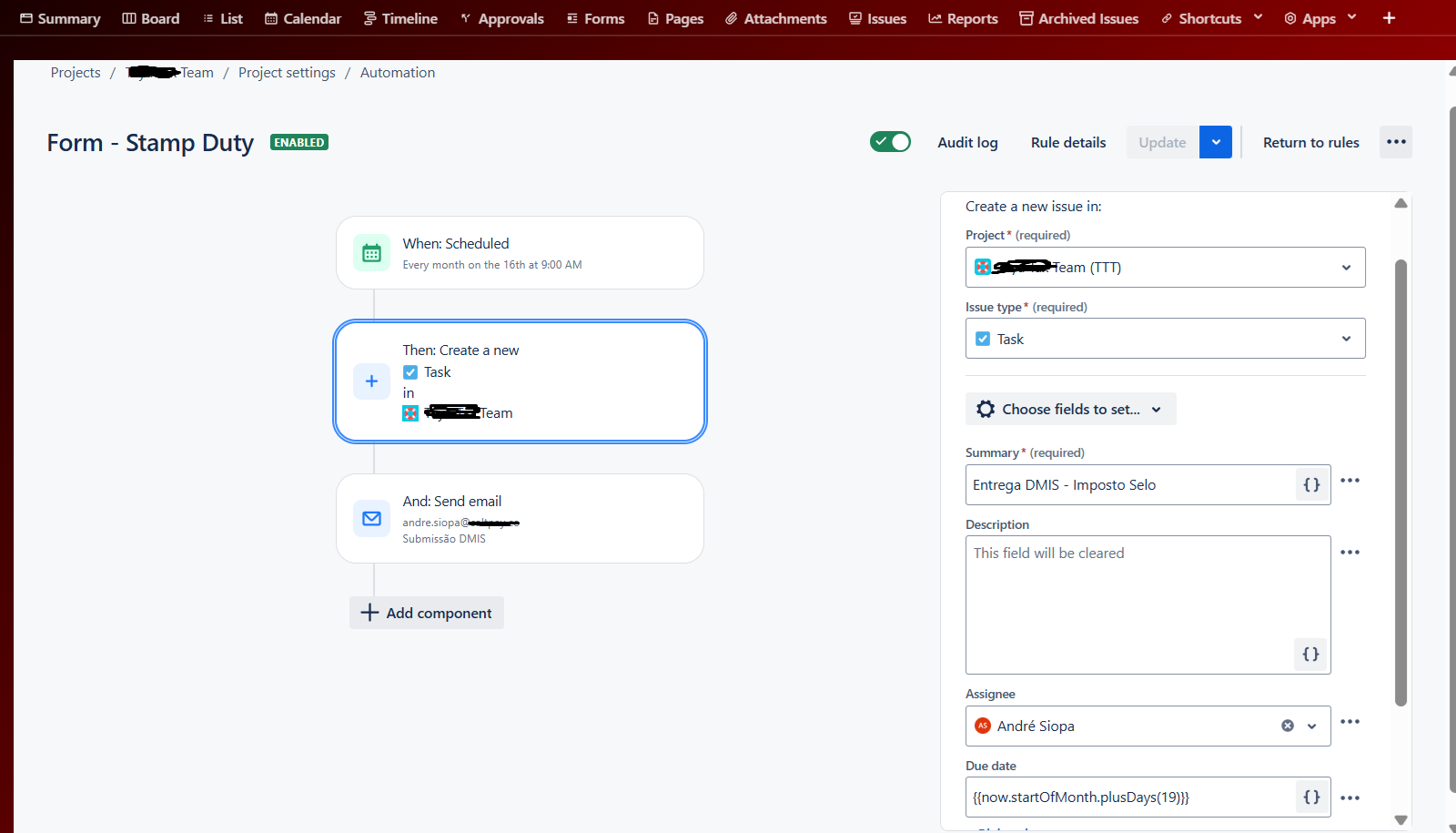

Based on what I find, I created a Schedule, then create a new task and finally the send email (print 1). The problem is that this automation is now showing in the board/calendar (print 2)

I already check, I have no filters and everything is suppose to be "right" so I don´t understand why this is not showing, is there something missing? I have a lot of additional automations to made but want and need to be visible.

Thanks in advance!

Accepted answers

All comments

Bill Sheboy

Hi @André Siopa -- Welcome to the Atlassian Community!

Jira boards are a view of issues based upon the board's filter. Did you ensure your created issue matches the filter so it can display on the board?

Next, there are two additional criteria for displaying issues on the board:

For a Scrum board, the issues must be in the sprint. That does not appear to be the case as you have a Kanban board, correct?
What is your project type: company-managed or team-managed?
- For team-managed projects, issues must be explicitly added to the board from the backlog. For automation created issues, there is an action to Move Issue to Board for this situation. Remember to branch to the most-recently-created-issue before that action.

Kind regards,
Bill

André Siopa

Hi Bill, first of all thanks for the help

I will try to answer since I´m not very good with Jira

Regarding to your first question:

Jira boards are a view of issues based upon the board's filter. Did you ensure your created issue matches the filter so it can display on the board? Do I need to create anything? I thought if I create a simple recurring rule it will show on the board. In my case I create a task inside the project, so I´m assuming I don´t need to create anything else, or am I missing something?

For a Scrum board, the issues must be in the sprint. That does not appear to be the case as you have a Kanban board, correct? You are correct

What is your project type: company-managed or team-managed? Is team managed

For team-managed projects, issues must be explicitly added to the board from the backlog. For automation created issues, there is an action to Move Issue to Board for this situation. Remember to branch to the most-recently-created-issue before that action. It´s a team manager project so I need to add to the board, the problem is I don´t have the backlog option available, I didn´t find in the settings so I´m assuming it will be impossible to add manually right?

KR,
André

Trudy P Claspill

Hello @André Siopa

Welcome to the Atlassian community.

Adding to what @Bill Sheboy said...

Can you navigate to the View All Projects page under the Projects menu and find your project listed there? When you do, what does it say in the Type column for your project.

If you are working with a Team Managed Business project there is not a Backlog option. All issues in scope of the project will display on the board (within the limitations of the board's functionality).

Based on the screen image you provided, specifically to option shown where it says "Group by: Status", I believe you are using a Business project. That option does not appear for other project types' boards.

My next suggestion is for you to review the information generated in the Audit Log for the rule when it executed. The Audit Log screen is accessed by clicking on the Audit Log link at the top of the rule on the right.

Does the audit log have any entries indicating that the rule executed? If so, expand the entry (click Show More), and click all the right-pointing arrows on the right side to expand all the details. Then provide a screen image of what is displayed.

If an issue was actually created the issue key will be shown within those details.

You have specified that the rule run on the 16th of each month. We have not reached the 16th of March yet. Did you run this rule manually?

Bill Sheboy

Thanks for that information. As this is for a team-managed project, you cannot change the filter...which makes a rule like this simpler, although the Move Issue action is still needed to add to the board.

trigger: scheduled
action: create issue, for the new Task
branch: to most recently created issue
- action: move issue, selecting your board
- action: send email
