Board View not showing all Issue Types

daleaceron

New to JIRA.

I have a Team Managed Project.

In the Board View, I cannot see all my Tasks.

I also cannot configure the Board Settings in Project Settings, and the only options I found was to the far right in the ...More option.

In the Workflow option, it allows me to change between 2 options, but I cannot select all to get a high level view of every task I have.

How can I change that?


Trudy P Claspill

Hello @daleaceron

Welcome to the Atlassian community.

You appear to be using a Business/Work Management project. You can double check the project Type by going to the View All Projects page under the Projects menu, finding your project in the list, and looking at the information in the Type column.

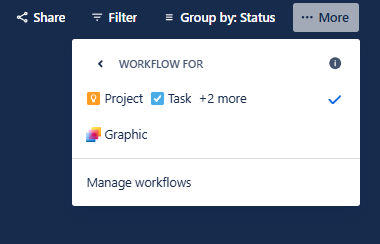

With Business (aka Work Management) projects the capabilities of the board view are different from the board views for Software projects. One item that is different is that Business projects can show the issues associated with only one Workflow at a time. The image you provided indicates that your project has two Workflows; one that applies to the issue type named Graphic, and one that applies to the other issue types.

That is core functionality of the board that is built in to Business projects. It can't be changed.

You could create and save a Filter that selects all the issues in your project, and then create another board (Scrum or Kanban) based on that saved filter. That new board would function like the boards that are created for Company Managed Software projects and be able to show issues that use different workflows all together on the board.

If you need more details around any of the above, please don't hesitate to ask more questions.



On a side note, you may want to consider accessing some of the free training available concerning Jira. There is on-demand training at

https://university.atlassian.com

You can sign up for a free demo here:

https://www.atlassian.com/software/jira/demo
