Customizing Status Overview on the project's Summary page

Andrea Billings

Hello,

I have created two different workflows and added them to one workflow scheme. I have associated it with the desired issue types and the desired project, and everything is working well.

Workflow 1:  Backlog --> Research Phase --> Planning Phase --> Execution Phase --> Monitor

Workflow 2:   Backlog--> To Do --> In Progress --> Done



---



Two questions:

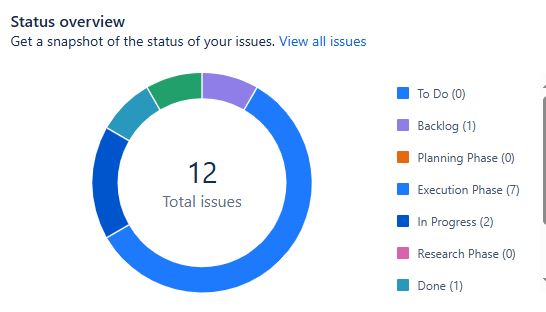

1.  Currently, the status overview section of the project's 'Summary' page shows the two workflows combined in one webpart/widget (see image below).   Is there a way to separate this and see two different "snapshots"?  One with the status' from Workflow #1 and one for the status' of Workflow #2?



2. Can you further customize the project 'Summary' page??



Marc -Devoteam-

HI @Andrea Billings

Welcome to the community.

No this can't be split in a pie for each workflow.

All issues are defined per status. A workaround would be to use separate statuses in each workflow, but this isn't a best practice.

Another solution, you could create a dashboard and use 2 separate pie gadgets and create a filter for each of the pies only containing the issue type related to one workflow and a second one to the other workflow and view by status in the pie's.
